My Radios


Home Brew CLICK HERE (opens in a new window)

Repairs and Modifications CLICK HERE (opens in a new window)

Rare Radio Photographs CLICK HERE (opens in a new window)

H F / VHF MAIN RADIO
Icom 706 MK 2 HF / 6 / 2 Multimode 100  / 20 Watts (Variable)
Thanks to Keith 0-30 MHz
50MHz
144 MHz
Kenwood TM 742E 2 / 70 / 23 cms 50w/35w/10w/5w/1w
Comet GP98 (2/70/23)

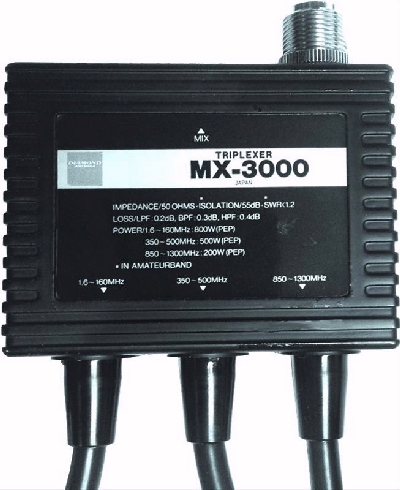

MX 3000
Unispectra s-400 coax

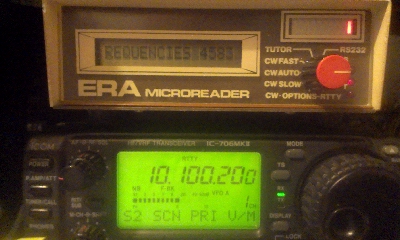

Era Microreader Version 2.5
Currently decoding weather Thanks to Keith

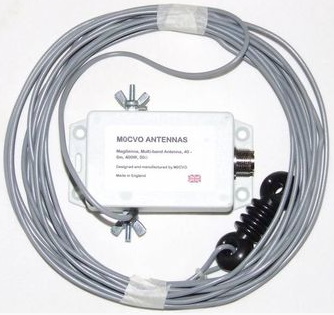

MFJ 914 D Antenna Tuner
0 - 30MHz for the Magitenna
Manual Tune
Blue LED
ICOM IC207H 2/70 Mobile 50/35 Watts
Thanks to Steve Bedroom Shack

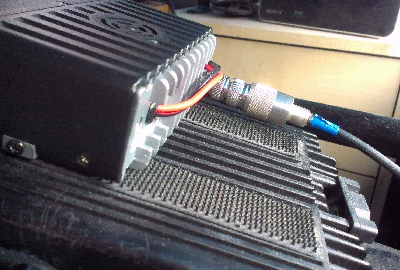

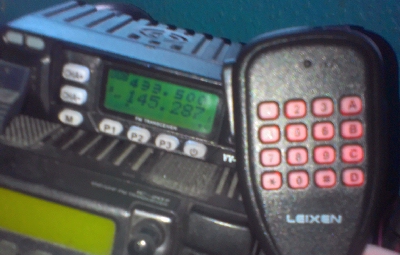

LEIXEN VV 898 2/70 Mobile 10/4 Watts 199 programmable channels


Very Sensitive Receive

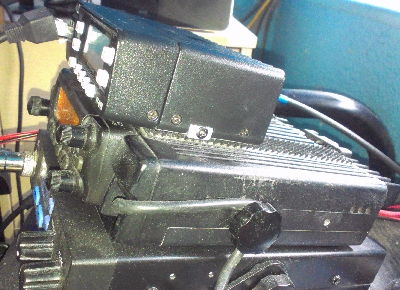

Above - The Leixen sits on top of an
Icom IC-207 to show size comparison

Programming with the software
and cable makes it easy
Wouxun KG UV950P Quad Band Mobile Radio Used with
10m/6m/2m/70cms
10w/45w/45w/35w
HH9000
Mobile Antenna



OTHER SHACK

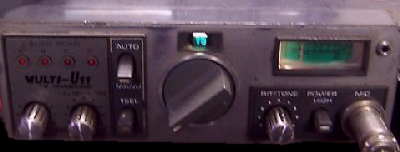

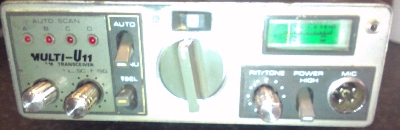

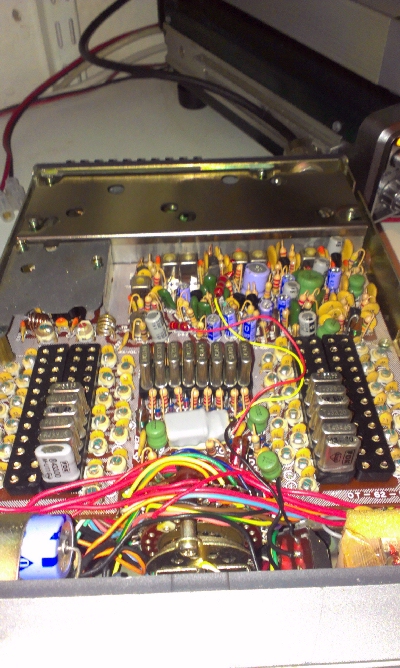

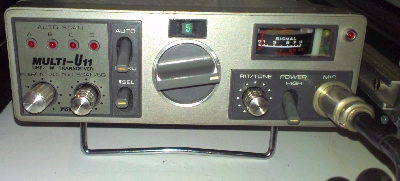

FDK Multi U11 Crystal Controlled 70cms Mobile   10 / 1 Watts Used 2nd radio to improve 1st



New signal / RF meter fitted
Scan Channels

4 channels fitted
433.400
433.450
433.500
433.550

Crystal Channels
2, 4, 6, 10, 11, 12, 13, 14, 15, 16

CH2 = RB2, CH 4 = RB4 etc
N.B. CH16=RB0

  crystals

Added more Crystals




1. grnd 2. mic
3. tx 4. grnd

FDK Multi U11 Crystal Controlled 70cms Mobile   10 / 1 Watts Another one

Scan Channels

2 channels fitted
433.450
433.500

Crystal Channels
 2, 4, 6, 10, 14, 16

CH2 = RB2, CH 4 = RB4 etc
N.B. CH16=RB0
  CRYSTAL Conversion details

TX = Freq / 24 = Crystal
RX = Freq - 397.7 /3 = Crystal
(Thanks Jim, G4DZL)
Room for 23 switched Channels
and 4 scan channels

External VFO option
(but don't ask me how)

DIGITAL
Yaesu FT70DE Dual Band Fusion / Analogue   5/2/200mW
YSF Fusion / Analogue
Thanks to Jon
  Monitoring via Jumbospot

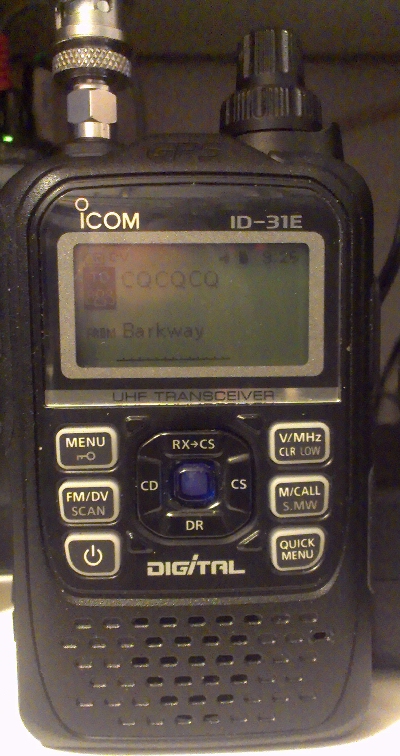

Icom ID 31E 70Cms D-Star / Analogue   5/2.5/0.5/0.1 Watts Homebrew programming
Digital and Analogue
Thanks to Stuart

Monitoring DCS 005 B
with a DV4MINI RASPBERRY PI


TYT MD380 70Cms DMR / Analogue   5W / 1W
Monitoring 2350
with a DVMEGA BlueStack
  TYT TOOLZ
Custom Firmware
2019-01-23 MD380

RADIODDITY GD-77 2/70 DMR / ANALOGUE   5W  / 1W
Monitoring 2350
with a DVMEGA BlueStack / JumboSpot
  Firmware
OpenGD77

MMDVM JumboSpot Raspberry PI Zero W + Pi-Star   10mW personal hotspots
    C4FM - DMR - D-STAR
DVMEGA BlueStack Controlled by
ANDROID PHONE
  Firmware v3.26
DV4MINI RASPBERRY PI Controlled by
WITH TOUCHSCREEN
and VNC
  DV4MINI v1.77
COMPACT
RPI IMAGE

4 METRES
Anytone AT 5189 4 metres 25 watts / 10 watts
On dedicated antenna   Monitoring
70mhz parrot repeater

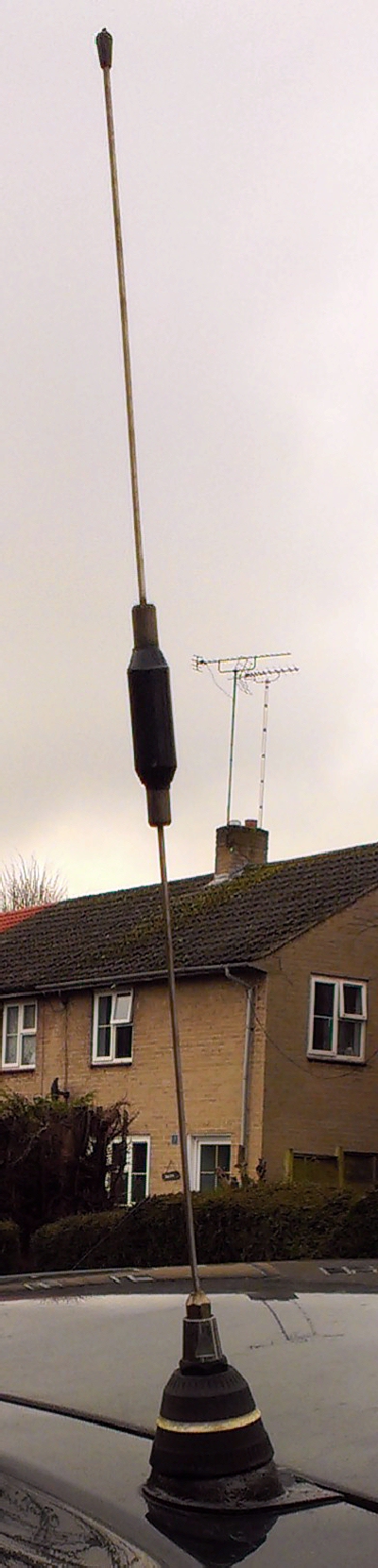

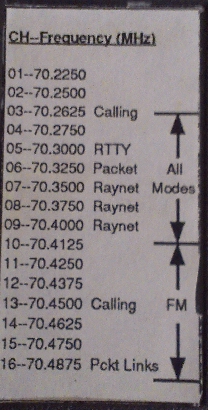

Motorola Lancer 16 channel Ex PMR Handheld (5 Watt) ch freq Sandpiper 4M BNC

*
Tait T525 is on these channels
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
70.2250
70.2500
70.2625
70.2750
70.3000
70.3250
70.3500
70.3750
70.4000
70.4125
70.4250*
70.4375*
70.4500*
70.4625*
70.4750
70.4875

1/4 unef  BNC Adaptor

HT220/MT500 Sp Mic

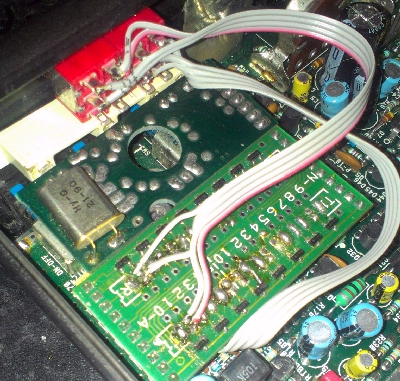

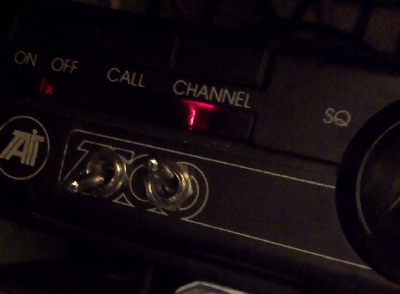

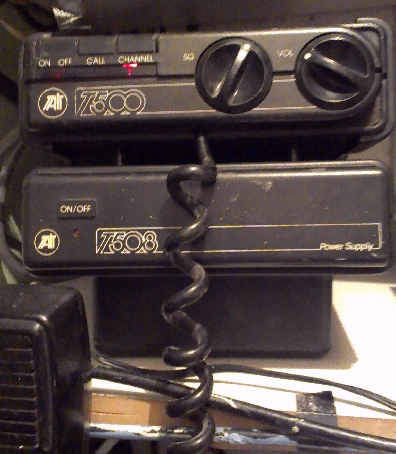

Tait T525 & Tait T508 4 Channel Ex PMR Mobile (20 Watts) ch freq Now 4 Channels
diode matrix linked and switched


Added power control on the front
see here

1
2
3
4






70.4250
70.4375
70.4500
70.4625

mod details >see here

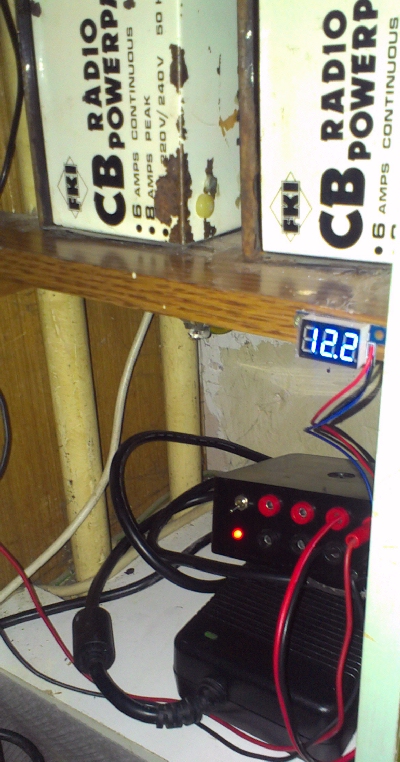

Now running on its own P.S.U

monitoring the MB7FM repeater
at St. Leonards

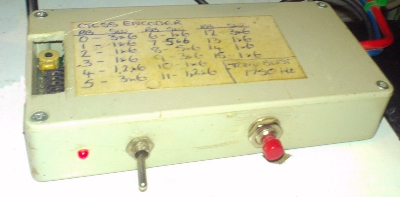

CTCSS unit now fitted

Motorola GM350 128 Channel Low Band EX PMR   25 Watts
70.0 - 70.5 Mhz
12.5 Khz Spaced Channels
  CTCSS Programmable Built in 'front facing' speaker

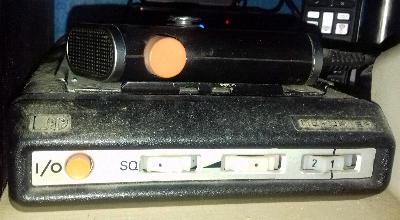

PYE REPORTER 6 Channel Crystal Controlled   5 Watts AM
70.26 Mhz AM
6 METERS

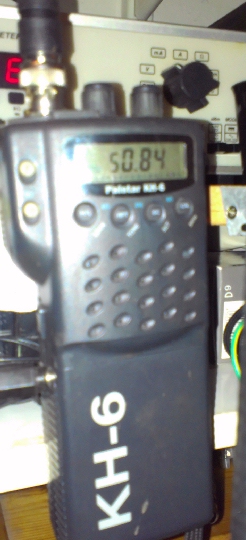

Palstar KH6 6m FM Handheld   4 / 1 Watts
TX/RX 50 - 54 MHz (5/10 KHz steps)

Currently Listening on
51.51 MHz (FM Calling Frequency)
or 50.84 MHz (GB3AM)

  6M FM Channels
APRS / PACKET
Tait T535 Ex PMR   10 Watts Packet / APRS on 144.800MHz
2 Channel Diode matrix programmable   mic removed and
rerouted wires to
rear for APRS
Added power control on the front
see here

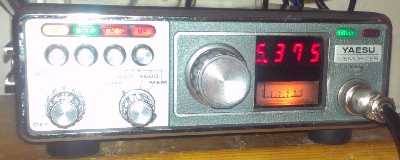

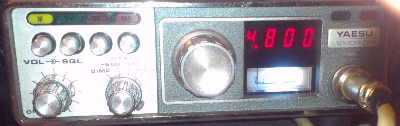

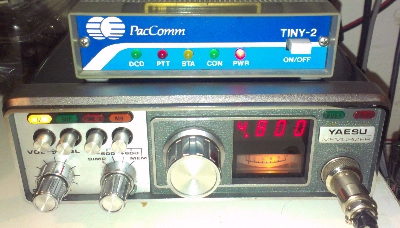

Yaesu FT 227R 2m FM   10 / 1 Watts
The 'Memorizer'
Solid Packet Radio
  Acquired a replacement

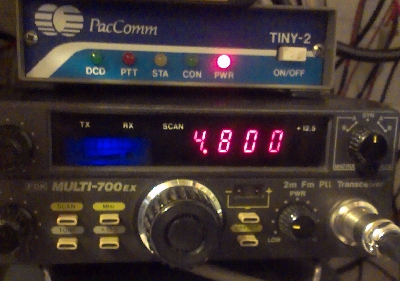

PACCOMM TINY 2 MK2 TNC Packet Controller
APRS / WEATHER VIA UI-VIEW   See the APRS Page
for more details

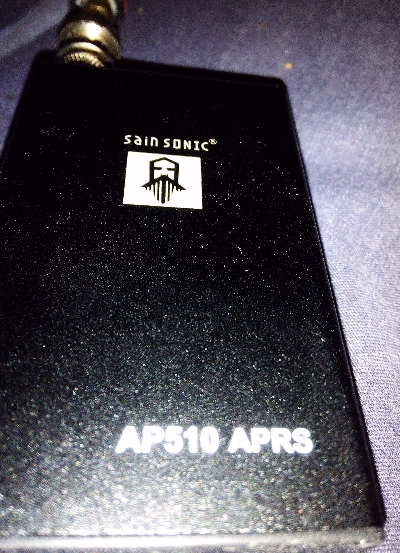

Sainsonic AP510 APRS TNC   1 Watt / 0.5 Watt
Built in APRS TNC and GPS
HANDHELDS

Icom IC2 GXET

2m FM Handheld   7 / 1 Watts Interface

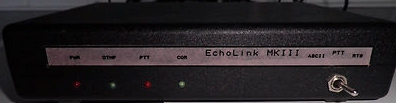

Echolink via an Echolink MK3 interface

link >>> MB7IWG <<< link

145.2875 MHz  CTCSS 82.5 Hz

Set to 1.5 Watts output

  2m FM

See 'Echolink' page
for more details

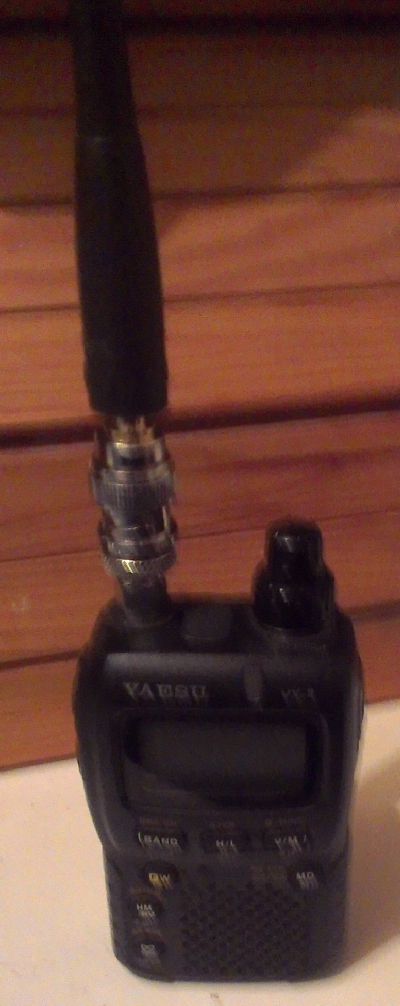

Yaesu VX-2 2 / 70 Dual Band FM Handheld 3 / 1.5 Watts New BNC Adaptor
RX Coverage Bands (AM FM WFM)
Shame it doesn't do SSB

504 KHz - 1.791 MHz
1.8 MHz - 29.9 MHz
30.0 MHz - 87.9 MHz
88.0 MHz - 107.9 MHz
108.0 MHz - 136.975 MHz
137.0 MHz - 173.9 MHz
174.0 MHz - 221.9 MHz
222.0 MHz - 419.0 MHz
420.0 MHz - 469.9 MHz
470.0 MHz - 802.9 MHz
803.0 MHz - 998.9 MHz

Menu 43 - Steps
Menu 34 - RX Mode

TX 144-148 & 430-440 MHz
Still Programming !

You can store
over 1000
frequencies
in this thing
OMG

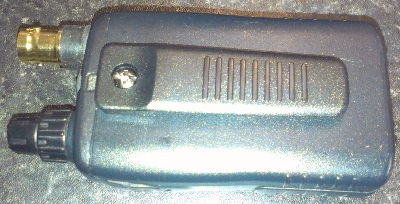

Need a new belt clip?

BC24 Original Belt Clip for Baofeng UV-3R UV-100 UV-200

I can now confirm this clip is a perfect fit
See Picture >>>>

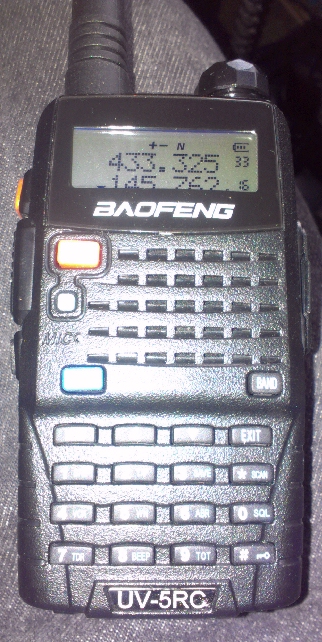

Baofeng UV 5RC 2/70 Dual Band FM Handheld   4 / 1 Watts
RX
 65-108, 136-174 & 400-470 MHz

TX
144-148 & 430-440 MHz

  Handy for local work
Also have UV-B5

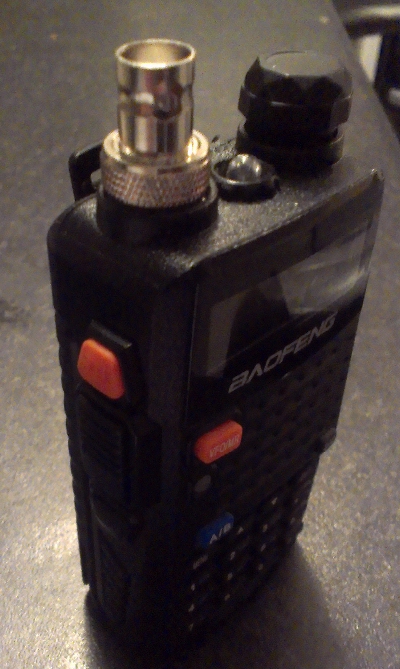

Better BNC Adaptor
Baofeng UV 5R (YELLOW) 2/70 Dual Band FM Handheld   4 / 1 Watts
RX
 65-108, 136-174 & 400-470 MHz

TX
144-148 & 430-440 MHz

  I Just love the colour Update
I now have Red, Blue
Black and Camouflage too
Alinco DJ-G 5E 2 / 70 Dual Band FM Handheld 5 / 3 / 1 Watts
Using a Yaesu MH12 A2B Speaker Mic

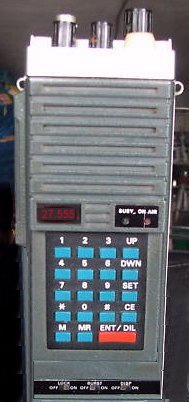

Yaesu FT 207R 2 Meter FM Handheld   2,5 Watts / 0.2 Watts
12.5KHz steps Synthesised     My thanks to Steve
Yaesu FT 109R 1.5 Meter FM Handheld   4 / 1 Watts
? I would like one for my collection   Purely for display
to make a matching set
NOT IN USE

DISPLAY ONLY

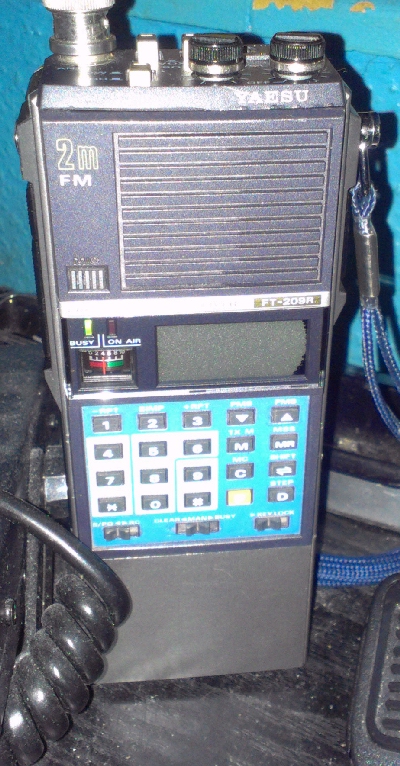

Yaesu FT 209R 2 Meter FM Handheld   3.5 / 1 Watts
144-146 MHz

Monitoring Echolink 145.2875 Mhz

NOW FITTED WITH FTS-6
Tone Squelch

  Added to collection

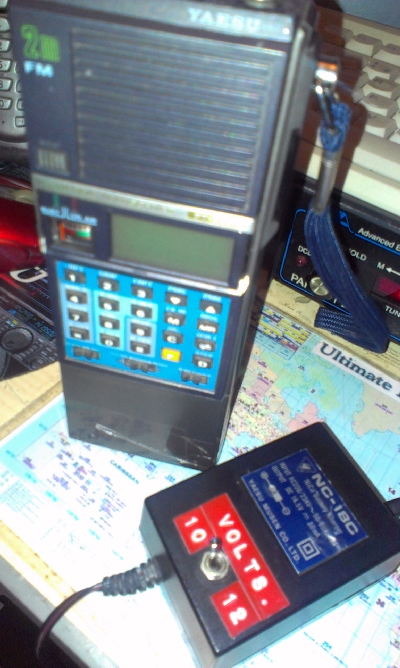

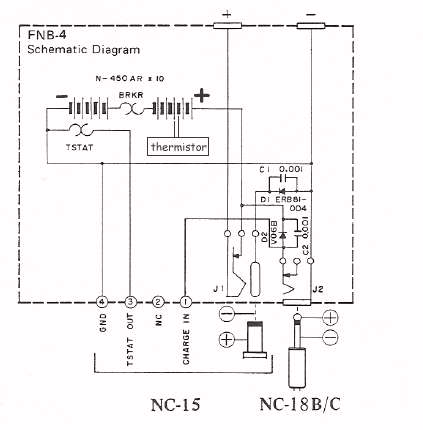

Radio on right shown
with a modified
NC-18C charger
for either the
FNB3 10.8v
or FNB4 12v battery

Yaesu FT 709R 70cm FM Handheld   4 / 1 Watts
430-440 MHz

Currently Listening to repeaters

  Battery Pack

Replaced NiCad's

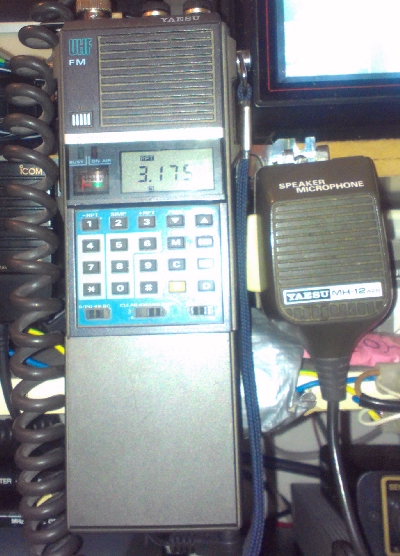

The 709R with

MH-12 a2b speaker mic

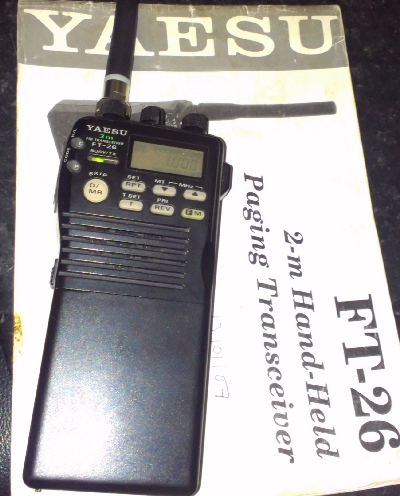

Yaesu FT 26 2 Meter FM Handheld   5 / 3 / 1.5 / 0.5 Watts
Just for my collection

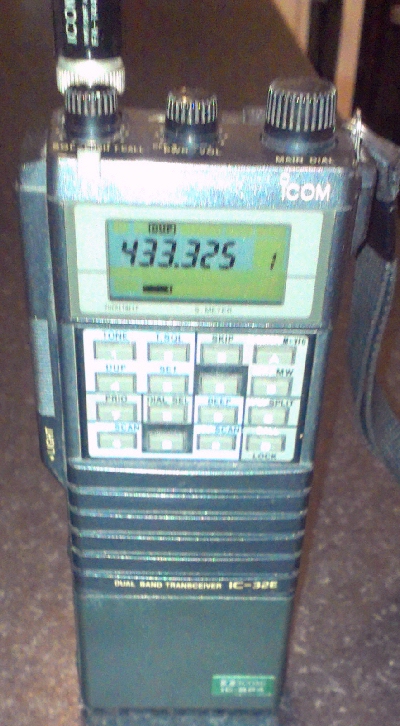

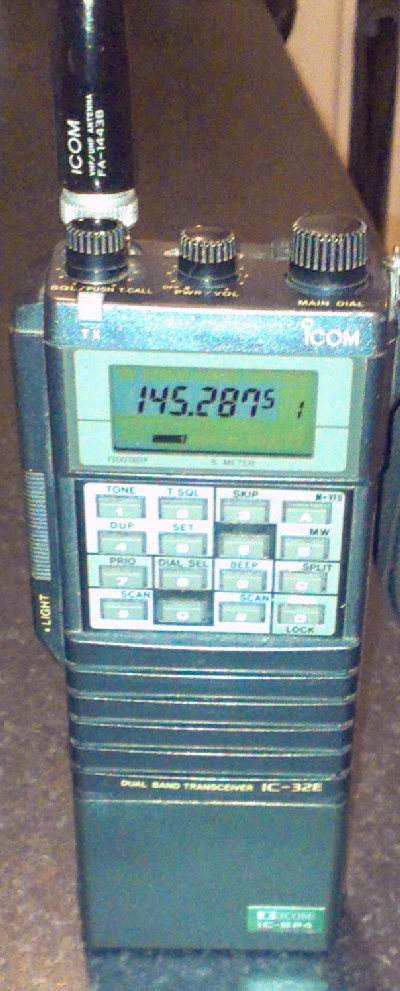

Icom IC 32 E 2 / 70 Dual Band FM Hand Held   5.5/5 Watts - 1 Watt Similar to the H/U 16
  144 - 146 MHz
(RX 138 - 174 MHz)

430 - 440 MHz
(RX 400 - 479 MHz)

12.5 KHz spacing
1750 Hz tone
POKY TOKY OVER 2 Meter FM Handheld   100 mW
Single channel Xtal controlled
comes as a set of two
  144.550 MHz FM
THUMBWHEEL

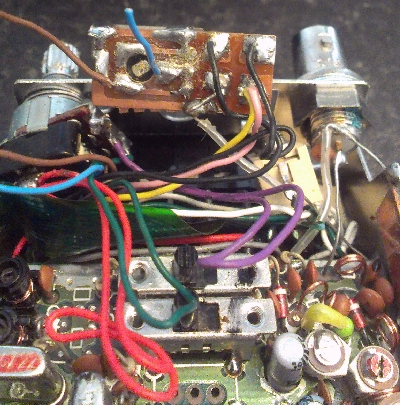

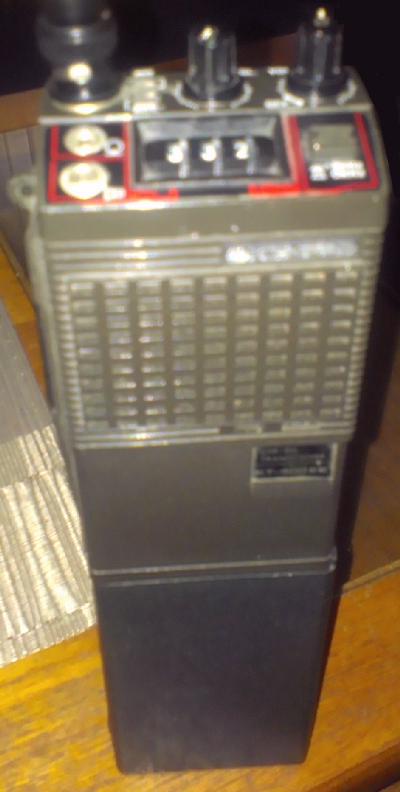

Kenpro KT200EE & KT400EE 2 Meter & 70cms FM Handhelds   1.5 Watts  / 150 Mw Replacing Squelch Pot (KT400EE)
Matching Pair.....

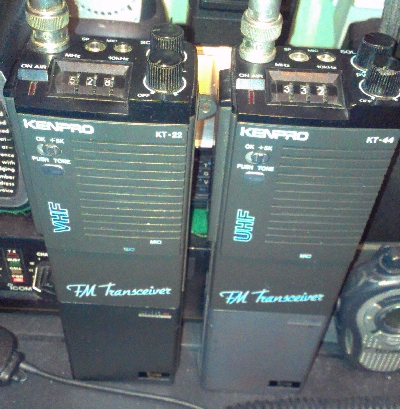

Kenpro KT22 and KT44 2 Meter & 70cms FM Handhelds   2.5 Watts / 250 Mw
Matching Pair......   a nice pair

circa 1993 ish


another one

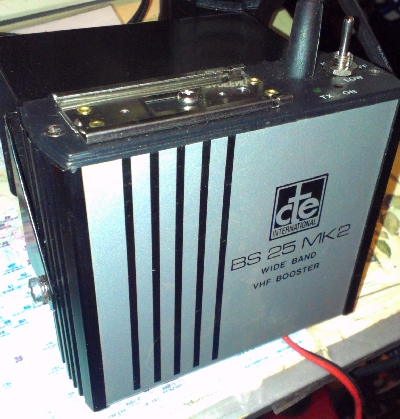

CTE 1600 2 Meter FM Handheld   3 Watts / 150 Mw CTE BS 25 MK2
another classic thumb wheel radio   Matching 25 Watt booster

1.5 - 4 W input, 25-30 W output
Icom IC-2E 2 Meter FM Handheld   1.5 Watts / 150 Mw
144 MHz - 148 MHz
Icom IC-3A 1.25 Meter FM Handheld   1.5 Watts
220 MHz - 225 MHz
  Purely for display
to make a matching set
NOT IN USE

DISPLAY ONLY

Icom IC-4E 70cms FM Handheld 1.5 Watts / 150 Mw
430 MHz - 440 MHz

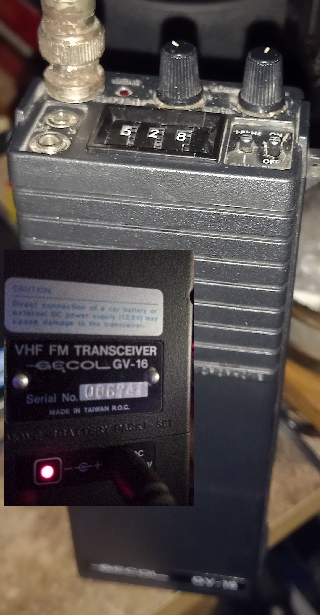

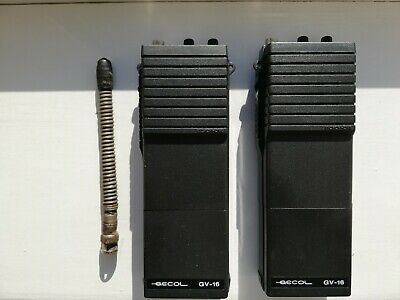

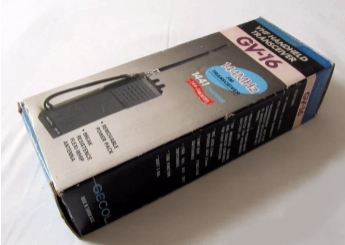

Gecol GV-16 2m FM Handheld   3 Watts / 1 Watt
144 MHz - 146 MHz
Tempo S1 2m FM Handheld   1.5 Watts BNC Fitted

now with BNC connection
Note, the 3.5mm sockets
on the top...
Left : Speaker
Right: Ext Antenna
There is no external Microphone socket

Also comes with front keypad

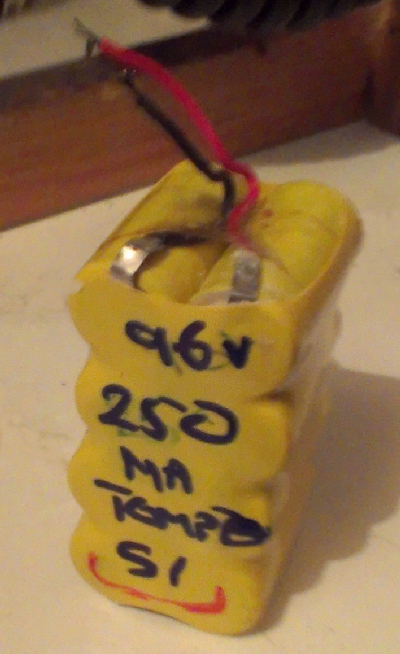

  Battery Pack

replaced with 9v
PP3 rechargeable,
works great
AOR AR 240 2m FM Handheld   1.5 Watts
Same design as Tempo S1

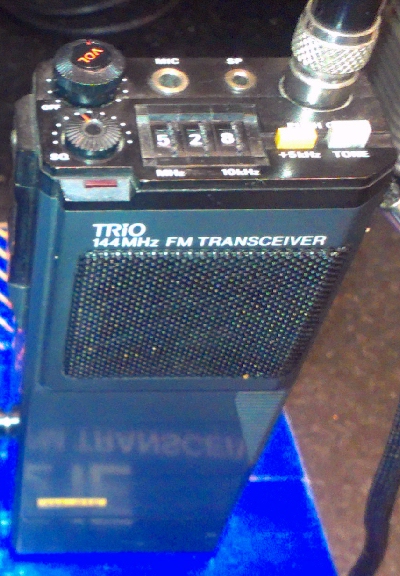

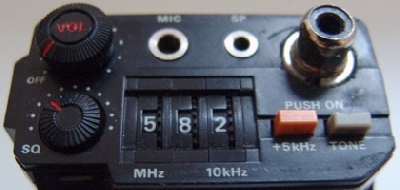

KENWOOD TRIO TH-21E/TH41E 2m / 70cms FM Handheld   1 Watt / 150 mW
Two versions available

144 MHz - 146 MHz

430 MHz -  440 MHz

I now have both,
 and a rare BNC adaptor too.

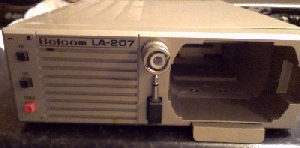

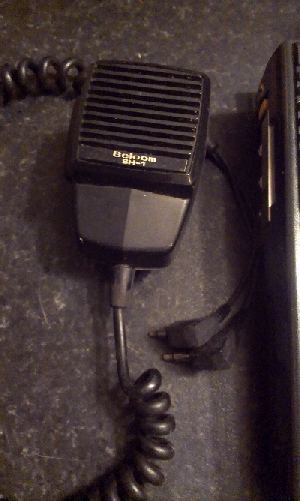

Belcom LS-202E 2m FM / SSB   SH-1 Speaker mic LA-207 Mobile 25w console
144 MHz - 146 MHz
2.5 Watt / 500 mW

Thanks to Glyn




Radio without console measurements
12 volts
HI FM 2w SSB whistle 0.5w talk 0.3w
LO FM 1w SSB whistle 0.4w talk 0.2w

7 Volts
HI FM 1w SSB whistle 0.4w talk 0.2w
LO FM 0.5w SSB whistle 0.2w talk 0.1w

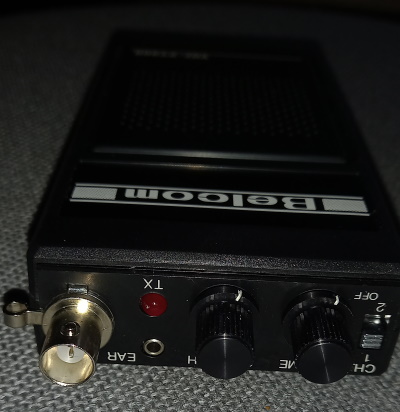

Belcom LS-20XE 2m FM   1 Watt / 100mW Thumbwheel

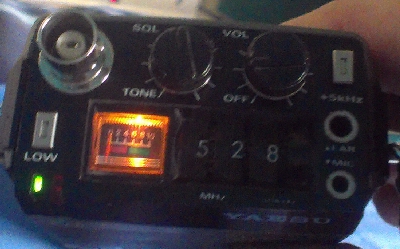

Yaesu FT 203R 2 Meter FM Handheld   2.5 Watts / 300 mW

  Another classic
'thumbwheel radio'
in My collection

Yaesu FT 703R 70 cms FM Handheld   2.5 Watts / 300 mW
    Another classic
'thumbwheel radio'
in My collection

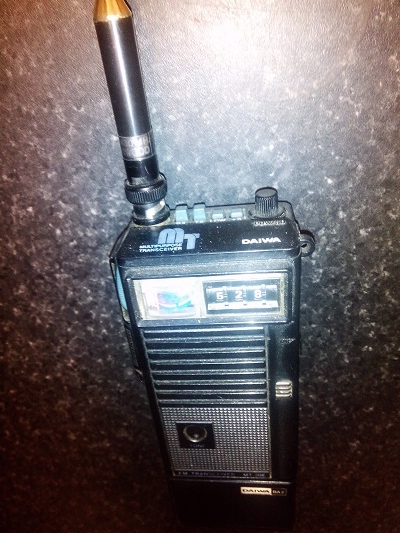

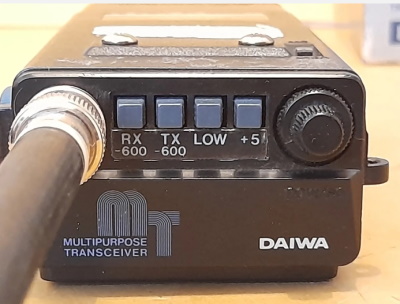

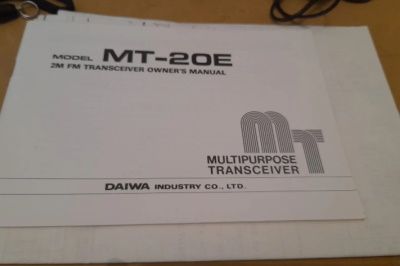

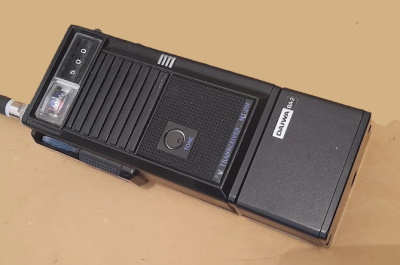

Diawa MT20E 2 Meter FM Handheld   1.5 Watts / 150 mW
from 1984
optional extra photos to follow
  Another classic
'thumbwheel radio'
in My collection

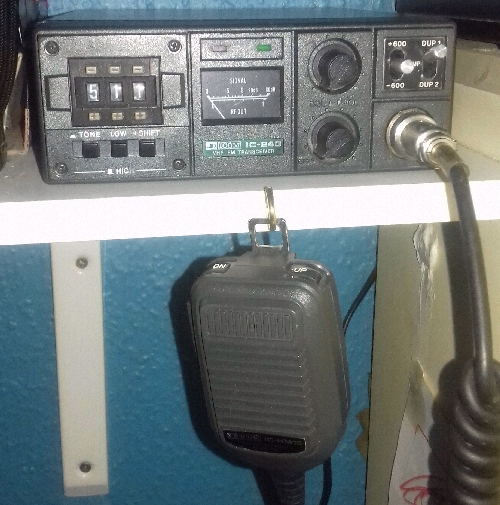

Icom IC 24G 2 Meter FM Mobile   10 Watts / 1Watt
Newly added   Another classic
'thumbwheel radio'
in My collection

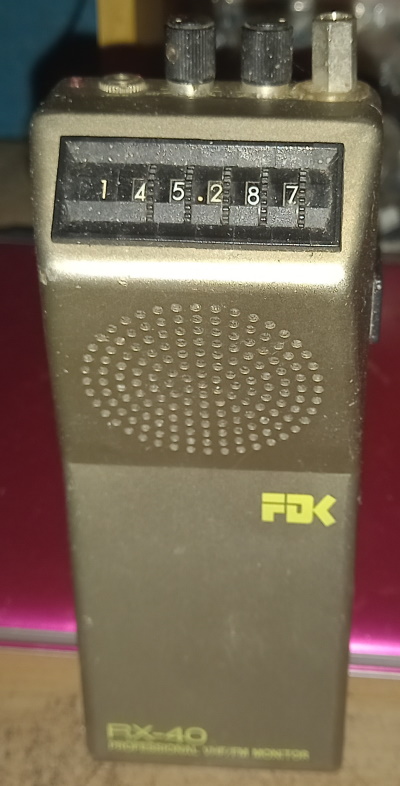

FDK RX-40 Thumbwheel Receiver   FM 144-146 Mhz

Whats Next I like to collect 'thumbwheel' radios   Some Examples Some Examples
? Whatever it is !!!!
I would like one for my collection
PLEASE e-mail me if you have any
Thank You

Albrecht Alan CT 1600
Alan PB167

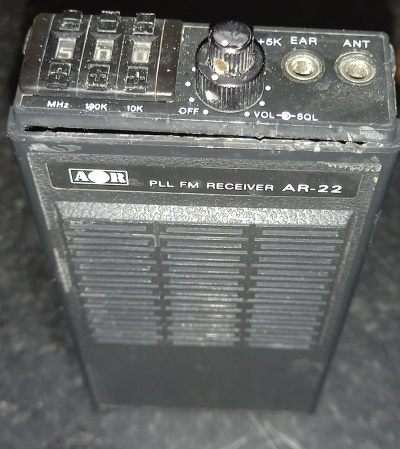

AOR AR-22
AOR AR 280
AOR AR 740A
AOR AR180 (marine)
AOR TR720 (air)
ARK 4 / 40 QRP
Belcom LS_20XE
Commx II
CTE CT-1800
Delcom GW2960 (air)
Delcom air 960
Drake 4315
ECB 144JR

Heath HWS 2/4
Heathkit HW2036
Icom IC-12a/at/e
Icom IC-22U/24E


Icom IC 24G/E
Icom IC2AT/3AT/4AT
Icom IC M2 (marine)
Icom  Delta 1/100
Intek KT-210EE
Kenwood TH-21BT/41B
Kenwood TH-31
RT138FN (air)

Santec LS-202A
Santec Hand Helds
Standard C110
Standard C111
Terra TPX 720 (air)
Wilson WE-800
Yaesu FT-2303
Yaesu FT70F/G
Yaesu FT-703R


CONVERSIONS

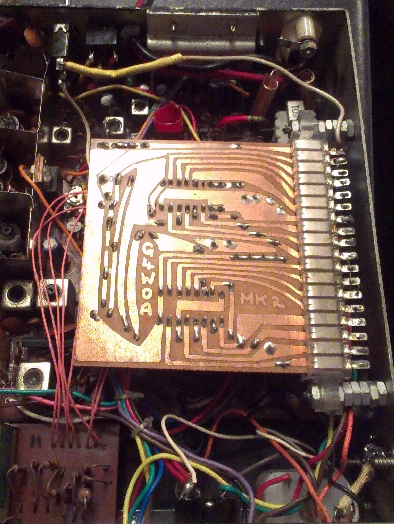

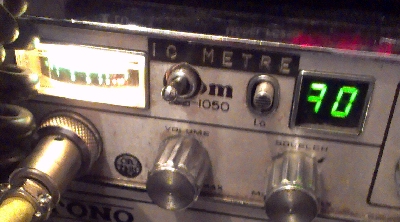

ICOM 1050 10m Mobile - CB to Ham 10m Conversion   4 / 1 Watts G4WOA Conversion Board
Fitted with a G4WOA MK2 board
(see the frequencies page for the conversion details)
listening on 30 (29.600mhz) FM Calling
  10M FM Channels
P M R

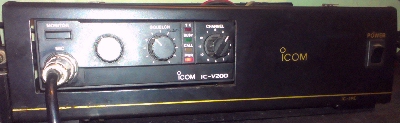

ICOM IC V200 Ex PMR 2 Meter FM Mobile   5 Watts Used for Echolink
Programmed with an Icom H16

IC 4PE BASE STATION SUPPLY

  12 Channels

12.5 KHz spacing
CTCSS

RDS Micropad DTMF Mic

Zycomm UT 5000 H Ex PMR 2 Meter FM Mobile   10 Watts
2 Channel Diode matrix programmable     back up radio

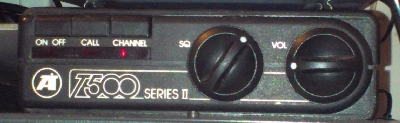

TAIT 535 Ex PMR 2 Meter FM Mobile   20 Watts
2 Channel Diode matrix programmable
With CTCSS built in
  Added power control on the front
see here
back up radio

Pye PF85

Three Channel Ex PMR Handheld (2 Watts) ch freq
Crystalled  for RB13 (UHF)
(GB3VH)
1
2
3


433.325/434.925
not fitted
not fitted



Fitted with tone burst only
Sits in a car kit

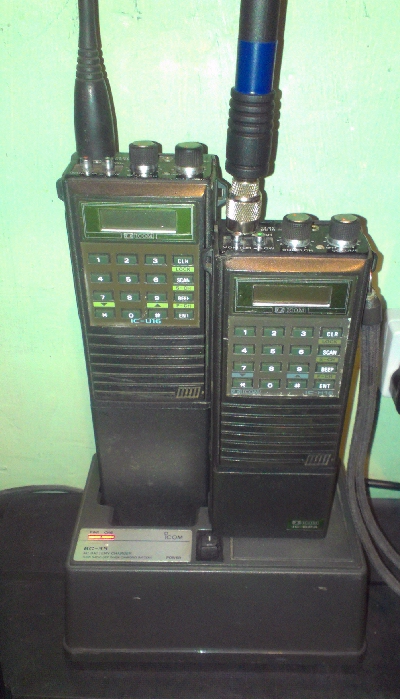

Icom H16 Ex PMR 2 Meter FM Hand Held   5 Watts / 0.5 Watts
The only way to program the IC V200 above is to clone it with this
So I got one........
  16 Channels 12.5 KHz spacing
CTCSS
Icom U16 Ex PMR 70cms FM Hand Held   5 Watts / 0.5 Watts
  16 Channels 12.5 KHz spacing
CTCS
SMC 517L10 Ex PMR 2m FM Handheld   2m FM ex PMR
Monitoring 145.2875 MHz
ctcss 82.5 Hz

MH-18a2b Speaker Mic
  5 / 2.5 or 0.5 / 0.2 Watts

Icom speaker mics on
Yaesu Radios MOD
CLICK HERE

its only a 2.2k resistor

MARINE
Icom IC M5 Marine Radio Telephone (FM)   5.0 / 1.0 Watts
I am miles from the sea
so I have no idea why I have it, except
it matches the H and U series above

Have just acquired the
Air band version to match

  RX: 156.025-157.425 & 160.625-163.275 MHz
TX: 156.025-157.425 MHz
Purely for display
to match the others in the series
Navico RT M1 Marine Radio Telephone (FM)
Not much known about this

Except its a THUMB WHEEL


Aqua Marine 5600 Marine Radio Telephone (FM)   25 / 1.0 Watts
I am miles from the sea
so I have no idea why I have it
  TX: 156-158 MHz
RX: 156-163 MHz
Display Only
AIR BAND
Icom IC-A20 Air Band Transceiver (AM)   1.5 / 0.5 Watts
just acquired   108-136 MHz Purely for display
to match the others in the series
934
Clarion JC-10 934 Transcveiver   Retired CB/934 unit
From the now defunct CB934 Band
Display Only
  English Manual, converted from German by me.

HYBRID
QUASAR MCB400 40 Channel FM with Marine RX   4 Watts Other info
CB 40 CHANNEL UK FM
Marine channel 16 156.800
Marine channel 37 157.850 (M1)
Marine channel 67 156.375
  Rare UK CB with Marine receive
JESAN KT 5005 40 Channel FM with Marine R   4 Watts Other info
CB 40 CHANNEL UK FM
2 x RX channels
Marine channel 16 MB1 156.800
Marine channel 67 MB2 156.375
  Rare UK CB with Marine receive
UNIMETRICS SEA HAWK 40 40 Channel AM with Weather RX
CB 40 CHANNEL EU/US AM
WX 1 162.550
WX 2 162.400
WX 3 162.475
    Rare CB with Weather receive
MODELS
1 /10 SCALE MODEL RADIO
This is a plastic model of a radio
Unusual
Maybe for a model shack?
OTHERS
Realistic TR1080 Mobile 80 channels   4 Watts EU 40 & UK 40
 (enough said)   27 MHz
Fidelity CB2000FM 40 Channel FM Mobile   4 Watts
CB 27/81
Harrier CB HQ Home Base Unit   4 Watts
its like a radiogram, only noisier   27.60125

27.99125

Maxon CM10 80 Channel Mobile   4 Watts
Dual Band 40 UK 40 EU
TTI 660 Multi-Standard Mobile   4 Watts
EU / US / UK Compatible
NATO FM Early Multi-Standard Mobile   4 Watts
EU / US /UK Compatible
Realistic TRC 1014 40 Channel Hand Held   4 Watts
UK 27/81
Realistic TRC 1007 40 Channel Hand Held   4 Watts
UK 27/81
Jesan KT-002/Skiptech Mini 02 2 Channel   50 Mw
27/81

Channels 14 and 30


Jesan KT-003 3 Channel   50 Mw
27/81

Channels 14, 19 and 30


Realistic TRC 56 (21-153) AM Mid Band 4 Watts   23 Channels
23 Channel AM C.B. with
Telephone Handset




SCANNERS
Realistic Patrolman Pro 2025 Mobile   Receive only
16 Channel Scanner

50 - 54 MHz
136 - 174 MHz
406 - 512 MHz

  FM Only fitted with the discriminator mod
AOR AR 950 Mobile Scanner   Receive only
60-88 MHz
108-174 MHz
220-390 MHz
406-470 MHz
830-950 MHz
  AM/FM




AOR AR 2700 Handheld Scanner   Receive only
0 - 1300 MHz

5 / 6.25 / 9 / 10 / 12.5
20 / 25 / 30 / 50 / 100
KHz steps
  AM/FM/WFM
MISCELLANEOUS
WT 8AMP No3 Morse Key - ZA4605 TMO1940
Learning Morse..... slowly     Connected to the IC 706 MK 2
POCSAG Homebrew interface
Com Port Version   I made this in my
days as a 2E1......

VS 1

Ramsey Electronics Vox Switch

    Basic Interfacing
relay and capacitor added
to control Icom Handheld
  Icom Interface
Echolink Upgraded   Inside Resistor for TX
Echolink MK 3 Interface
Echolink
Running under Win XP   Yaesu Interface
Paccomm Tiny-2
Packet Radio TNC   144.800 MHz 1k2
PAKRATT 232     Returned to Steve
Thanks for the loan
MX-627 6 / 2/ 70 Triplexer   Frequency Separation
Connected to the Diamond V2000   1.6 - 60 MHz
110 - 170 MHz
300 - 950 MHz

Moonraker CS201 2 Way Antenna Switcher
Switches W300
Diamond MX-72D 2 / 70 Duplexer   Frequency Separation
Connected to the W300   1.6 - 150 MHz
400 - 460 MHz

Maldol HS-770 2 / 70 Duplexer
Connected to the W30
COMET CF 416
Connected to a
Sigma EuroComm SE 1300

Pye Microphone I think ??????
Just refurbished it with a new coiled lead
Baofeng Charger Instructions ??????
      Just a little reminder........
PSU's
MAAS SPS 30 II Volts and Amperes     Stock Photo
13.8 volts
30 amps nominal
35 amps surge
  so far, very reliable

New Power Supplies

Modified DELL DA-2's

2 x 18 amp @ 12.3 volts


FKI

2 x 6 / 8  amp @ 13.8 volts






The top two FKI Power supplies are getting a bit
old now, but still
function as they should,
both 6 / 8 amps

Both DELL supplies now have
voltage monitors

Dell DA-2 Computer PSU
This 'Beauty' delivers
12.3 Volts @ 18 Amps
and hardly gets warm
(see the homebrew link at the top
of this page for more details)
  Computer grade low noise supply
modified with an external
box to connect various radios

I PLAN TO GET MORE
THESE ARE GREAT

Radford LAB59R Multi Function PSU




RETIRED RADIOS



Yaesu FT480R 2 Meter All Mode   Thanks to Keith
SSB 30 WATTS
FM/CW 10 / 1 WATTS
  Fitted an external
CTCSS unit
Main 2M SSB radio

now retired, a PSU killed it

FDK Multi 700EX 2m FM Mobile   0 - 25 Watts (variable)
2 Meter PLL Synthesised Mobile

144 - 146 MHz in 12.5KHz steps

  Main 2 Meter Radio

External CTCSS

now retired, a PSU killed it
TRIO TR 8400 70cms Mobile   10 / 1 Watts
Listening GB3HN and others   Main 70 CMs Radio



External CTCSS




now retired, a PSU killed it

Yaesu FT 227R

2m FM Mobile

  10 / 1 Watts Additional Pictures



  2m fm

now with white LED

Radio has an audio fault see here
now retired

Sommerkamp FT-77 80 - 10 meters all mode radio   100 Watts Yaesu YD148 Mic
My thanks to Keith



FT77 s/n 070175
cq cq cq dx

Its an AMP hungry beast
20 AMPS minimum
OMG

2 x SO239 Double Female
2 x PL259 Double Male

Band Switch Coupler Replacement





RG8 Patch Lead
FT77 to ATU

Nylon Cracked



I had to modify the patch lead
to the ATU, so that I could
plug in the CW Key ........

Brass Replacement

radio now retired
Vectronics VC300M

Antenna Tuner - Thanks Keith for loan


0 - 30MHz   Now with white LED
now retired

BAD (IMHO)

Fusion FSPS 200 Volts and Amperes Problem I M H O
13.8 Volts
15 Amps
The fan is constant and quiet
It went bang after only 2 weeks
Inspection, its badly made,
solder is awful and I wont buy again
In my humble opinion,
this is possibly the worst piece of
equipment I have ever owned



Antennas

Use Type



Home

M0CVO Magitenna (0-30 MHz)
Watson w300 (2, 70 Dual)
Watson W30 (2, 70 Dual)
Diamond V2000 (6, 2, 70 Tri Band)
Targa GPC 440 (70cms)
Excalibur MKII (4m)
Sirio GPE 27/58 (10/11m)

Mobile



Sirio Trunktop - Boot Mount
Comet SBB4 pl259 (2, 70 Dual)
Sandpiper (2, 70 Dual) with Sirio SO 239 3/8 adaptor
Sirio HP 4000 (10/11m) pl259
Sandpiper No3 70MHz 200mm BNC

Miscellaneous

Thumb Wheel Handheld collection

More Pictures of these Radios appear on the SHACK page

Other Miscellaneous



Using echolink without a DTMF radio???

Where are we all coming from............


EMAIL [email protected]
