APRS
(Scroll down for 'HF APRS' Instructions)

My APRS beacons are currently
transmitted by five methods.
CURRENTLY SET UP

1. 144.800MHz (Sound Modem) - LOCATION/WX
2. APRSIS32 (Internet/Packet) - LOCATION/WX
3.APRSdroid (Mobile Phone) - LOCATION
4. APRSdroid/HandHeld - LOCATION
5. APRSIS32 (wn1900) - WEATHER

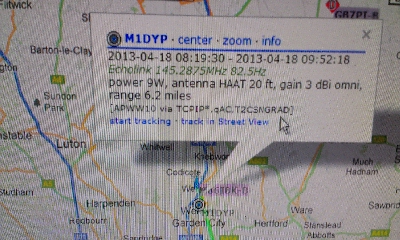

View My APRS online
by clicking the links below.

 M1DYP - 144.800 MHz - Packet Radio
MB7IWG
(MY ECHOLINK)
M1DYP Home/WX (M1DYP)
M1DYP Android (M1DYP-5)
M1DYP Android/Baofeng (M1DYP-7)
TESTING (M1DYP-8)
M1DYP Mobile (M1DYP-9)
M1DYP Android (M1DYP-10)
M1DYP Testing (M1DYP-11)
GD77 RADIO (M1DYP-12)

WX beaconing is uploaded every 15 minutes
to the internet and transmitted locally via APRS
on 144.800 MHz.

I now have My UI-VIEW parameters set to 20KM
to stop my screen getting swamped

31 10 23. Due to on-going issues with Weather Underground, I am now using the Ecowitt API
Ecowitt wn1900 Weather Station - Ecowitt website
Cumulus MX software (wxnow.txt) - APRSIS32 - Sound Modem by UZ7HO

The Ecowitt wn1900 Weather Station transmits the weather data to the Ecowitt website.
The Cumulus MX software picks up the data from the Ecowitt website via an API and the internet,
The Cumulus MX software produces a text file called wxnow.txt
APRSIS32 picks up the text file and converts it to APRS WX data which is then transmitted onto aprs.fi,
and APRSIS32 transmits via the Sound Modem and YAESU FT227 to 144.800 MHz.

wx_player (by f6dqm) also picks up the 'wxnow.txt' file and converts it to speech,
wysiwyh
(what you save is what you hear by f6dqm) and saves the speech to a '.WAV' file.
This wav file is picked up by echolink and echo news mp3 plus and broadcast over the air.
currently set to broadcast locally via RF every 15 minutes.

Three messages are sent every 15 minutes.

IDENTIFICATION IN MORSE, WEATHER IN VOICE, IDENTIFICATION IN VOICE.

This system involves 4 computers.

Computer 1 Cumulus MX - Generates wxnow.txt.
Computer 2 APRSIS32 picks up wxnow.txt - Sound Modem  - YAESU FT227.
Computer 3 WXPLAYER and WYSIWYH - generates the audio weather file.
Computer 4 ECHOLINK and ECHONEWS - Transmitts the forecast.

CURRENT SET UP as of 08 05 2023

LIVE WEATHER

My Weather Page on ECOWITT Weather can be viewed HERE

-------------------------------------------------------

HF APRS
BASIC INSTRUCTIONS
(With thanks to Steve, M5MOW)

HF APRS Mobile using JS8Call on windows

Install BKtTimesync and set syncho to 15 minutes.
Use
NTP and GPS if available
Install Python 3 (You'll need this for JS8CallUtils)
Install JS8Call (add to system path)
Configure for your call sign etc.
Set JS8 mode to 'normal' (15 seconds)
When installed, test by sending the message:
@aprsis grid io91vt45xr (replace with your own maidenhead locator)
aprs.fi should show up your position if it's been received anywhere.
You can look on the
PSK reporter website and see who heard you.

JS8callutils: >>>>> files.js8call.com/latest.html
go to: https://github.com/m0iax/JS8CallUtilities_V2
click on 'code' button and download zip

regards m5mow

M1DYP Findings

Using a Windows 10 64 bit laptop

There are various ways to connect your radio, I won't discuss this here

Files needed (For Windows 10 64 bit)

install python-3.8.0-amd64 HERE
install js8call HERE
install js8call utilities HERE

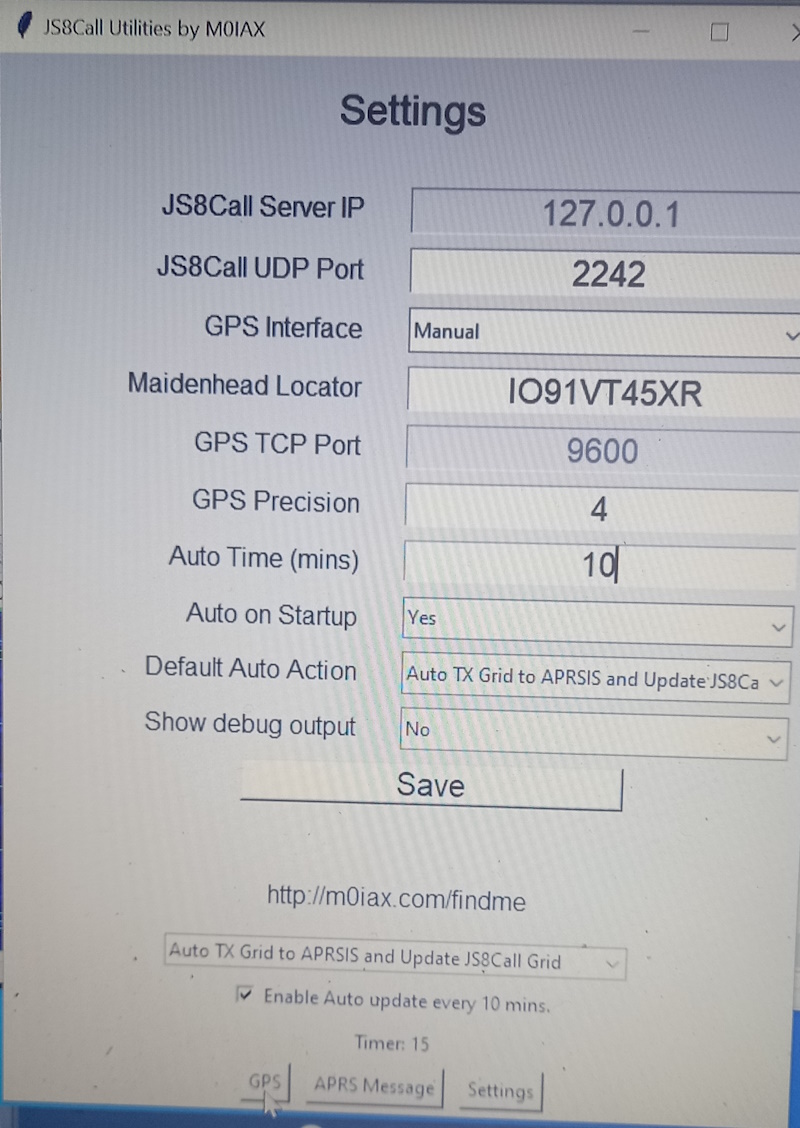

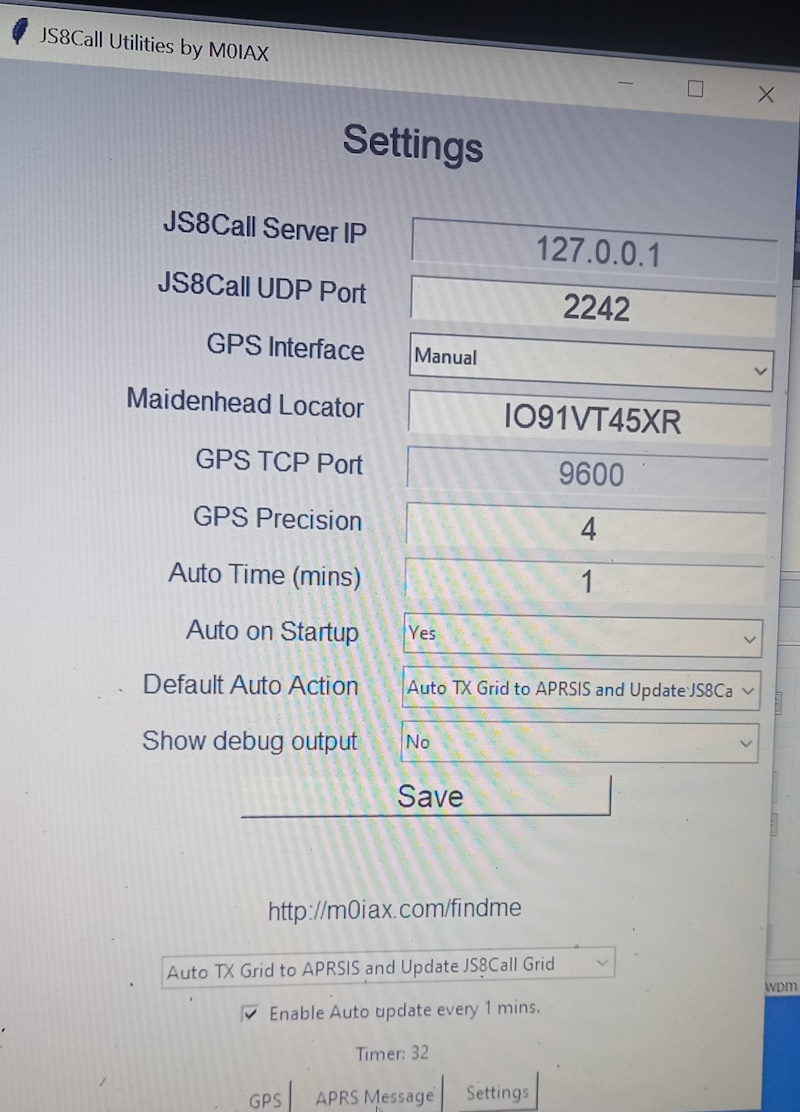

js8call utilities settings

Because I am a fixed station I turn off GPS and enter my grid location manually

manual position

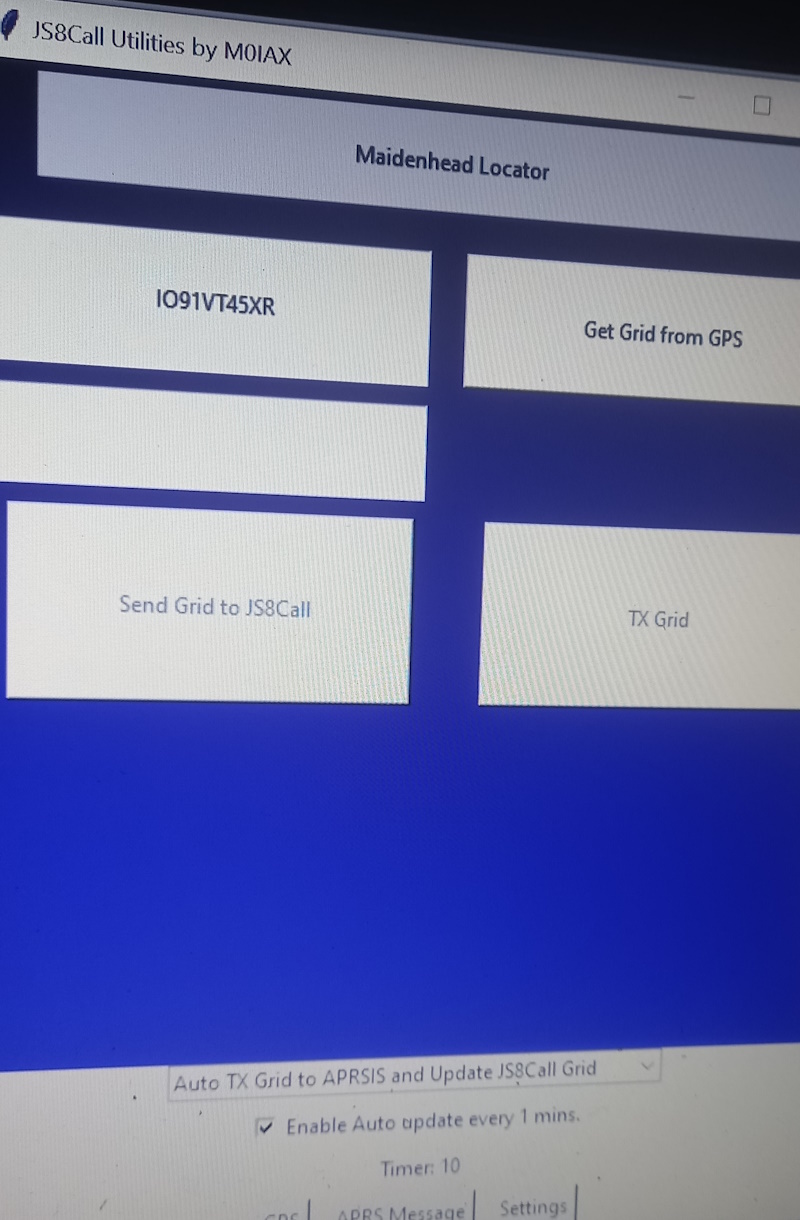

The two options below show 1 minute and 10 minute tx intervals

IMPORTANT

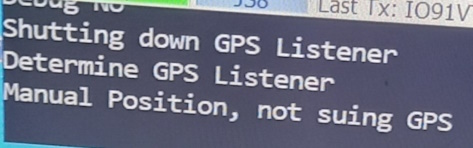

when you click save, make sure you see the text below in the dos utils window

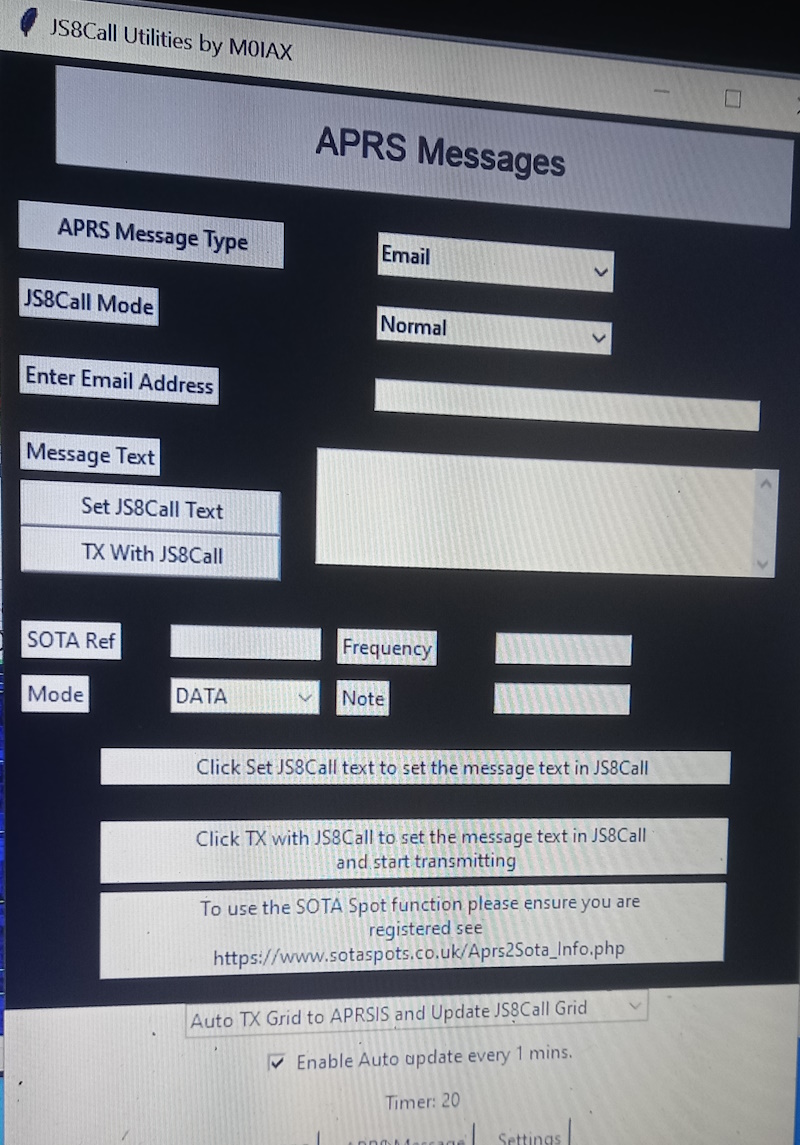

APRS Message screen - GPS Screen

This is a step by step guide to installing software for js8call and js8utilities on a rpi
as well as a host of other ham radio stuff by KM4ACK
found here https://github.com/km4ack/pi-build

video here https://www.youtube.com/watch?v=GkGcu6WaWsc

PLEASE REMEMBER EVERYTHING IS CASE SENSITIVE

https://www.raspberrypi.com/software/

the raspberry pi imager can download and install the correct version
it can also pre set up your wifi and ssh so you can run it headless.

with this done boot the pi and look in your router for the local ip address

------------------------------------------------------------------------------
log in to pi with putty

sudo su -
apt-get update
apt-get upgrade
answer Y when prompted
sudo reboot

sudo raspi-config

3 interface options
i2 vnc
yes
that enables vnc useage

sudo reboot

log in with vnc viewer

install updates if needed

in a terminal paste this in one go


git clone https://github.com/km4ack/pi-build.git \
  $HOME/pi-build && bash $HOME/pi-build/build-a-pi

install updates if prompted
please be patient
this takes 4 hours

note, after about 2 hours you may be prompted to click ok.
everything else is automatic

--------------------------------------------------------------------

PROBLEMS WITH GPS

Try the following, which is strung together from the previous comments:
(bold text are commands for the terminal)

In Terminal...
(1) pkill -9 conky
(2) conky
(3) sudo apt install ruby
(4) sudo gem install maidenhead
(5) sudo gem install gpsd_client
(6) reboot

thanks go to KC3QLI

video here https://www.youtube.com/watch?v=YIIC-iT6H-s

WITH THANKS TO KM4ACK

======================================

WEATHER CAM


2023 update

operating system upgraded from Windows XP to windows 7

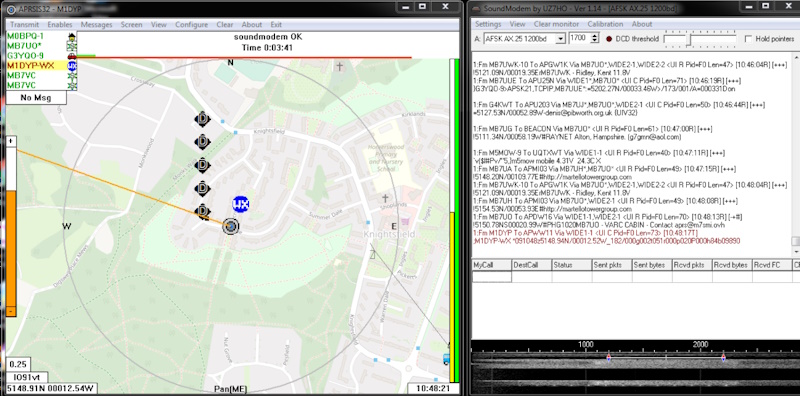

Tiny 2 Retired and sound modem v1.14 now being used with M0AQC Interface
using APRSIS32 and Yaesu FT227



new method

old method

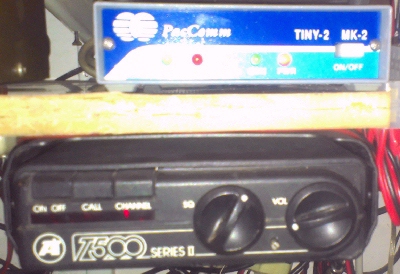

TAIT 535 ON 144.800 MHz COUPLED TO A 'PACCOMM TINY-2 MK-2'

 (THANKS STEVE) FOR THE LOAN OF THE PAKRATT 232

TINY 2 REPLACEMENT HAS NOW BEEN FOUND
THE 'PAKRATT 232' HAS BEEN RETURNED

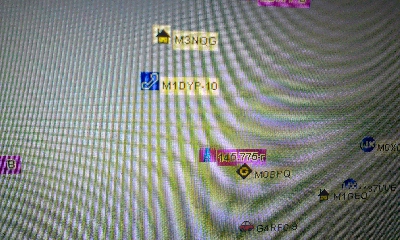

APRS on a BAOFENG UV5R and an ANDROID PHONE (HTC EXPLORER)

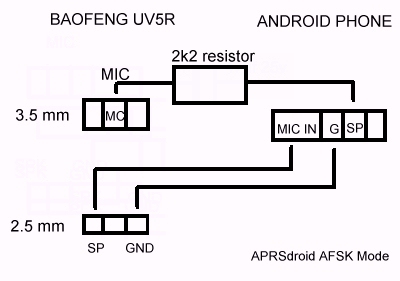

M1DYP-7 uses the following interface


Settings I use for APRSdroid

BAOFENG
RADIO

 SQ 2
SAVE OFF
VOX 10
WN NARR
VOLUME at MAXIMUM

ANDROID
PHONE

SMART BEACONING
AFSK
HIGH QUALITY DEMOD ON

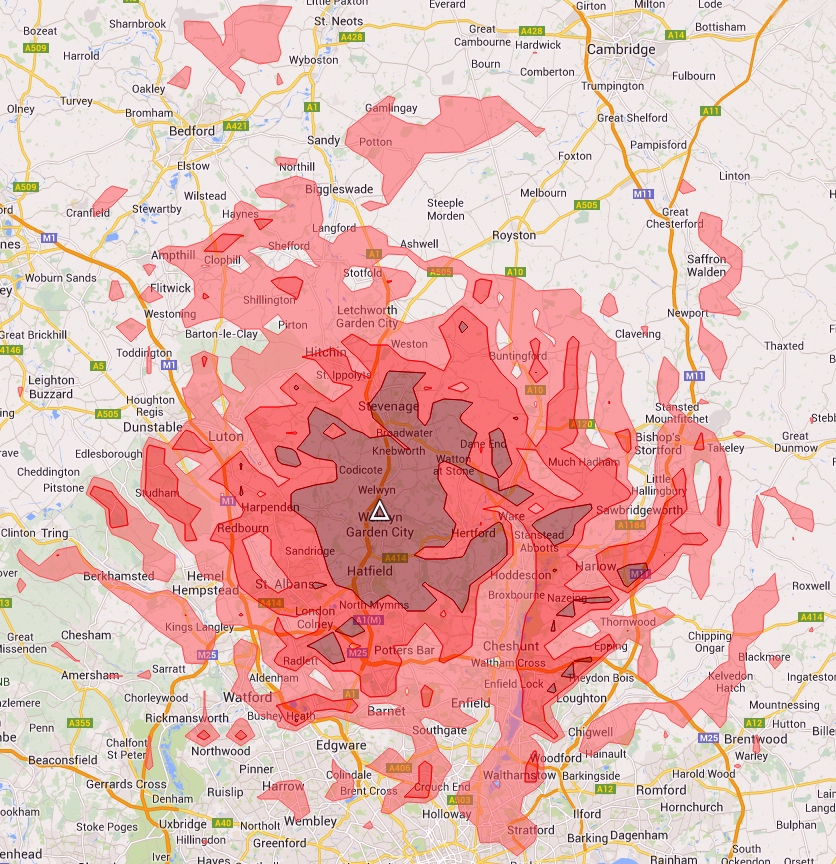

M1DYP HOME - APRS PREDICTED COVERAGE MAP FOR 144.800 MHz @ 10 Watts

KEY: 30-40 dBµV/m Light Red 40-50 dBµV/m Red 50-100 dBµV/m Dark Red

predictions courtesy of   http://lrcov.crc.ca

Tiny 2 now has a new interface as the usb-serial was proving unreliable

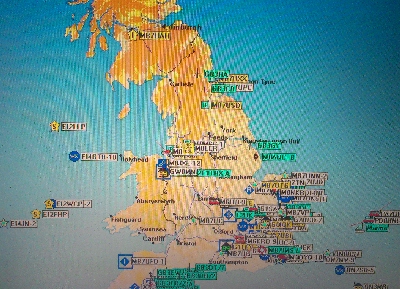

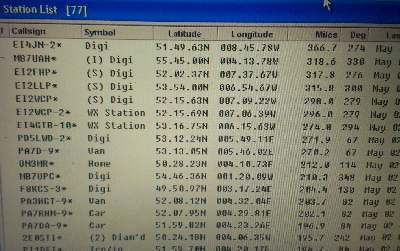

3rd May 2013 - 2m lift conditions

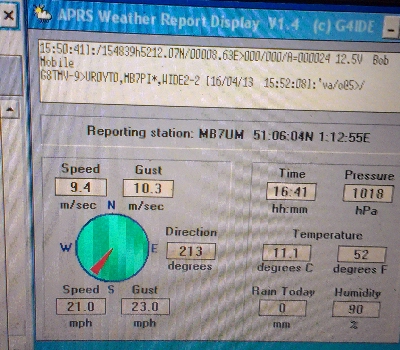

Sample Images

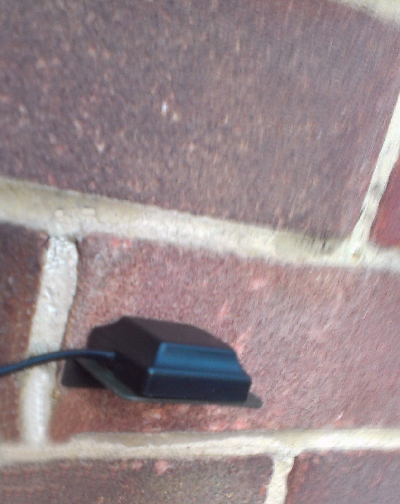

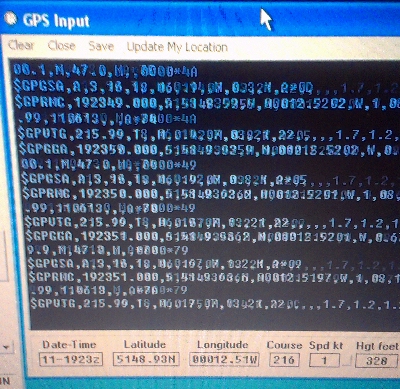

The GPS
