5-Element-50-Ohm-Yagis with 4-m- and 4,30-m-Boom
The Yagi with 4-m-Boom see down!
These antennas are scaled types of built and well tested 2-m-Yagis
 |

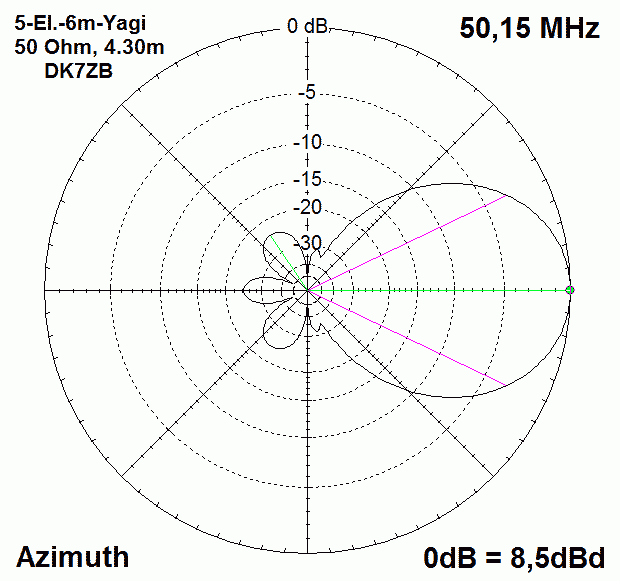

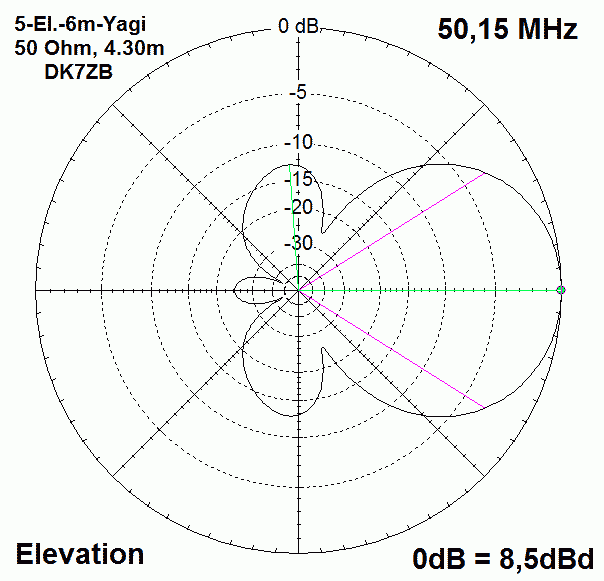

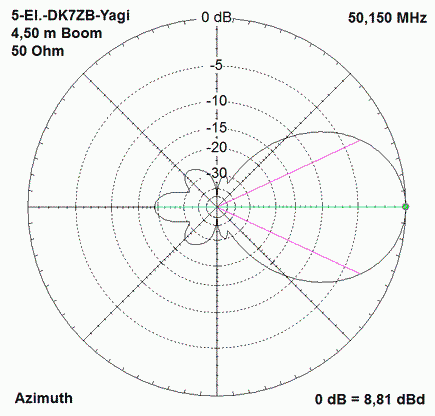

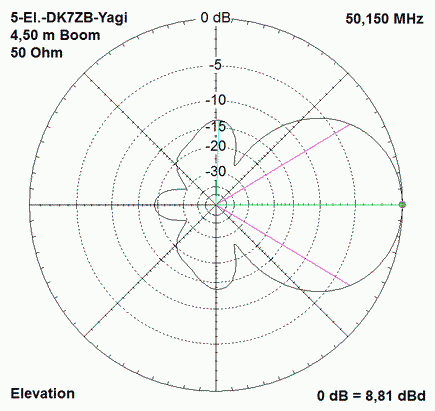

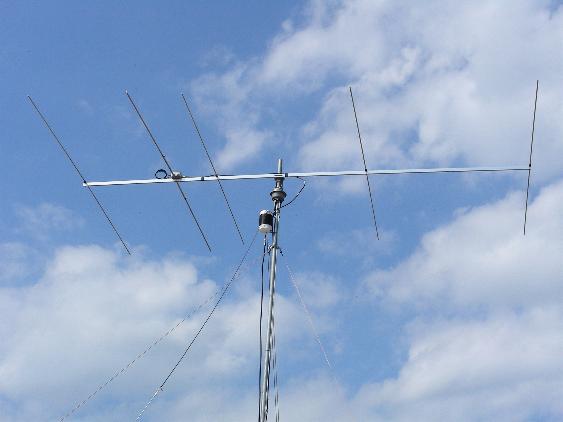

Boom 4,30 m Medium Bandwidth, High-Gain-Design 8,5dBd (10,65dBi) F/B 24dB |

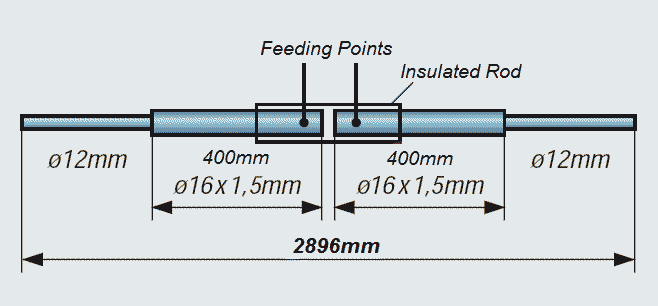

Elements fixed 12mm or 10mm, Radiator 12/16mm, tunable (see picture)
Feeding with a 50-Ohm-coax-choke (about 1,20m cable)
| Element | El.-Position | El.-Length (12 mm) | El.-Length (10 mm) |
| Ref | 0 mm | 2974 mm | 2978 mm |
| Rad | 800 mm | 2896 mm | 2896 mm |
| D 1 | 1210 mm | 2727 mm | 2734 mm |
| D 2 | 2735 mm | 2696 mm | 2706 mm |
| D 3 | 4260 mm | 2660 mm | 2670 mm |

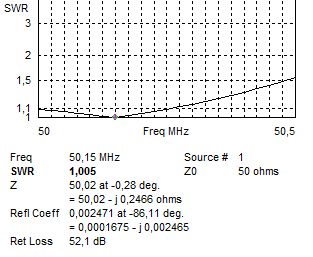

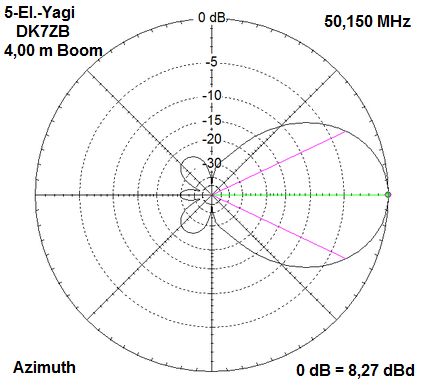

5-Element-50-Ohm-Yagi with 4-m-Boom
 |
Boom 4,00 m Medium Bandwidth, High-Gain-Design 8,27 dBd (10,65 dBi) F/B > 25dB |
Element lengths and positions, radiator with 16-/12-mm-tubes as described above
| Element | El.-Position | El.-Length (12 mm) | El.-Length (10 mm) |
| Ref | 0 mm | 2966 mm | 2972 mm |
| Rad | 835 mm | 2970mm | 2968 mm |
| D 1 | 1225 mm | 2784 mm | 2792 mm |
| D 2 | 2560 mm | 2744 mm | 2754 mm |
| D 3 | 3970 mm | 2674 mm | 2686 mm |
 |
 |
