8-Element-28-Ohm-Yagi with 12.3m-Boom

Short data: Gain 11.91 dBd, F/B >24dB, bandwidth >1MHz (!) at SWR < 1.5

Good pattern, great bandwidth and high gain!



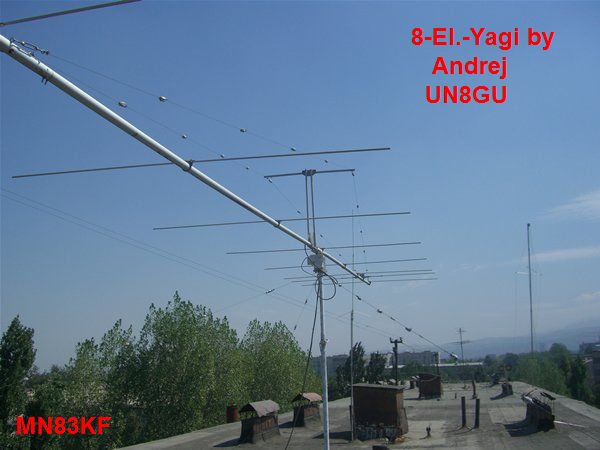

The Yagi built by Steve,

HA0DU

Element

Element-position (mm)

Element-length (12mm)

Ref

0

2930

Rad

1155

2870

D1

1935

2780

D2

3505

2690

D3

5530

2640

D4 7900 2620
D5 10270 2610
D6 12260 2600

Match with 2xLambda/4 75-Ohm-coax in parallel to a grounded socket, feedpoint impedance 50Ohm.

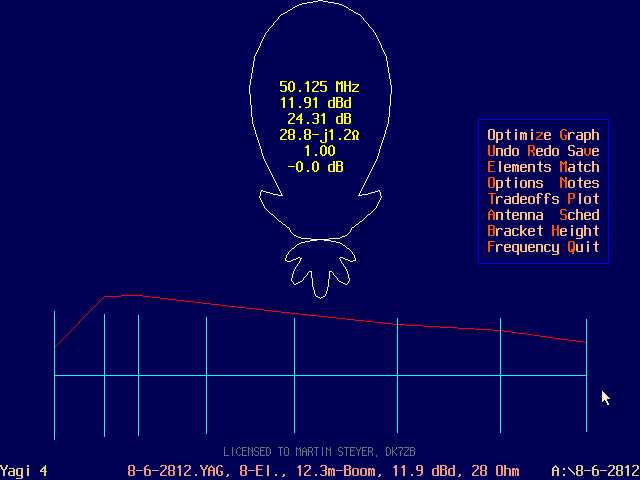

The element current profile on the main menue of YO7 from K6STI:
