9-Element-28-Ohm-Yagi with 14m-Boom

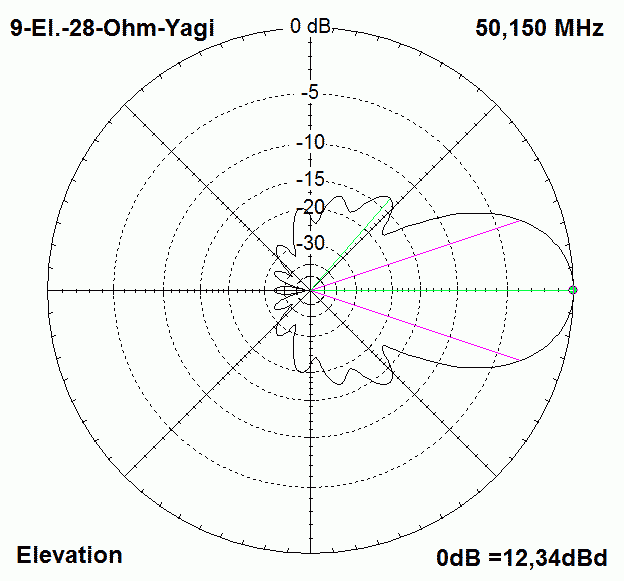

Short data: Gain 12.34 dBd (14.49dBi), F/B 34dB, bandwidth 1MHz (49.4-50.45 MHz) at SWR < 1.5

Excellent pattern, bandwidth and gain. I used this Yagi for 2 years with very good results.

These data will not be reached by any comparable known Yagi, the first choice for 6m-EME and severe DX!

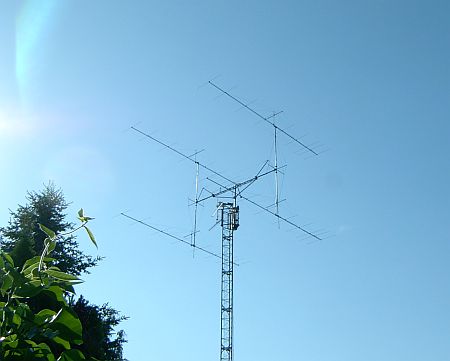

The 4x9-El.-28-Ohm-Yagi group

of Jarda, OK1RD

The Yagi built by Roman, SP2DDX

http://klub.chip.pl/sp2ddx

The 9-Ele.-Yagi combined with a 4-El.-Stepp-IR

A real big gun!!

Antenna built by

Jacques,

F6BKI

Jacques has redesigned the Yagi for 14mm-elements.

How the antenna is working you see on the HP-Analyzer-Plot left.

For a better picture click with your mouse!



Updated dimensions for better data July 2008. All elements 12mm diameter without tapering

Element Element-Position (mm) Element-Length (mm)
Ref 0 2960
Rad 1000 2882
D 1 1655 2794
D 2 3155 2720
D 3 5075 2660
D 4 7395 2620
D 5 9790 2600
D 6 12170 2640
D 7 14000 2580

Match with 2xLambda/4 75-Ohm-coax-choke in parallel to a grounded socket, feedpoint impedance 50Ohm.
