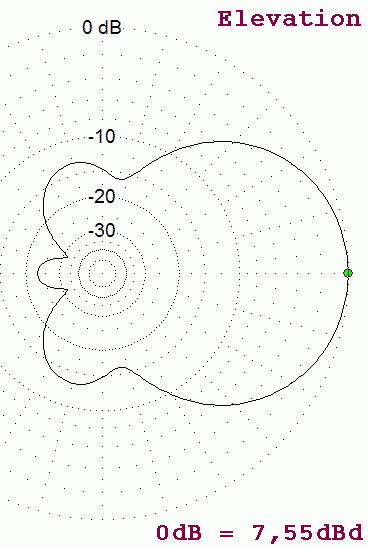

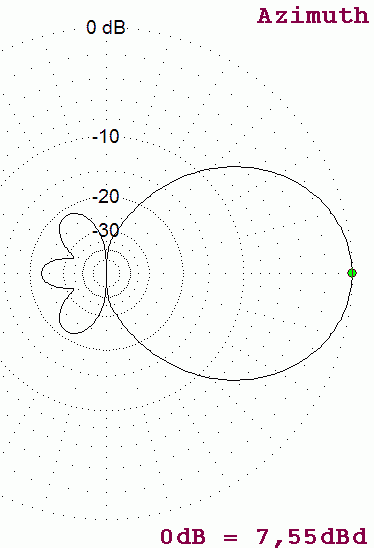

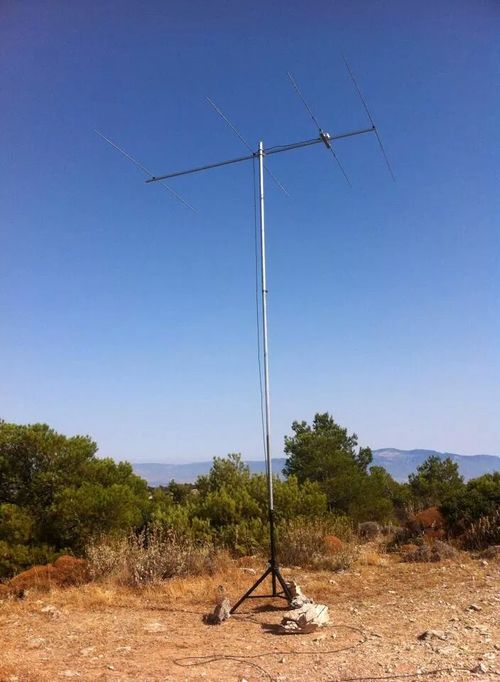

4-Element-12.5-Ohm- Yagi with 2,90m-Boom Short data: Gain 7,5dBd, F/B >20dBd, bandwidth 300KHz (50.0-50.3 MHz) at SWR < 1.5 Elements 12, 10 or 8mm 8mm-Elements for leightweight portable construction |
|
|
Element |
Position |
D=12mm |
D=10mm | D=8mm |
|
R |
0mm |
3080mm |
3090mm | 3100mm |
|
DE |
575mm |
2870mm |
2876mm | 2880mm |
|
D1 |
1455mm |
2790mm |
2796mm | 2808mm |
| D2 | 2850mm | 2700mm | 2710mm | 2720mm |
Match with 2xLambda/4 50-Ohm-coax in parallel to a grounded socket, feedpoint impedance 50Ohm.
|
|
|
