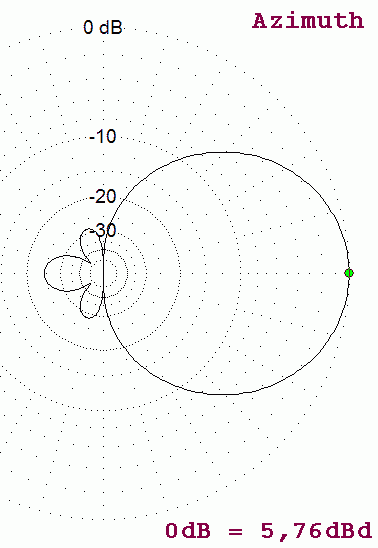

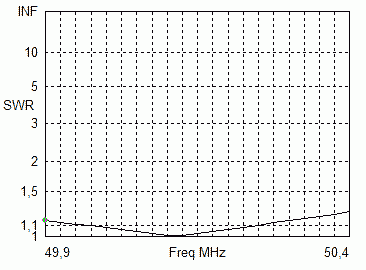

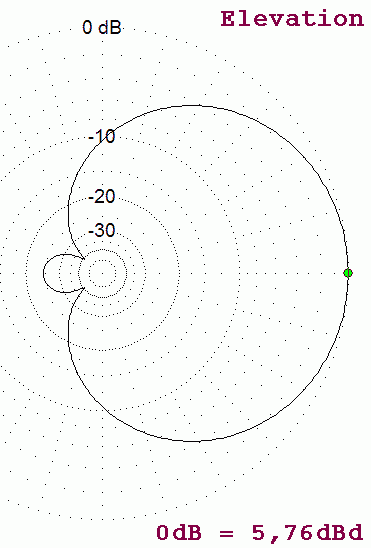

3-Element-28-Ohm- Yagi with 1,90m-Boom Broadband version Short data: Gain 5,7dBd, F/B >20dBdB, bandwidth 1MHz at SWR < 1.5 Elements 12mm
|
|
|
Element |
Element-position (mm) |
Element-length (mm) |
|
Ref |
0 |
3020 |
|
Rad |
920 |
2845 |
|
Dir 1 |
1850 |
2660 |
Match with 2xLambda/4 75-Ohm-coax in parallel to a grounded socket, feedpoint impedance 50Ohm.
|
|
|
