3-El.-28-Ohm (2,50m) |
||
| 4-El-12,5-Ohm (2,90m) | ||
| 5-El-12,5-Ohm (6,00m) | ||
| 7-El.-28-Ohm (9,20mm) | 8-El.-28-Ohm (12,30m) | 9-El.-28-Ohm (14,00m) |
| new 4-El-28-Ohm (2,20m) |

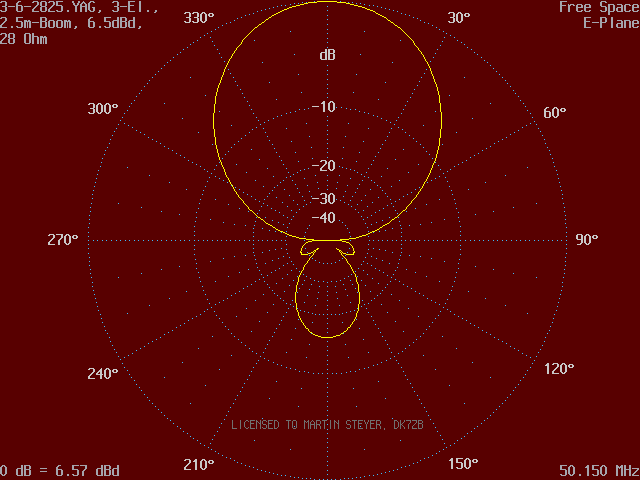

3-Element-28-Ohm- Yagi with 2,50m-Boom
Short data: Gain 6,5dBd, F/B >15dBd, bandwidth 500KHz (49,9-50.4 MHz) at SWR < 1.5
Elements 12mm
Match with 2 x lambda/4-75-Ohm-coax in parallel to a grounded socket, feedpoint impedance 50Ohm.
|
Element |
Element-position |
Element-length |
|
Ref |
0mm |
2940mm |
|
Rad |
1320m |
2810mm |
Dir |
2500mm |
2660mm |
