2-Element-28-Ohm- Yagi with 0,60m-Boom

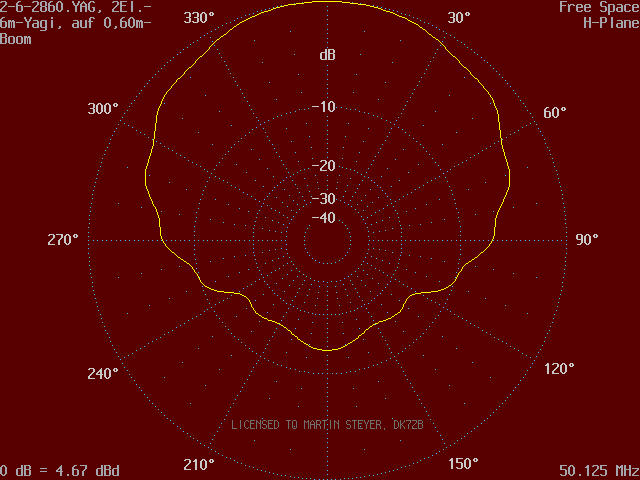

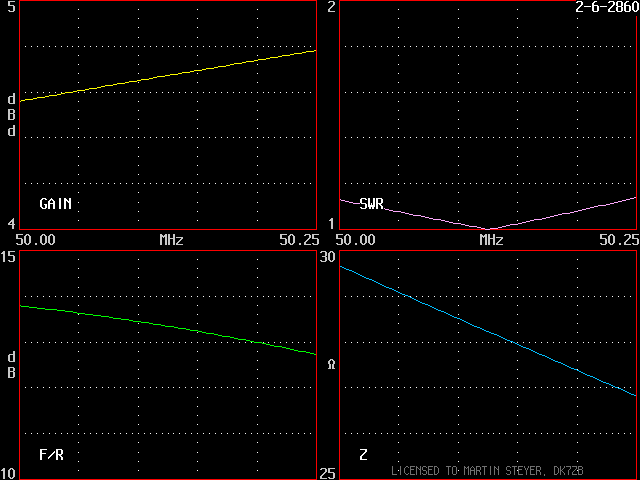

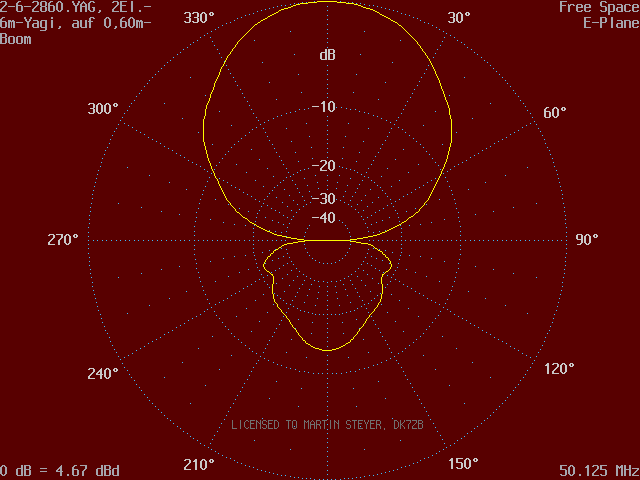

Short data: Gain 4.6dBd, F/R 13dB, bandwidth 600KHz (49.8.0-50.4 MHz) at SWR < 1.5

Elements 12mm or 10mm

(no tapering!)

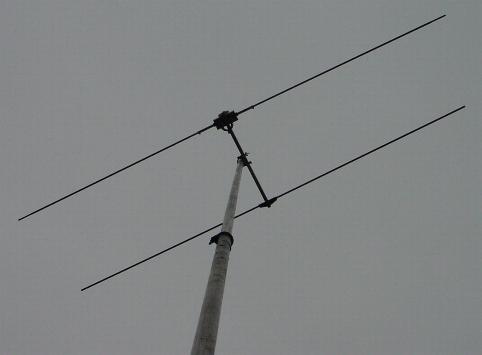

The 2-Element-Yagi built by

Costy, IC8TEM

from Capri-Island



Link to more details of building his antenna:

IC8TEM

The 2-Element-Yagi built by

Ricardo, PU2OKE

 in GG66VL

Element positions and lengths (no tapering)

Element

Position

Length (12mm)

Length (10mm)

Rad

0mm

2934mm

2936mm

Dir

600mm

2724mm

2734mm

Match with 2xLambda/4 75-Ohm-coax in parallel to a grounded socket, feedpoint impedance 50Ohm.
