Rockwork DXpedition 2021

Results from the Oregon Cliffs   Aug 03-06 2021   by Tom Rothlisberger K7WV


Rockwork 4 DXpedition Site Aug 04, 2021

Another impressive session at the Oregon Cliffs near Manzanita draws to an end. Records were broken with Longwave NDBs this year: 33 Australian beacons ID'd!



Rockwork DXpedition 2021 The 11th annual Rockwork DXpedition would be my 8th time at the cliffs. I arrived in Manzanita on Aug 02 and realized I had left home without an important cable and spent much of the night trying to come up with a workaround (I was successful).

Aug 03: I arrived at Rockwork 4 to find the other five DXers already there and set up. Amazingly, there was room for me too. Set up for me took a long time as my pre-cut wires were missing so I had to cut pieces of backup wire and tie it together to be viable. I wound up having only 45 feet of wire up and was getting intermittant buzzing as well. It seemed like a very good morning with the "echo effect" on several frequencies meaning two identical stations slightly out of sync. I thought my recordings were ruined but upon analysis I did get clean reception for most of the morning. Lovely weather but I was too beat to fly the drone after the session. We took a group picture instead. 6 DXers on the pullout was the most ever.

Aug 04: More work the night before to cut two new 30-foot wires using a tape measure. Now I was ready for normal operations. This time I was the first arrival after Craig. I went over and had a chat with him about the lovely morning with the Milky Way going down to the sea and the upcoming Perseid meteor shower. Then I got set up much more quickly and was going before the others arrived. However it was a rather mediocre morning on the bands. The last session with the big group.

Aug 05: Just Gary and I now. I arrived and got set up before Gary arrived. It was a good Australia morning on both bands. LW was hopping and I knew it would be a good haul there with a powerful 395 PMQ on a velvety black background. On MW I quickly noticed a strong 2WEB with IDs and went over to tell Gary but he was already on it. MW seemed to favor Australia with the whole band in including the X-band. We had a fellow pull in who had noticed us here previously on his commute and was curious about what on earth we were up to. He seemed intrigued.

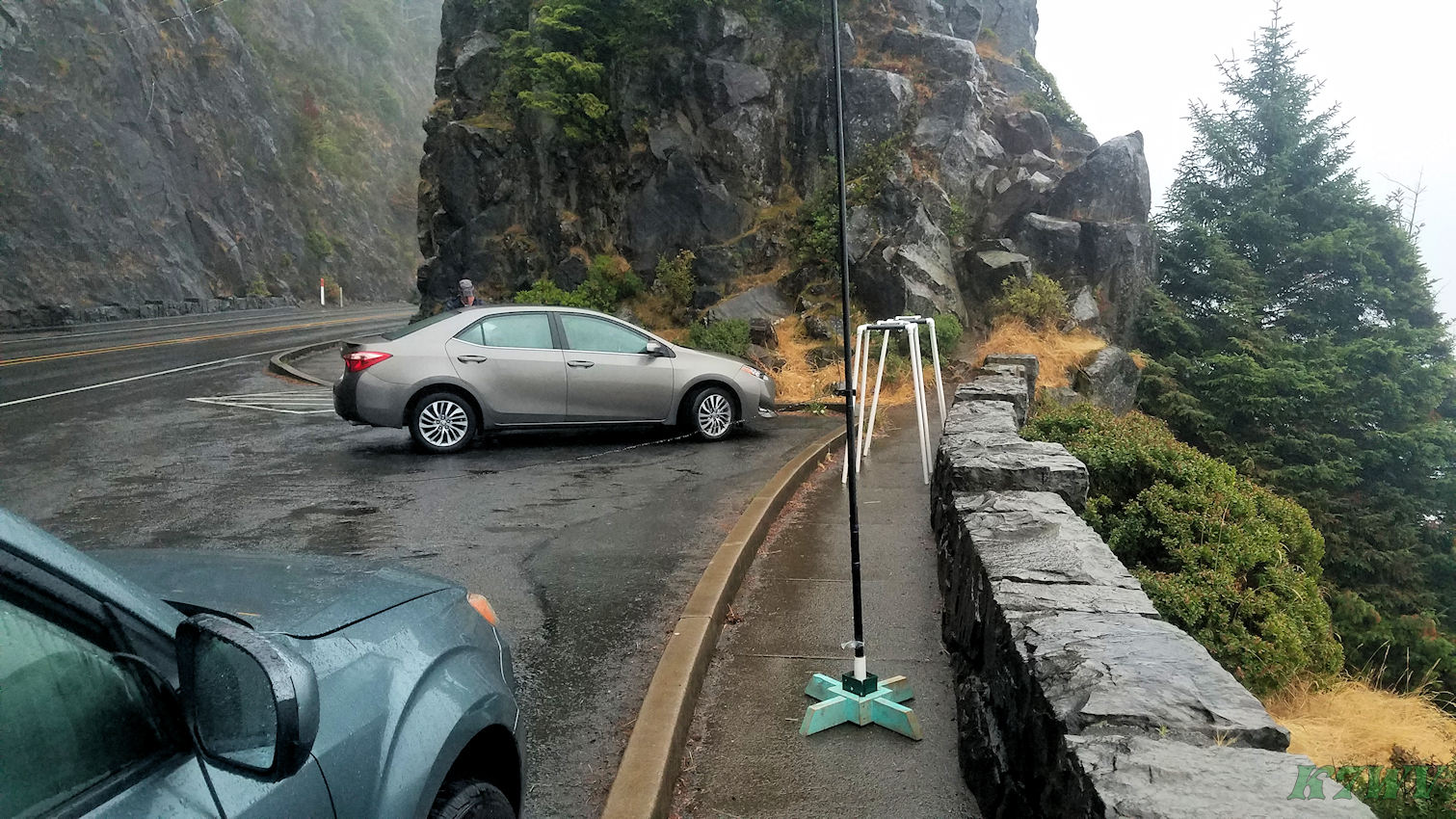

Aug 06: Pouring rain in the pitch black of night with passing logging trucks spraying me down as well. I got soaked setting up. But now I could go inside the car to my "office" to get some relief. It didn't seem like a special morning but it was rather good after all, especially LW with all 23 active French Polynesian beacons in. "More FM" 531 was blasting in, and the X-band was in again as well for full spectrum DXing. The medium wave beacon 1630 TM from New Zealand was in all 4 mornings.

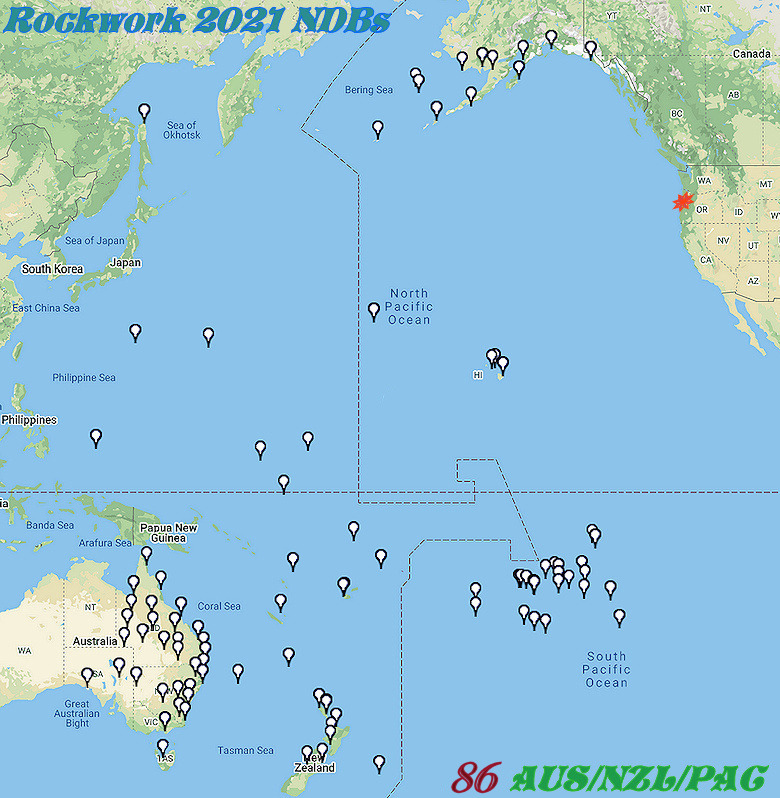

Amazing trans-Pacific MW and LW reception this time was superior to all my previous results even with the steep rise in Cycle 25. Like fishing, you never really know what to expect but we always do well here the first two weeks of August.




Six Cliffhangers Operating                     Tom R with antenna spreader                    My office space

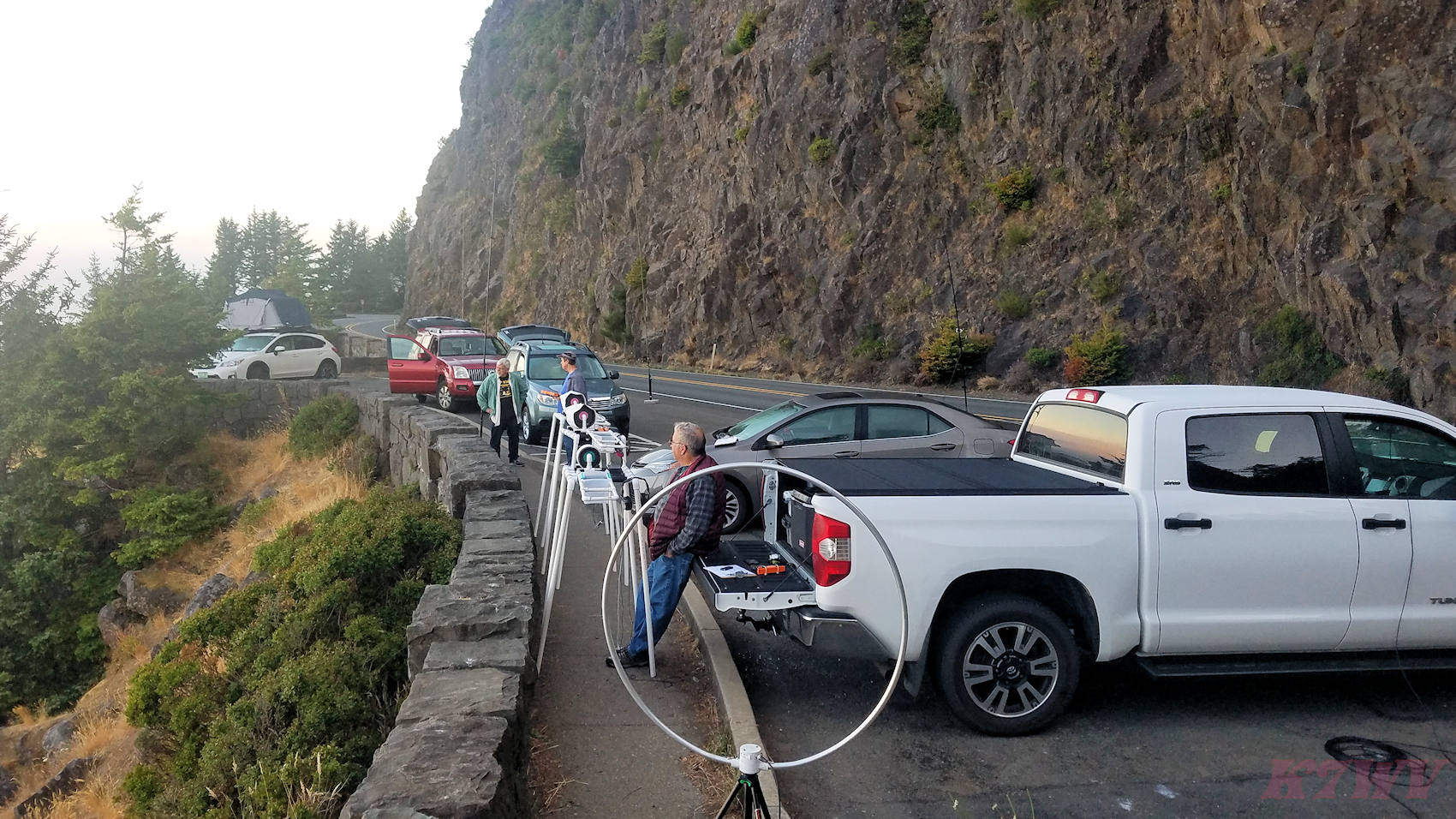

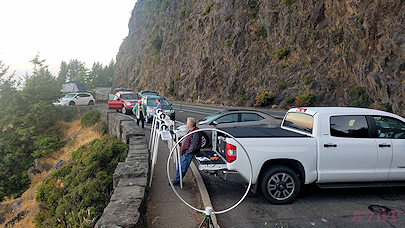

  Six DXers, two styles, one awesome cliff                                                           Myself with portable flag                                                   Cliffside "Office" provides some weather protection




 K7WV Rockwork DXpedition 2021 Medium Wave Results

Date UTC KHz Station Comments KW City State Country MP3
8/4/2021 1253 531 531 PI Call-in with woman on phone (Pacific Lang.), Island music, loud 5 Auckland   New Zealand
8/6/2021 1301 531 More FM "This is More FM" following ad. Dominating on Aug 06 2 Alexandra   New Zealand   MoreFM
8/5/2021 1324 531 4KZ Oldies: "Endless Love", "Diamond Girl" briefly over PI, 2PM talk 10 Innisfail QLD Australia
8/3/2021 1257 531 2PM "Super Radio Mid North Coast" 3 times during announcement 5 Kempsey NSW Australia
8/5/2021 1300 540 Rhema "Keeping you in the know, this is Rhema news" 5 Tauranga +2 others   New Zealand   Rhema
8/3/2021 1300 549 2CR ABC Central West ABC fanfare followed by ABC News 50 Orange NSW Australia
8/3/2021 1303 549 SENZ Discussing horses // 711, 1071 5 Napier-Hastings   New Zealand
8/5/2021 1312 558 6WA ABC Great Southern Discussion of values and pricing of rare books // 612  50 Wagin WE Australia
8/4/2021 1308 558 Gold AM "Back on the Chain Gang" (The Pretenders) // 1062, 1503 5 Invercargill   New Zealand
8/5/2021 1258 558 Fiji 1 "Radio Fiji One Na Domoiviti" between island songs 10 Naulu   Fiji   R. Fiji One
8/3/2021 1300 567 RNZ National Time pips and "RNZ News at One-O-Clock" // 675 50 Wellington   New Zealand
8/5/2021 1320 570 KUAI "KUAI FM 104.5, AM 570 Kauai's country" mix with KVI 1 Eleele, Kauai   Hawaii
8/5/2021 1256 576 Star Song with male vocalist over 2RN // 657 2.5 Hamilton   New Zealand
8/4/2021 1300 576 2RN ABC National ABC fanfare, poor 50 Sydney NSW Australia
8/5/2021 1306 585 2WEB Huge signal with "Great music…Outback Radio…2WEB" 10 Bourke NSW Australia   2WEB
8/3/2021 1300 585 7RN ABC National ABC fanfare followed by ABC News 10 Hobart TAS Australia
8/3/2021 1259 590 KSSK "92.3 KSSK" jingle between songs 7.5 Honolulu   Hawaii   KSSK
8/5/2021 1239 594 JOAK NHK1 Man speaking Japanese briefly on top 300 Tokyo   Japan
8/3/2021 1250 594 Star Song // 657 loud and alone 5/2 Timaru/Whanganui   New Zealand
8/5/2021 1300 594 3WV ABC W. Victoria ABC fanfare followed by ABC News, loud 50 Horsham VIC Australia
8/6/2021 1309 603 Radio Waatea Choral song ends, "Waatea" ID and announcement in Maori 5 Manukau   New Zealand
8/5/2021 1300 603 2RN ABC National ABC fanfare followed by ABC News 10 Nowra NSW Australia
8/3/2021 1300 612 4QR ABC Brisbane ABC fanfare followed by ABC News 50 Brisbane QLD Australia
8/5/2021 1300 621 3RN ABC National ABC fanfare into ABC News 50 Melbourne VIC Australia
8/5/2021 1300 630 4QN ABC North QLD ABC fanfare and ABC News 50 Townsville QLD Australia
8/3/2021 1257 630 RNZ National Male vocalist with guitar // 675, poor 10 Napier-Hastings   New Zealand
8/5/2021 1248 639 5CK ABC North & West SA Man in conversation // 891 10 Port Pirie SA Australia
8/3/2021 1253 639 2HC (SRN) "Yesterday's Gone" (Chad & Jeremy) // 531 Super Net 5 Coff's Harbour NSW Australia
8/6/2021 1304 648 2NU ABC R New England "You can get more news on our website abc.net.au" // 792 10 Tamworth NSW Australia
8/5/2021 1318 650 KPRP "Aloha, Mabuhay you are listening to the new KPRP Honolulu" 10 Honolulu   Hawaii
8/5/2021 1251 657 Star Echo effect from two stations slightly out of sync 10 Tauranga   New Zealand
8/5/2021 1255 657 Star "Star--Christian music you've loved for years" 50 Wellington   New Zealand
8/5/2021 1239 666 JOBK NHK1 Man and woman hosts in JJ // 594 100 Osaka   Japan
8/3/2021 1300 666 2CN ABC Canberra ABC fanfare followed by ABC News 5 Canberra ACT Australia
8/5/2021 1300 670 KPUA "670 KPUA Hilo your source for news, sports and information" 5 Hilo, Hawaii   Hawaii
8/5/2021 1312 675 2CO ABC Riverina Female announcer // 702, 738 during fade up over RNZ 10 Corowa NSW Australia
8/3/2021 1300 675 RNZ National Time pips and "RNZ News at One-O-Clock" 10 Christchurch   New Zealand   RNZ
8/3/2021 1300 684 2KP ABC Mid-North Coast ABC fanfare followed by ABC News 10 Kempsey NSW Australia
8/4/2021 1300 690 KHNR "FM 94.3 You've found the Answer KHNR Honolulu" 10 Honolulu   Hawaii
8/5/2021 1236 693 JOAB NHK2 English lessons // 774 500 Tokyo   Japan
8/3/2021 1254 693 Gold AM "Cinnamon Girl" (Neil Young) // 792, 1503 5 Dunedin   New Zealand
8/3/2021 1256 702 Magic "Baby What a Big Surprise" (Chicago) // 738, 1107 10 Auckland   New Zealand
8/3/2021 1300 702 2BL ABC Sydney ABC fanfare followed by ABC News 50 Sydney NSW Australia
8/3/2021 1303 711 SENZ Discussing horses // 549, 1071 5 Wellington   New Zealand
8/5/2021 1300 720 RNZ National "RNZ News at one-o-clock" during brief TOH break 10 Invercargill   New Zealand
8/6/2021 1230 729 5RN ABC National ABC Fanfare at BOH 50 Adelaide SA Australia
8/3/2021 1300 738 2NR ABC North Coast ABC fanfare followed by ABC News 50 Grafton NSW Australia
8/3/2021 1256 738 Magic "Baby What a Big Surprise" (Chicago) // 702, 1107 5 Christchurch   New Zealand
8/4/2021 1300 740 KCIK "Relevant radio KCIK Kihae, Maui" at TOH 5 Kihae, Maui   Hawaii   KCIK
8/4/2021 1300 747 7PB ABC News Radio pips and ABC fanfare, fair 10 Hobart TAS Australia
8/5/2021 1234 747 JOIB NHK2 English language lesson // 693 500 Sapporo   Japan
8/6/2021 1300 756 RNZ National Time pips and "RNZ News at One-O-Clock" // 675 10 Auckland   New Zealand
8/5/2021 1300 760 KGU "KGU Honolulu, Hawaii…All New Hawaii…" 10 Honolulu   Hawaii   KGU
8/4/2021 1255 765 Radio Kahungunu Long choral song with chanting, loud 2.5 Napier-Hastings   New Zealand   Kahungunu
8/5/2021 1236 774 JOUB NHK2 English lessons // 693 500 Akita   Japan
8/3/2021 1256 774 Gold AM "Cinnamon Girl" (Neil Young) // 693, 1503 weak under 3LO 5 New Plymouth   New Zealand
8/3/2021 1300 774 3LO ABC Melbourne ABC fanfare followed by ABC News 50 Melbourne VIC Australia
8/5/2021 1311 783 8AL ABC Alice Springs Male speaking // 891 2 Alice Springs NT Australia
8/3/2021 1300 792 4RN ABC National ABC fanfare followed by ABC News, loud 25 Brisbane QLD Australia
8/3/2021 1254 792 Gold AM "Cinnamon Girl" (Neil Young) // 693, 1503 5 Hamilton   New Zealand
8/3/2021 1256 801 SENtrack "The horses are in their spaces…" not // 549, 828, 1242 5 Gosford NSW Australia
8/5/2021 1302 801 Rhema Rhema News with olympics results // 540 2 Nelson   New Zealand
8/5/2021 1250 810 2BA ABC South East NSW Man speaking // 594 under KGO 10 Bega NSW Australia
8/5/20211257810RNZ NationalRosemary Clooney song strong under KGO // 56710Dunedin New Zealand
8/5/2021 1301 819 RNZ National Man reading RNZ news // 675 10 Tauranga   New Zealand
8/3/2021 1300 828 3GI ABC Gippsland ABC fanfare followed by ABC News 50 Sale VIC Australia
8/3/2021 1306 828 SENZ Discussion of horses and trainers // 711, 1071, 1224 loud 5 Palmerston North   New Zealand
8/5/2021 1240 828 JOBB NHK2 English lesson discussion // 774, 693 300 Osaka   Japan
8/6/2021 1300 830 KHVH "News radio 830 KHVH Honolulu an I-Heart radio station" 10 Honolulu   Hawaii
8/3/2021 1300 837 4RK ABC Capricornia ABC fanfare followed by ABC News weak under RNZ 10 Rockhampton QLD Australia
8/3/2021 1300 837 RNZ National On top, Time pips and "RNZ News at One-O-Clock" 2.5 Whangarei / Kaitaia   New Zealand
8/5/2021 1247 846 2RN ABC National Men in discussion // 792 10 Canberra ACT Australia
8/5/2021 1231 846 Radio Kiribati Presumed with huge open carrier, no modulation (Observed before) 10 London   Kiribati
8/3/2021 1300 855 4QO ABC Wide Bay (4QB) ABC fanfare followed by ABC News 10 Eidsvold QLD Australia
8/5/2021 1252 864 Newstalk ZB Call-in guest and male host // 1035 10 Invercargill   New Zealand
8/5/2021 1238 873 Newstalk ZB Man and woman in discussion // 1026 1 Ashburton   New Zealand
8/3/2021 1249 882 Star Slow song with woman singer // 594, 657 10 Auckland   New Zealand
8/3/2021 1247 891 Magic "Jesamine" (The Casuals), directly into next song. Continuous oldies 5 Wellington   New Zealand
8/4/2021 1230 891 5AN ABC Adelaide "ABC Radio Adelaide" followed by ABC fanfare 50 Adelaide SA Australia
8/6/2021 1300 900 KMVI "Maui's ESPN radio station KMVI AM 900 Kahului" 5 Kahului, Maui   Hawaii
8/3/2021 1249 900 Star Slow song with woman singer // 594/657/909 10 Dunedin   New Zealand
8/3/2021 1249 909 Star Slow song with woman singer // 594/657/900 5 Napier-Hastings   New Zealand
8/5/2021 1259 918 RNZ National Rosemary Clooney song ending // 675 2.5 Timaru /N Plymouth   New Zealand
8/3/2021 1256 927 Newstalk ZB Man on phone // 1035 2 Palmerston North   New Zealand
8/3/2021 1246 936 Chinese Voice Duet song in Chinese with huge signal 1 Waiuku-Auckland   New Zealand   Chinese V.
8/5/2021 1300 936 4PB ABC NewsRadio ABC fanfare, fair 10 Brisbane QLD Australia
8/3/2021 1302 940 KKNE Distinctive musical ID in Hawaiian and English 5 Honolulu   Hawaii   KKNE
8/3/2021 1247 945 Newstalk ZB man speaking // 1035 2 Gisborne   New Zealand
8/3/2021 1302 954 Coast In briefly, music // 1323 1 Dunedin   New Zealand
8/3/2021 1250 963 Star Slow song with woman singer // 594, 657 10 Christchurch   New Zealand
8/3/2021 1302 972 Rhema Rhema news // 540, 801 2 Nelson   New Zealand
8/5/2021 1247 972 5PB ABC NewsRadio News announcer not // 540 Rhema 2 Adelaide SA Australia
8/3/2021 1303 981 2NM Short "981 2NM" ID by man during female monologue 5 Muswellbrook NSW Australia
8/5/2021 1300 990 KIKI "KIKI Honolulu an I-Heart radio station" 5 Honolulu   Hawaii
8/5/2021 1314 999 2NB ABC Broken Hill Olympics broadcast with USA athlete // 891 2 Broken Hill NSW Australia
8/6/2021 1300 1008 Newstalk ZB "Newstalk ZB News" weak, // 1026, 1035 10 Tauranga   New Zealand
8/5/2021 1301 1008 4TAB Horse race call, echo effect, 2 stations out of sync // 1017 1 sec delay 10 Brisbane QLD Australia
8/5/2021 1301 1008 7TAB presumed Horse race call, echo effect, 2 stations out of sync // 1017 1 sec delay 5 Launceston TAS Australia
8/5/2021 1302 1017 2KY Sky Sports Radio Horse race call with "Fascination" overtaking "Summer Valley" 5 Sydney NSW Australia
8/5/2021 1248 1017 Newstalk ZB "Smart talk on Newstalk ZB" under Tonga 2.5 Christchurch   New Zealand
8/5/2021 1315 1017 A3Z Start of brief news and weather in accented English, loud 2.5 Nuku'alofa   Tonga
8/5/2021 1300 1026 3PB ABC NewsRadio ABC fanfare fair, over 4MK 14.5 Melbourne VIC Australia
8/3/2021 1254 1026 Newstalk ZB Echo effect from two stations out of sync, // 1035 2 Kaitaia   New Zealand
8/3/2021 1254 1026 Newstalk ZB Echo effect from two stations out of sync, // 1035 2 Whangarai   New Zealand
8/3/2021 1301 1026 Star Song with female vocals // 657 2.5 Mackay   New Zealand
8/6/2021130310264MK"Find us online at 4MK.com.au"5MackayQLDAustralia
8/5/2021 1249 1035 Newstalk ZB promo, "Newstalk ZB" // 1026, 1044 20 Wellington   New Zealand
8/6/2021 1300 1040 KLHT "KLHT Honolulu" under domestic 10 Honolulu   Hawaii   KLHT
8/5/2021 1249 1044 Newstalk ZB promo, "Newstalk ZB" // 1026, 1035 10 Dunedin   New Zealand
8/5/2021 1237 1053 2CA Forever Classic Continuous rock songs, in again at 1247, not // 1575 SENtrack 5 Canberra ACT Australia
8/6/2021 1259 1053 Newstalk ZB "Newstalk ZB" // 1044 2 New Plymouth   New Zealand
8/5/2021 1301 1062 Gold AM "Gold" ID following song // 1503 1 Wanganui   New Zealand
8/6/2021 1300 1062 4TI ABC Far North Qld ABC fanfare fair at TOH 2 Thursday Island QLD Australia
8/3/2021 1303 1071 SENZ Discussing horse training, development // 549, 711 5 Dunedin   New Zealand
8/3/2021 1300 1071 RNZ National RNZ News // 675 just after TOH 2.5 Masterton   New Zealand
8/5/2021 1319 1071 4SB Brief ad between classic oldies, not // RNZ or SENZ 5 Kingaroy QLD Australia
8/5/2021 1309 1080 Newstalk ZB Male commentary // 1035, 1026 under domestics 10 Auckland   New Zealand
8/5/2021 1304 1089 Gold AM Gold news // 1503 2.5 Palmerston North   New Zealand
8/5/2021 1307 1098 Newstalk ZB Sports discussion, Brisbane mention, // 1026, 1035 7.5 Christchurch   New Zealand
8/3/2021 1256 1107 Magic Talk Baby What a Big Surprise (Chicago) // 702, 738 5 Tauranga   New Zealand
8/4/2021 1305 1110 KAOI "KAOI" and "Old Time Radio Theater" program announcement 5 Kihae, Maui   Hawaii
8/5/2021 1306 1116 4BC Brisbane 4BC ID and promo for show, good 50 Brisbane QLD Australia
8/5/2021 1311 1125 Gold AM "The Boys are back in Town" (Thin Lizzy) // 1503 1 Napier-Hastings   New Zealand
8/6/2021 1251 1134 JOQR Bunka Hoso Female announcer in JJ speaking rapidly 100 Tokyo   Japan
8/6/2021 1307 1134 2AD New England R. (SRN) Music with banjo // 639 SRN 2 Armidale NSW Australia
8/5/2021 1310 1143 2HD (SRN) Sports clips and news // 531, 1188 2 Newcastle NSW Australia
8/5/2021 1314 1143 RNZ National Song with woman vocalist // 675, loud 2.5 Whangarei / Kaitaia   New Zealand
8/5/2021 1309 1152 Newstalk ZB Discussion at sporting venue // 1035 2 Timaru   New Zealand
8/5/2021 1303 1161 7FG ABC N. Tasmania Discussing the media // 594 1 Fingal TAS Australia
8/5/2021 1252 1161 Te Reo Irirangi o te Upoko… Maori language vocals with western instrumentation 5 Wellington   New Zealand
8/5/2021 1245 1179 Radio Ake "Poetry Man" (Phoebe Snow), US oldies w/ Maori announcements 5 Auckland   New Zealand
8/5/2021 1310 1188 2NZ (Super R. Network) Sportscast // 531 SRN 2 Invernell NSW Australia
8/5/2021 1313 1197 Newstalk ZB Sports discussion, condition of players // 1035 2 Wanganui   New Zealand
8/3/2021 1303 1206 SENZ Discussing horse development // 549, 711 5 Dunedin   New Zealand
8/6/2021 1307 1206 2GF (SRN) Music clip // 639, 1143 briefly over SENZ 5 Grafton NSW Australia
8/5/2021 1242 1215 Newstalk ZB Host and call-in guest debate // 1035 2 Kaikohe   New Zealand
8/3/2021 1300 1224 SENZ Excited female announcer // 828 2 Invercargill   New Zealand
8/5/2021 1316 1233 2NC ABC Newcastle Woman announcer // 594, 612, 774 10 Newcastle NSW Australia
8/5/2021 1313 1242 JOLF Nippon Hoso Group discussion with laughter 100 Tokyo   Japan
8/5/2021 1309 1242 4AK (Super R. Network) Female announcer into music clip // 1143 SRN 2 Toowoomba QLD Australia
8/5/2021 1259 1251 Rhema slow choral song // 540 5 Auckland   New Zealand
8/5/2021 1306 1269 2SM (Super Network) Male announcer // 639 SRN discussing olympics 10 Sydney NSW Australia
8/6/202113011270KNDI"You're listening to KNDI AM 1270 Honolulu, Hawaii" weak, mix5Honolulu Hawaii  KNDI
8/5/2021 1257 1278 Newstalk ZB conversation // 1035 2 Napier-Hastings   New Zealand
8/5/2021 1247 1287 JOHR HBC Pop song intro by excited woman 50 Sapporo   Japan
8/5/2021 1327 1287 Newstalk ZB male announcer // 1035 2 Greymouth   New Zealand
8/5/2021 1259 1296 Newstalk ZB Ad for 12 day cruise in November // 1035 2.5 Hamilton   New Zealand
8/6/2021 1312 1305 R. Dunedin Man reading news not // 891 must be R. Dunedin 2.5 Dunedin   New Zealand
8/3/2021 1251 1314 Star slow song with woman singer // 594, 657 5 Invercargill   New Zealand
8/5/2021 1304 1314 Sky Racing Radio Talk and music clip // 1017, fair to good 5 Wollongong NSW Australia
8/6/2021 1300 1323 Coast song: La Bamba (Ritchie Valens) through TOH, good 2.5 Hawara   New Zealand
8/5/2021 1256 1332 Gold AM Up-tempo rock song // 1503 10 Auckland   New Zealand
8/5/2021 1311 1332 4BU (presumed) Man talking about the Covid lockdown, briefy over Gold 5 Bundaberg QLD Australia
8/5/2021 1305 1341 3CW Man in Chinese following Chinese operatic singer, Music at 1315 5 Geelong VIC Australia
8/5/2021 1257 1368 Magic Talk 1972 Roberta Flack song // 702, 738, 1107 1 Napier-Hastings   New Zealand
8/5/2021 1323 1386 R. Tarana Up-tempo Hindi pop / Bollywood music 10Auckland New Zealand
8/5/2021 1252 1395 Newstalk ZB Discussion // 1035, weak 2 Oamaru   New Zealand
8/5/2021 1259 1413 2EA (SBS Radio 1) "BBC World Service" by female ann. 2 Newcastle NSW Australia
8/5/2021 1245 1422 JORF Radio Nippon Excited woman announcer 50 Yokohama   Japan
8/5/2021 1310 1431 2RN Radio National Men discussing an opera // 792 2 Wollongong NSW Australia
8/5/2021 1257 1458 RNZ National Instrumental jazz // 675 2.5 Westport   New Zealand
8/5/2021 1253 1467 3ML Man reading news, DU accent; only possible station 2 Mildura VIC Australia
8/3/2021 1308 1476 SENZ Woman interviewing man about placing bets // 828 5 Auckland   New Zealand
8/3/2021 1301 1494 Star Song with female vocalist // 657, 1026 weak 3 Hamilton   New Zealand
8/4/2021 1316 1494 Gold AM Rock music // 1503 2.5 Timaru   New Zealand
8/5/2021 1300 1500 KHKA "Hawaii's information station KHKA AM Honolulu" 5 Honolulu   Hawaii   KHKA
8/5/2021 1303 1503 Gold AM "Gold an I-Heart radio station News" into news 5 Wellington   New Zealand
8/6/2021 1305 1503 Gold AM Echo effect from two stations out of sync (Gold news) 5 Christchurch   New Zealand
8/5/2021 1308 1512 2RN ABC National Cultural program discussing opera // 792 10 Newcastle NSW Australia
8/4/2021 1300 1540 KREA MBC chimes, "KREA Honolulu 1540 on the AM dial" 5 Honolulu   Hawaii
8/5/2021 1300 1548 4QD ABC Central QLD ABC News with male announcer // 594, 612, 774 50 Emerald QLD Australia
8/5/2021 1307 1557 2RE (Super network) SRN News ending, music fade-up // 639 2 Taree NSW Australia
8/5/2021 1315 1566 3NE Man speaking in DU accent followed by music 5 Wangaratta VIC Australia
8/5/2021 1233 1566 HLAZ FEBC Female announcer monologue in JJ 250 Jeju   S. Korea
8/5/2021 1300 1570 KUAU "Thanks for listening to KUAU 1570 AM Haiku, Maui" 15 Haiku, Maui   Hawaii
8/5/2021 1244 1575 2RF SEN Track Male announcer with race payouts 5 Wollongong NSW Australia
8/5/2021 1237 1611 Vision Slow choral music // 1629, "Vision Christian Radio" at 1301 0.4 various NSW Australia
8/5/2021 1237 1629 Vision Slow choral music // 1611 0.4 Dubbo / Bathurst NSW Australia
8/5/2021 1312 1629 4DB "...is here; this is Hot Country" then up-tempo country song 0.4 Dalby QLD Australia   4DB
8/5/2021 1251 1630 TM Aeronautical Beacon "TM" CW Morse; observed offset +1010 0.2 Taumarunui   New Zealand
8/5/2021 1309 1638 3ME Arabic quarter tone music // 1638 2ME, 1637.844 0.4 Melbourne NSW Australia
8/5/2021 1310 1638 2ME Arabic quarter tone music, loud, 1637.995 0.4 Sydney NSW Australia   2ME
8/5/2021 1301 1656 Vision Loud, music ending, "Vision Christian Radio" // 1611 0.4 Bundaberg QLD Australia   Vision
8/5/202113031665VisionChristian song fade up // 1656, fair to good0.4MelbourneVICAustralia
8/5/2021 1258 1665 2MM Music, Greek singing and instrumentation 0.4 Sydney NSW Australia
8/5/2021 1247 1674 R. Haanji Hindi or similar spoken language by female announcer 0.4 Sydney /Melbourne NSW Australia
8/5/2021 1237 1701 R. Brisvaani Hindi "Bollywood" music 0.1 Brisbane QLD Australia




Comments and highlights of the 2021 MW Results

As mentioned earlier we had some unusal Australian focused DX on the 5th with loud 2WEB. The 3rd seemed quite NZL-centric with nice echoes from multiple stations out of sync. A solid parallel for 6WA was found on 8/5 at 1312 // 612, and 8AL from Alice Springs was also logged // 891 for all AUS states heard, also accomplished last year. I struck out on the 3rd with a brief rise of Gold news rather than ABC news on 558, but AUS was better in every way on the 5th and a solid parallel was bound to be found. I had something on 1152 which needs further investigation, possibly 6PNN but no ABC Newsradio parallels available. Ten Gold AM affiliates heard this time around, one more than last year but only 20 Newstalk ZB (out of 23 existing) for me this time, down 2 from last year. Coast parallels again, but this time on 954 Khz // the ever reliable 1323 Khz. 7 SENZ affiliates (out of 9) of the sports entity that took over silent TAB Trackside. An above average 17 Hawaiians were logged.

Aug 03 was a wild session with different stations rising up and then being replaced minutes later with different stations. Very unstable but really good for numbers. Aug 05 was just excellent for Australia and largely responsible for the unusual ratio of Kiwis to Aussies, but NZL always wins out at Rockwork, this time as well with 83 NZL and 74 Australians. 157 DUs is way better than I have ever done at any DXpedition including Grayland. Combined results for the 4 SDR DXers was 92 NZL and 87 AUS (179 DUs), a West Coast DXpedition record for DUs and Kiwis.

A log spreadsheet is
HERE for comparison with the other partners' spreadsheet log, or for sorting or other purposes. The above log has MP3s and I will be adding to these as time permits. I'm sure there are more stations that were missed but one has to have a stopping point. The recorded files can be revisited when time permits.



K7WV Rockwork DXpedition 2021 NDB Results

Pacific / Australia / NZ  / AK / Russia  NDBs received during 'Rockwork' DXpedition 2021
UTC DATE UTC KHz CALL MI KM Location Country MP3
8/6/2021 12:20 233 ALJ 1371 2206 Orca Bay - Hinchinbrook  ALS
8/5/2021 12:31 238 KT 6815 10966 Kaitaia - Waimanoni - Awanui  NZL
8/5/202112:37257RK715711516Rockhampton, QLD AUS
8/5/2021 13:06 260 NF 6694 10773 Norfolk Island - Anson Bay  NFK
8/5/2021 12:38 264 CCY 7491 12055 Conclurry, QLD  AUS
8/5/2021 12:37 269 CV 7494 12059 Charleville, QLD  AUS
8/5/2021 12:41 272 LHI 7181 11554 Lord Howe Island, NSW  AUS
8/6/2021 12:19 277 ACE 1481 2384 Kachemak - Homer Apt  ALS
8/5/2021 13:09 278 CG 7254 11671 Coolangatta, QLD  AUS
8/6/2021 12:40 282.5 RT 5016 8071 Avera (Rurutu Island)  AUI
8/6/2021 12:32 283 DUT 1947 3134 Dutch Harbor  ALS
8/6/2021 12:40 284.5 MH 4382 7050 Manihi Atoll (Tuamoto Archipelago)  TUA
8/5/2021 12:38 287 LEC 8040 12939 Leigh Creek, SA  AUS
8/5/2021 13:08 293 COM 7832 12602 Cooma, NSW  AUS
8/5/2021 12:36 293 CDU 8323 13395 Ceduna, SA  AUS   CDU
8/6/202112:21294AN39496354Hiva Oa MAR
8/5/2021 12:54 299 CWR 7731 12439 Cowra , NSW  AUS
8/5/2021 13:08 302 BUD 7146 11501 Bundaberg, QLD  AUS
8/5/202112:37302WYY817013146Wynyard, TAS AUS
8/5/2021 13:07 305 GTH 7863 12652 Griffith, NSW  AUS
8/6/2021 12:41 305 FA 4659 7498 Tahiti Faa'a Apt  OCE
8/5/2021 13:06 308 MK 7108 11439 Mackay, QLD  AUS
8/6/2021 12:41 310 HK 7302 11750 Hokitika (South Island)  NZL
8/5/2021 12:37 311 NTN 7322 11784 Normanton Apt, QLD  AUS
8/5/2021 12:47 314 SPY 2094 3370 St Paul Island  ALS
8/6/2021 12:43 315 HO 5211 8385 Hihifo Apt - Wallis Island  WAL
8/6/2021 12:36 316 MA 4647 7477 Maupiti Airport  OCE
8/6/2021 12:47 316 MAJ 4661 7500 Majuro Atoll - Amata Kabua IAP  MHL
8/5/2021 12:31 320 AI 4994 8036 Aitutaki - Amuri  CKS
8/5/2021 12:31 322 CI 6985 11239 Chatham Islands  NZL
8/5/2021 12:38 324 EML 7270 11700 Emerald, QLD  AUS
8/5/2021 12:49 326 WR 6816 10967 Whangarei  NZL
8/3/2021 12:56 327 VYI 2512 4043 Valley Island - Kahului, Maui  HWA
8/6/2021 12:32 327.5 RE 4505 7250 Reao Apt  TUA
8/4/2021 12:40 332 POA 2526 4065 Pahoa, Hawai'i  HWA
8/5/2021 12:42 332 BHI 7963 12816 Broken Hill, NSW  AUS
8/6/2021 12:33 332.5 AA 4635 7344 Anaa Atoll Apt  TUA
8/6/202112:22338MA754012133Mount Isa, QLD AUS
8/6/2021 12:36 339 FN 4384 7054 Fangatau  TUA
8/5/2021 12:38 340 FU 5131 8257 Funifuti TUV   FU
8/6/2021 12:50 341 MG 4805 7733 Totegegie Apt TUA
8/5/2021 12:39 343 ML 4665 7507 Minami Torishima  JPN
8/6/2021 12:43 345 HH 4635 7458 Fare (Huahine Island)  AUI
8/5/2021 12:40 346 TG 6857 11034 Tauranga Apt  NZL
8/6/2021 12:36 347 TB 5039 8108 Tubuai Apt  AUI
8/5/2021 12:56 347 RIC 7627 12274 Richmond, NSW  AUS
8/6/2021 12:36 349 TP 4385 7055 Takapoto Apt - Fakatopatere  TUA
8/6/202112:20350VTR17092751'Takotna River' McGrath ALS
8/5/2021 12:38 350 KI 7195 11578 Kaikoura (South Island)  NZL
8/5/2021 12:32 352 RG 5144 8278 Nikau - Rarotonga IAP  CKS
8/5/2021 12:57 353 LRE 7443 11978 Longreach Apt, QLD  AUS
8/4/2021 12:40 353 LLD 2540 4087 Lanai, Lana'i  HWA
8/6/2021 12:48 355 NI 5252 8451 Nauru - Nauru IAP  NRU
8/6/2021 12:36 355 AUB 1628 2620 'Saldo' King Salmon  ALS
8/6/2021 12:36 358 OA 4448 7158 Rangiroa Apt  TUA
8/5/2021 12:41 359 NWA 7700 12392 Nowra, NSW  AUS
8/5/2021 12:37 360 OX 5229 8413 Iwo Jima  VOI
8/5/2021 12:52 364 MI 5724 9211 Momi-Nadi  FJI
8/5/2021 13:04 364 CS 7061 11363 Cairns, QLD  AUS
8/5/202113:06365WLM754612143Williamtown, NSW AUS  WLM
8/5/2021 12:32 366 SF 6822 10977 Springfield  NZL
8/6/2021 12:44 370 HAO 4538 7301 Tuamotu Archipeligo  TUA
8/5/2021 12:37 371 ROR 6402 10301 Koror PLW
8/5/2021 12:40 371 HUG 7322 11784 Hughenden Apt, QLD  AUS
8/6/2021 12:36 372 UK 3900 6276 Ua Huka  MAR
8/6/2021 12:35 372 AV 5036 8104 Raivavae Apt  AUI
8/6/2021 12:44 372 RU 4647 7478 Raiatea Apt Uturoa  OCE
8/6/2021 12:45 376 NP 4279 6886 Napuka Apt  TUA
8/5/2021 12:46 377 ROM 7385 11884 Roma, QLD  AUS
8/6/2021 12:45 377.5 MO 4658 7496 Moorae - Temae Apt  OCE
8/5/2021 12:42 380 SU 7196 11578 Maroochydore/Sunshine Coast Apt, QLD  AUS
8/6/2021 12:57 382 WU 7020 11296 Wanganui  NZL
8/5/2021 13:01 383 SGE 7463 12011 St George Apt, QLD  AUS
8/6/2021 12:35 383 HV 3949 6354 Hiva Oa  MAR
8/6/2021 12:46 383 MK 4480 7209 Makemo Apt  TUA
8/6/2021 12:36 384 BB 4636 7459 Bora Bora IAP  OCE
8/6/2021 12:06 385 OCC 1154 1857 Ocean Cape - Yakutat  ALS
8/6/2021 12:37 385 EHM 1809 2912 Cape Newenham LRRS Apt  ALS
8/5/2021 12:38 389 GFN 7350 11828 Grafton - Clarence Vly Regl Ap, NSW  AUS
8/6/2021 12:35 390 HBT 1712 2755 Borland - Sand Point Apt  ALS
8/5/2021 13:03 392 LHR 6979 11232 Lockhart River, QLD  AUS
8/6/2021 12:33 393 UKS 5141 8272 Kosrae IAP  FSM
8/6/2021 12:44 393 FK 4481 7210 Fakarava (Iles Gambier)  TUA
8/6/2021 12:31 394 RWO 1694 2339 Woody Island - Kodiak  ALS
8/5/2021 12:52 395 PMQ 7438 11967 Port MacQuarie Apt, NSW  AUS
8/5/2021 12:49 395 MER 7816 12578 Merimbula, NSW  AUS   MER
8/5/2021 13:00 398 BOU 7624 12269 Boulia, QLD  AUS
8/6/2021 12:31 399 SRI 2071 3332 'Pribilof' St George  ALS
8/6/2021 12:45 400 MDY 3121 5022 Midway - Henderson Field  MDW
8/5/2021 12:39 401 ARM 7447 11985 Armidale, NSW  AUS
8/5/2021 12:50 402 OA 5071 10157 Ouvea Apt  NCL
8/5/2021 12:47 405 VK 5714 9195 Navakai - Nandi IAP  FJI
8/5/2021 12:32 407 WDH 7611 12248 Windorah, NSW  AUS
8/5/2021 12:58 413 BDV 7787 12532 Birdsville, QLD  AUS
8/6/2021 12:22 429 BTS 1694 2726 Wood River - Dillingham  ALS
8/6/2021 12:22 437 OG 3899 6274 Ohka  RSE
8/5/2021 12:37 486 LTV 8017 12902 Latrobe Valley Apt, VI  AUS
8/6/2021 13:07 530 ADK 2382 3833 Mount Moffett - Adak Island  ALS
8/5/2021 12:51 1630 TM 6954 11190 Taumarunui Apt  NZL



Comments and highlights of the 2021 LW Results

With four mornings at the ocean cliff pullout again this year, it was the final 2 days that filled the logs with record numbers of DU and Pacific NDBs. Aug 05 brought in a record haul of 34 Australian beacons. And the following day Aug 06, a rainy soaker that made one question even getting up before dawn, provided for excellent French Polynesia. All 23 stations operating there were heard for the first time in one session. Another AUS beacon (#35) was in as well. Both days produced different NZL stations to result in an above average 9 NDBs including two from the South Island. And for the Pacific it was a mixed bag of several easy stations being absent while seldom heard rare beacons were being heard. Alaskans (and OG from RSE) were in as usual even though the antenna was not turned NW this year. 16 stations , all Australians, were new to Rockwork this DXpedition. Some observations:

--35 Australians were identified on Aug 05 & 06. This vastly eclipses the old record of 14 for Rockwork and 16 for a West Coast DXpedition (Grayland).
--Two stations were North American firsts, not previously heard even with the excellent KPH Pt. Reyes KIWI. 383 SGE and 413 BDV joined the "received from NA" club exclusively at Rockwork.
--The Queensland-centered propagation brought in different stations than the NSW-centered conditions of recent years. 302 BUD (Qld) over WYY (Tas) and 407 WDH (Qld) replaced SWH (Vic). WDH is listed as 15 watts in WWSU.
--French Polynesia is comprised of the four island groups OCE, MAR, TUA and AUI.  341 MG has been reported from only 2 locations: Easter Island and Rockwork. All 23 active stations were in for the first time in a single DXpedition.
--Some of the "regulars" like 366 PNI, 403 TUT and 348 HN were not heard. No NOTAMS were issued for these NDBs so the reason for their absence is unknown.
--293 CDU was found in the recorded file coming in loudly prior to being overcome by COM. A submitted log using the KPH Kiwi caused me to review it and there it was. The most distant NDB I have yet received.
--The final compilation was 85 DU/Pacific stations, breaking the Rockwork 2019 previous record of 73.



NDBs Received during Rockwork 2021





Day view from Rockwork 4                     The world turns orange at sunset                    Wet and Rainy Aug 06 session
  Manzanita view from Rockwork 4                                                                     Manzanita sunset Aug 02, 2021                                                                   Rainy, wet session Aug 06




Location:

Rockwork 4 Pullout on Neahkahnie Mountain just north of Manzanita, OR
Coordinates: N 45° 44' 36.5" W 123° 57' 28.9" Elevation 575 feet (175.4 meters)
GPS Coordinates: N 45 44.608 W 123 57.482
Maidenhead Grid Square CN85AR 58AK

Google Maps Satellite View
I was able to use Rockwork 4 exclusively again, even with 6 DXers present on two mornings, as squatters were few

Drone view of the DX cliffs



Aug 2021 Participants (The Cliffhangers):

Craig Barnes (Aug 01 - 04)
Jeroen Bet (Aug 02 - 04)
Gary DeBock (Aug 03 - 06)
Chuck Hutton (Aug 02 - 04)
Bruce Portzer (Aug 02 - 04)
Tom Rothlisberger (Aug 03 - 06)

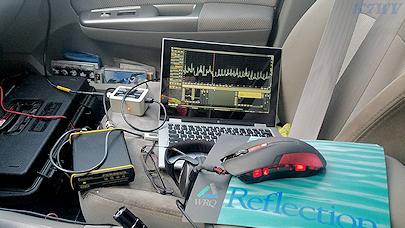

My Equipment:

Perseus SDR
Dell "2 in 1" 11.6-inch netbook (Win 10) 2.0 TB internal SSD.
Wellbrook FLG-100LN broadband amplifier modules (Used throughout DXpedition)
60 feet (18.3 meters) of #18 multi stranded copper wire, jacketed (Deployed as a rear-fed flag)
16 and 20 foot segmented fiberglass "Wonderpoles" and weighted (with concrete) tip-resistant stands
4 X tarp clips that clip onto the poles as wire guides; waterproof
Thick plastic wrap and zip ties to mount, protect the active antenna module in rain; Needed and used Aug 06.
50 feet RG8X coax with BNC connectors
35AH solar rechargeable battery box provides cliffside power for SDRs, active antennas
Backup equipment (not needed) included MSI Wind Netbook w/ 500 GB SSD, Wellbrook ALA100M modules
Drone: Yuneec Q500 Typhoon 4K (Available but not flown off the cliffs in 2021)


Links:

Rockwork 2 2021 II DXpedition K7WV results Page under construction, LW report complete
Rockwork 4 2020 DXpedition K7WV results

Rockwork 4 2019 DXpedition K7WV results

Rockwork 4 2018 DXpedition K7WV results
Rockwork 4 2017 DXpedition K7WV results
Rockwork 4 2016 International DXpedition K7WV results
Rockwork 4 2015 II DXpedition K7WV results
Rockwork 4 2015 I DXpedition K7WV results

Grayland DXpedition October 2021 K7WV Results Page I/W
Grayland DXpedition October 2020 K7WV Results
IRCA Grayland DXpedition September 2019 K7WV Results
Grayland DXpedition October 2018 K7WV Results

Grayland DXpedition October 2016 K7WV Results

Grayland DXpedition October 2015 K7WV Results

RNA database of received NDBs from North America Definitive NDB resource but going away
RNA database (New) replaces above RNA database Now considered official, new replacement database

IRCA Group (MW DX)
NDBlist Group (Beacon DXing, mostly LW)

KIWI SDRs for public use
K7WV Radio Home Page
