Grayland DXpedition October 2020

Return to Casa-Sea-Esta by Tom Rothlisberger K7WV

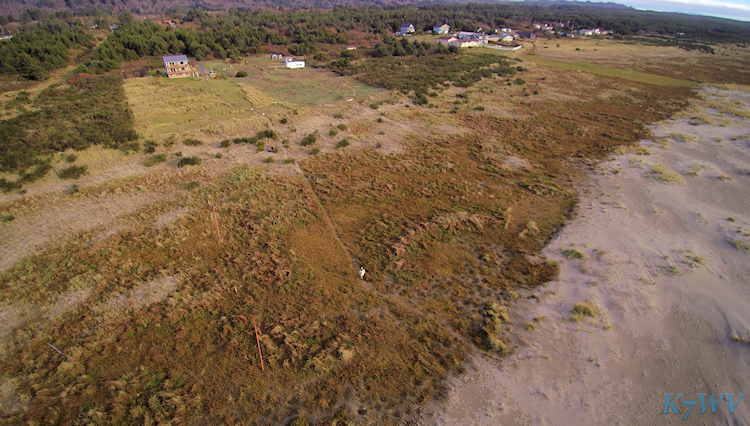

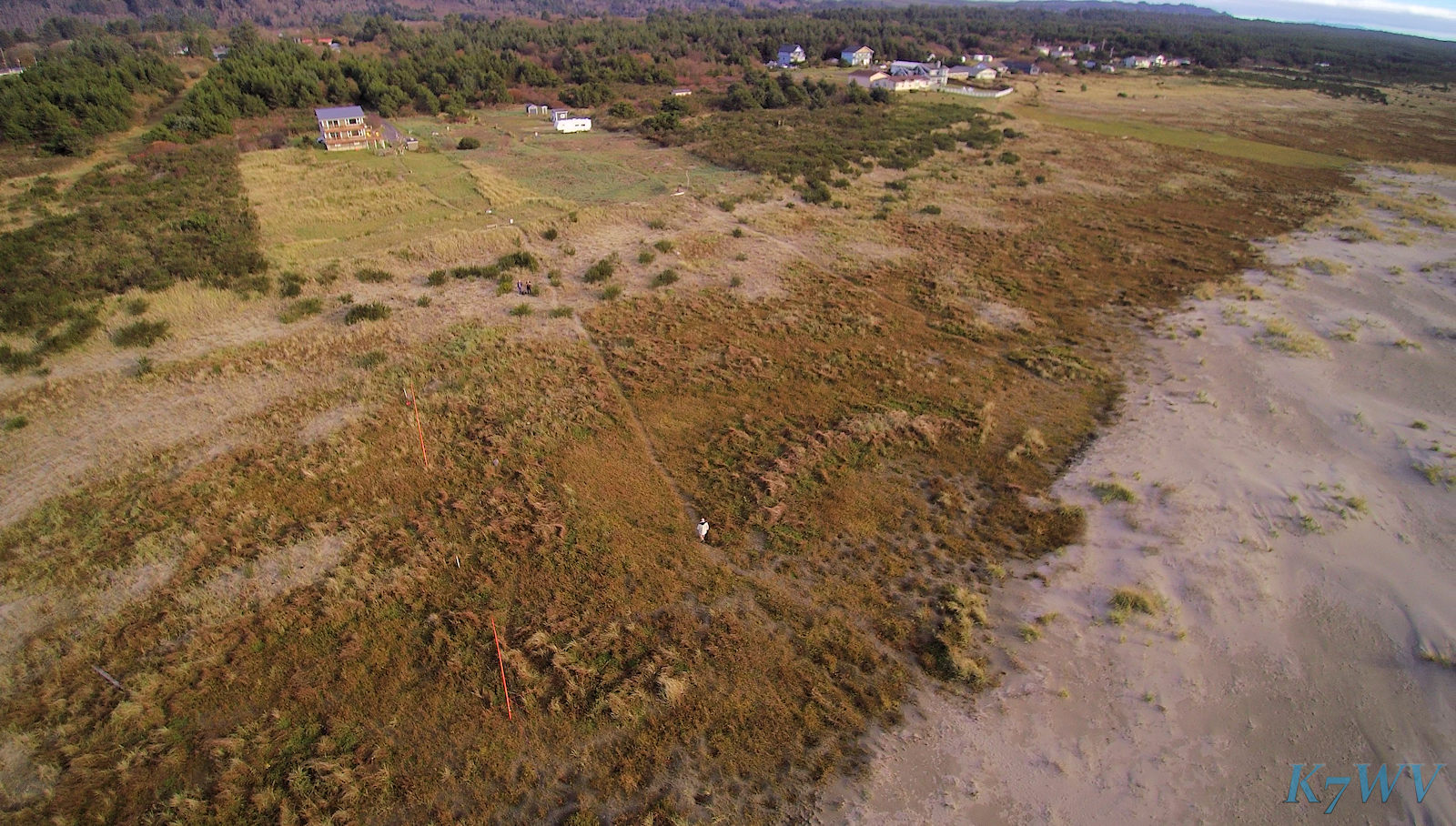

A drone's eye view of the Casa-Sea-Esta rental QTH and deployed 160-foot DKAZ. Click to enlarge.

Another 3-night October Grayland DXpedition was held at Casa Sea Esta Oct 26, 27 and 28, 2020. Dxers Chuck Hutton, Jeroen Bet and myself were in attendance, with Bruce Portzer joining us for the third night. With high Kp Indexes (3+) throughout our stay I wasn't expecting much but it was an opportunity to tryout antenna improvements, noise abatement and share information and best practices. My logs ended up with an outstanding showing of 83 Japanese stations which was well beyond my expectations. 42 Australians was a pretty good showing for late October, with four stations from Western Australia including a 5 KW 6RN outlet. 23 Alaskans were in nicely including all Anchorage area, Kenai Peninsula and Panhandle stations. 29 Chinese MW stations were identified, on par with the 30 heard from here at CSE in 2019.

We ran into the noise problem we had encountered before at Casa Sea Esta in 2019. Even the worst affected frequencies were the same. Jeroen discovered with his portable receiver that the noise was eminating from the vactrol wires and coax outside. We were sending the hash down the line! Some linear regulated power supplies were substituted in which really helped. That and turning off dubious noisemakers in the house brought it down to practically zero. We never had this problem at Breakwater Inn but we were able to mitigate it at CSE. I have picked up several of the 12 VDC linear regulated supplies for future and home use, and was already using a 5 VDC linear regulated supply for the Perseus.

On the last day we set up a KiwiSDR which took some doing but we got it to work and it was utilized by DXers at locations around the world. I think these will become a fixture at future West Coast DXpeditions. I wish I had paid more attention to the setup process.

I also deployed a 10 x 20 foot LW loop / FLG100LN combo that managed around 15 off-season AUS/NZL/Pacific beacons, and 4 seldom heard Russian Far East NDBs were ID'd using the DKAZ. One new one from Australia's Northern Territory (near Darwin) was also added to the Grayland logs, my first heard from NT at any DX location. At the same time Darwin X-band station 8MM was in on 1656 Khz. Not a coincidence. The well built DKAZ using 31-foot poles performed well for beacons and low MW band as well.

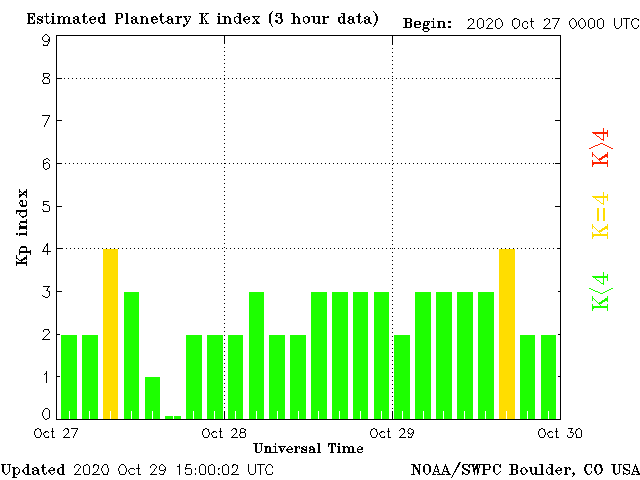

Kp Index data for the DXpedition dates and times. Yes, it was ugly. Sunspot group AR2776 had
rotated facing Earth again. Two weeks earlier/later it was Kp = 0 continuously for 48+ hour runs.

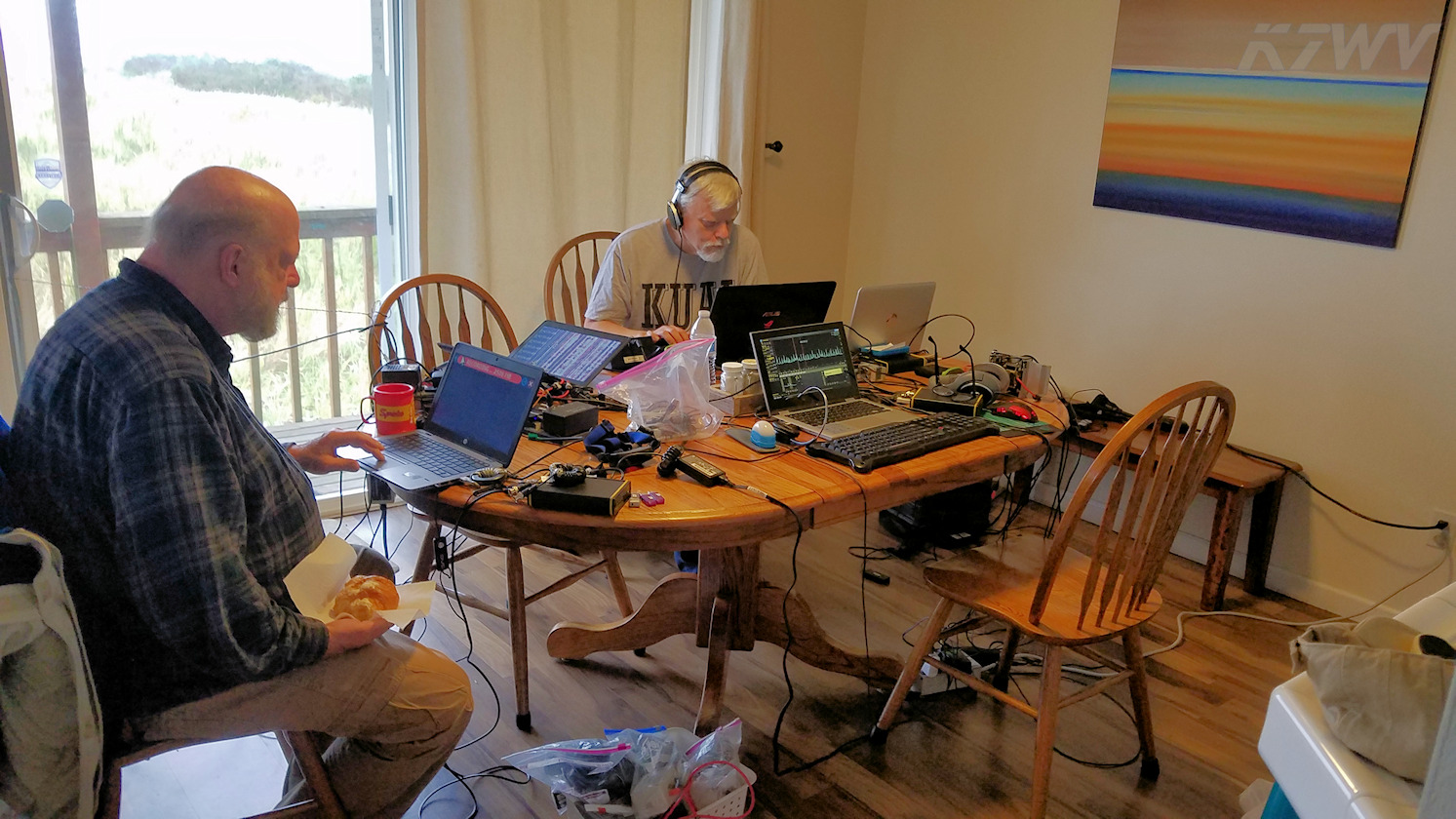

Morning File Review (Chuck and Bruce) Launching the drone (Jeroen and Tom) My receiving spot at the table


Drone shot of deserted Grayland Beach looking south to Cape Shoalwater

K7WV Grayland DXpedition 2020 Medium Wave Results

Comments and highlights of the 2020 MW Results

Despite Kp=3 and even worse. the results worked out a bit better than expected. 83 Japan stations down to 100W was an exceptional result considering the Kp; 3 MBC affiliates (10 KW, out of 13 S.Koreans), 23 Alaskans with solid IDs (but no Fairbanks or farther north), 29 of 10 KW+ China stations (CRI, CNR1, many RGD's), etc. DUs include a surprising 42 Australians with five being X-Band and four from distant W.A. 6RN 1269 is a personal record of 5 KW at 9258.5 miles. All 7 AUS states heard. 11 Hawaiians in and the welcome return of 940 KKNE, not heard at Rockwork earlier this year. NZL, Vietnam and Philippines in as well.

KHMB 1710 is a legal unlicensed "Part 15" station using 5 synchronized 100 mw transmitters and is 644 miles / 1036 km distant from the DXpedition site!

All three mornings became good during the dawn enhancement period. 220+ stations ID'd. All MW stations received using a 160-foot DKAZ at 270 degrees. Additional MP3 audio clips being added as time permits.


K7WV Grayland DXpedition 2020 NDB Results Pacific / NZ / ALS / RSE NDBs received during Grayland DXpedition 2020 UTC DATE UTC KHz CALL MI KM Location Country MP3 10/28/2020 12:25 238 KT 6860 11038 Kaitaia - Waimanoni - Awanui NZL 10/28/2020 11:23 277 ACE 1422 2288 Kachemak - Homer Apt ALS 10/27/2020 10:01 283 DUT 1904 3063 Dutch Harbor ALS 10/27/2020 09:58 314 SPY 2044 3288 Saint Paul Island Apt ALS 10/28/2020 12:59 320 AI 5050 8126 Aitutaki - Amuri CKS 10/27/2020 11:41 327 VYI 2547 4098 Valley Island - Kahului, Maui HWA 10/27/2020 07:28 332 POA 2564 4126 Pahoa, Hawai'i HWA 10/28/2020 12:38 332.5 AA 4629 7449 Anaa Atoll Apt TUA 10/28/2020 11:20 343 ML 4644 7472 Minami Torishima JPN 10/28/2020 12:26 346 TG 6905 11111 Tauranga Apt NZL 10/27/2020 08:29 347 TNC 2057 3311 Tin City LRRS Apt ALS 10/28/2020 10:54 347 TB 5103 8211 Tubuai Apt AUI 10/28/2020 14:29 352 RG 5201 8369 Nikau - Rarotonga IAP CKS 10/27/2020 07:29 353 LLD 2573 4141 Lanai HWA 10/27/2020 10:01 359 ANI 1727 2779 Aniak ALS 10/28/2020 11:21 360 OX 5197 8362 Iwo Jima VOI 10/28/2020 14:16 395 PMQ 7465 12012 Port MacQuarie Apt, NSW AUS 10/28/2020 11:23 399 SRI 2021 3252 'Pribilof' St George ALS 10/28/2020 12:44 400 MDY 3120 5021 Midway - Henderson Field MDW 10/28/2020 15:00 401 MGD 7374 11867 Maningrida, NN AUS 10/27/2020 11:45 403 TUT 5116 8232 Pago Pago IAP SMA 10/27/2020 09:58 429 BTS 1638 2636 Wood River - Dillingham ALS 10/28/2020 11:22 437 OG 3843 6184 Okha RSE 10/28/2020 10:47 469 HI 4314 6942 Khabarovsk RSE 10/28/2020 10:59 482 BT 3857 6208 Berkut Oil Rig, Sea of Okhotsk XOA 10/28/2020 11:01 505 SL 4119 6628 Yuzhno-Sakalinsk / Khomutovo RSE 10/27/2020 10:00 524 MNL 1327 2136 Mineral Creek - Valdez ALS 10/27/2020 09:58 529 FDV 1962 3157 Fort Davis - Nome ALS 10/28/2020 14:14 530 ADK 2341 3766 Mount Moffett - Adak Island ALS 10/28/2020 13:16 1630 TM 7003 11267 Taumarunui Apt NZL Comments and highlights of the 2020 NDB Results

Being late October the wild late summer deluge of AUS/NZL/Pacific NDBs had subsided into a trickle. We were fortunate to get a few New Zealand beacons including the impressively reliable TM 1630. Australia's PMQ 395 in again as the most distant and the only beacon to break 12000 km. More impressive though was MGD 401, a new one for me from any location and my first NDB from Northern Territory. However it has been reported from NA previously using a California KiwiSDR so I don't get to claim a first on it. The northern path despite a high Kp Index did manage better. OX and ML were very good. The Russian Far East produced 4 NDBs that were quite a surprise. HI 469, BT 482 and SL 505 in particular are rarities and have never been heard at a West Coast DXpedition. Other than using the KPH Pt Reyes Kiwi SDR, SL 505 had never been logged from North America before. The Russians were best on Oct 28 within a half-hour of 11:00. Oct 27 was nearly as good (HI 469 Khabarovsk was in on both days). Oct 29 was a complete bust on LW as sometimes happens.


Location
Grayland, Washington, 0.36 mile (585 mtrs) North of Grayland Beach State Park
Coordinates: 46.799237 -124.097870 (Decimal Degrees)
GPS Formatted Coordinates: N 46 47.954 W 124 05.872
Maidenhead Grid Square CN76wt-81GT
Google Maps Satellite View
64.5 miles / 107.8 km north of Rockwork 4 DXpedition site
866 feet (264 mtrs) from Breakwater Inn (former Grayland Motel)

Participants:

Chuck Hutton ...............3 Nights October 27-29 2020
Jeroen Bet .....................3 Nights October 27-29 2020
Tom Rothlisberger .......3 Nights October 27-29 2020 Bruce Portzer ...............1 Night October 29, 2020


My Equipment:

Perseus SDR (one only)
Airspy HF+ Discovery SDR (served as backup for this DXpedition)
Sola linear (non-switching) regulated power supply 5.0000V @3.0 A
Tripp-Lite Isobar 6 isolated, filtered multiple AC outlet bar
Dell "2 in 1" 11.6-inch netbook (Win 10) 2TB internal SSD.
Samsung 500GB external backup/ transfer SSD
Wellbrook FLG-100LN broadband amplifier modules
60 feet (18.3 meters) of #18 multi stranded copper wire, jacketed (Deployed as a rear-fed flag)
16 and 20 foot segmented fiberglass "Wonderpoles" and weighted (with concrete) tip-resistant stands
200 feet RG8X coax with BNC connectors
Stakes and ropes for tying down poles (if necessary)
Reflective marker tape to tie to wires for visibility to hotel guests, etc
Vactrol indoor and outdoor unit with power supply (mine not used at this DXpedition)
160-foot DKAZ provided by Chuck with Qty 2 31-foot orange Jackite fiberglass poles and pre-measured wires at 270 degrees. With vactrol (Chuck's).
KiwiSDR for real time remote access to our DXpedition. (Provided and set up by my DX partners; becoming popular at West Coast DXpeditions)
Qty 8 fiberglass electric fence step-ins (available for 2nd DKAZ or BOG; not used this DXpedition due to poor Kp Index). 3 needed for a DKAZ.
Yuneec Q500 Typhoon 4K camera drone

Post-DXpedition Improvements:
Qty 3 Jameco 500ma linear regulated 12V power supplies (to fight QRM with the raspy AC power present at Casa Sea Esta)
Qty 2 FT-240 Type 77 2.4 inch Ferrite toroids (RF Noise Reduction for netbook switching power supplies, computer to SDR USB cables) Additional 100 feet RG8X coax with BNC termination (to get secondary antenna beyond the berm at CSE) Links: Rockwork 2021 DXpedition II K7WV results MW results I/W Rockwork 2021 DXpedition K7WV results Rockwork 2020 DXpedition K7WV results Rockwork 2019 DXpedition K7WV results Rockwork 2018 DXpedition K7WV results Rockwork 2017 DXpedition K7WV results Rockwork 2016 International DXpedition K7WV results Rockwork 2015 II DXpedition K7WV results Rockwork 2015 I DXpedition K7WV results

Grayland DXpedition Sep/Oct 2021 K7WV Results Grayland DXpedition September 2019 K7WV Results Grayland DXpedition October 2018 K7WV Results Grayland DXpedition October 2016 K7WV Results Grayland DXpedition October 2015 K7WV Results
RNA database of received NDBs from North America Definitive NDB resource RNA database (New) to replace above RNA database at some point Identifying Chinese MW Stations VRBO rental house "Casa Sea Esta" Breakwater Inn and Cottages (Formerly Grayland Motel) closed and for sale. Update: sold to new owners 12/17/2020. IRCA Group (MW DX) NDBlist Group (Beacon DXing, mostly LW) KIWI SDRs for public use K7WV Main Radio Page

Freq	Country	Station	City	Date	UTC	Comments	MP3
531	JAPAN	JOQG NHK1	Morioka	10/28/2020	1458	Male announcer // 594
531	AUSTRALIA	6DL ABC Midwest & Wheatbelt	Dalwallinu	10/27/2020	1400	ABC fanfare and ABC News, fair
540	JAPAN	JOJG / JOMG NHK-1	Miyazaki	10/27/2020	1459	Musical announcement // 594, 567
540	AUSTRALIA	4QL ABC Western QLD	Longreach, QLD	10/28/2020	1500	ABC fanfare and ABC News, weak
549	JAPAN	JOAP NHK-1	Naha, Okinawa	10/27/2020	1500	Male announcer in JJ // 531, 594
549	AUSTRALIA	2CR ABC Central West	Orange	10/28/2020	1300	ABC Fanfare, weak
550	ALASKA	KTZN	Anchorage	10/28/2020	0900	ESPN ID's, Jay Reynolds show with World Series commentary
558	JAPAN	JOCR R. Kansai	Kobe	10/29/2020	1500	R. Kansai ID, TOH chimes, start of show "Mu-Komi Plus"
558	S. KOREA	HLQH KBS-2	Yeong-Il	10/27/2020	1500	"KBS Happy FM" jingle, all alone
567	JAPAN	JOIK NHK-1	Sapporo	10/27/2020	1217	Man and woman back and forth // 531, 594
567	AUSTRALIA	4JK ABC NW QLD	Julia Creek	10/27/2020	1300	ABC fanfare and ABC News, weak
576	JAPAN	JOHG NHK-1	Kagoshima	10/27/2020	1459	Musical announcement // 594, 567
576	AUSTRALIA	2RN ABC National	Sydney	10/28/2020	1500	ABC fanfare and ABC News, weak
585	JAPAN	JOPG NHK-1	Kushiro	10/27/2020	1500	NHK1 // 531, 594
590	HAWAII	KSSK	Honolulu	10/28/2020	1458	"92.3 KSSK"
590	ALASKA	KHAR	Anchorage	10/27/2020	1400	"KHAR Anchorage CBS Sports 590 and 96-7"
594	AUSTRALIA	3WV ABC W. Victoria	Horsham	10/28/2020	1500	ABC fanfare and ABC News, mix with JOAK
594	JAPAN	JOAK NHK-1	Tokyo	10/27/2020	1217	Loud, // 531, 567
603	CHINA	CRI	Dongfang	10/28/2020	1500	CRI interval signal after time pips
603	S. KOREA	HLSA KBS-2	Seoul	10/28/2020	1500	"KBS Happy FM" jingle at TOH
612	JAPAN	JOLK NHK-1	Fukuoka	10/27/2020	1459	Musical announcement // 594, 567
612	AUSTRALIA	4QR	Brisbane	10/28/2020	1500	ABC fanfare and ABC News, loud
620	ALASKA	KGTL	Homer	10/28/2020	1000	"AM 620 The Answer and FM 100.1 KGTL Homer"
621	TUVALU	T2U2	Funafuti	10/28/2020	0744	News with female reader, Pacific language, loud
621	AUSTRALIA	3RN ABC National	Melbourne	10/28/2020	1500	ABC fanfare and ABC News, fair
630	AUSTRALIA	4QN ABC North QLD	Townsville	10/28/2020	1500	ABC fanfare and ABC News, mix with domestic KWRO
630	ALASKA	KJNO	Juneau	10/28/2020	1300	"630 K-J-N-O Juneau"
639	JAPAN	JOIP NHK-1	Oita	10/29/2020	1459	Announcement and piano music // 594, 666
639	CHINA	CNR-1 synchros	many Jilin prov.	10/27/2020	1446	Male reading news // 981
640	ALASKA	KYUK	Bethel	10/27/2020	1500	Many IDs from Bethel, AK residents back to back. Excellent.
648	JAPAN	AFN Okinawa	Camp Kinser	10/27/2020	1459	"American Forces Network…"
648	AUSTRALIA	2NU ABC New England NW	Tamworth	10/28/2020	1500	ABC fanfare and ABC News, weak
650	ALASKA	KENI	Anchorage	10/28/2020	1100	"650 KENI" at TOH
650	HAWAII	KPRP	Honolulu	10/29/2020	1410	"KPRP AM 650"
657	N. KOREA	Pyongyang Bangsong	Kangnam	10/27/2020	1500	Orchestral/Choral music with brief anouncement and time pips
657	AUSTRALIA	2BY ABC W. Plains	Byrock	10/28/2020	1500	ABC fanfare and ABC News, weak, mix with NK
666	AUSTRALIA	2CN ABC Canberra	Canberra	10/28/2020	1500	ABC fanfare well under JOBK, weak
666	JAPAN	JOBK NHK-1	Osaka	10/27/2020	1217	Man and woman back and forth // 531, 594
670	ALASKA	KDLG	Dillingham	10/28/2020	1100	"KDLG Dillingham also heard on KNSA Unalakleet"
675	AUSTRALIA	2CO ABC Riverina	Corowa	10/28/2020	1500	ABC fanfare and ABC News, weak
675	JAPAN	JOVK NHK-1	Hakodate	10/27/2020	1459	Announcement with piano background // 594, weak
684	AUSTRALIA	2KP ABC Mid N. Coast	Kempsey	10/28/2020	1500	ABC fanfare and ABC News, fair
693	JAPAN	JOAB NHK-2	Tokyo	10/27/2020	1215	English lessons // 747, 774
700	ALASKA	KBYR	Anchorage	10/28/2020	1100	"AM 700 KBYR Anchorage"
702	JAPAN	JOFB/JOKD NHK-2	Hiroshima/Kitami	10/27/2020	1215	English lessons // 747, 774
702	AUSTRALIA	2BL ABC Sydney	Sydney	10/28/2020	1500	ABC fanfare and ABC News, fair
702	CHINA	Jiangsu RGD (most likely)	Nanjing	10/27/2020	1500	"Beijing shijian" time check, Wooden flute music at TOH
711	S. KOREA	HLKA KBS-1	Sorae	10/29/2020	1500	AM/FM frequencies, "HLKA" prior to time pips
720	CHINA	Zhongguo Xiangcun zhi Sheng	Beijing	10/27/2020	1500	"Beijing shijian" time check during brief KFIR break
720	AUSTRALIA	4AT / 6WF ABC	Atherton, QLD	10/28/2020	1500	ABC fanfare and ABC News, weak
729	AUSTRALIA	5RN ABC National	Adelaide	10/28/2020	1330	ABC fanfare at BOH
729	JAPAN	JOCK NHK-1	Nagoya	10/27/2020	1500	Male announcer // 594, 666
738	NEW ZEALAND	Magic	Christchurch	10/27/2020	1500	Oldies // 1107 under BEL2
738	AUSTRALIA	2NR ABC N. Coast	Grafton	10/28/2020	1500	ABC fanfare and ABC News, fair
738	TAIWAN	BEL2	Baisha	10/27/2020	1500	Distinctive musical ID at TOH // 1143
747	JAPAN	JOIB NHK-2	Sapporo	10/29/2020	1425	English Lessons // 693, 702, 774
747	AUSTRALIA	4QS ABC S. QLD	Toowoomba, QLD	10/28/2020	1500	ABC fanfare and ABC News, weak
750	ALASKA	KFQD	Anchorage	10/28/2020	1100	"FM 103.7 KFQD Anchorage" musical jingle
756	CHINA	CNR-1 synchros	Harbin (likely)	10/29/2020	1500	fanfare and announcement // 945, 981
765	JAPAN	JOJF / JOPF Yamaguchi Hoso	Kofu / Tokuyama	10/29/2020	1457	"All Night Nippon Music 10" ending // 1242
765	CHINA	Zhonghua zhi Sheng (CNR-5)	Fuzhou	10/28/2020	1500	Fanfare followed by "Zhonghua zhi Sheng" ID's by female
770	ALASKA	KCHU	Valdez	10/28/2020	1000	"KCHU Valdez public radio for Prince William Sound"
774	AUSTRALIA	3LO ABC Melbourne	Melbourne	10/28/2020	1500	ABC fanfare and ABC News
774	JAPAN	JOUB NHK-2	Akita	10/29/2020	1425	English Lessons // 693, 702, 828
780	ALASKA	KNOM	Nome	10/28/2020	1000	"KNOM AM and FM in Nome, it's 2 AM"
783	CHINA	Haixia zhe Sheng	Fotan	10/27/2020	1500	5+1 pips and announcement, wooden flute music.
783	VIETNAM	VOV-2	Thoi Long	10/27/2020	1447	Man speaking intently, possible sporting match. Over China station.
790	ALASKA	KCAM	Glennallen	10/28/2000	1000	"This is KCAM Glennallen serving the Copper River Valley"
792	AUSTRALIA	4RN ABC National	Brisbane	10/28/2020	1500	ABC fanfare and ABC News, loud
800	ALASKA	KINY	Juneau	10/28/2020	1122	"Trusted, reliable, factual...KINY News of the North"
801	GUAM	KTWG	Hagatna	10/28/2020	1500	"KTWG Hagata, Guam" by female announcer at TOH
819	S. KOREA	HLCN MBC	Gwangju	10/29/2020	1500	MBC chimes at TOH mixing with 2GL
819	JAPAN	JONK NHK-1	Nagano	10/29/2020	1459	Announcement with flute in the background // 594
819	N. KOREA	KCBS	Pyongyang	10/28/2020	1424	Orchestra and female chorus, very good
819	AUSTRALIA	2GL ABC New Eng NW	Glen Innes	10/28/2020	1500	ABC fanfare and ABC News
828	AUSTRALIA	3GI ABC Gippsland	Sale	10/28/2020	1500	ABC fanfare and ABC News, fair, JOBB mix
828	PHILIPPINES	DXCC	Cagayan de Oro	10/28/2020	1500	Commercial for "Manolitos", Zamboanga mention, talk (NHK2 off)
828	JAPAN	JOBB NHK-2	Osaka	10/27/2020	1400	"Use English here and now" loud
830	HAWAII	KHVH	Honolulu	10/27/2020	1500	"KHVH Honolulu"
830	ALASKA	KSDP	Sand point	10/28/2020	0800	"You're listening to 830 AM KSDP Sand Point, Alaska"
837	AUSTRALIA	4RK ABC Capricornia	Rockhampton	10/28/2020	1500	ABC fanfare at TOH, weak
837	CHINA	Harbin RGD	Harbin	10/28/2020	0900	Time check, fanfare with "Harbin Xinwen Guangbo"
846	AUSTRALIA	2RN ABC National	Canberra	10/28/2020	1500	ABC fanfare at TOH under NHK-1
846	KIRIBATI	R. Kiribati	London	10/28/2020	0744	"Island" music with male vocalist // 1440 with 33 sec delay
846	JAPAN	JOCP NHK-1	Koriyama	10/27/2020	1459	Announcement with piano background // 594
850	ALASKA	KICY	Nome	10/28/2020	1100	"KICY, Nome" at TOH
855	AUSTRALIA	4QO ABC Wide Bay	Eidsvold	10/28/2020	1500	ABC fanfare and ABC News, fair
864	JAPAN	JOXR ROK	Naha, Okinawa	10/27/2020	1500	J-O-X-R ID just prior to time pips
864	S. KOREA	HLKR KBS-1	Gangneung	10/28/2020	1459	Male Korean announcer well over JOXR
873	JAPAN	JOGB NHK-2	Kumamoto	10/29/2020	1425	English Lessons // 693, 702, 774, 828
882	JAPAN	JOPK NHK-1	Shizuoka	10/29/2020	1506	Male announcer // 594
890	ALASKA	KBBI	Homer	10/28/2020	1100	"This is KBBI AM Homer 890. The time: it's 3 AM"
891	JAPAN	JOHK NHK-1	Sendai	10/29/2020	1459	Announcement with piano background // 594
891	AUSTRALIA	5AN ABC Adelaide	Adelaide	10/28/2020	1430	ABC fanfare and ABC News at BOH
900	HAWAII	KMVI	Kahului, Maui	10/27/2020	1400	"AM 900 FM 102.5 Kahului"
909	JAPAN	JOVX HBC	Abashiri	10/29/2020	1459	Announcement, HBC jingle // 1440 5KW
909	JAPAN	JOCB NHK-2	Nagoya	10/27/2020	1130	Man with background music // 747, 774
918	CHINA	Shandong RGD	Jinan	10/29/2020	1502	Several commercials, wooden flute with male announcer
918	JAPAN	JOEF YBC	Yamagata	10/29/2020	1457	"All Night Nippon Music 10" ending // 1242
920	ALASKA	KSRM	Soldotna	10/28/2020	1100	"Now in our 53rd year KSRM Soldotna-Kenai-Homer"
927	JAPAN	JOFJ/JOKJ NHK-1	Fukui/Kofu	10/29/2020	1500	Time pips "NHK News" // 594
930	ALASKA	KTKN	Ketchikan	10/27/2020	1430	"On 930 AM and 97.5 FM KTKN"
936	CHINA	Anhui RGD	Hefei	10/29/2020	1300	Commercial, Time pips, fanfare and announcement
936	JAPAN	JOTR/JONF	Akita / Miyazaki	10/29/2020	1500	commercial to time pips
940	HAWAII	KKNE	Waipahu, Oahu	10/27/2020	1456	Hawaiian language vocal music and instrumentation
945	JAPAN	JOIQ NHK-1	Muroran	10/29/2020	1458	male announcer, "Osaka" mention, // 594
945	CHINA	CNR-1	Jiaohe	10/27/2020	1500	Fanfare and CNR-1 ID // 981
954	JAPAN	JOKR TBS	Tokyo	10/29/2020	1500	Time (Reji Desu), time pips, start of show "Haraichi's Turn"
963	JAPAN	NHK-1 synchros	various	10/28/2020	1500	Male announcer with "NHK News" // 594
963	CHINA	CRI "Radio Kitaya"	Huadian	10/27/2020	1459	CRI melody to TOH // 1323, loud, then cutoff at TOH.
972	S. KOREA	KBS Hanminjok Bangsong	Dangjin	10/28/2020	1500	Excellent: frequencies and time pips, news
981	CHINA	CNR-1	Changchun	10/27/2020	1500	CNR-1 ID // 945
990	HAWAII	KIKI	Honolulu	10/28/2020	1500	We Are Fox Sports...KIKI Honolulu an I-Heart radio station
990	JAPAN	JORK NHK-1	Kochi	10/29/2020	1500	Piano music to time pips // 594, 666
999	JAPAN	NHK-1 synchros	various	10/28/2020	1502	Man reading news of Aomori-Ken // 594
1008	AUSTRALIA	4TAB	Brisbane	10/28/2020	1457	Victoria race payouts
1008	JAPAN	JONR ABC	Osaka	10/29/2020	1457	Talk show with occasional music clips
1017	CHINA	CRI	Changchun	10/29/2020	1500	CRI interval signal , ID in Mandarin
1017	TONGA	A3Z	Nuku'alofa	10/28/2020	0759	Female announcer in Pacific language
1020	ALASKA	KVNT	Eagle River	10/28/2000	1100	"KVNT 1020 AM and 92.5 FM and live online @1020kvnt.com"
1026	AUSTRALIA	4MK	Mackay	10/28/2020	1457	Commercial for The Creperie Restaurant, Gregory St, Mackay
1035	JAPAN	JOHD/IC/JD NHK-2	various	10/28/2020	1444	NHK-2 signoff chimes // 828, 774 (1 KW)
1035	CHINA	CNR-1 synchros	various	10/29/2020	1500	CNR-1 fanfare and announcement // 945, 981
1040	HAWAII	KLHT	Honolulu	10/29/2020	1500	"KLHT Honolulu AM 1040"
1044	CHINA	CRI	Changzhou	10/28/2020	1500	CRI interval signal TOH followed by Japanese programming
1053	JAPAN	JOAR CBC	Nagoya	10/28/2020	1518	Idol interview and featured pop song
1053	CHINA	CNR-1	Haiyan	10/27/2020	1500	CNR-1 fanfare and Zhongyang RGD announcement // 945, 981
1053	CHINA	Liaoning RGD	Shenyang	10/28/2020	1500	Ad with "Liaoning" mention at end, fanfare not CNR-1, not // 981
1062	AUSTRALIA	4TI ABC Far North	Thursday Island	10/28/2020	1500	ABC Fanfare into ABC News
1062	S. KOREA	HLKQ KBS-1	Cheongju	10/29/2020	1500	"H-L-K-Q and time pips, female announcer in Korean
1071	JAPAN	JOFK NHK-1	Hiroshima	10/27/2020	1459	Announcement with piano background // 594
1080	ALASKA	KOAN	Anchorage	10/28/2020	1100	"KOAN 95.1 FM"
1089	CHINA	CNR-6	Fuzhou	10/28/2020	1500	Presumed; Big signal with soft music and commentary, no TOH ID
1089	JAPAN	JOHB NHK-2	Sendai	10/28/2020	1424	Female announcer // 747, 774, 828, 1467
1098	MARSHALL ISL	V7AB	Majuro	10/29/2020	0817	Woman reading news in Pacific language
1098	CHINA	CNR-1	Golmud	10/28/2020	1522	announcer with piano background // 981, 1593
1098	JAPAN	JOWO / JOGF	Fukushima	10/29/2020	1457	"All Night Nippon Music 10" ending // 1242, 5 KW
1107	CHINA	Jilin RGD Xinwen Guangbo	various	10/28/2020	1500	Several commercials, time pips (late).
1107	JAPAN	JOCF MBC Minaminihon Hoso	Kagoshima	10/29/2020	1457	"All Night Nippon Music 10" ending // 1242
1107	NEW ZEALAND	Magic Talk	Tauranga	10/28/2020	1500	"Magic news and sports, you've found the latest and breaking news"
1110	HAWAII	KAOI	Kihei, Maui	10/28/2020	1000	"KAOI Kihei 1110 AM 96.7 FM 96.5 west side 98.7 up country"
1110	ALASKA	KAGV	Big Lake	10/27/2020	1500	"Broadcasting from Houston Alaska this is KAGV Big Lake"
1116	JAPAN	JODR BSN	Niigata	10/28/2020	1451	2 possibilities, JODR most likely. Excited female announcer // 1287
1116	AUSTRALIA	4BC	Brisbane	10/28/2020	1500	"Brisbane's News Source 4BC"
1125	JAPAN	JOOC NHK-2	Obihiro (likely)	10/28/2020	1421	Male announcer // 747, 774, 828
1134	JAPAN	JOQR Bunka Hoso	Tokyo	10/29/2020	1500	Ads for music albums, "Bunka Hoso" ID and time chimes at TOH
1140	ALASKA	KSLD	Soldotna	10/28/2020	1000	"KSLD Soldotna-Kenai-Homer You know us, we know sports"
1143	TAIWAN	BEL3	Baisha	10/29/2020	1500	distinctive TOH jingle and ID by female announcer
1143	JAPAN	JOBR Kinki Hoso	Kyoto	10/28/2020	1459	Commercials, mixing with music station underneath
1152	JAPAN	JOPC NHK-2	Kushiro	10/28/2020	1424	Female announcer // 747, 774, 828 over Australian
1152	AUSTRALIA	6PNN ABC Newsradio	Busselton	10/28/2020	1500	BBC World Service, loud
1161	TAIWAN	BCC Country	Zhuangwei/Miaoli	10/28/2020	1500	Distinctive BCC chimes at TOH
1161	S. KOREA	HLKU MBC	Busan	10/29/2020	1500	MBC chimes just prior to TOH chime
1170	S. KOREA	KBS World Radio	Gimje	10/28/2020	1520	Loud in Korean, all alone at times
1179	JAPAN	JOOR MBS	Osaka	10/29/2020	1500	"Gocha Mixed Heaven" prgr ends, commercials, time chime at TOH
1188	S. KOREA	HLKX RFA	Seoul	10/28/2020	1500	"This is Radio Free Asia, the following program is in Korean"
1188	JAPAN	JOKP NHK-1	Kitami	10/27/2020	1459	Announcement with piano background // 594
1197	JAPAN	JOBF RKK	Kumamoto	10/29/2020	1501	Not // STV 1440
1206	CHINA	Yanbian RGD	Yanji	10/27/2020	1400	Multi-language ID including English. "Welcome to FM 102.3…"
1215	CHINA	CNR-1	Mudanjiang	10/28/2020	0900	Time, "Zhongyang renmin guangbo diantai, Zhongguo zhi Sheng"
1215	JAPAN	JOBO KBS	Maisuru	10/29/2020	1500	Time pips and start of show "Mu-Komi Plus"
1224	JAPAN	JOJK NHK-1	Kanazawa	10/27/2020	1459	Announcement with piano background // 594
1230	ALASKA	KIFW	Sitka	10/28/2020	0931	"Part of Alaska's finest sound for 70 years; 1230 AM KIFW"
1233	JAPAN	JOUR NBC	Nagasaki	10/29/2020	1457	"All Night Nippon Music 10" ending // 1242, 5 KW
1233	AUSTRALIA	2NC ABC Newcastle	Newcastle	10/28/2020	1500	ABC fanfare and ABC News, weak
1242	JAPAN	JOLF Nippon Hoso	Tokyo	10/29/2020	1457	"All Night Nippon Music 10" ending // 1332
1251	CHINA	CNR-1	Harbin (Shangzhi)	10/29/2020	1500	fanfare and "guangbo diantai" announcement // 945, 981
1260	JAPAN	JOIR TBC	Sendai	10/29/2020	1500	Start of show "Mu-Komi Plus"
1269	AUSTRALIA	6RN ABC National	Busselton	10/28/2020	1459	Male announcer // 1296, weak (5 kw at 9258.5 mi / 14900 km)
1278	JAPAN	JOFR RKB	Fukuoka	10/29/2020	1500	Start of show "Mu-Komi Plus"
1287	JAPAN	JOHR HBC	Sapporo	10/29/2020	1500	Musical HBC aircheck, start of show "Mu-Komi Plus" // 1215
1296	JAPAN	JOTK NHK-1	Matsue	10/27/2020	1459	Announcement with piano background // 594
1296	AUSTRALIA	6RN ABC National	Wagin	10/28/2020	1459	"Listen up. Australia" and show promo to be aired on IView (ABC)
1305	CHINA	Jinan RGD Literary Radio	Jinan	10/28/2020	1425	Music ending, into commercial w/ Shandong mention. Not CNR.
1314	JAPAN	JOUF OBC	Osaka	10/29/2020	1500	JPop music intro with "Konbanwa" after TOH chime
1323	CHINA	CRI "Radio Kitaya"	Shuanghyashan	10/27/2020	1500	Interval signal, Chinese ID, "Govorit Radio Kitaya" in Russian
1330	ALASKA	KXXJ	Juneau	10/28/2020	0541	"Juneau's greatest hits, new at 107.9 KXJ"
1332	JAPAN	JOSF Tokai Hoso	Nagoya	10/29/2020	1457	"All Night Nippon Music 10" ending // 1242
1350	JAPAN	JOER Chugoku Hoso	Hiroshima	10/29/2020	1500	Several commercials, time pips, start of "Mu-Komi Plus"
1359	JAPAN	NHK-2 Synchros	various 100w	10/28/2020	1441	Anthem at NHK-2 signoff // 774, 828
1359	CHINA	CNR-1 synchros	various	10/27/2020	1500	fanfare and "Zhongyang renmin guangbo diantai" // 945, 981
1368	JAPAN	JOTS HBC	Wakkanai	10/28/2020	1451	Excited female announcer // HBC 1287, 1KW
1377	JAPAN	JOUC NHK-2	Yamaguchi	10/28/2020	1436	English lessons // 747, 774. Most likely station.
1377	CHINA	CNR-1	Xingyang	10/29/2020	1500	CNR-1 // 945, 981
1386	JAPAN	JOQC NHK-2	4 possibilities	10/27/2020	1215	English lessons // 747, 774
1386	S. KOREA	HLAM MBC	Mokpo	10/28/2020	1500	AM and FM frequencies, HLAM callsign and MBC chimes, good.
1395	JAPAN	JOCE CRK	Tajima	10/29/2020	1500	"Radio Kansai" announcement // 558, Start of "Mu-Komi Plus" 1KW
1404	JAPAN	JOVR SBS	Shizuoka	10/29/2020	1500	program start "Mu-Komi Plus" // 756, 1287
1413	JAPAN	JOIF KBC	Fukuoka	10/27/2020	1500	Time chime, "KBC" ID, weak
1422	JAPAN	JORF Nippon Hoso	Yokohama	10/29/2020	1500	Announcement, time pips, start of "It's a Song! with Asahina Akiko"
1431	JAPAN	JOZF	Gifu	10/29/2020	1450	Female announcer, no parallels, not "All Night Nippon" prgr
1440	KIRIBATI	TK31	Betio, Tarawa	10/28/2020	0744	Island music with male vocalist // 846 but 33 sec ahead
1440	JAPAN	JOWF STV	Sapporo	10/29/2020	1457	"All Night Nippon Music 10" ending // 1242
1449	JAPAN	JOQM HBC	Abashiri	10/29/2020	1500	HBC announcement prior to pips // 1287
1458	JAPAN	JOYL, other 1 KW	Tsuchiura	10/29/2020	1500	Several stations in, Time Pips, Start of show "Mu-Komi Plus"
1467	S. KOREA	HLKN KBS-1	Mokpo	10/28/2020	1457	News by male announcer in Korean // 1062
1467	JAPAN	UNID NHK-2	Hakodate, etc	10/28/2020	1424	Female announcer // 747, 774, 828; weak
1476	JAPAN	JOSD NHK-2	Iida	10/29/2020	1430	Japanese-English session // 693, 828, 1 KW, weak
1485	JAPAN	JOGO / JOPL	Hachinohe	10/29/2020	1457	"All Night Nippon Music 10" ending // 1242, 1 KW
1494	JAPAN	JOYR RSK Sanyo Hoso	Okayama	10/29/2020	1457	"All Night Nippon Music 10" ending // 1242
1500	HAWAII	KHKA	Honolulu	10/29/2020	1200	"KHKA Honolulu" mix with KSJX
1503	NEW ZEALAND	Gold	Wellington	10/28/2020	0815	"Gold" ID, "Magic Carpet Ride" (Steppenwolf) and other oldies
1503	JAPAN	JOUK NHK-1	Akita	10/28/2020	1500	Piano music, announcements to TOH // 594
1512	AUSTRALIA	2RN ABC National	Newcastle	10/29/2020	1500	ABC fanfare and news
1512	JAPAN	JOZB NHK-2	Matsuyama	10/28/2020	1440	National anthem at NHK signoff // 828, 774
1521	JAPAN	UNID NHK-2 (synchros)	Aomori, etc	10/29/2020	1431	English lessons // 747, 774, 828; weak
1540	HAWAII	KREA	Honolulu	10/29/2020	1300	"This is KREA Honolulu 1540 on the AM dial"
1548	AUSTRALIA	4QD	Emerald	10/28/2020	1500	ABC fanfare and news, good
1557	TAIWAN	RTI	Kouhu	10/27/2020	1500	1+1 pips, announcement, music clip into news (Mandarin)
1566	S. KOREA	HLAZ FEBC	Jeju	10/29/2020	1500	Program begins in Mandarin, loud
1570	HAWAII	KUAU	Haiku, Maui	10/29/2020	1300	"Keep your radio set at 1570 KUAU Haiku, Maui"
1575	THAILAND	VOA	Ban Phachi	10/27/2020	1259	"This program has come to you from the Voice of America"
1584	JAPAN	NHK-1 synchros (100 W)	various	10/27/2020	1431	Female announcer // 594
1593	CHINA	CNR-1	Changzhou	10/28/2020	1522	Commercial with background piano // 981, 1098
1602	JAPAN	NHK-2 synchros (1 KW)	various	10/29/2020	1259	English lesson // 747,774,828 1KW
1611	AUSTRALIA	Vision Radio Network	various, NSW	10/28/2020	1500	Male vocalist with religious song // 1647, weak
1630	NEW ZEALAND	TM	Taumaruni Apt	10/28/2020	1301	Aeronautical Beacon "TM" observed offset +1012 USB
1647	AUSTRALIA	Vision Radio Network	Mackay, QLD	10/28/2020	1500	Male vocalist with religious song // 1611
1656	AUSTRALIA	8MM Greek Radio	Darwin, NT	10/28/2020	1458	Music with definite Greek instrumentation, vocals
1665	AUSTRALIA	2MM Greek Radio	Sydney, NSW	10/28/2020	1440	Music with definite Greek instrumentation, vocals
1701	AUSTRALIA	Brisvaani	Brisbane, QLD	10/28/2020	1457	Hindi "Bollywood" music
1710	CALIFORNIA	KHMB	Half Moon Bay	10/28/2020	1029	Presumed w/ 50's oldies "Let it be Me" (Everly Bros.), etc 500 mw!

Pacific / NZ / ALS / RSE NDBs received during Grayland DXpedition 2020
UTC DATE	UTC	KHz	CALL	MI	KM	Location	Country	MP3
10/28/2020	12:25	238	KT	6860	11038	Kaitaia - Waimanoni - Awanui	NZL
10/28/2020	11:23	277	ACE	1422	2288	Kachemak - Homer Apt	ALS
10/27/2020	10:01	283	DUT	1904	3063	Dutch Harbor	ALS
10/27/2020	09:58	314	SPY	2044	3288	Saint Paul Island Apt	ALS
10/28/2020	12:59	320	AI	5050	8126	Aitutaki - Amuri	CKS
10/27/2020	11:41	327	VYI	2547	4098	Valley Island - Kahului, Maui	HWA
10/27/2020	07:28	332	POA	2564	4126	Pahoa, Hawai'i	HWA
10/28/2020	12:38	332.5	AA	4629	7449	Anaa Atoll Apt	TUA
10/28/2020	11:20	343	ML	4644	7472	Minami Torishima	JPN
10/28/2020	12:26	346	TG	6905	11111	Tauranga Apt	NZL
10/27/2020	08:29	347	TNC	2057	3311	Tin City LRRS Apt	ALS
10/28/2020	10:54	347	TB	5103	8211	Tubuai Apt	AUI
10/28/2020	14:29	352	RG	5201	8369	Nikau - Rarotonga IAP	CKS
10/27/2020	07:29	353	LLD	2573	4141	Lanai	HWA
10/27/2020	10:01	359	ANI	1727	2779	Aniak	ALS
10/28/2020	11:21	360	OX	5197	8362	Iwo Jima	VOI
10/28/2020	14:16	395	PMQ	7465	12012	Port MacQuarie Apt, NSW	AUS
10/28/2020	11:23	399	SRI	2021	3252	'Pribilof' St George	ALS
10/28/2020	12:44	400	MDY	3120	5021	Midway - Henderson Field	MDW
10/28/2020	15:00	401	MGD	7374	11867	Maningrida, NN	AUS
10/27/2020	11:45	403	TUT	5116	8232	Pago Pago IAP	SMA
10/27/2020	09:58	429	BTS	1638	2636	Wood River - Dillingham	ALS
10/28/2020	11:22	437	OG	3843	6184	Okha	RSE
10/28/2020	10:47	469	HI	4314	6942	Khabarovsk	RSE
10/28/2020	10:59	482	BT	3857	6208	Berkut Oil Rig, Sea of Okhotsk	XOA
10/28/2020	11:01	505	SL	4119	6628	Yuzhno-Sakalinsk / Khomutovo	RSE
10/27/2020	10:00	524	MNL	1327	2136	Mineral Creek - Valdez	ALS
10/27/2020	09:58	529	FDV	1962	3157	Fort Davis - Nome	ALS
10/28/2020	14:14	530	ADK	2341	3766	Mount Moffett - Adak Island	ALS
10/28/2020	13:16	1630	TM	7003	11267	Taumarunui Apt	NZL
