Grayland DXpedition October 2016

I attended a two-night Mediumwave DXpedition with Chuck Hutton and Bruce Portzer at the famous DXing locale the Grayland Motel as is usual for me during an October weekend, since my first visit in October 2007. The "Storm of the Century" (As the press was calling it, which did produce an EF-2 tornado at Manzanita, home base for the Rockwork 4 DXpeditions) did not dissuade us from erecting antennas. In fact at set-up time it was calm and sunny after the long drive from Seattle through rain squalls. The dire forecast even scared off the beachcombers who often book rooms during storms so we had the Grayland Motel all to ourselves. We set up a 160-foot DKAZ at 270 degrees true as we did last year. As I pulled in, Chuck and Bruce were out front cutting wires to make one. It performed great as it did last year.

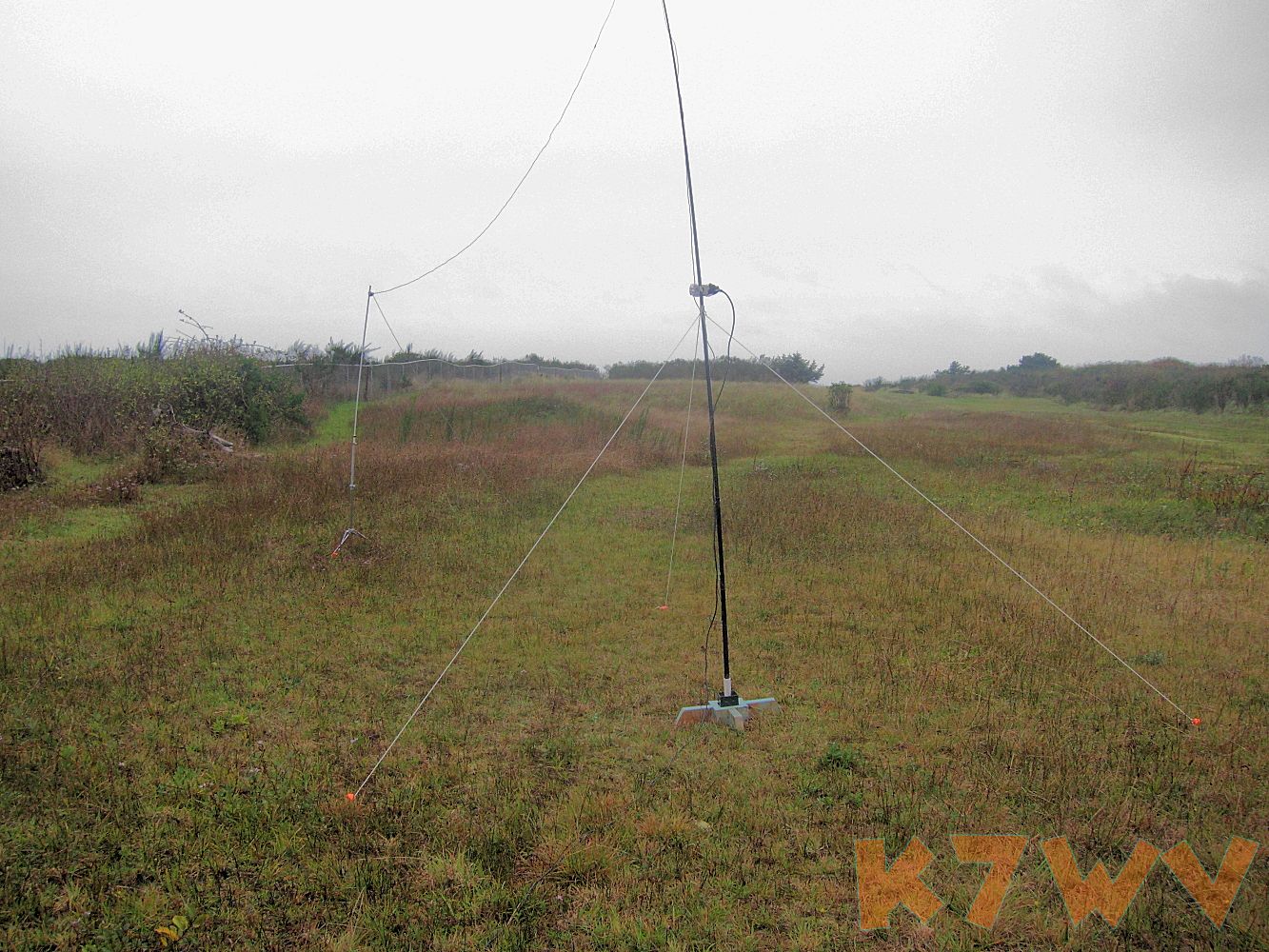

As a special project, I also erected a delta loop with 17 feet per side, feeding a ALA100M for Longwave action as the DKAZ last year was nearly deaf at LW frequencies. Results were outstanding with 7 NDBs from mainland Australia including a couple never reported heard from North America, and plenty of other first rate DX targets. In fact with 11 stations over 11000 km distant this was the finest LW session I have ever experienced. Also in was TM 1630, the New Zealand MW aero beacon, heard on the DKAZ. Longwave results were posted to NDBlist and DGPSlist and can be seen below. Not in were the 16+ French Polynesian beacons heard from Rockwork 4 last year. In plotting the catches using the WWSU "Station Radar" feature, the antenna turned out to be exceedingly directional and needed to be reoriented more southward to get those. The directionality also explains the Rockwork 4 longwave results in which the orientation was more southerly but nothing NW of Australia was heard. I will know to reorient in the future at both DXpedition locations.

The morning of the 15th had the MW band full of Filippinos which was most unusual. Chuck and Bruce found 16 in one recorded file while still on site. Also some good second-tier Japan as the K-index actually dropped to Kp=2 that morning, and plenty of loud Aussies and Kiwis. The next morning on the 16th was terrible overnight, not even Hawaiians were in. Bruce actually went out and checked the antenna. I went back to bed but came back at 14:00 for possible dawn enhancement. Good decision...one of the most stunning turnarounds I've ever experiencd and now conditions were outstanding. About 1 wonderful hour of Japan and Hawaii at vibrant levels, absent earlier, and louder than Day 1. {Example: JOQR Tokyo 1134 Khz} Good IDs from KIPA 1060 Hilo (relaying "102.7 The Beach") on both days from Aloha-land. JOLF 1242 was in long after sunrise (occurring at 14:30 UTC) and still going strong at 15:30 when I finally put down the headphones. Kp=3 this morning. Analysis of the remaining DX recordings is complete and has been added below, soon to include many audio clips. It can also be downloaded as an Excel spreadsheet below. Even better results than 2015 are noted in every category, with over 65 AUS/NZ, over 50 Japan, 20+ Philippines, many Pacifics like Tuvalu, Tonga, Guam, Marshalls and even V6AI Yap, FSM on the air late with tropical storm emergency announcements. (This was particularly interesting because I have actually visited Colonia, Yap during my time as a USAF Navigator). The Alaska/Hawaii results with audio clips are posted below separately. The 22 Hawaiians logged is a personal record, thanks in part to a renewed KIPA 1060 which was off the air in 2015. As KHRA 1460 left the air in June 2017, that record may stand for some time.



Another two mornings of great DX were to be enjoyed at Grayland October DXpedition 2016.  Bruce, Chuck and I used the well performing DKAZ. I also had a LW delta / ALA-100M setup that performed wonderfully on LW.

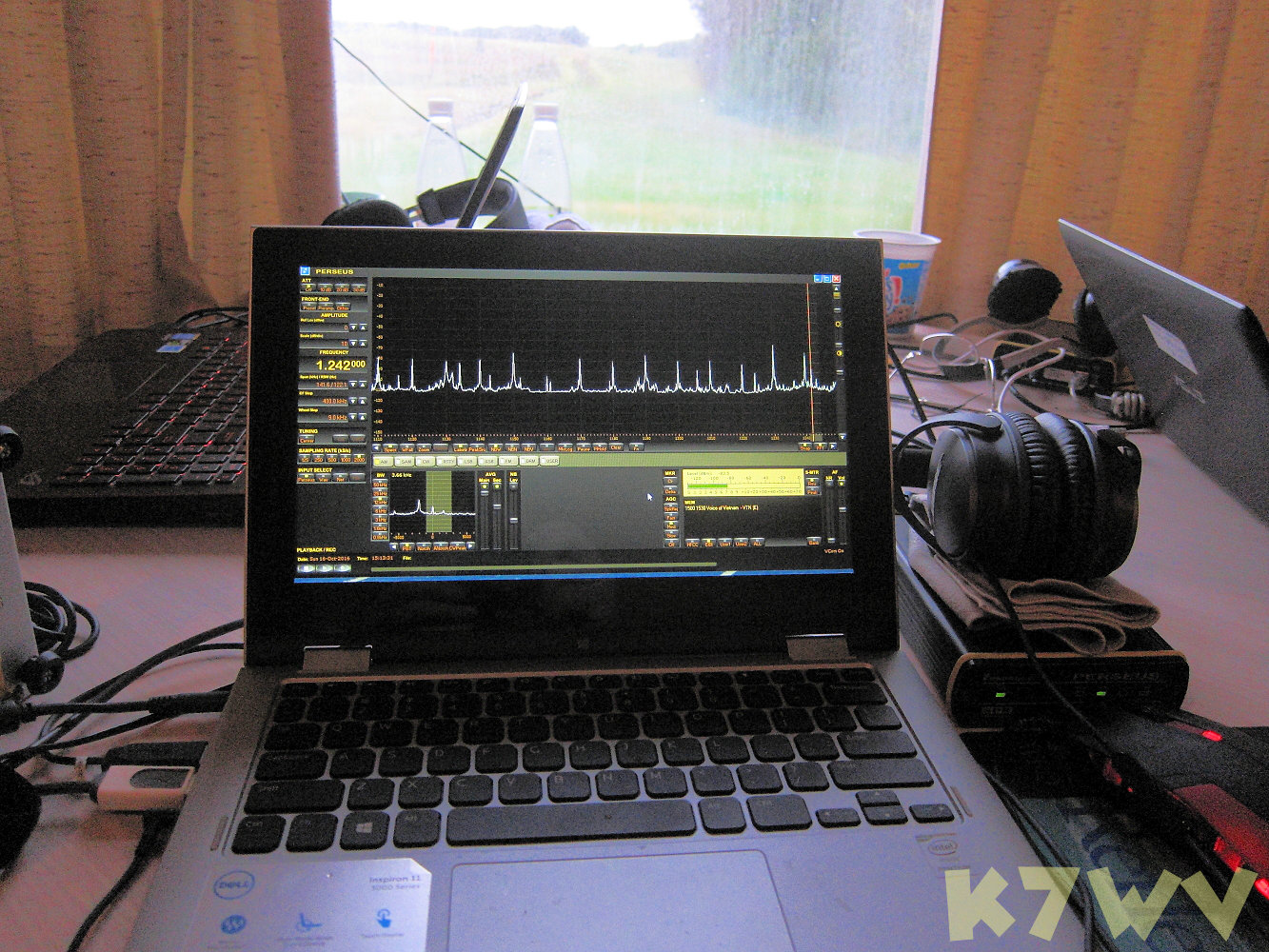

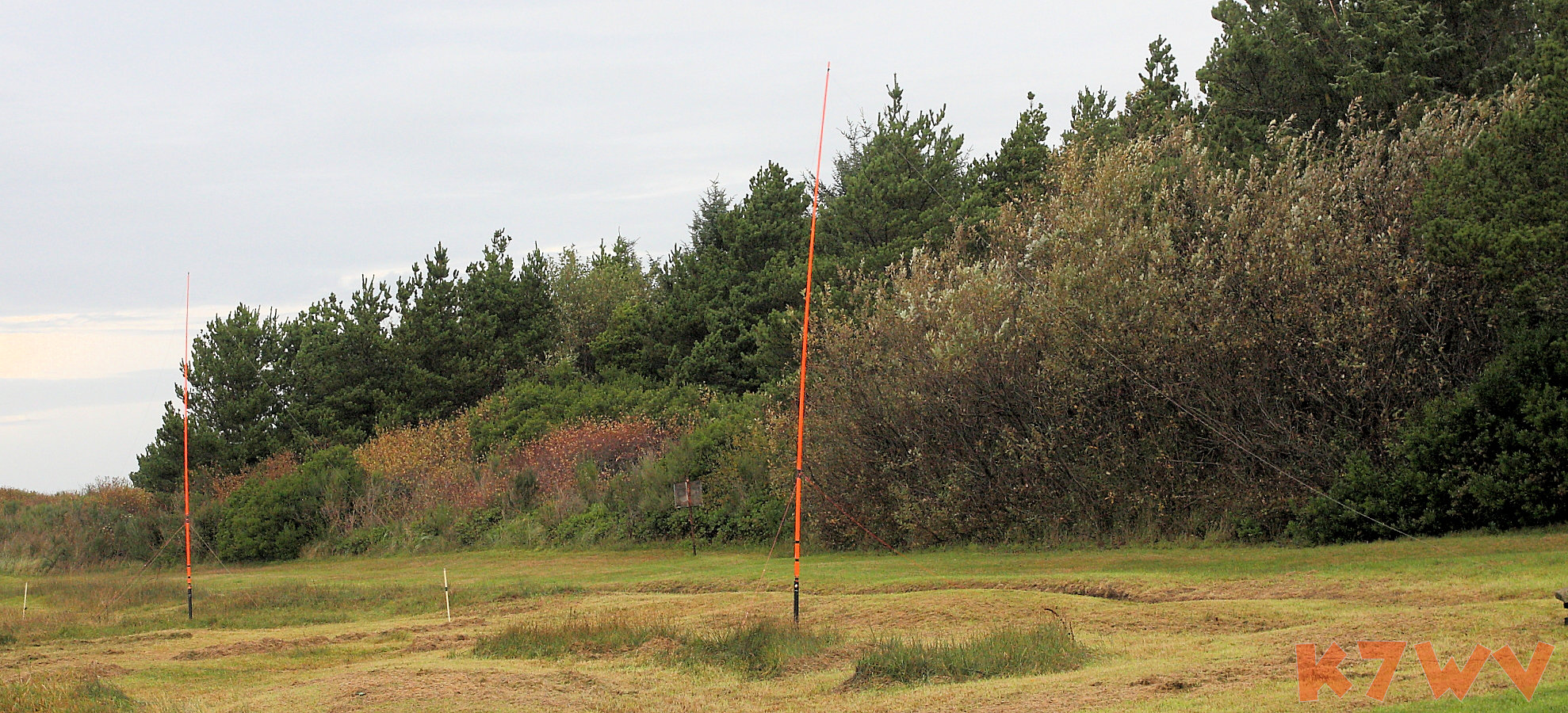

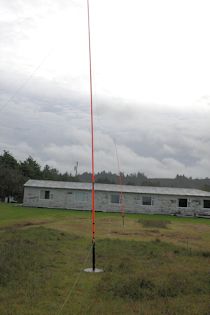

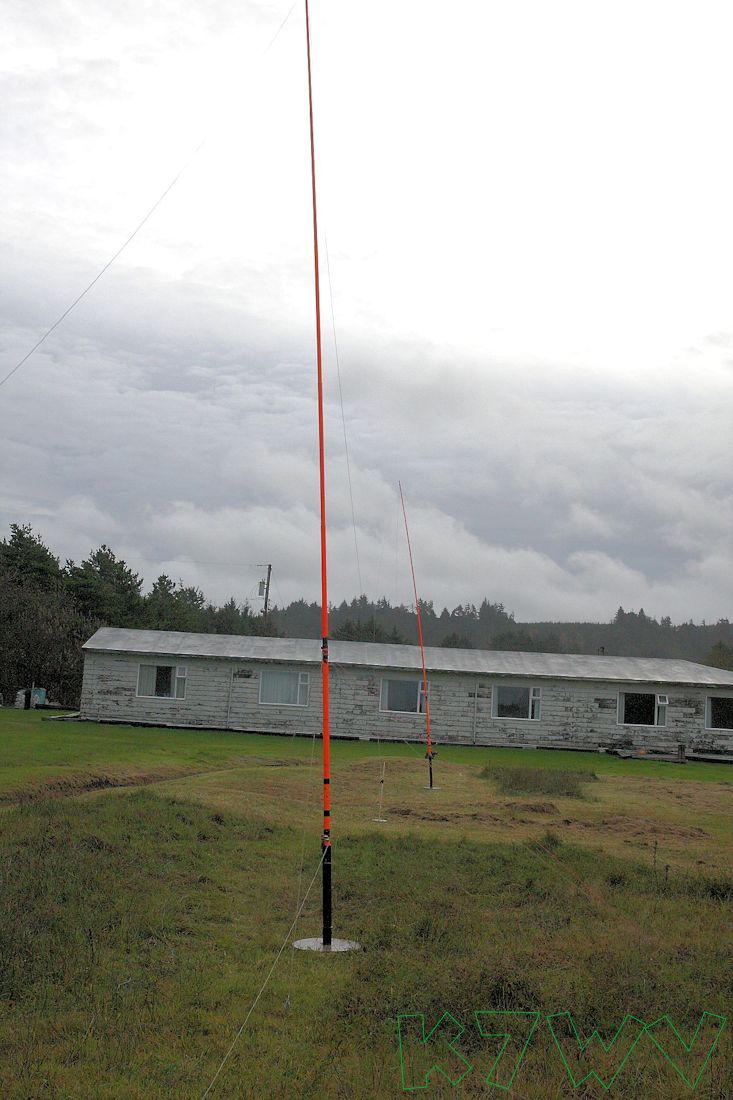

Grayland DKAZ setup DX still in after sunrise LW Delta Antenna              DKAZ and Graylamd Motel              DKAZ support and motel "DX HQ"




Stormy indeed, but we also had calm, sun and rainbows. Static crashes were prevalent at times. (Click pics for larger view)

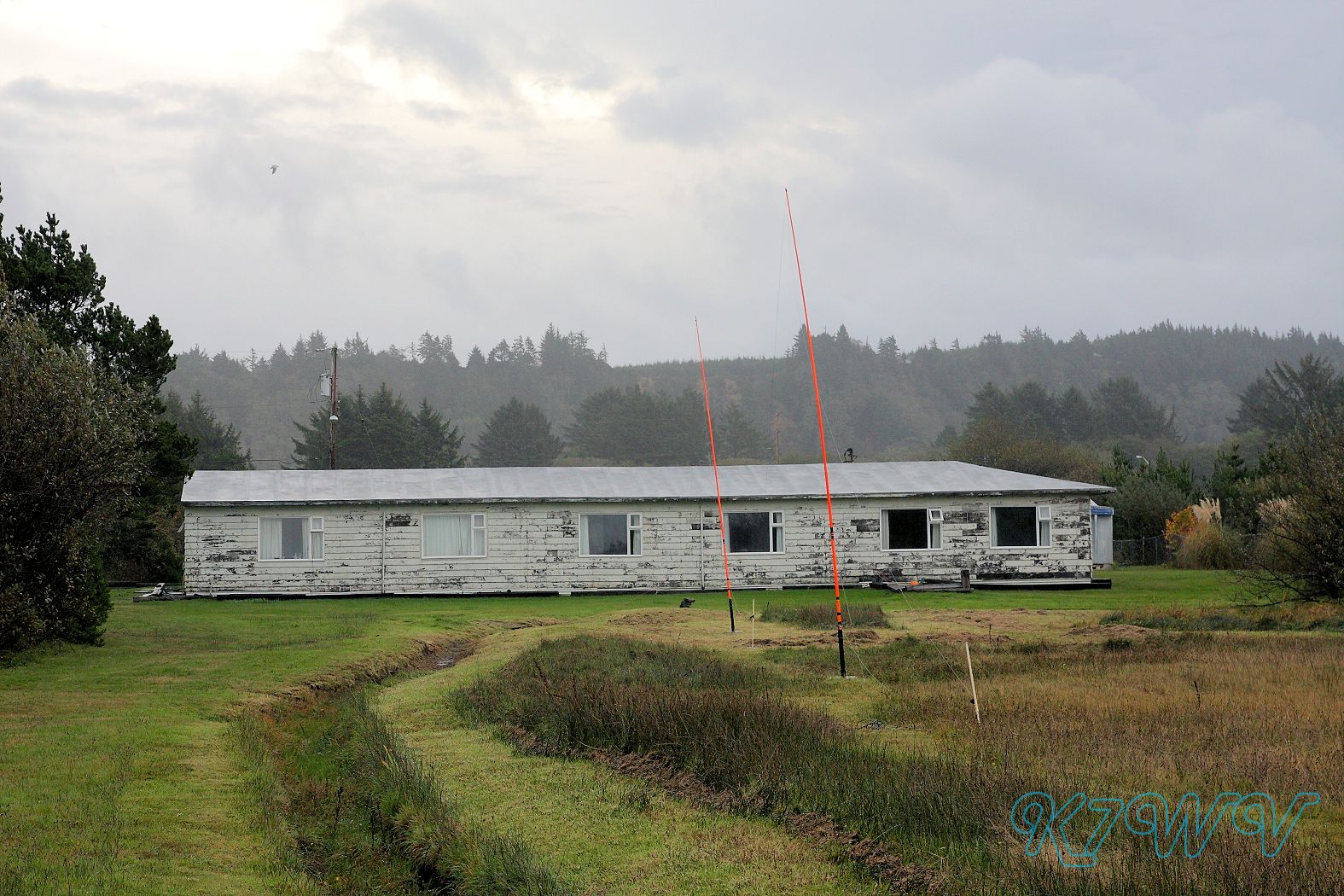

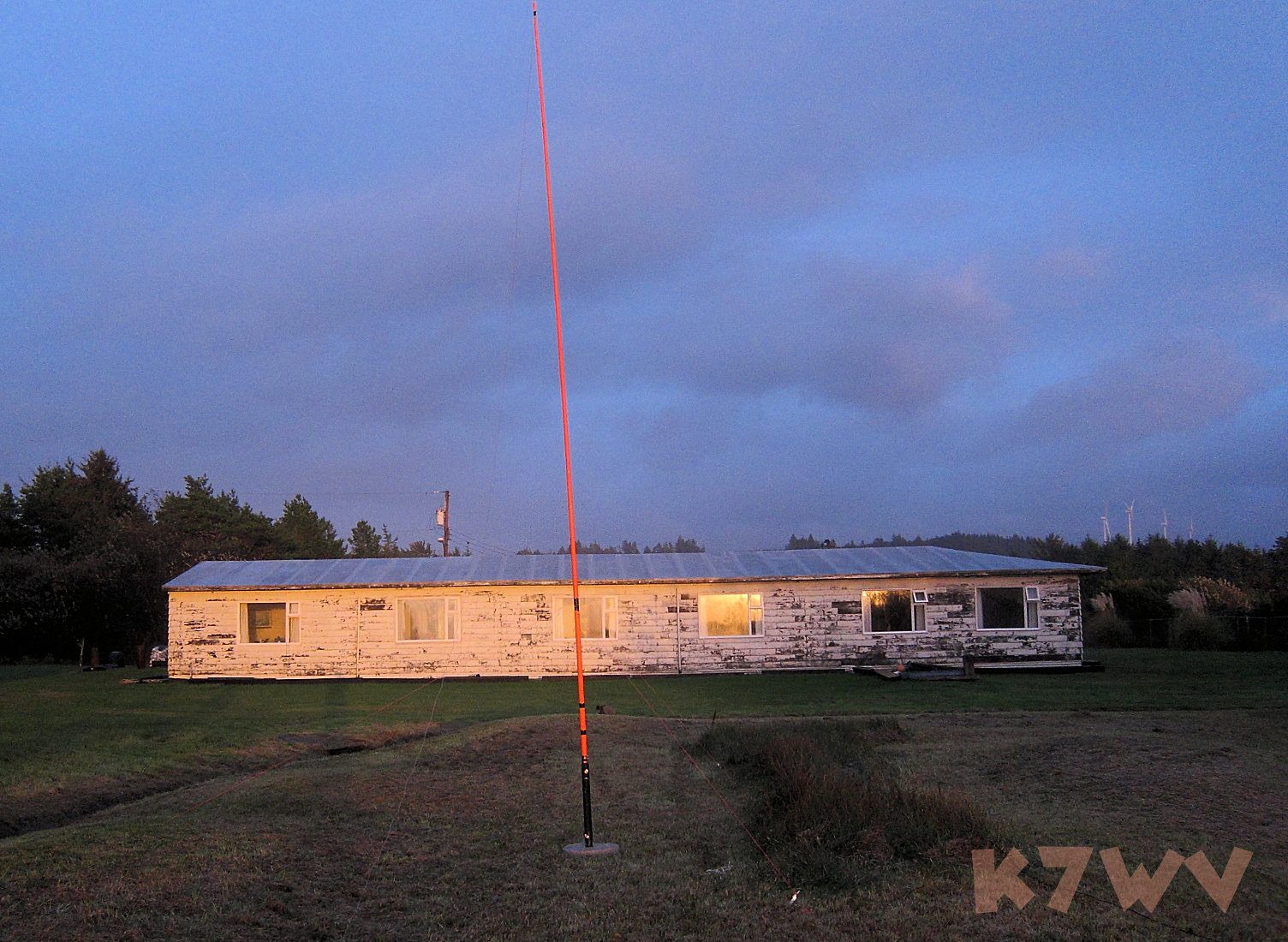

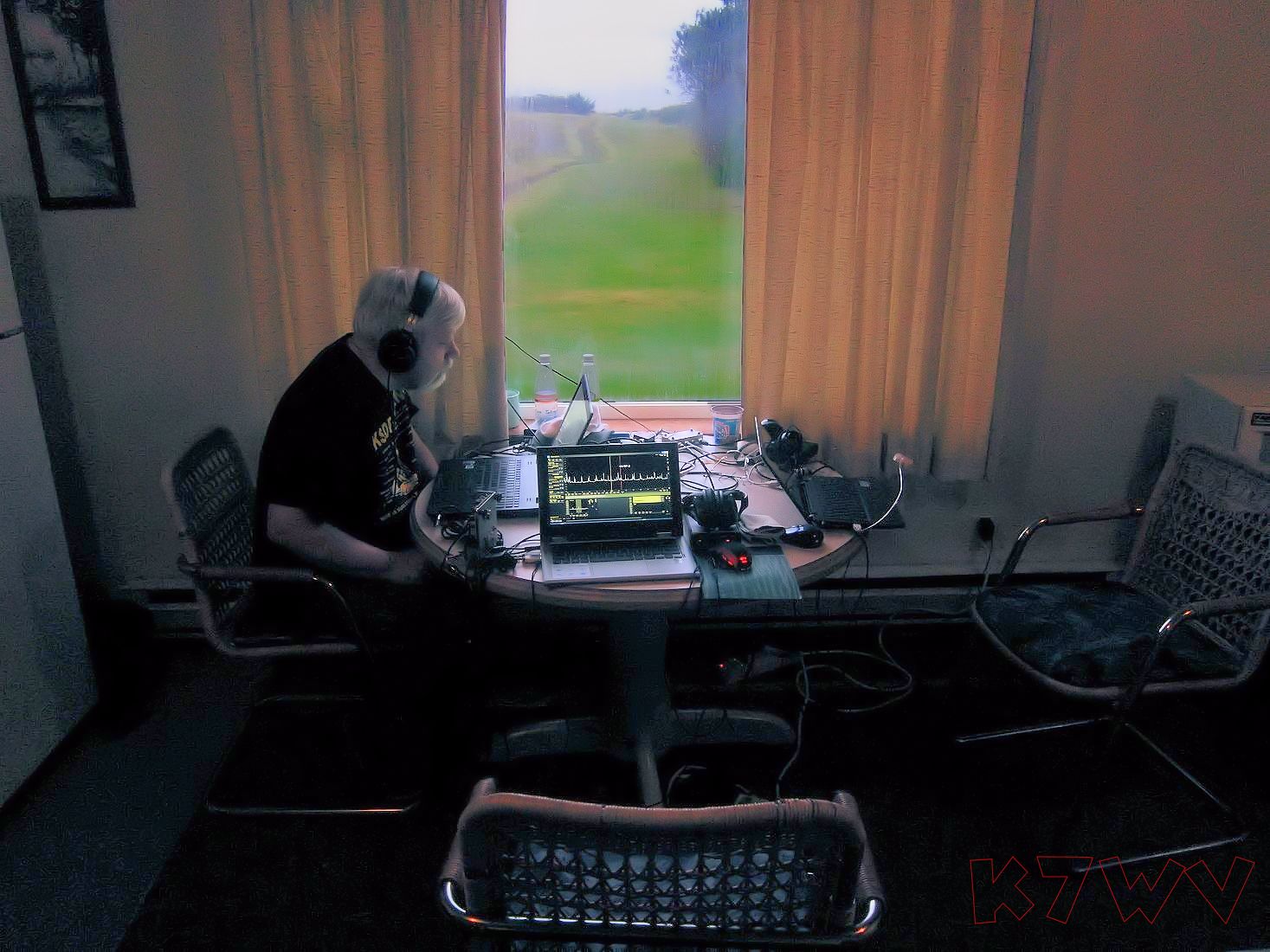

   Grayland Rainbow                Grayland Hotel / DKAZ               Bruce backing up files

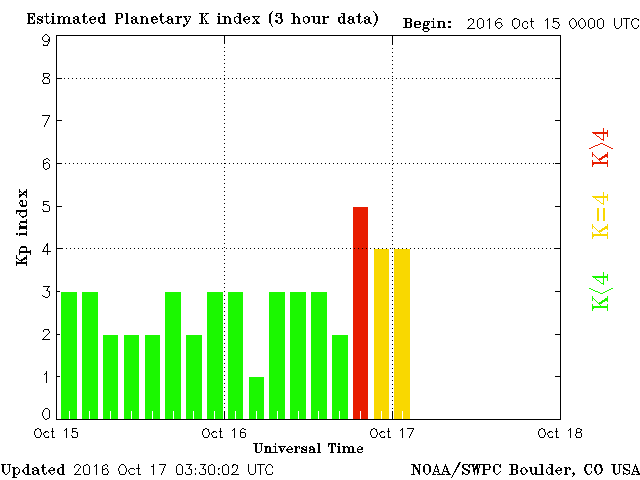

K-Index during the DXpedition




K7WV Grayland DXpedition MW Log:  Alaska/Hawai'i  Oct 15-16 2016
10/15/2016 0900 550 KNUI "The station that brings you Bloomberg Radio KNUI AM 550 Wailuku" (TR WA) 5 Wailuku, Maui Hawaii  play
10/15/2016 0900 570 KUAI "KUAI Eleele Kauai's Country an Ohana broadcast station" at TOH (TR WA) 1 Eleele, Kauai Hawaii  play
10/15/2016 0900 590 KSSK Musical jingle "KSSK Honolulu, Hawaii" on top of talk stn TOH (TR WA) 7.5 Honolulu Hawaii  play  play
10/16/2016 1423 650 KPRP "KPRP Pinoy Power Radio 650 AM" (TR WA) 10 Honolulu Hawaii  play
10/15/2016 0830 670 KPUA "Weekdays on KPUA 670 your source for news, sports" (TR WA) 5 Hilo, Hawaii Hawaii  play  play
10/15/2016 1300 690 KHNR "The Answer KNHR Honolulu" under CBU at TOH (TR WA) 10 Honolulu Hawaii  play
10/15/2016 0800 740 KCIK "KCIK Kihae, Maui" all alone at TOH (TR WA) 5 Kihae, Maui Hawaii  play
10/15/2016 0600 760 KGU "Hawaii's Business Authority…KGU Honolulu" all alone (TR WA) 10 Honolulu Hawaii  play
10/15/2016 0900 800 KINY "103.5 KINY" on top of Easy Rock CKOR (TR WA) 7.6 Juneau Alaska  play
10/15/2016 1000 830 KHVH "Newsradio 830 KHVH Honolulu" at TOH (TR WA) 10 Honolulu Hawaii  play
10/15/2016 0800 850 KHLO "On ESPN Radio and ESPN2...The Big Island's Sports Authority..." (TR WA) 5 Hilo, Hawaii Hawaii  play
10/15/2016 0800 900 KMVI "Maui's ESPN Radio Station KMVI AM 900 Kahului" Loud at TOH (TR WA) 5 Kahului, Maui Hawaii  play
10/15/2016 0900 930 KTKN "KTKN serving southern SE Alaska" Strong and in all night (TR WA) 1 Ketchikan Alaska  play
10/16/2016 1430 940 KKNE musical ID: "All traditional Hawaiian all the Time, am940hawaii.com" (TR WA) 10 Waipahu, Oahu Hawaii  play  play
10/15/2016 0900 990 KIKI "KIKI Honolulu an I-Heart Radio Station" at TOH (TR WA) 5 Honolulu Hawaii  play
10/15/2016 0900 1040 KLHT "KLHT Honolulu K-Light AM 1040" at TOH (TR WA) 10 Honolulu Hawaii  play
10/15/2016 0500 1060 KIPA "KIPA AM Hilo" at TOH. Even louder at 10/16/16 1428 "102.7 The Beach" (TR WA) 5 Hilo, Hawaii Hawaii  play  play
10/15/2016 0500 1110 KAOI "KAOI AM Kihae 1110 AM, 96.7 FM and 96.5 FM West Maui" (TR WA) 5 Kihea, Maui Hawaii  play
10/16/2016 1242 1240 KEWE "This is KEWE" during break in talk show about missionaries (TR WA) 5 Kahului, Maui Hawaii  play
10/15/2016 0829 1330 KXXJ "The Greatest Hits Now; KXJ all hits 107.9 FM" (TR WA) 3.1 Juneau Alaska  play
10/15/2016 0830 1420 KKEA "1420 ESPN" under KITI music (TR WA) 5 Honolulu Hawaii  play
10/15/2016 0800 1460 KHRA "KHRA 1460 Honolulu" by male just after domestic ESPN ID (TR WA) 5 Honolulu Hawaii  play
10/15/2016 1000 1500 KHKA "KHKA Honolulu is NBC Sports Radio" TOH ID clear (TR WA) 10 Honolulu Hawaii  play
10/15/2016 0800 1540 KREA "This is KREA Honolulu 1540 on your AM dial" at TOH (TR WA) 5 Honolulu Hawaii  play
10/15/2016 0800 1570 KUAU "This is Maui's Own Christian station...KUAU Haiku, Maui" (TR WA) 15 Haiku, Maui Hawaii  play




K7WV Grayland DXpedition Results: MW (Excluding AK and HI) Oct 15-16 2016
Date UTC KHz Country Station CITY, NETWORK, DETAILS, COMMENTS KW mp3 CLIP
15-Oct 1300 531 AUSTRALIA 4KZ Innisfail, QLD "Across the Far North...4KZ News" announced on the hour (TR WA) 5  4KZ
15-Oct 1353 540 JAPAN JOJG Yamagata (and others), NHK1; Jpop song by female idol followed by commentary, // 594, weak (TR WA) 5
15-Oct 1300 540 AUSTRALIA 4QL Longreach, QLD (ABC W. Queensland); ABC News fanfare into news (TR WA) 10
15-Oct 1347 549 JAPAN JOAP Naha, Okinawa NHK1, Man in JJ with pronounced voice inflections // 594 (TR WA) 10
15-Oct 1200 549 AUSTRALIA 2CR Orange, NSW (ABC Central West); ABC News fanfare (TR WA) 50
15-Oct 1400 558 AUSTRALIA 6WA Wagin, WE (ABC Great Southern); ABC news fanfare, then "ABC News…) (TR WA) 50
15-Oct 1000 558 JAPAN JOCR CRK Kobe with commercials, musical ID, time pips. (TR WA) 20  JOCR
15-Oct 0900 567 GUAM KGUM Agana; K-57 with "CBS News" announcement and musical jingle into EE news at TOH, poor (TR WA) 10
15-Oct 1200 567 AUSTRALIA 4JK Julia Creek, QLD (ABC Carpinteria); ABC News fanfare (TR WA) 10
15-Oct 1130 567 S. KOREA HLKF KBS-1, Time pips on the half hour followed by KK announcer (TR WA) 100
15-Oct 1353 567 JAPAN JOIK Sapporo NHK1 Female Jpop idol with song and commentary in JJ // 594 (TR WA) 100
15-Oct 1200 576 AUSTRALIA 2RN Sydney NSW (ABC National); ABC News fanfare (TR WA) 50
15-Oct 1405 585 AUSTRALIA 2WEB Bourke, NSW; "2WEB" clear with ID and several commercials (TR WA) 10  2WEB
15-Oct 1300 585 AUSTRALIA 7RN Hobart, TAS (ABC National); ABC News fanfare into news (TR WA) 10
15-Oct 1300 594 AUSTRALIA 3WV Horsham, VIC (ABC W. Victoria); ABC News fanfare over Japan (TR WA) 50
15-Oct 1353 594 JAPAN JOAK Tokyo NHK1; Jpop song by female idol followed by commentary, // 729, 846, 882, 945, 963; Loud (TR WA) 300
15-Oct 1200 603 AUSTRALIA 4CH Charleville (ABC Western QLD); ABC News fanfare (TR WA) 10
15-Oct 1301 603 NEW ZEALAND   Manukau-Auckland (Waatea); US oldies incl "Shining Star" (The Manhattans), others // 765, poor (TR WA) 5
15-Oct 1200 612 AUSTRALIA 4QR Brisbane, QLD (ABC Brisbane); ABC News fanfare (TR WA) 50
15-Oct 0959 621 TUVALU T2U2 Funafuti, woman announcer in Pacific language into national anthem with male choir (TR WA) 5  T2U2
15-Oct 1200 621 AUSTRALIA 3RN Melbourne, VIC (ABC National) ABC News fanfare (TR WA) 50
15-Oct 1200 630 AUSTRALIA 4QN Townsville, QLD (ABC North QLD) ABC News fanfare (TR WA) 50
15-Oct 1330 639 AUSTRALIA 5CK Port Pirie, SA (ABC North & West) ABC news fanfare on the half-hour (SA time zone offset) (TR WA) 10
16-Oct 1435 648 JAPAN AFN Okinawa; (Surf 648); Intro music and female ann in US English speaking rapidly. Poor. (TR WA) 20  AFN-O
16-Oct 1424 657 NEW ZEALAND Star Wellington (Star); // 909 Dominant with slow song male singer (TR WA) 50
15-Oct 1115 657 N. KOREA   Kangnam, (Pyongyang Bangsong), Light music with female choir in KK (TR WA) 1500  PBS
15-Oct 1200 657 AUSTRALIA 2BY Byrock, NSW (ABC Western Plains) ABC News fanfare (TR WA) 10
15-Oct 1408 666 PHILIPPINES DZRH Manila, Tagalog/EE mix, announcement for sporting tickets for match on Oct 15 at the 'Olympian' (TR WA) 35
15-Oct 1345 666 JAPAN JOBK Osaka, NHK1 Loud with Jpop music with male singer // 594 (TR WA) 100
15-Oct 1400 675 AUSTRALIA 2CO Corowa (ABC Riverina) ABC News fanfare at TOH (TR WA) 10
15-Oct 1307 684 PHILIPPINES UNID Tagalog talk by male announcer, briefly fair (TR WA) 10
15-Oct 1400 684 AUSTRALIA 2KP Kempsey, NSW (ABC Mid-North Coast) ABC News fanfare at TOH (TR WA) 10
16-Oct 1425 693 JAPAN JOAB Tokyo (NHK2) EE lessons // 774; (pretty advanced conversational scenarios). Loud as usual. (TR WA) 500
16-Oct 1423 702 NEW ZEALAND Magic Magic Auckland; "Too Late to Turn Back Now" (Cornelius Bros) into Niel Diamond song, mixing with 2BL (TR WA) 10  Magic
15-Oct 1200 702 AUSTRALIA 2BL Sydney (ABC Sydney) ABC News fanfare (TR WA) 50  2BL
15-Oct 1130 729 AUSTRALIA 5RN Adelaide (ABC National) with ABC News fanfare at fair strength (TR WA) 50
15-0ct 1354 729 JAPAN JOCK Nagoya NHK1; Jpop song by female idol followed by commentary, // 594 (TR WA) 50
15-Oct 1200 738 AUSTRALIA 2NR Grafton, NSW (ABC North Coast) ABC News fanfare, (TR WA) 50
15-Oct 1345 738 TAIWAN BEL2 Baisha, Fisheries station with music into female announcer, // 1143 good strength (TR WA) 100
15-Oct 0600 738 TAHITI R. PP Papeete; Song "Knocking on Heaven's Door" into TOH with fanfare and news(?) in FF, good (TR WA) 20
15-Oct 1400 747 AUSTRALIA 4QS Toowoomba (ABC Southern QLD), Very poor ABC News fanfare on the hour with poor NHK (TR WA) 10
16-Oct 1425 747 JAPAN JOIB Sapporo (NHK2); EE lessons and analysis in JJ. //693, 774 (TR WA) 500
15-Oct 1301 765 NEW ZEALAND   Napier-Hastings R. Kahungunu (relays Waatea); "Shining Star" (The Manhattans), others // 603, fair (TR WA) 2.5
15-Oct 1200 774 AUSTRALIA 3LO Melbourne, VIC (ABC Melbourne) ABC News fanfare (TR WA) 50
16-Oct 1430 774 JAPAN JOUB Akita (NHK2); "Use English Here and Now!" EE lessons. Huge signal as usual (TR WA) 500  NHK2
15-Oct 1200 792 AUSTRALIA 4RN 4RN Brisbane, QLD (ABC National) ABC News fanfare (TR WA) 25
15-Oct 1346 801 GUAM KTWR Agana, Briefly fair, out of song, mentions of "Homecoming Radio" (TR WA) 10
15-Oct 1300 819 AUSTRALIA 2GL Glen Innis, NSW (ABC New England); ABC News fanfare (TR WA) 10
15-Oct 1133 828 AUSTRALIA 3GI Sale, VIC (ABC Gippsland) Saturday Night Country prgr with banjo into female announcer // 702, 549 (TR WA) 10
16-Oct 1430 828 JAPAN JOBB Osaka (NHK2) "Use English Here and Now!" EE lessons. Typical huge signal from this "Big Gun" (TR WA) 300
15-Oct 1300 837 AUSTRALIA 4RK Rockhampton, QLD (ABC Capricornia) ABC News fanfare on the hour, fair to good (TR WA) 10
15-Oct 1201 837 PHILIPPINES DYPM Iloilo City; Tagalog with some EE, 'Bombo Radyo' mentions, 'Iloilo City' mention, apparent song requests (TR WA) 10  DYPM
15-Oct 1345 837 JAPAN JOQK Niigata NHK1 // 594, 666 with J-Pop featuring male singer (TR WA) 10
15-Oct 1200 846 AUSTRALIA 2RN Canberra, ACT (ABC National) ABC News fanfare, (TR WA) 10
15-Oct 1422 846 PHILIPPINES DZRV Manila; Tagalog commercial, "9-1-1" musical jingle (program name?), Tagalog talk (TR WA) 50  DZRV
15-Oct 1353 846 JAPAN JOCP Koriyama (most likely) NHK1; Jpop song by female idol followed by commentary, // 594 (TR WA) 5
15-Oct 1200 855 AUSTRALIA 4QO Eidsvold, QLD (ABC Wide Bay) ABC News fanfare, (TR WA) 10
15-Oct 1432 855 PHILIPPINES MBC Manila or Davao, Tagalog announcement included "Tu Radyo sa Radyo MBC"; (DXZH or DXGO) (TR WA) 5
15-Oct 1400 864 JAPAN JOXR Naha, Okinawa (ROK), String of commercials into "J-O-X-R" ID and time pips TOH (TR WA) 10  JOXR
16-Oct 1446 873 JAPAN JOGB Kumamoto (NHK2) EE lessons // 774 Loud as usual (TR WA) 500
15-Oct1419882NEW ZEALANDStarAuckland; Star // 657 fair with EZ Christian song (TR WA)5
15-Oct 1415 882 AUSTRALIA 4BH Brisbane; Oldies: This Is It (Kenny Loggins), Today (New Christy Minstrels), others (TR WA) 5  4BH
15-Oct 1421 882 PHILIPPINES DWIZ Manila (presumed)Tagalog announcements at rapid pace, over oldies station. (TR WA) 50
15-Oct 1353 882 JAPAN JOPK Shizuoka NHK1; JPop song by female idol followed by commentary, // 594 (TR WA) 10
15-Oct 1130 891 AUSTRALIA 4TAB Townsville QLD; Horse racing results and payoffs mixing with ABC News Adelaide (TR WA) 5
15-Oct 1329 891 AUSTRALIA 5AN Adelaide, SA (ABC National) good with "Saturday Night Country" program and announcements (TR WA) 50
15-Oct 1353 891 JAPAN JOHK Sendai NHK1 Female JPop idol with song and commentary in JJ // 594 (TR WA) 20
15-Oct 1407 900 PHILIPPINES UNID Priest and children apparently reciting Catholic liturgy in Tagalog over KMVI (TR WA) 5
16-Oct 1423 909 NEW ZEALAND Star Napier-Hastings; Star // 657 Loud with song by male singer (TR WA) 5
16-Oct 1427 909 JAPAN JOCB Nagoya (NHK2); // 774 briefly over "Star" with male announcer speaking distinctly (TR WA) 10
16-Oct 1500 918 JAPAN JOEF Yamagata; "YBC Yamagata Hoso Desu" followed by the time of day and TOH chime (TR WA) 5  play
15-Oct 1417 927 AUSTRALIA 4CC Gladstone, QLD; female: "Thanks for listening to us" male: "4-Double C" between oldies songs (TR WA) 5  4CC
15-Oct 1359 936 AUSTRALIA 4PB Brisbane, QLD (ABC News R.) BBC program ending, "Here on 4PB News" ID and upcoming programs (TR WA) 10
15-Oct 1353 945 JAPAN JOIQ Muroran? NHK1 (several possibities); JPop song by female idol followed by commentary, // 594 (TR WA) 5
16-Oct 1500 954 JAPAN JOKR Tokyo (TBS); Commercials, time pips, start of "Tokyo Boogie Night" program (TR WA) 100  play
15-Oct 1344 963 JAPAN JOTG NHK1 // 594 with distinctive J-Pop song. Several possibilities, most likely Aomori (TR WA) 5
16-Oct 1438 963 CHINA CRI Huaduan; Male announcer in RR with vocalist and piano music, loud (TR WA) 600
16-Oct 1424 963 NEW ZEALAND Star Christchurch // 657 with slow song with female and piano (TR WA) 10
15-Oct 1439 972 PHILIPPINES DXKH Cagayan de Oro; Tagalog/EE by male announcer with D-Z-R-H ID and many 'RH' mentions (TR WA) 5  play
15-Oct 1114 972 S. KOREA HLCA Dangjin (KBS Hanminjok Bangsong); idol interview, then up-tempo Kpop song performance. Loud (TR WA) 1500  play
16-Oct 1432 981 CHINA CNR1 multiple locations; Male announcer in CC with musical fanfare lead-ins (TR WA) 200  play
15-Oct 1413 990 PHILIPPINES DZIQ Manila; Running commentary in Tagalog by woman and "Radyo Inquirer" ID; fair to good (TR WA) 10  play
15-Oct 1429 999 PHILIPPINES DYSS Cebu City; Tagalog announcements "Cebu" mentions, several DY- - calls and cities (affiliates?) (TR WA) 5
16-Oct 1429 1008 JAPAN JONR Osaka (ABC) Commercials at BOH, loud and robust signal with storm static crashes (TR WA) 50  play
15-Oct 1230 1008 AUSTRALIA 4TAB Brisbane, QLD Horse race being called, // 1017 (TR WA) 5
15-Oct 1230 1017 AUSTRALIA 2KY Sydney, NSW (Racing Radio) Horse race being called, // 1008 (TR WA) 5
15-Oct 1302 1017 PHILIPPINES UNID Song "Top of the World" (Carpenters) into commentary with several people with EE/Tagalog mix (TR WA) 10
16-Oct 1422 1017 JAPAN JOLB Fukuoka (NHK2) // 774 with man and woman back and forth (TR WA) 50
15-Oct 0959 1017 TONGA A3Z Nuku'alofa, Spoken words by male in Pacific language (TR WA) 10
15-Oct 1353 1026 PHILIPPINES DZAR Quezon City / Manila (Sonshine R.) Religious sermon in mostly accented EE w/ Tagalog, over 4MK (TR WA) 25
15-Oct 1129 1026 AUSTRALIA 4MK 4MK Mackay, QLD "Classic Hits 4MK, 100% Mackay" Very good, in for hours, best I've heard them (TR WA) 5  play
15-Oct 1412 1026 NEW ZEALAND "ZB" 2 possibilities from Northland; Newstalk ZB with two men in discussion in EE, // 1215. (TR WA) 2
16-Oct 1447 1035 JAPAN UNID NHK2 synchros with EE lesson // 774, 1 KW max. (TR WA) 1
15-Oct 1200 1035 NEW ZEALAND "ZB" Wellington, "Newstalk ZB news" just past TOH (TR WA) 20
16-Oct 1432 1044 CHINA CRI CRI in JJ with female announcer and music (TR WA) 300
15-Oct 1418 1044 NEW ZEALAND "ZB" Dunedin (Newstalk ZB) Announcer interviewing caller on phone // 1035 but weaker. (TR WA) 10
16-Oct 1440 1053 JAPAN JOAR Nagoya (CBC); Jazz program with female announcer and US standards; "In A Sentimental Mood", etc (TR WA) 50  play
15-Oct 1345 1053 S. KOREA   Bubble jammer dominating the frequency (TR WA) ?
15-Oct 1427 1062 AUSTRALIA 4TI Thursday Island (ABC Far North) Country music vocalist // 630 4QN (Saturday Night Country prgr) (TR WA) 2
15-Oct 1400 1062 PHILIPPINES DZEC Pasig / Manila (R. Agila); "DZEC" ID and various relay stations ID'd at TOH. Fair. (TR WA) 40
15-Oct 1433 1071 AUSTRALIA UNID 4SB or 3EL, Oldies, "Give Me One Reason" (Tracy Chapman), Shambala (Three Dog Night), others (TR WA) 5
16-Oct 1429 1071 JAPAN JOFK NHK1 Hiroshima; // 594 Male talk in JJ (TR WA) 20
15-Oct 1419 1098 NEW ZEALAND "ZB" Christchurch (Newstalk ZB) interview with phone caller discussing Democracy // 1035 but weaker. (TR WA) 5
15-Oct 1130 1098 MARSHALL ISL V7AB Majuro; Song into male ann in Pacific Language, Marshalese anthem at 11:31 signoff. Good with fades. (TR WA) 10  play
16-Oct 1448 1098 JAPAN UNID JJ talk, male and female back and forth, speaking rapidly (TR WA) 5
16 Oct 1436 1107 JAPAN UNID Probably JOCF Kagoshima; Man speaking as if reading followed by piano music. (TR WA) 20
15-Oct 1258 1107 PHILIPPINES DYIN Kalibo; Tagalog at rapid pace, "Bombo" mention. Poor. (TR WA) 5
15-Oct 1428 1107 NEW ZEALAND   Tauranga (RadioLive), String of commercials including "Ultimate Motor Group" (=Tauranga, NZ) (TR WA) 1  play
15-Oct 1117 1116 AUSTRALIA 4BC Brisbane, QLD; Commercial about Country Music, solid 4BC ID at good level (TR WA) 17  play
16-Oct 1436 1116 JAPAN UNID Two JJ stations, one with men in conversation, one with excited female (TR WA) 5
16-Oct 1430 1125 JAPAN JOAD Naha? (NHK2) Others at 1KW and under. "Let's use English Here and Now! EE lessons // 747 (TR WA) 10
15-Oct 1420 1125 PHILIPPINES DXGM Davao City "GMA" mention, Tagalog and EE mix, rapid fire contest info, into song. (TR WA) 5  play
16-Oct 1420 1134 JAPAN JOQR Tokyo; Idol intro "Konbanwa" (good evening) and performance of JPop song "Starting Over". Excellent (TR WA) 100  play
15-Oct 1345 1143 TAIWAN BEL3 Baisha, Fisheries station with music into female announcer, // 738, good strength (TR WA) 100
16-Oct 1430 1143 JAPAN JOBR KBS Kyoto (Kinki Hoso) with musical JJ commercials and talk by female (TR WA) 20
15-Oct 1416 1152 AUSTRALIA 6PNN Busselton, WE (ABC News Radio), fair with "BBC Sportsworld" and UK soccer talk, as per schedule (TR WA) 10  play
16-Oct 1448 1152 JAPAN JOPC Kushiro (most likely) NHK2; EE lessons "OK, time's up" // 774 (TR WA) 10
15-Oct 1400 1161 TAIWAN BEDxx 2 locations,(BCC Country network); Lists of AM frequencies and locations in CC dialect (TR WA) 10
16-Oct 1427 1161 AUSTRALIA 7FG Fingal, Tas. (ABC Northern Tasmania) Woman speaking about values and justice in society // 702 (TR WA) 1
16-Oct 1448 1161 NEW ZEALAND   Wellington presumed with du-wop oldies not // 891 (TR WA) 5
16-Oct 1500 1170 S. KOREA HLSR Gimje (KBS World) "KBS Hanminjok" and frequency announcement at TOH and time pips. Loud. (TR WA) 500
15-Oct 1415 1179 PHILIPPINES DYSB Bacolod (GMA Network), Tagalog by male announcer at fast pace, brief music, "DZBB" ID (TR WA) 5
15-Oct 1426 1179 JAPAN JOOR Osaka (MBS) Several in conversation with laughing woman in JJ (TR WA) 50
15-Oct 1437 1188 PHILIPPINES UNID Tagalog with one man in rapid fire talk, the other laughing and commenting. Fair to good briefly. (TR WA) 10
15-Oct 1353 1188 JAPAN JOKP Kitami NHK1; JPop song by female idol followed by commentary, // 594 (TR WA) 10
16-Oct 1454 1197 JAPAN JOWL STV; Asahikawa presumed; Up-tempo, catchy Jpop music // 1440 (TR WA) 3  play
16-Oct 1452 1197 JAPAN UNID Conversation with man and woman and traditional song rising to top over JOWL (TR WA) 5
16-Oct 1421 1206 CHINA   Yanji (Yanbian RGD); Korean lang with female announcer and female on phone, fair to good (TR WA) 200
15-Oct 1412 1215 NEW ZEALAND "ZB" Kiakohe, Northland; Newstalk ZB with two men in discussion in EE, // 1026. (TR WA) 2
15-Oct 1346 1215 PHILIPPINES DYRF Cebu; Unknown anthem at fair strength, presumably this station by process of elimination (TR WA) 10
16-Oct 1457 1224 JAPAN JOJK Kanazawa (NHK1) // 594 Man speaking slowly (TR WA) 10
15-Oct 1114 1233 AUSTRALIA 2NC Newcastle NSW (ABC Newcastle), Out of song and into comments by DU-accented woman in EE (TR WA) 10
16-Oct 1428 1242 JAPAN JOLF Tokyo (Nippon Hoso), "Wonderful Night" program hosted by Kanako Yanagihara; JPop music and talk (TR WA) 100  play
15-Oct 1418 1251 NEW ZEALAND Rhema Auckland, Christian music at good strength, "Rhema" ID between songs at 1418 (TR WA) 5  play
16-Oct 1436 1269 JAPAN JOJR JRT Tokushima, not // 1287 HBC, Song and excited female in JJ (TR WA) 5  play
16-Oct 1439 1278 JAPAN JOFR Fukuoka (RKB); Two males in conversation, introduce Jpop song (TR WA) 50
16-Oct 1459 1287 JAPAN JOHR Sapporo (HBC); string of commercials and HBC ID, musical HBC jingle just prior to TOH. (TR WA) 50  play
15-Oct 1414 1305 AUSTRALIA 5RN Renmark, SA (ABC National) Jazz program with string bass and glissading trumpet // 792, poor (TR WA) 2
16-Oct 1449 1314 JAPAN JOUF Osaka OBC; Japanese lady with voice inflections and laughter (TR WA) 50
15-Oct 1317 1314 PHILIPPINES DWXI Paranaque; Religious sermon containing some accented EE (TR WA) 30
15-Oct 1115 1323 CHINA CRI Huadian; CRI Russian Svc; Woman in RR at good strength (TR WA) 600
16-Oct 1455 1332 JAPAN JOSF Nagoya (Tokai Hoso); Intro and Jpop song by male group; Good (TR WA) 50  play
16-Oct 1438 1350 JAPAN JOER RCC Hiroshima Dominating over domestic C&W with JJ talk and Koto music (TR WA) 20
16-Oct 1447 1377 JAPAN UNID NHK2, 3 possibilities; JOUC Yamaguchi most likely; EE lessons // 774 (TR WA) 5
15-Oct 1429 1377 NEW ZEALAND Star Dunedin; Distinctive song at good volume // 657 (TR WA) 3
15-Oct 1414 1386 JAPAN UNID NHK2, 4 possibilities woman speaking slowly // 774 (TR WA) 10
15-Oct 1416 1386 NEW ZEALAND   Auckland (R. Tarana); Hindi music into EE commercials over Japan NHK2 station. (TR WA) 10  play
16-Oct 1439 1404 JAPAN JOVR Shizuoka (SBS); Commercial with excited man and woman back and forth in JJ (TR WA) 10
16-Oct 1430 1413 JAPAN JOIF Fukuoka (KBC) Man and several women in conversation (Idol band interview?) (TR WA) 50
16-Oct 1428 1422 JAPAN JORF Yokohama; Male announcer with song titles and positions on the Oricon music chart. Huge signal. (TR WA) 50  play
16-Oct 1454 1440 JAPAN JOWF Sapporo (STV); up-tempo Jpop // 1197, occasionally on top of domestics (TR WA) 50
16-Oct 1459 1467 JAPAN UNID NHK2 synchros (1 kw max) // 774 with wrap up of English lessons (TR WA) 1
16-Oct 1445 1476 THAILAND   Piano and singer often with no announcements, unfamiliar lang with apparent China stn well beneath (TR WA) 50
16-Oct 1434 1494 MICRONESIA V6AI Colonia, Yap; EE with tropical storm info (US units: wind speeds in MPH, forecast tidal surge in feet). (TR WA) 10  play
15-Oct 1415 1503 JAPAN JOUK Akita, NHK1 JJ commentary and instrumental music followed by "Konbanwa" (Good Evening) // 594 (TR WA) 10
15-Oct 1409 1503 NEW ZEALAND R sport Wellington (Radio Sport), Discussion about the NFL vs MLB (Fox Sports relay) Good and all alone (TR WA) 5
15-Oct 1412 1512 JAPAN UNID NHK2 synchros 1KW and under; Female speaking slowly // 774 (TR WA) 1
15-Oct 1430 1512 PHILIPPINES DZAT? 2 possiblities; Light piano and Tagalog and EE mix by woman. "This time we present the following" (TR WA) 15
15-Oct 1329 1539 AUSTRALIA R. TAB Adelaide, SA; Horse racing results by male announcer (TR WA) 10  play
15-Oct 1300 1548 AUSTRALIA 4QD 4QD Emerald, QLD (ABC Central QLD); ABC News fanfare (TR WA) 50
16-Oct 1444 1557 TAIWAN RTI Kouhu (RTI) Presumed; CC song by female with instrumental interlude (TR WA) 300
16-Oct 1500 1566 S. KOREA HLAZ Fanfare and Chinese language lead in to show, huge signal as usual (TR WA) 250
15-Oct 1300 1575 THAILAND VOA VOA Ban Phachi "This is the Voice of America" (TR WA) 1000  play
15-Oct 1408 1584 NEW ZEALAND Coast Napier-Hastings; EZ listening oldies: If You Could Read My Mind (Gordon Lightfoot), others (TR WA) 1
16-Oct 1423 1593 CHINA CNR1 Changzhou; Man speaking rapidly in CC as if reading news (TR WA) 400
16-Oct 1446 1593 JAPAN JOQB Niigata (likely) or JOTB Matsue; NHK2 // 774 EE lessons "Let's meet at the usual time..." (TR WA) 10
16-Oct 1450 1602 JAPAN UNID NHK2 synchros // 774, "Let's use English here and now!" EE lessons (TR WA) 1
16-Oct 1440 1611 AUSTRALIA 4DB 3 locations, QLD; ("Hot Country") Country song by female vocalist at fair strength (TR WA) 0.4  play
15-Oct 1317 1630 NEW ZEALAND TM Taumarunui Airport; Aeronautical beacon "TM" in CW Morse; offsets +/- 1 KHZ (TR WA) 0.2
16-Oct 1429 1701 AUSTRALIA UNID Religious chanting in Arabic at fair level, Sydney or Melbourne (not Brisbane) likely (TR WA) 0.4  play






The longwave side project used a proven antenna and methods that have been productive in the past. I put aside the vactrol I had planned to experiment with to keep things simple given the wind and rain. The ALA100M was used instead of the FLG100LN for its higher gain and amplification of a short wire loop (50 feet circumference). Nylon ropes and tent stakes were used to lash everything down.  242-degrees was chosen so as to put the Australian east coast on boresight (a Tritium military compass was used for alignment). 200 feet of RG8X was used as feedline so I was able to put the antenna well away from the motel and DKAZ.  For DGPS, the excellent Amalgamated DGPS software was used. NDBs were decoded by ear using Perseus V5 without the use of sonograms or other visual means. The results were so impressive I was taken by surprise. As awesome as the seven mainland Australians were, 242 HN may actually be the finest catch. It is highly elusive and only reported outside Hawaii once before, from Oregon in 2005 by a top DXer. It was actually easy copy at Grayland.




Longwave NDB Results using Delta pennant with ALA100M

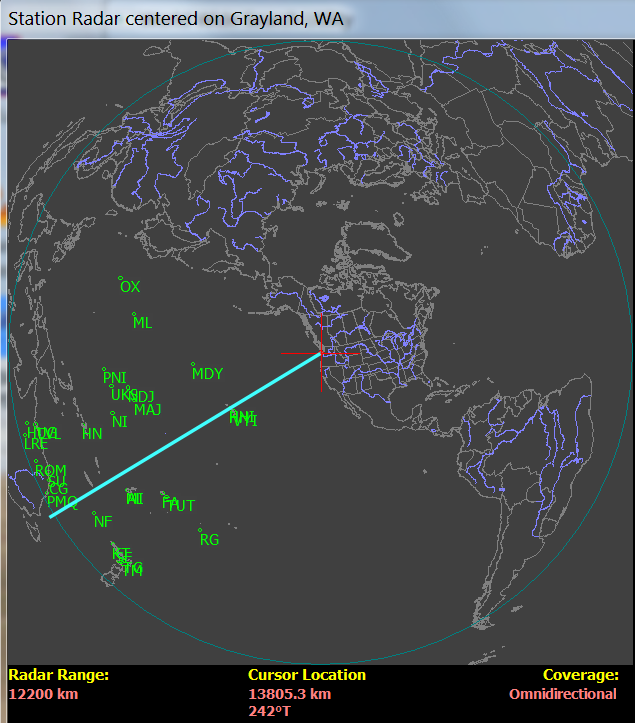

Pacific / Asia NDBs received during Grayland Dxpedition 2016
UTC DATE UTC KHz CALL KM Location Country
10/15/2016 13:38  238     KT    11038     Kaitaia - Waimanoni - Awanui NZL
10/15/2016 12:21  242     HN    4162      EWABE - Barbers Point Housing HWA
10/15/2016 11:20  260     NF    10832     Norfolk Island - Anson Bay NFK
10/15/2016 12:20  270     FA    8259      Apia (Upolu Island) SMO
10/15/2016 11:20  276     TVL   11490      Townsville Apt - RAAF Garbutt, QD AUS
10/15/2016 12:23  278     CG    11712      Coolangatta, QD AUS
10/15/2016 12:40  316     MAJ   7518       Majuro Atoll - Amata Kabua IAP MHL
10/15/2016 12:16  327     VYI   4098      Valley Island - Kahului HWA
10/15/2016 08:00 332 POA 4299   Pahoa, Hawai'i HWA
10/15/2016 13:34  343     ML    7474      Minami Tori Shima MTS
10/15/2016 11:22  346     TG    11111     Tauranga Apt NZL
10/15/2016 11:21  348     HN    9716      Honiara SLM
10/15/2016 13:38  352     RG    8369      Nikau - Rarotonga IAP CKS
10/15/2016 08:00 353 LLD 4315   Lanai HWA
10/15/2016 12:23  353     LRE   11999      Longreach Apt, QD AUS
10/15/2016 13:13  355     NI    8473    Nauru - Nauru IAP NRU
10/15/2016 12:43  359     NDJ   7647       Bucholz AAF - Kwajalein MHL
10/16/2016 14:17  360     OX    8362      Iwo Jima VOI
10/15/2016 12:17  364     MI    9270     Momi - Nadi FJI
10/15/2016 11:23  366     SF    11051     Springfield NZL
10/15/2016 14:23  366     PNI   8507      Pohnpei - Pohnpei Island FSM
10/15/2016 12:22  371     HUG   11801     Hughenden Apt, QD AUS
10/15/2016 12:19  373     HHI   4148      'Wheeler' Wahiawa HWA
10/15/2016 12:22  377     ROM   11915     Roma, QD AUS
10/15/2016 12:19  380     SU    11616     Maroochydore/Sunshine Coast Ap, QD AUS
10/15/2016 11:50  385     AL    9259     Malolo - Nadi FJI
10/15/2016 11:25  393     UKS    8280       Kosrae IAP FSM
10/15/2016 11:23  395     PMQ   12012     Port MacQuarie Apt, NW AUS
10/15/2016 12:22  400     MDY   5021       Midway - Henderson Field MDW
10/15/2016 11:22  403     TUT   8232      Pago Pago IAP SMA
10/15/2016 13:17  1630    TM     11267     Taumarunui Apt NZL







Longwave DGPS stations not previously reported from WA; 2 of these not decoded in North America previously
Differential GPS Beacons received and not previously reported from WA; Grayland Dxpedition 2016
UTC DATE UTC KHz Call RefID # Decodes Location CTY
10/15/2016 12:10 300   #880 (260 22 Kokole Point HWA
10/16/2016 04:30  302     #881 (262 27 Point Loma, CA USA
10/15/2016 12:17  304     #705 (005 549 Cape Flattery, QD AUS
10/15/2016 11:20  306     #708 (008 1101 Ingham, QD AUS
10/15/2016 11:22  308     #703 (003 611 Sydney, NW AUS
10/15/2016 11:45  313     #706 (006 894 Gladstone, QD AUS



Google Maps view of the Grayland Motel DX antenna setup area

This DXpedition was to be my last from the Grayland Motel and Cottages. The famed DXer's inn closed and ceased operation at the end of Feb 2017.


K7WV Oct 2016 Grayland MWDX Log AK/HI Downloadable as Microsoft .xlsx spreadsheet (for incorporation into master logs, etc)
K7WV Oct 2016 Grayland MWDX Log (AK/HI excluded) Downloadable as Microsoft .xlsx spreadsheet
(for incorporation into master logs, etc)

Grayland DXpedition October 2018 My most recent "return to Grayland" after no DXpedition in 2017. A Casa Sea Esta DX experience awaited our 3-man team.
Rockwork DXpedition August 2018 Broke all records for cliffside action, especially LW. MW similar to 2017 which was great! And with a cliff-hanging team of 5 DXers!
Aug 2017 Rockwork 4 DXpedition Excellent conditions on several of the 6 mornings onsite. Spectacular LW and MW with a short, simple antenna.
July 2016 Rockwork 4 International DXpedition My only 2016 visit to the cliffs near Manazanita with a record five DXers, One Canadian and two Japanese DXers outnumbered the two Americans
Bill Whitacre's Grayland Logs from his Feb 2017 DXpedition. With the DKAZ aimed Northwest at 290-300 degrees, the northern path produced 26 Alaskans which is very decent. With audio clips
Grayland 2015 DXpedition log and audio clips Four DXers took part using a DKAZ. My partners were Chuck Hutton, Bruce Portzer and Chris Black
August 2015 Rockwork 4 sessions: logs, pics and audio clips My second visit to the cliffside for 3 sessions in Aug 2015 with Gary and Chuck
June 2015 Rockwork 4 sessions: logs, pics and audio clips My first ever visit to the cliffside for 2 sessions in Jun 2015 with Gary and Chuck

K7WV Radio Page My Main Radio Page on QSL.net
