The S07M as PIN diode

S07M measurement setup

Small-signal loss vs bias

S-parameters measured at -20 dBm

Forward biased

Diode forward biased with currents from 1 mA to 100 mA.

S07M loss vs bias current

Reverse biased

Diode reverse biased with voltages from 0 V to 20 V.

S07M isolation vs bias voltage

Harmonics level vs power

At 1.8 MHz

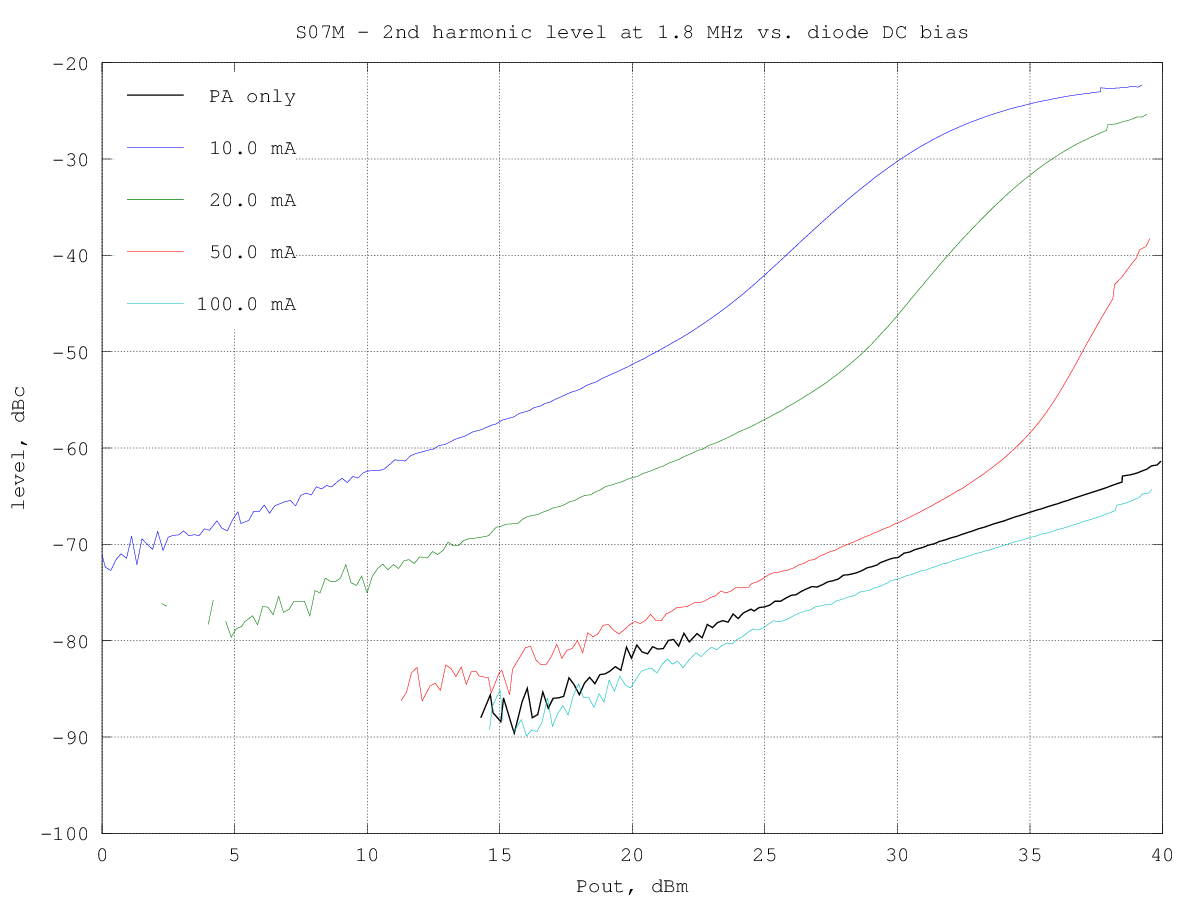

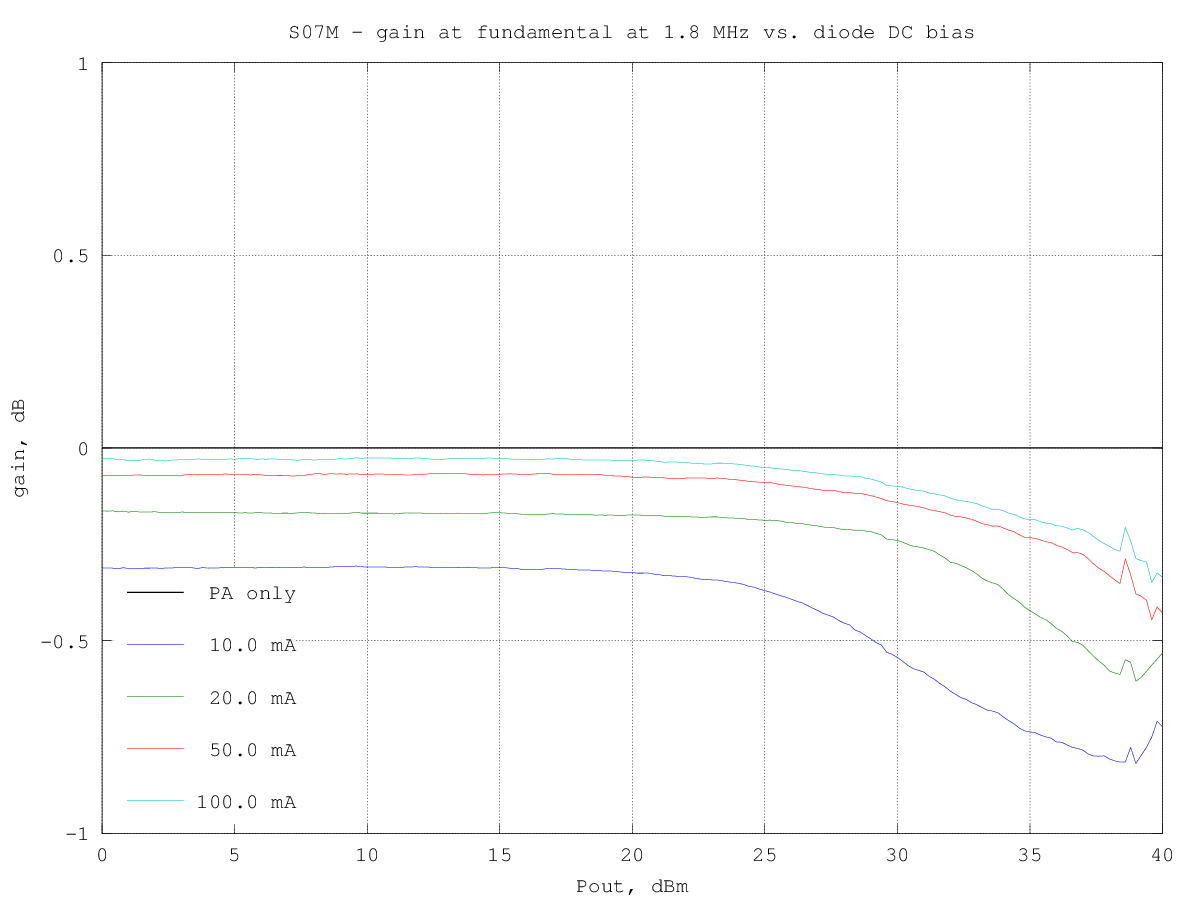

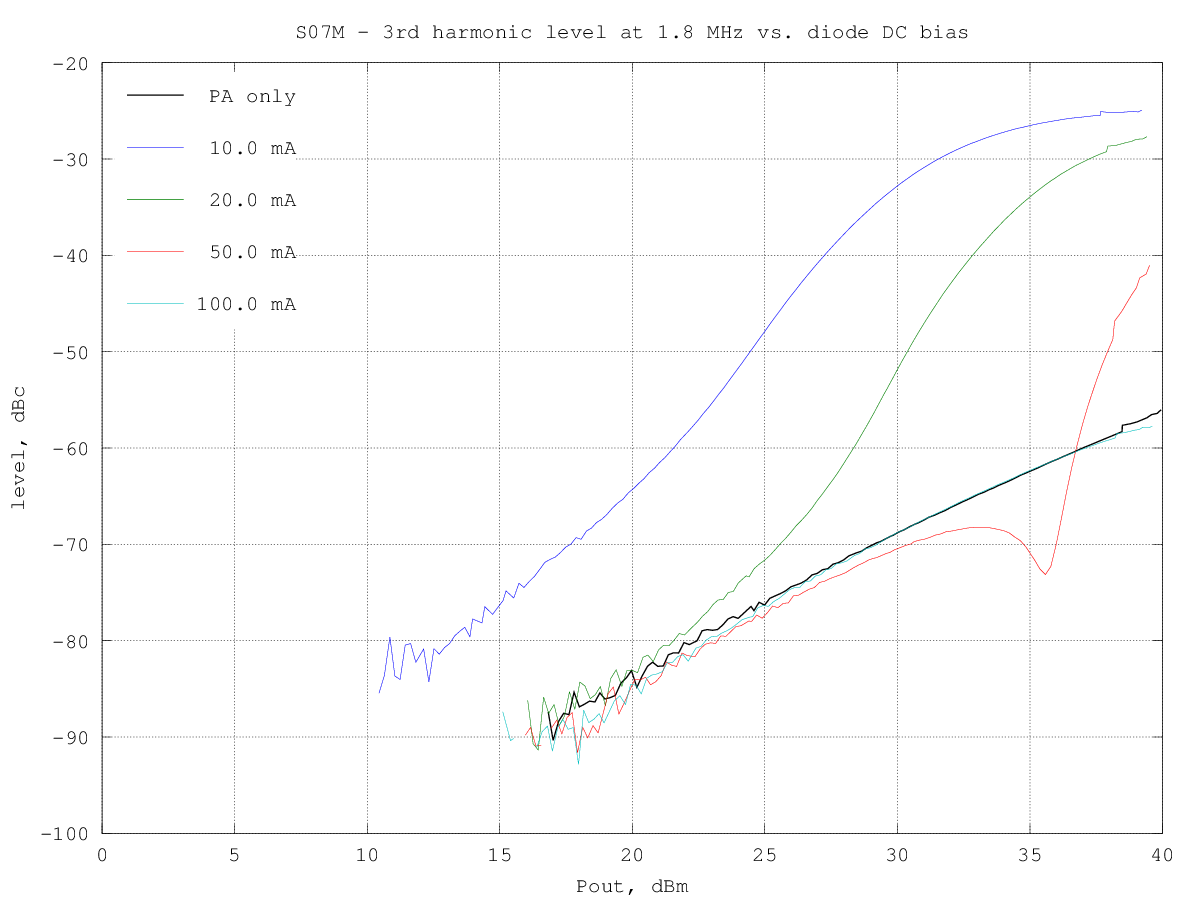

S07M fundamental at 1.8 MHz S07M H2 at 1.8 MHz S07M H3 at 1.8 MHz S07M H4 at 1.8 MHz S07M H5 at 1.8 MHz

Intermodulation distortion vs power

At 1.8 MHz

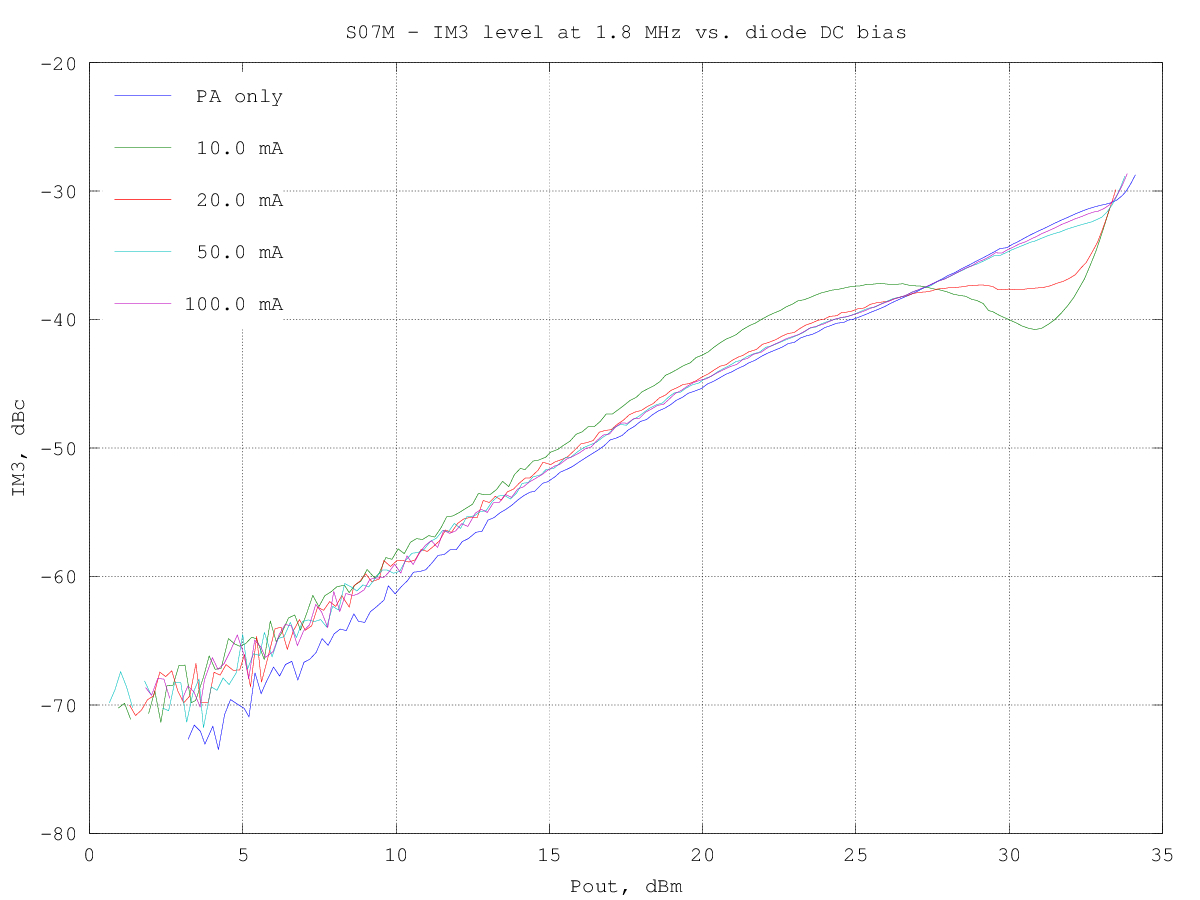

S07M IM3 at 1.8 MHz S07M IM5 at 1.8 MHz S07M IM7 at 1.8 MHz
