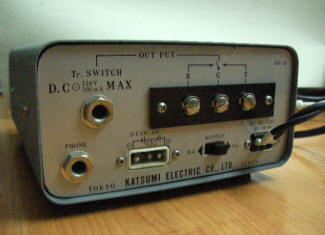

 # 81 ..... KATSUMI EK-26 ELECTRONIC KEYER


Here is one of the most non-iambic single handle controls ever built.
This electronic key was purchased to Apostolos Bourousis (SV1EDY), Athens, Greece

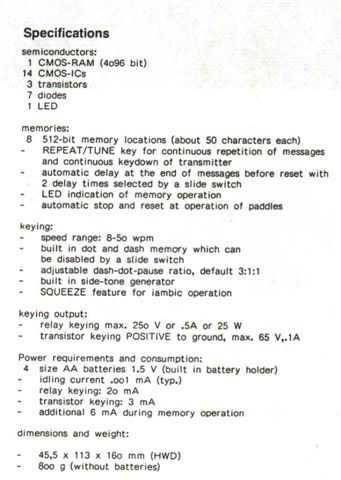

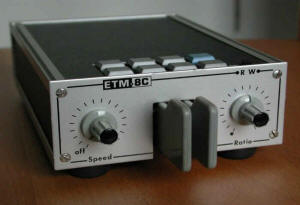

 # 82 ..... ETM-8C ELECTRONIC KEYER


The programmable memory keyer ETM-8C is housed in a novel cabinet of aluminium profiles, providing a frame for the detachable panels, cover plates and the circuit board. The scratch-proof cover plates are finished in black textured vinyl..
On the top panel there is a keypad of 8 high quality keys to actuate the different memories and the Repeat/Tune function, the continuous repetition of a message in one of the memories. The keys are conveniently spaced to allow an easy and error free operation, even during fast contest operation.
The ETM-8C is totally C-MOS equipped reducing the idling current to typically .001 mA.
With such an extremely low drain it is not necessary to switch the keyer off, and messages can be stored for virtually the shelf-life of the batteries.

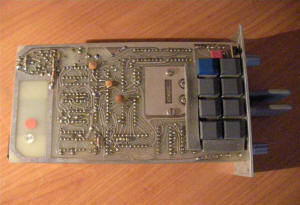

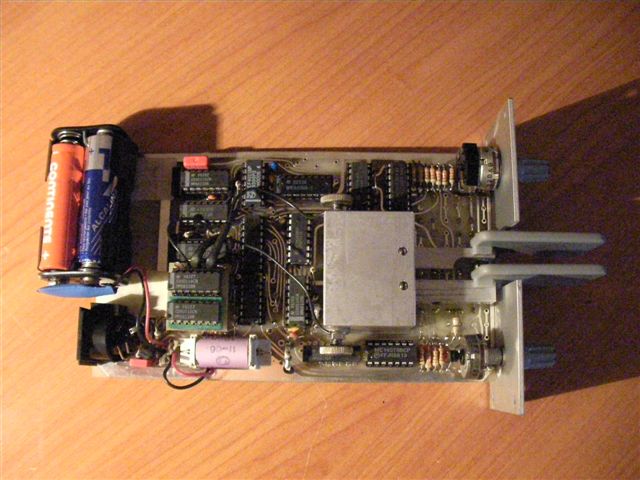

All components including jacks, controls and paddles are mounted on one double-sided, plated-through epoxy pc board. For easy servicing all ICs are plugged in high quality sockets with double contacts.
The 4096-bit-C-MOS-RAM is organized in eight 512 bit memory locations each having a capacity of about 50 morse characters, which can be played back as often we like.
Seven memories can be recalled from the keypad, the eigth may be operated by an external switch for remote control.
During the reading and writing process a pause of more than 8 or 14 dot lengths -depending on position of the slide switch "Pause Length" -results in an automatic stop and reset of the selected memory. In the REPEAT-mode texts up to 50 characters are repeated in an endless loop with an automatic delay between two consecutive cycles regardless of the actual speed.
The keyer and the memory circuitry use the same clock.
It works under a pack of four AA 1,5v batteries.
This electronic keyer paddle was purchased to Apostolos Bourousis (SV1EDY), Athens, Greece

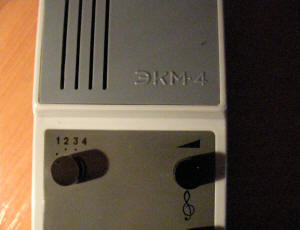

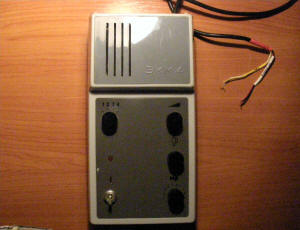

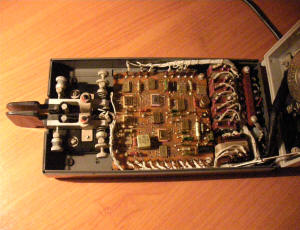

 # 83 ..... RUSSIAN EKM-4 ELECTRONIC KEYER




Model EKM-4
This is a true beauty of elctronic work made in USSR during past 1989 and with S/N 1648.
Very well preserved almoast as new.
Vert easy to open and look inside while pressing two buttons only. Works great under one 9 volt batterie
This electronic keyer paddle was purchased to Apostolos Bourousis (SV1EDY), Athens, Greece.



 # 84 .....



This dual paddle was purchased to Apostolos Bourousis (SV1EDY), Athens, Greece

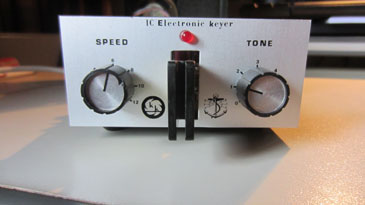

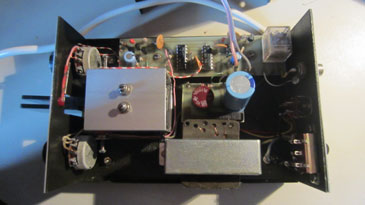

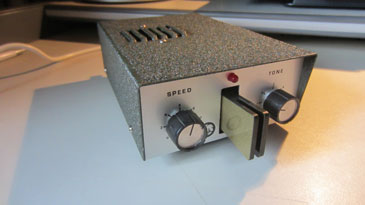

 # 85 ..... GREEK ELECTRONIC KEYER


The IC-ELECTRONIC KEYER, model KK-5 in mint condition. It works under 220v AC.
This is the new version of this electronic keyer made by Kostas Kambakis - see item 87
This electronic keyer paddle was purchased to Apostolos Bourousis (SV1EDY), from Athens, Greece

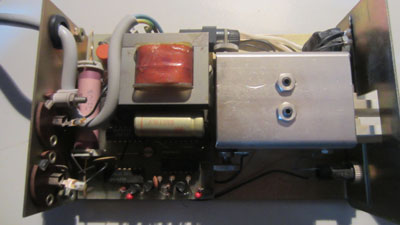

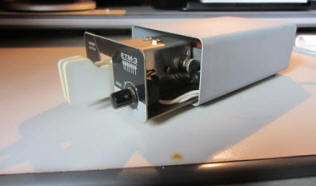

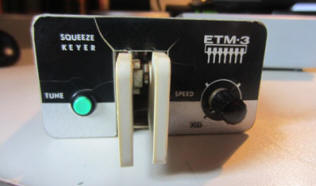

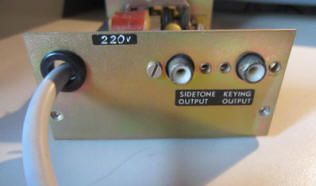

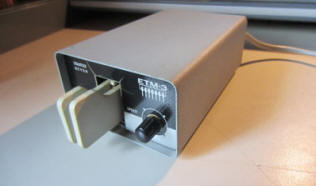

 # 86 .....SQUEEZE KEYER ETM-3


This is the ETM-3b squeeze keyer made in Germany during 1972 by Samson Sawson, Osburg.    See ETM page HERE
It works under 220v DC instead of ETM-3 witch works with 4x1,5v AA batteries.
This electronic keyer paddle was purchased to Apostolos Bourousis (SV1EDY), from Athens, Greece

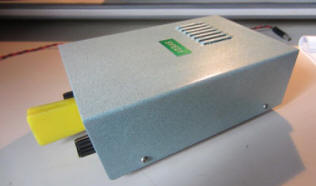

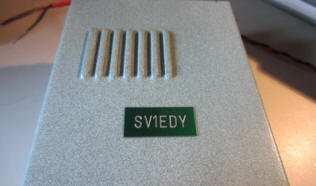

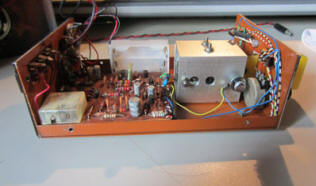

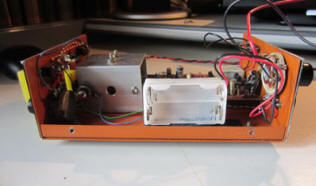

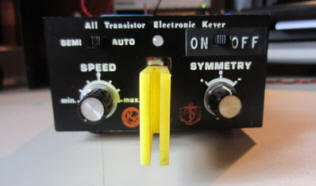

 # 87 ..... GREEK ELECTRONIC KEYER



The IC-ELECTRONIC KEYER, model KK-4 in mint condition. It may works under 4x1,4v dry batteries inside the cabinet or with an external DC cable.
This is the old version of this electronic keyer made in Greece by Kostas Kambakis - see item 85
This electronic keyer paddle was purchased to Apostolos Bourousis (SV1EDY), from Athens, Greece

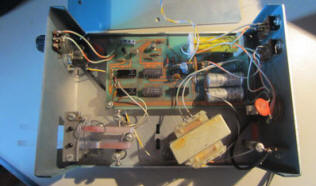

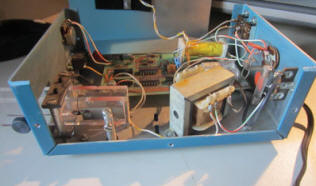

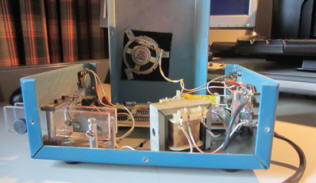

 # 88 ..... K.E. ELECTRONICS SQ AUTO KEYER


Made by K.E.Electronics in Kuala Lumpur, works under 220v AC and is almoast in mint condition. Working fine!
This electronic keyer paddle was purchased to Apostolos Bourousis (SV1EDY), from Athens, Greece

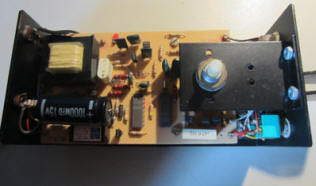

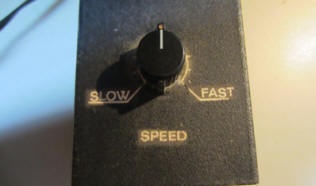

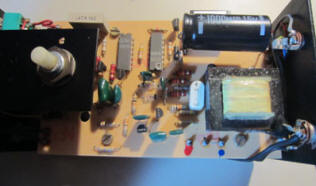

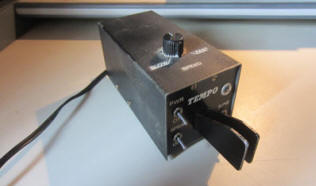

 # 89 ..... TEMPO ELECTRONIC KEYER


Quite an amazing keyer paddle that works under 220v AC.
This electronic keyer paddle was purchased to Apostolos Bourousis (SV1EDY), from Athens, Greece

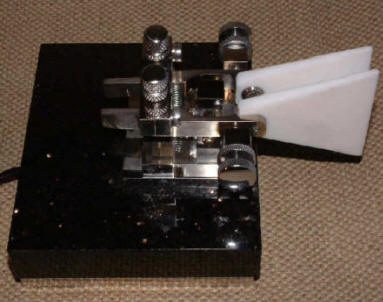

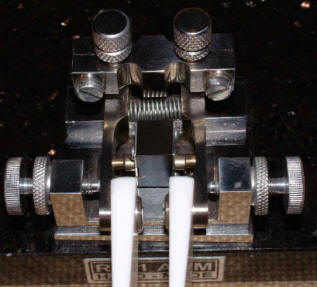

 # 90 ..... RA1AOM HOMEMADE PADDLE


This is a true beauty complete hand made key by Velery - RA1AOM (in the photo at his shack with this key)
This iambic paddle was purchased directly to my friend Apostolos Bourousis (SV1EDY), from Athens, Greece.
