CT4SL - MY MORSE KEYS COLLECTION

| HOME |

[ PAGE 1 ] [ PAGE 2 ] [ PAGE 3 ] [ PAGE 4 ] [ PAGE 5 ] [ PAGE 6 ] [ PAGE 7 ] [ PAGE 8 ] [ PAGE 9 ] [ PAGE 10 ] [ PAGE 11] [ PAGE 12 ]  [ PAGE 13 ] [ PAGE 14 ] [ PAGE 15 ] [ KEYBOARDS ] [ BOOKS ] [ CD's ]


PLEASE MAKE YOUR COMMENTS AND E-MAIL THEM TO ME.....HERE

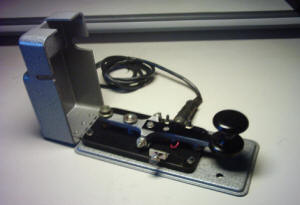

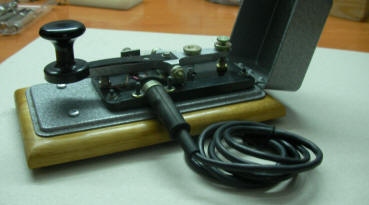

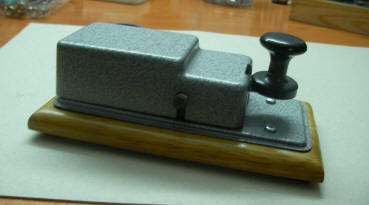

 # 31 ..... HUNGARIAN WW II MORSE KEY
For many years various models of telegraph keys such as this one, were used by both the East German and the Russian Military Forces.
This key was manufactured by the Mechlabor (Mechanical Laboratory) in Budapest during the Cold War during 70's.
These keys were used in Hungary and other former Eastern-Block countries.
The key has a heavy metal lever mounted on a black plastic base. The mechanism is covered by grey stamped steel step-down swing-over cover. The key is mounted on a grey stamped steel base.
The key was used with the M104 radio set.
A Russian collector suggests that this radio may be a German NVA (National Volks Armee (National Army of the People)) version of the R-104.
It's absolutly "new" and I purchased it, a few years ago, on one eBay auction.



 # 32 ..... LTA

Telegraficas Artesanas ?
It shows at the left top one small metal plate with "GMH 101"
I really don't know anything more about the manufacturer of this key.
It was purchased on the YAESU dealer at OPORTO, Portugal



 # 33 .....MFJ IAMBIC KEY PADLLE
Model "MFJ-564"
MFJ deluxe iambic paddle in chrome. Havy duty steel casted base with non-skid feet.
Chrome plated machined frame with silver contact points.
Full range adjustable contact spacing and self-adjusting nylon and steel bearing.
A bit noisy when working and sending morse code.
Purchased at the MFJ dealer on OPORTO, Portugal.



 # 34 .....GERMAN JUNKERS MORSE KEY
This is the famous German JUNKERS morse key used by the German Armed Forces and other NATO members since the mid fifties.
It was also issued in olive-drab color and in a version with a knee-clamp (especially for use with GRC-9).
Also the civilian version after 1945 DBGM
Purchased near Lisbon, a few years ago, on a store selling scrap from army and air forces.



 # 35 ..... HEATHKIT HD-1410
The Heath HD-1410 electronic keyer was first manufactured in the mid-70s, and continues to be a very popular iambic keyer.
Features include the ability to key both positive and negative line-to-ground transmitters. On the backside it has a plugin to connect its own cable to 110/220volts.
Chuck Penson's "Heathkit Guide Book" calls the HD-1410 "one of the most popular keyers ever made by anyone".
This one I purchased it on eBay during 2005.

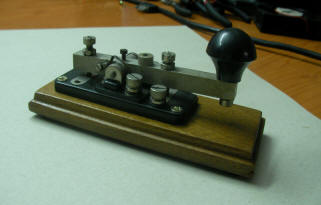

 # 36 .....BRITISH WT 8A KEY
Another variation of the WT-8A key.
This one is a bit unusual since the lever is metal, not phelonic or bakelite. Made during 1942

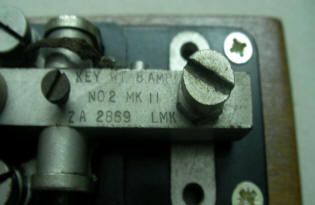

At the top end of the lever it shows:
KEY WT 8 AMP
NO 2  MK II
ZA 2869 LMK
When I purchase the key it was like de left photo. Now is on a wooden base made on purpose for it.

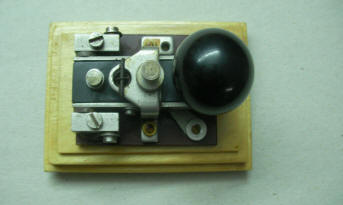

 # 37 .....BRITISH MILITARY FIELD KEY

I purchased this little key years ago and it was used in the telephone DMKV in World Wor II
The "mushroom" knob diameter is 2,65cm. There is completely illegible yellow lettering on the back, along with a small black impression that is partly readable, possibly "YA 1860."
The center of the lever is a black bakelite or plastic material and the contacts appear to be brass.
An interesting feature of this key is that electrical connection is by means of the two "mounting holes" to the left and right of the knob.  There are two sets of contacts. One set grounds the presumed "hot" connection to the right of the knob, the other pair of contacts grounds the other connection.
As found, the hot side is grounded slightly after the other side when the key is depressed.
This key was designed to clip onto a Canadian field set. The transceiver was made for Canadian armed forces and is of WWII and Korean War vintage.
Purchased in Lisbon, a few years ago, from another Portuguese HAM, CT2GQA.



 # 38 ..... JUNKERS D.B.G.M.
This Key - D.B.G.M. - is one of the famous Junker family, recently released from the old East German Republic, there are quite a few and so available at a very reasonable price.
The one on the photo has the letters "D.B.G.M." on the left side and " Junker Honnef/Rh"
I don't remember where and when I purchase it.




 # 39 ..... SOVIET MASTER KIT KEY
Mode MK-327 (new)
I purchased it on eBay from Russian Federation absolutly new in the box as it shows.
Very nice manufactured with a very havy base with four with rubber feet screwed to the steel base.
VERY FAST ON SENDING CW
Purchased on ebay.



 # 40 ..... HEATHKIT HD-10
First electronic key made by "HEATH Co. at Benton Harbor, MI. with one paddle and with microswitches.
Metal case (260x100x110mm) with one loudspeaker, works under 110 or 220 volts.
This one I purchased it on eBay during 2005.
