 # 21 ..... ORIGINAL AND RARE MARCONI MORSE KEY

Identity Z50-1195-01 made by the M.I.M.Co.LTD (Marconi International Marine Company), Chelmsford, England.
Made of bakelite on the base, knob and white cover.The grey box and the cross and other details made from steel.
As shown in the photos it's very well preserved as new.
Withdrawal of a Portuguese merchant ship and later offered to me by "NAUTEMA", that dismantled the vessel.

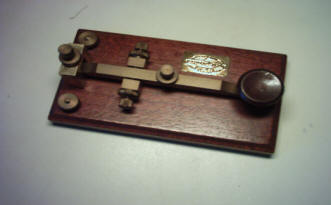

 # 22 ..... TELEGRÁFICA ARTESANA

MODEL: "GMC" (large straight key)
Purchased  as new, a few years ago,  in Portugal at YAESU Dealer in OPORTO.



 # 23 .....MINI McMURDO MORSE KEY

This tiny key was used on many post II WW with British and Australian radios.
It was manufactured by "McMurdo Industries" in England.  It has a canvas strap that can be attached to the operator's leg.
It is totally sealed and waterproof and was also used on life rafts. The same style of key was used by the British Military in the 1950's, 1960's and 1970's.
The Australian army used a similar key, made by "AWA", from 1970 to 1995.
It was purchased to another HAM - CT1BXD.

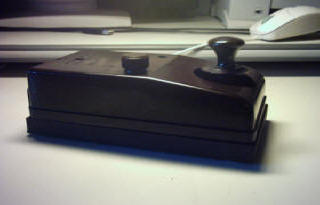

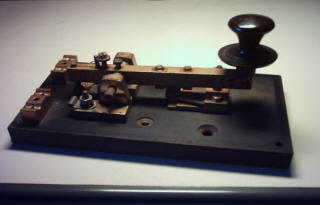

 # 24 .....Morse telegraph key, Air Ministry. (RAF Type D)

The RAF Type D key is a classic straight key which has now become a collectors item. It is also, however, a lovely key to use for morse operating.
Is a solidly made British morse key of WW II era, commonly known as an RAF (Royal Air Force) Type D morse key. It has very heavy duty square silver contacts with the lower contact mounted on a leaf spring, so that it can move slightly under pressure. It also has contacts at the rear end of the moving arm, so that the key can be used to open or close a circuit when depressed.
The labelling on top of the cover reads KEY MORSE TYPE D REF NO 10A/7373. It is marked with the "Air Ministry" AM and the Crown.
This key was offered by CT1BY.

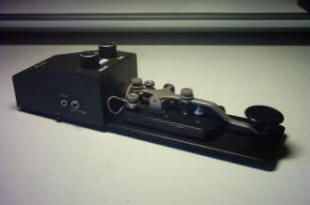

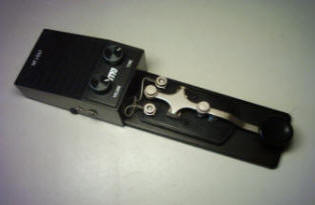

 # 25 ..... MFJ Deluxe morse Code Practice Oscillator

Model MFJ-557
Volume control adjusts from barely audible to blaring full sound. Tone control gives you a wide adjustment from high "squeaky" to low "booming" tones. You even get an earphone jack for private listening. You can plug in an external speaker.
Oscillator runs on a 9 volt battery.
Purchased a few years ago,  in Portugal at "MFJ" dealer in OPORTO.

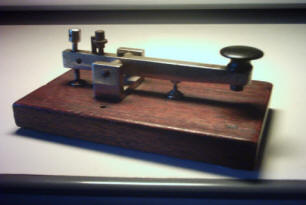

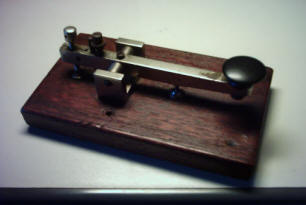

 # 26 ..... ???

Missing information about the manufacturer and the nationality of this key.
It was taken of from one old and abandoned fish-vessel here at my home town.

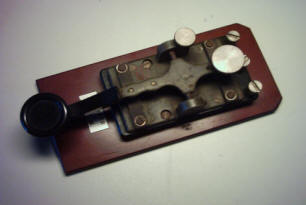

 # 27 .....ORIGINAL D.B.G.M. MORSE KEY

Original JUNKER key mounted on a strong bakelite base.
The original "Junkers" were the militaristic land-owning aristocracy of Prussia in the early 1800s and the name has become something of a "power name," used in English to refer to "landed aristocracy."  This aristocratic key, however, was invented by Joseph Junker, a German Naval Radio Officer in World War I.
Electrically the key has three connections, with matching silver contacts at the rear so that the key can be used for make/break keying as well as the more usual on/off keying.
In other words, the contacts at the rear will be held closed (for a receiver muting circuit, etc.) until the key is pressed, opening the rear contacts and closing the front ones a millisecond or so later.  Simple but foolproof T/R switching, with built-in QSK!
Above the knob it shows the letters:
J.JUNKER
HONNEF / Rh.
D. B. G. M.
The key is very well preserved and has a very smooth toutch and nice work.
Purchased in Lisbon, during one ham equipement show and trade, a few years ago.

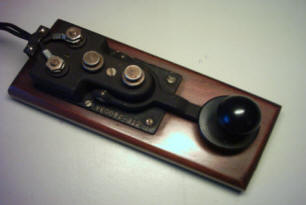

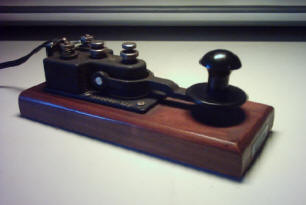

 # 28 .....US Navy Military FLAMEPROF MorsE Key

This is a flameproof used US Navy Morse code telegraph key type CTE-26003A in very nice condition manufactured by "Telephonics Corp". NY, USA. It's design was apparently copied from the German Luftwaffe Key.

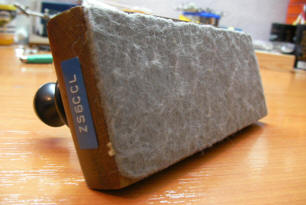

This key belonged to zs6ccl because it shows a blue tape stuck onto its wooden base.
I don't know when it came to Portugal but was purchased in Lisbon, to the old owner CT1EFG, ex-ZS6CCL


US NAVY TYPE NUMBER SYSTEM (1915 to early 1930s)  US NAVY TYPE NUMBER SYSTEM (early 1930s to post WWII)
CA American Radio Research Corp. CAY Westinghouse Electric & Mfg. Co.
CAB Balwin Telephone Co. CABH Signal Electronic & Mfg.Co.
CAC Central Telephone Co. CABJ Lionel Corp.
CAD Domestic Mfg.Engineering Co. CAPH Telegraph Apparatus Co. (Ted McElroy)
CAE Cutler Hammer Manufacturing Co. CAPZ Telegraph Apparatus Co. (Ted McElroy)
CAF John Firth CAQZ Brelco
CAG General Radio CAZ Brooklyn Metal Stamping Co.
CAH Cutter Manufacturing Co. CAZT Electro Speciality Co.
CAJ Holzer Manufacturing Co. CBBx Western Union Telegraph Co.
CAK William J. Murdock CDM D.P. Mossman Co.
CAL Locke Insulator Co. CEA Bendix
CAM Manhattan Electrical Supply Co. CEJ E.F. Johnson
CAN Sagame Electric Co. CJB J.H.Bunnell
CAO Ward Leonard Co. CJF J.F.Frietz
CAP Frank B. Perry CJY Leach Brothers
CAQ Robbins and Meyers CKI Chicago Apparatus Co.
CAR Roller Smith CLR Leach Relay
CAS Chloride of Silver Co. CLS L.S.Brach
CAT American Transformer Co. CLT Lundquist Tool & Mfg. Co.
CAU Triunph Electric Co. CMH American Radio Hardware
CAW C.& C. Electric Co. CMI Molded Insulator
CAx Metropolitan Electric Co. CMK McElroy Electronics (T.McElroy)
CAV Industrial Controller Co. CN National Elect. Machine Shops Inc.
CAY West Electric Controller Co. COL Collins Radio Co., Inc.
CB Crocker Wheeler Co. CRR Bendix
CD E.J.Simon CRV RCA Victor, Div of RCA
CF DeForest Radio Tel & Tel Co. CSE Signal Electric
CG General Electric Co. CTC Chicago Telephone Supply
CH Electrose Insulator Co. CTE Telephonics Corp.
CK Kilbourne and Clark CUZ United States Elev. Mfg. Co.
CL Fritz Lowenstein
CM Marconi Wireless Telegraph Co. of America
CN National Electric Supply Co.
CO Copely Manufacturing Co.
CP Cutting and Washington
CQ International Radio Telegraph Co.
CR Wireless Speciality Apparatus Co.
CS Sperry Manufacturing Co.
CT Federal Telegraph Co.
CU Miller Reese Hutchinson Co.
CV Weston Instrument Co.
CW Western Electric Co.
CY Wireless Improvement Co.
SE Bureau of Steam Engineering U.S.Navy

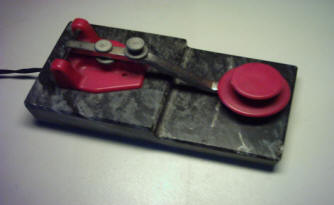

 # 29 ..... HAM KEY HK-3

I purchased this Ham key in August of 1981,during my stay in Mundelein, Ilinois, at WB9RCY 's home for MARAC Convention at DesMoines, Iowa.
Years later it was placed on a granite base, cut and polished for the purpose. At the back face a hole was made to pass the wire.
I think it's a beatiful piece and a very nice working cw key.

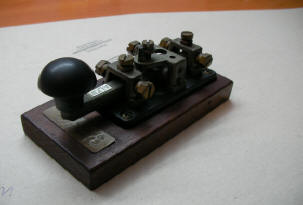

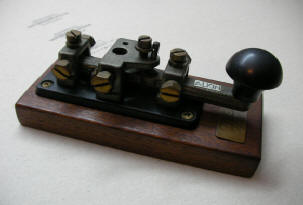

 # 30 .....New Zealand morse telegraph key WT-8 AMP

This is a morse telegraph key model WT-8 amp No2.
WT-8 keys were made in over 100 versions in 6 countries and in huje quantities since 1920. Used by British armed forces during World War II.
However, this key is very hard to find because it's the version made in New Zealand and numbered. The metal plate under the knob says:
" KEY PLUG
ASSEMBLIES
Nº 25      N.Z. "
All the metal parts are brass which has a black oxide finish, the key is marked 'NZ' with a broad arrow on the leftside of the arm, near by the knob.
The lever arm has also the letters "ALKIN" as somekind of a stick.
This version of the WT8 is very rare and I never saw another one for sale.
Purchased in Lisbon in a junk store.
