I've been playing with VOIP Linking over the years with programs like ILink, EQSO, IRLP, and Echolink. I tried Allstar many years ago, but was discouraged due to my lack of Linux knowledge and that there was not much documentation on the web. Well things have changed and I now really appreciate what others have shared.
Allstar is now by far my favorite..
The Allstar web site to get started is: https://allstarlink.org. On that site you will find much information as well as the ability to register with Allstar. Once registered, you can request server and node authorization.
AM CURRENTLY USING Raspberry Pi3's FOR MY NODES.
Utilizing the software package from HAMVOIP
I use many different node interfaces.
They include the URI from DMK Engineering
the RIM Maxtrac from Repeater Builder (Seen Here)
and even some modified fobs...
Experimenting now with ARiUSB by KD4HLV
INFORMATION ABOUT THE W2YMM ALLSTAR GATEWAY

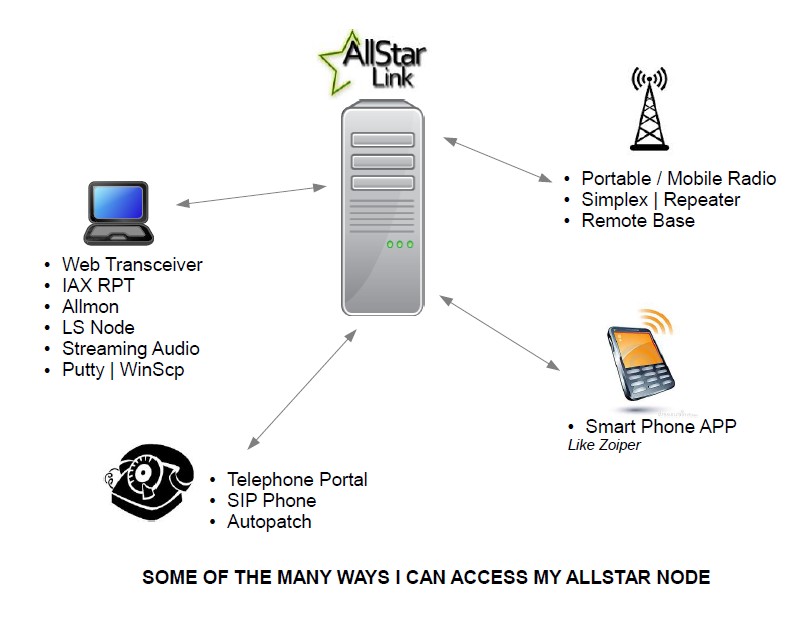

AllstarLink provides hams with a means of connecting radios (repeaters or simplex links) over the internet. It is built upon the asterisk open source PBX (runs on Linux).

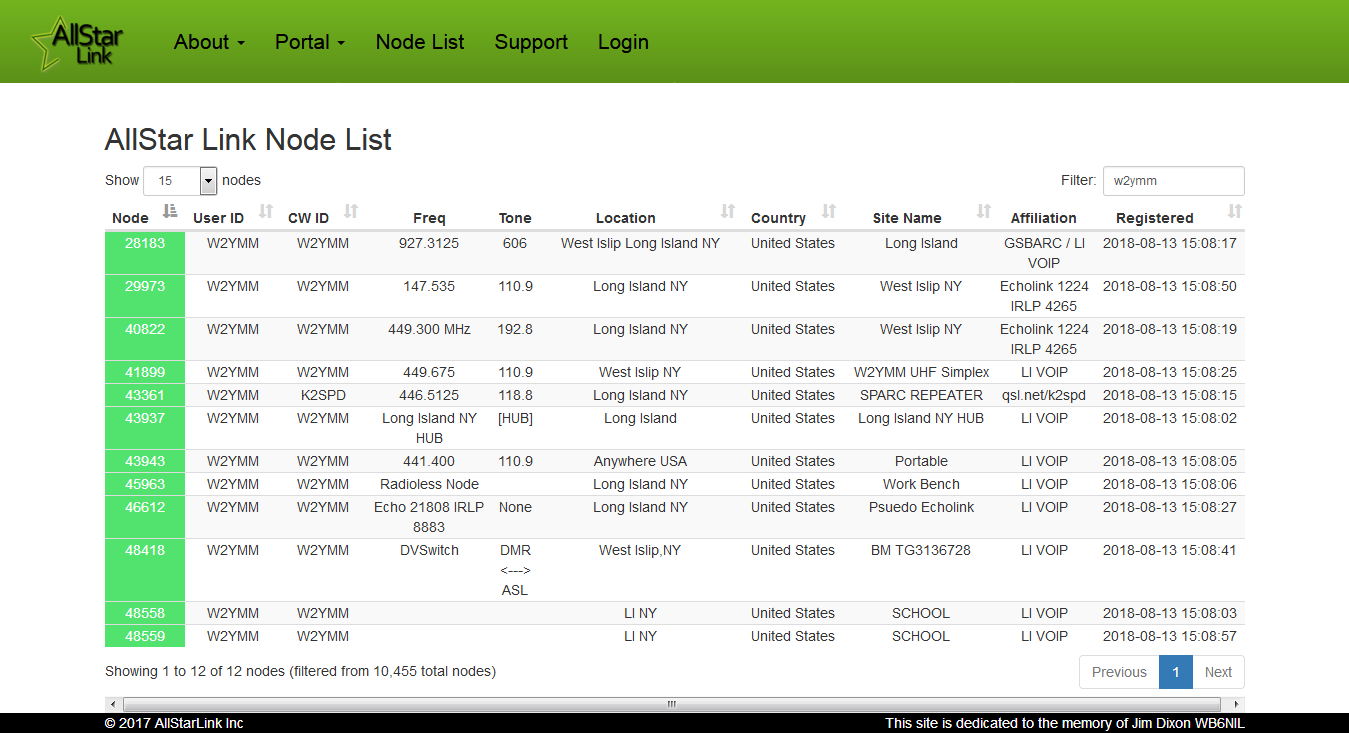

W2YMM ALLSTAR LINK
HELPFUL SITE TO HELP YOU GET UP AND RUNNING WITH ALLSTAR
W2YMM.COM. All Rights Reserved.
DTMF Function List W2YMM NODES
Allstar Link Node -- W2YMM --
West Islip Long Island NY, USA
*1 => Link Disconnect
*2 => Link Connect (Monitor Only)
*3 => Link Connect
*4 => Remote Command
*5 => DTMF Shortcuts (Macros)
*6 # Autopatch *0 to Disconnect
*70 Link Status
*71 => Disconnect a previously permanently connected link
*72 => Permanently connect specified link -- monitor only
*73 => Permanently connect specified link -- tranceive
*75 Full system status (all nodes)
*76 DISCONNECT ALL LINKS
*80 System Info
*81 Time
*82 Time 24 Hour format
*99 Phone PTT
# Phone Stop PTT
0 LiTZ Push and hold for 3 seconds
(Sends a QC Tone not a 911 call)
*0 Hang up Autopatch call
To connect to another Allstar node, use the Link Connect (*3) plus the node number.
For example, to connect to node 2000, use *32000.
To Disconnect from a node, use the Link Disconnect (*1) plus the node number. or *71
Autopatch *6+1+Area code+Number / Disconnect *0
*949 Quick Call Page W2YMM
*550 Autopatch call to W2YMM Cell
*551 Autopatch call to W2YMM Home
ECHOLINK CALLS NEED TO PADDED TO 7 DIGITS
*3 THEN 3 Plus node number Ex.*3 followed by 3009999 To call the EchoTest Conference
If you call a 6 digit Echolink node, you would dial *3 followed by 3123456
IRLP Calls start with 8 Dial *3 8 THEN the IRLP Node number
To access the W2YMM ALLSTAR
from the Telephone Portal
1- Call 1 763 230-0000 (alternate # 1 559 2557827)
2- Enter the Node Number 28183# (40822 for UHF Rpt)
3- Enter 1 for node access.
4- Enter YOUR 10 digit ALLSTAR User Security PIN.
5- Enter 2 for Function Access or 1 for VOX
6- Enter *99 to Transmit and # to go back to Receive
(Note, When using mode 2 You will need to repeat step 6 with every transmission)
7- When done, Just hang up.
Asterisk/app_rpt
The fusion of 2-way radio systems and VoIP
ADDITIONAL NON STANDARD COMMANDS
*971 Enable Parrot Mode
*970 Disable Parrot Mode
*972 Parrot once if Parrot mode is disabled
*973 Parrot cleanup/flush
This should not be your go to source for info, I am sharing what I learned along the way :-)
Updates
- This 28183 Allstar node is frequently connected to the K5TRA 900 MHz Hub
- I recently added a display to my Portable Node More Info
- All my nodes have been updated to Version 1.5
of the Hamvoip code
- Scripts I am using are located here
- Building a DIAL Node
- W2YMM ALL NODE STATUS PAGE
- PLAYNEWS HOW To
- 41899 is set to play Newline (Locally) Tuesday at 8 PM and Audio News Thursday at 8 PM
