8-Element-Yagi for the 2m-Band with the 28-Ohm-DK7ZB-Match

Boom 4,35 m

Gain 12 dBd

F/B > 23 dB

Optimized for SSB/CW-part of the 2-m-Band

2x8-El.-X-pol

built by

Rudy,

PA3ECU

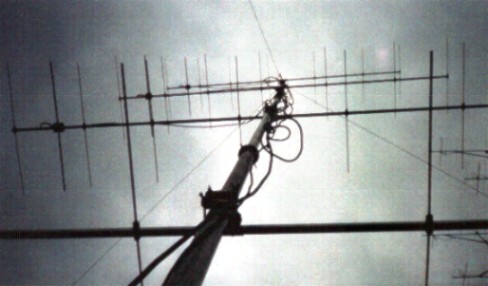

4x8-Ele.-DK7ZB

 vertically stacked,

contest-group of DF0MTL



Picture: DL2UX

2x8-Ele.-DK7ZB

 vertically stacked,

contest-group of DF0VK

best Stacking distance 3,20m



Picture: DF7DJ

www.df0vk.de

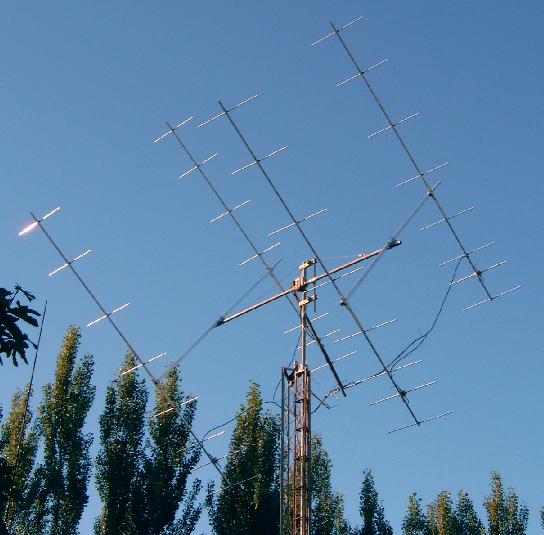

4x8-Element

 H-group



built by Emmanuel,

F4DSD

Stacking distances

 Hor = 3,41m

Ver = 3,12m

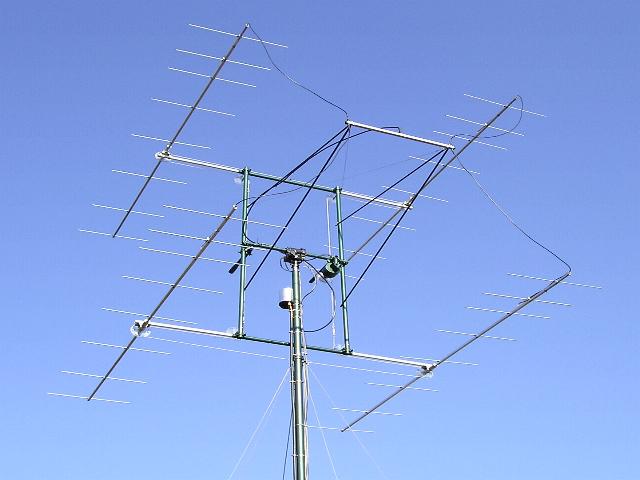

The 4x8-El.-Yagi-Group of

Gerhard, DL1DWI

Mechanical Rotation vertical/horizontal!

Watch the clever construction on

Youtube

New calculated and tested dimensions, update 12/2010

Elementpositions

Ref Rad D 1 D 2 D 3 D 4 D 5 D 6
0 mm 400 mm 735 mm 1315 mm 2030 mm 2825 mm 3660 mm 4320 mm

Elements 4, 6, 8 and 10mm, Radiator 12mm

Diam. Ref Rad (12 mm) D 1 D 2 D 3 D 4 D 5 D 6
10 mm 1004 mm 953 mm 932 mm 904 mm 890 mm 880 mm 882 mm 886 mm
8 mm 1004 mm 954 mm 938 mm 912 mm 898 mm 888 mm 890 mm 894 mm
6 mm 1006 mm 958 mm 945 mm 922 mm 906 mm 896 mm 898 mm 902 mm

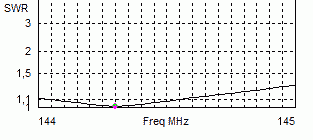

3D-EZNEC-Plot
