4-El.-28-Ohm-Yagi (0,76m-Boom)


  Gain 6,3dBd

F/B >20dB

    Boom 0,76m

Stacking distance 1,70m


Very uncritical broadband version! Newcomers should have no problems and should be successful  in building this antenna.


Elementlengths for 4, 6, 8 and 10mm

Diameter Reflector  Radiator  Director 1  Director 2
4mm 1033mm 1004mm 960mm 888mm
6mm 1031mm 998mm 951mm 876mm
8mm 1030mm 994mm 944mm 866mm
10mm 1030mm 990mm 937mm 857mm


Reflector Radiator Director 1 Director 2
0mm 180mm 335mm 755mm

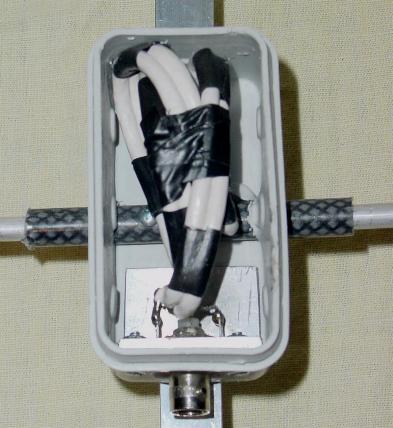

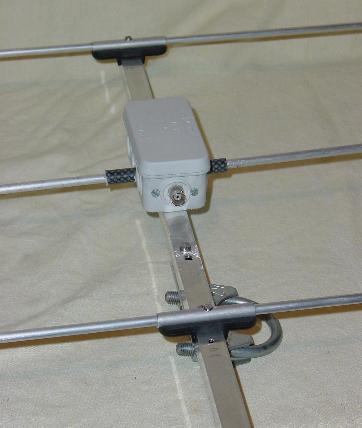

Details of the radiator and the element-mounting with 6mm-elements

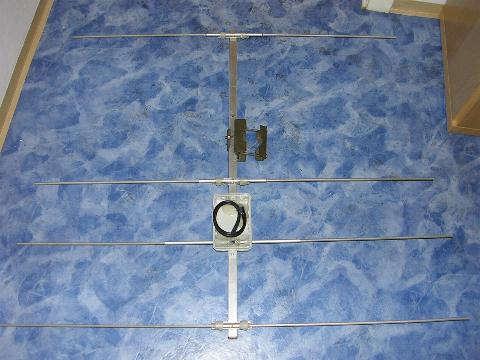

Cheap and simple solution of Andi, DK6FX:

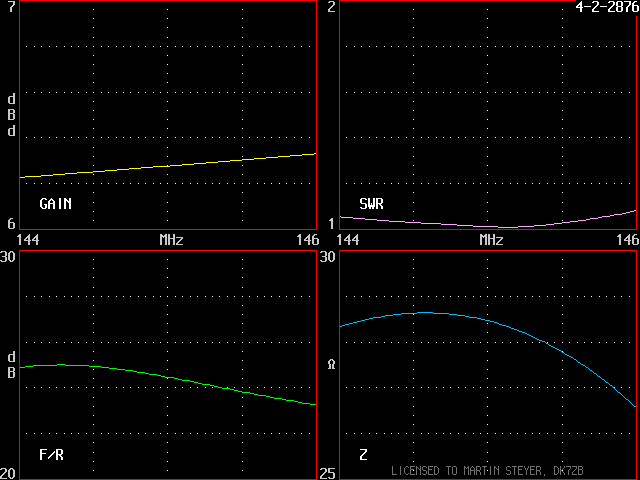

Plotted patterns for a single Yagi

2 Yagis stacked with a distance of 1,70m (gain without losses by EZNEC +4)

In practise you can expect 9,1dBd gain for the 4 over 4
