1-Element-50Ohm-"Yagi"

Gain 2,65dBd, F/B 5,5dB

Dipole mounted about 250mm in front of the support (check distance for SWR=1,0)

Match with the DK7ZB-50-Ohm-choke

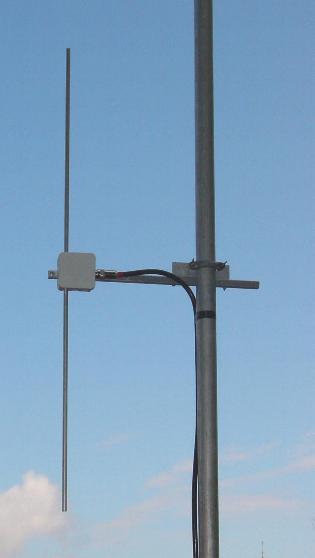

If the dipole is mounted vertically 250mm in front of a metal support as shown in the picture , the gain is 2,65dBd at 5,5dB F/B. First correct the length of the radiator for best SWR, then change the distance to the support, if SWR not <1,2

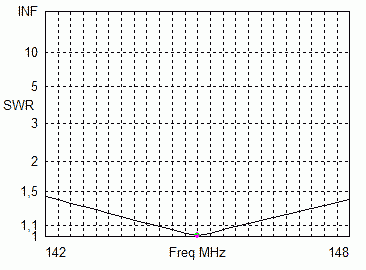

  144MHz 145MHz 146MHz
Impedance 49- j5 Ohm 50 +/-  j0 Ohm 51,5 + j5 Ohm
SWR 1,1 1,0 1,1

Length of the dipole (tip to tip):

Diameter

4mm

6mm

8mm

10mm

Length

958mm

950mm

943mm

939mm

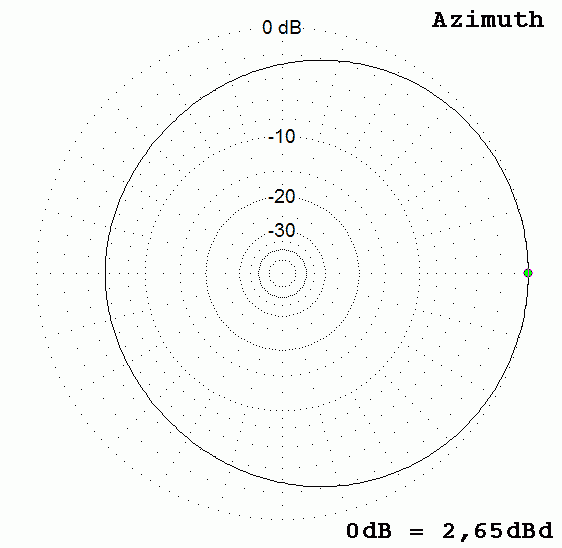

 Patterns for vertical mounting:
