Schematics and Diagrams to control your RIG. |
|||||||

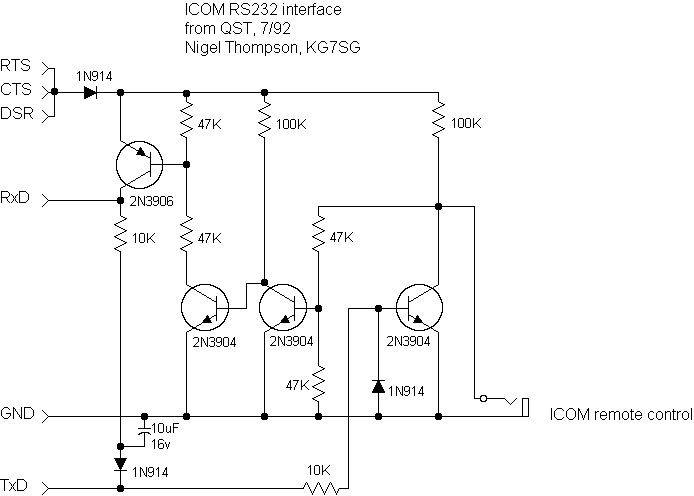

I have built this circuit several times for myself and the guys. This controls MOST ICOM radios. Works great with my 706. Thanks to KG7SG for the design! |
|||||||
 |
|||||||
|
|
