Hamcom Interfaces are used to receive and transmit SSTV, CW, RTTY, and several other modes without the use of a soundcard. Very inexpensive to build (about 20 USD) you can put one of these together in about an hour or so and be on the air! All parts are available at Radio Shack or any other Electronics component outlet..  Here are a few interfaces that I have found on the web.

DOWNLOAD HamComm 3.1 - The LATEST Version

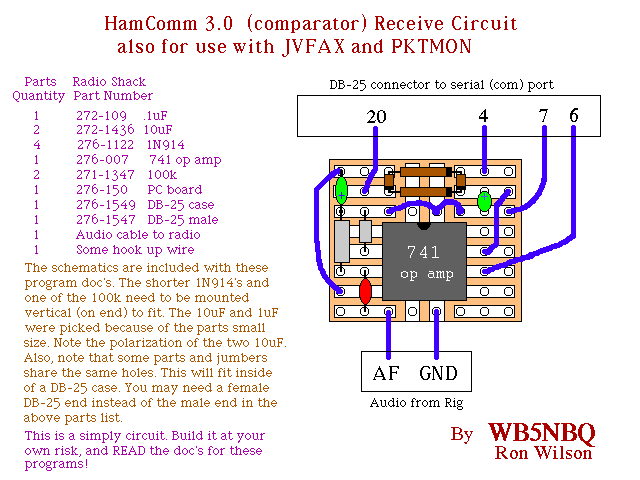

Here is a simple RX circuit with parts layout from K7SZL's Unofficial HamComm Home Page

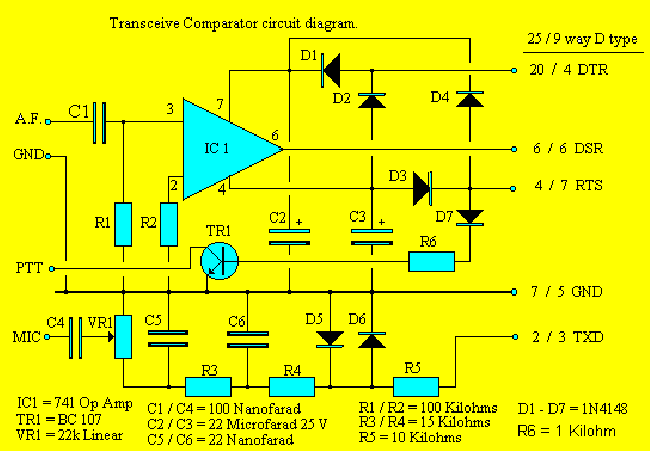

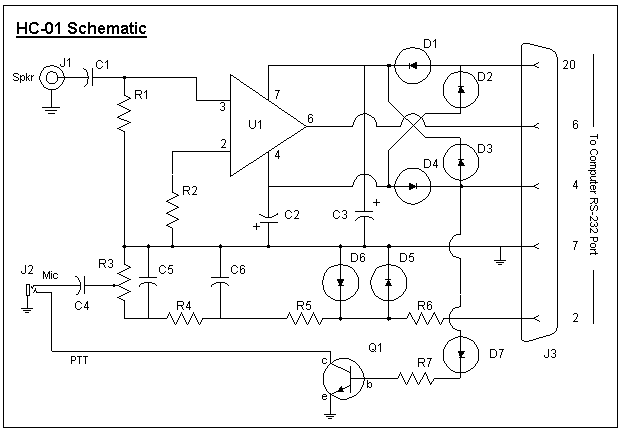

Good RX/TX Circuit Found on the web, although I would add an Isolation Transformer for RX/TX Audio
