MY RADIO EQUIPMENT

39 Coquet Drive, Ellington Morpeth, Northumberland NE61 5LN, N.E.England United Kingdom
Tel: 0044 1670 861278, Mobile: 07733232083, Fax: 0044 1670 861278
[email protected] www.jpscomputers.co.uk
WebMaster: John Patterson

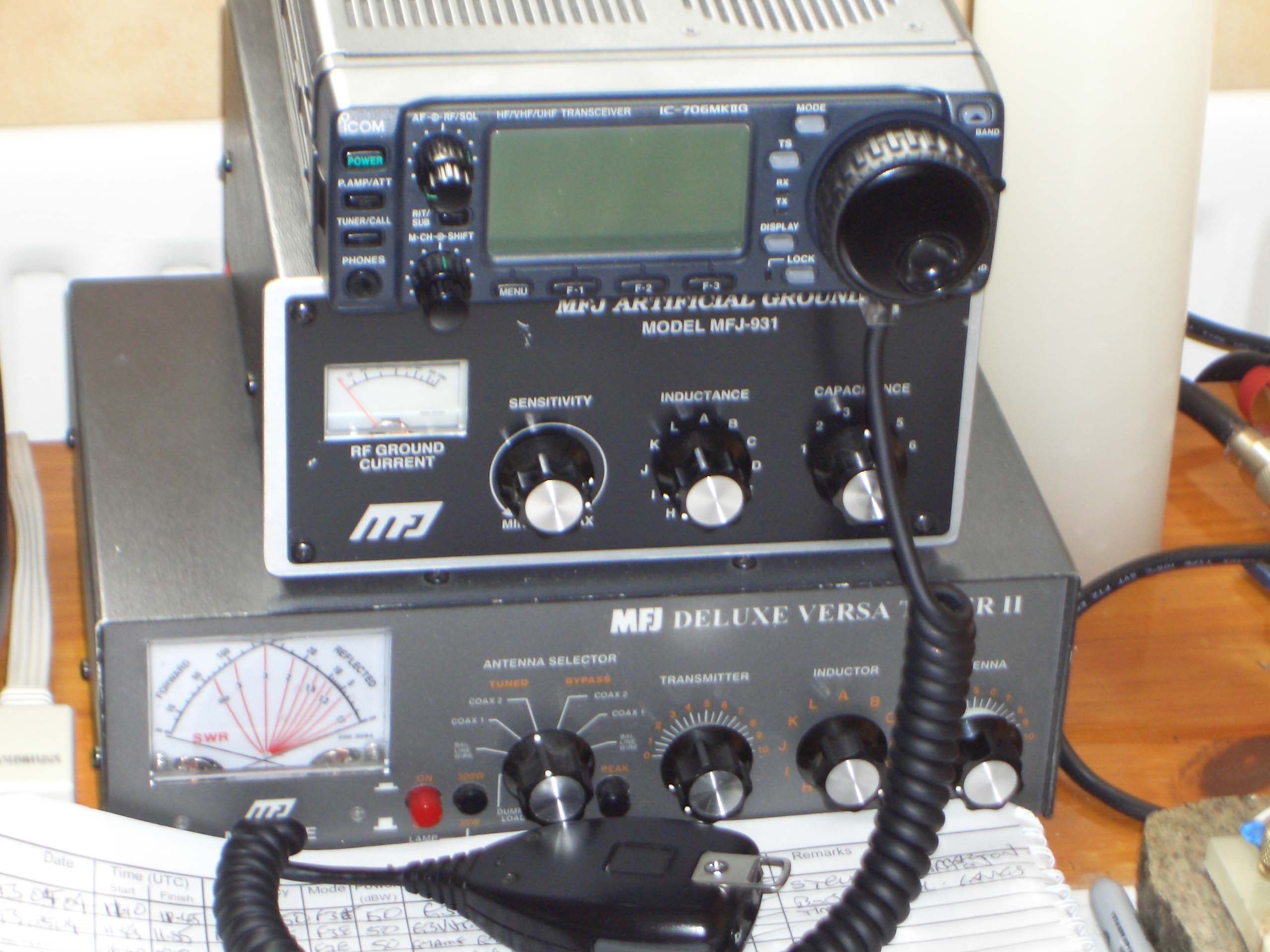

The main Radio in the shack is the Icom 706 Mk2 G. It covers all bands and all modes, with varying power output levels for different bands. Underneath is the Artificial earth box.
On the bottom, the MFJ antenna tuning unit.

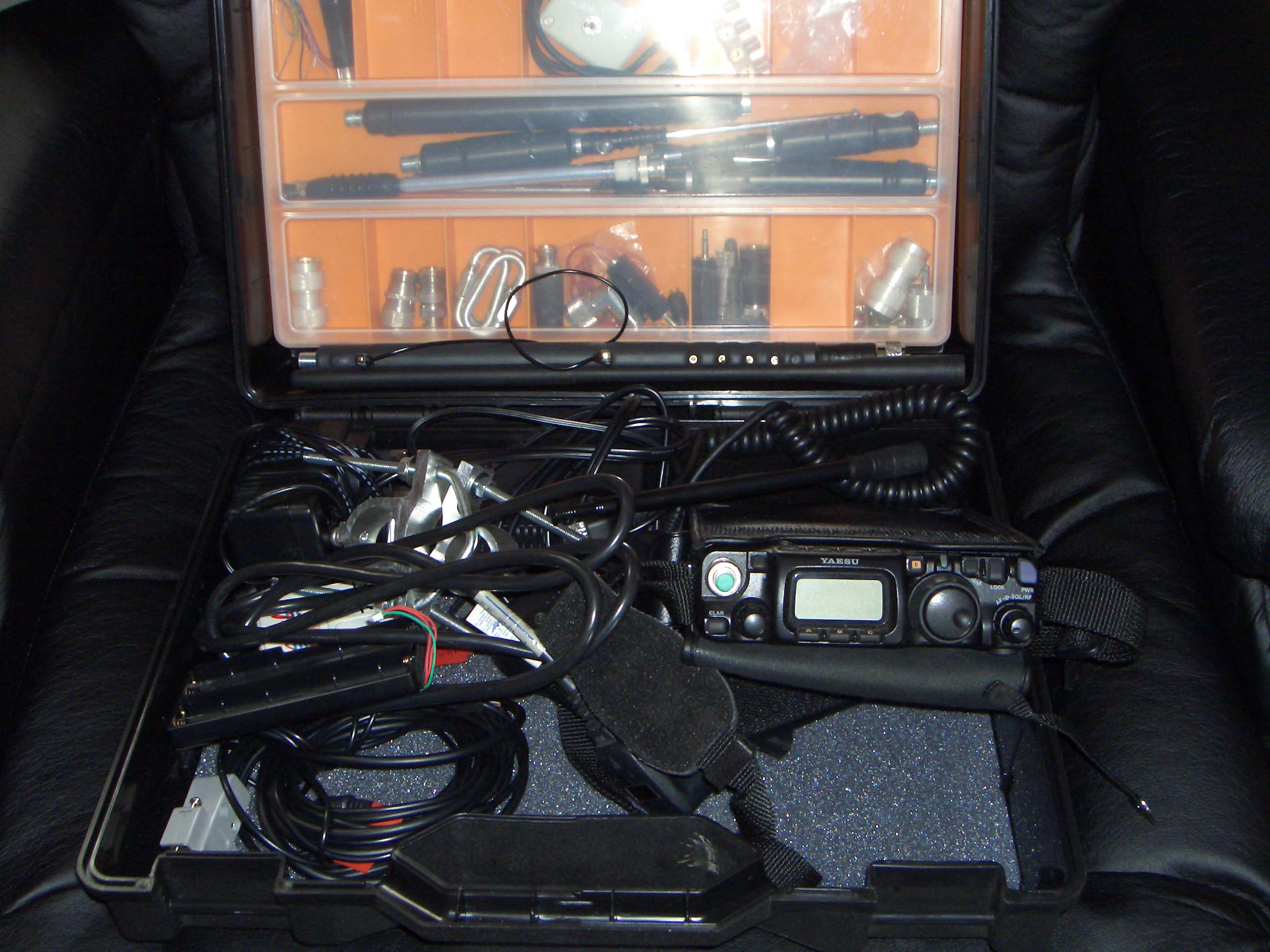

This one I use for Portable operation, its the Yasu 813 along with a PBX100 antenna. It has full coverage from 1.8mhz to 70 cms, along with all modes.

The Midland CT 22 I use for pedestrian mobile operation. It covers 2 Mtrs only.
The latest editions to the family are:
The Kenwood THD 7E (Dual band handset with TNC)
The Kenwood TMV 700 (Dual band Mobile rig) in the shack
The Kenwood TM 700 (Dual band Mobile with TNC)

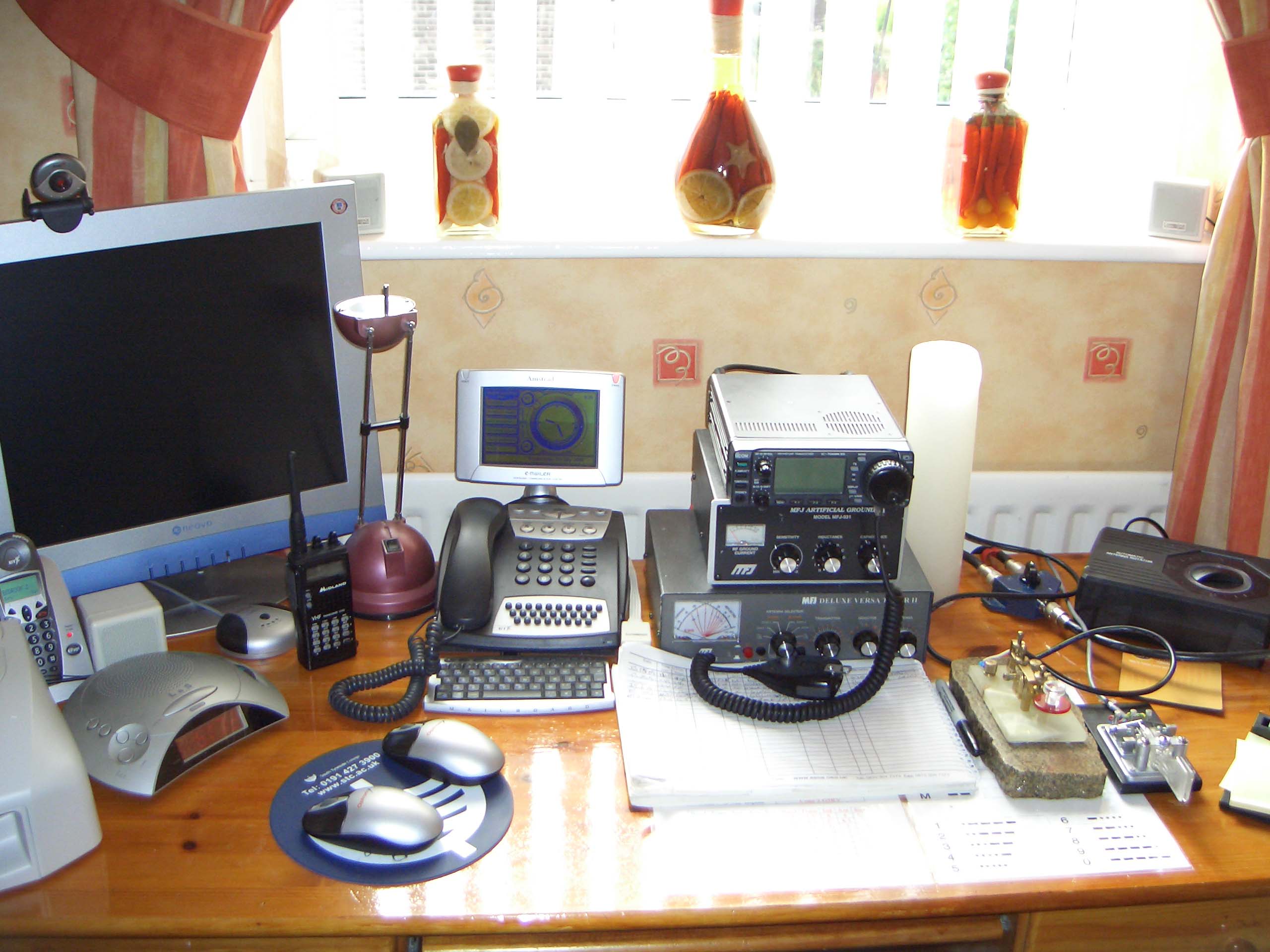

The shack

The hub of the communication centre

The Dickiebow Tie
Used for 2mtrs.
Constructed by G7AMF
Wor George Lamb

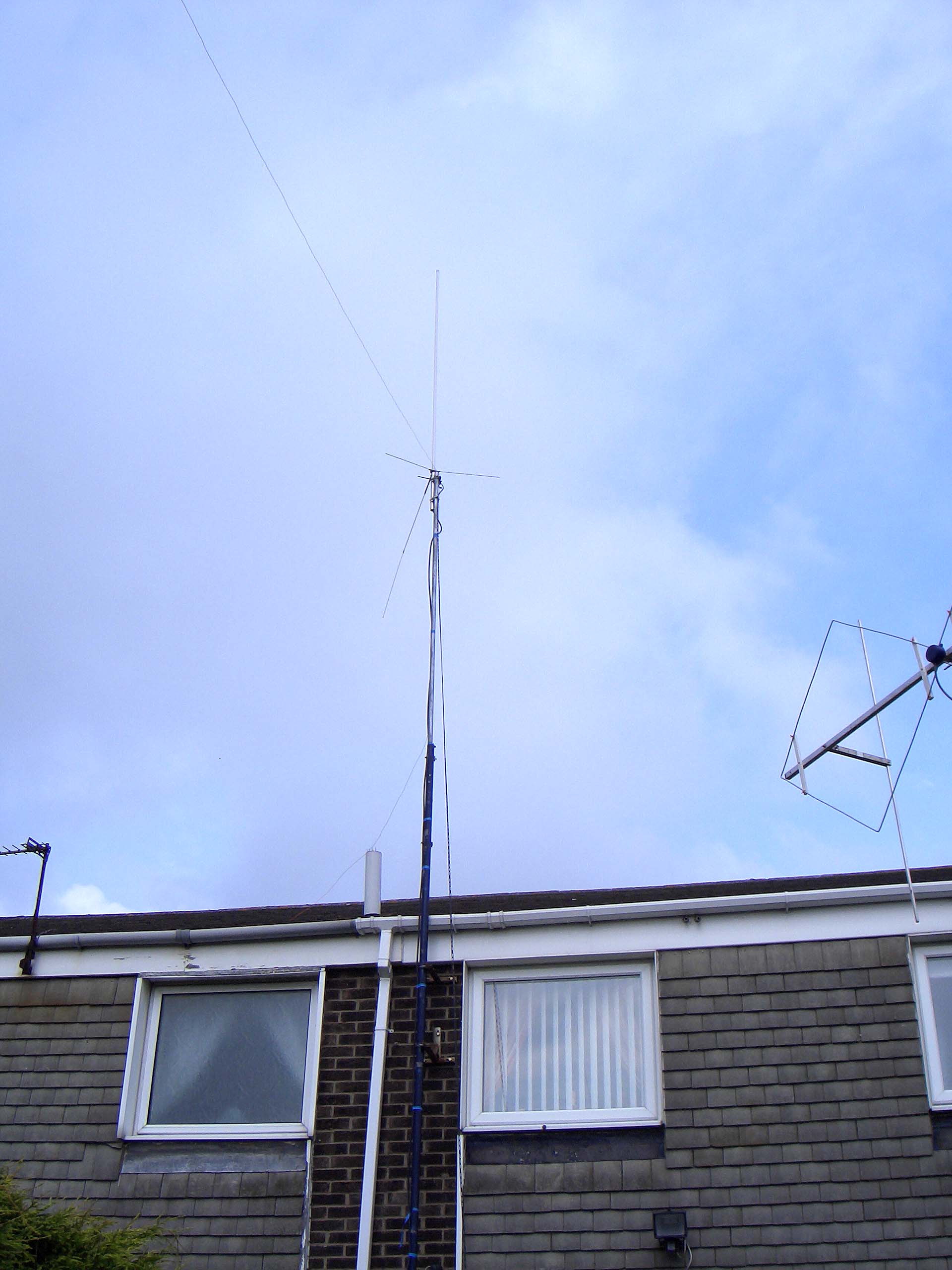

The mast is a clarks pneumatic design operated remotely from the shack, in elevation and rotation.

This scaffi pole supports the Triband antenna and a G5RV for Hf use.
