Someone suggested that it would be a good idea to gather all my projects together for a photograph. I'm going to try to do better and attempt to illustrate each one, showing the assembly process where possible.


 NoTexQRP Accuprobe:

    The North Texas QRP Club ACCUPROBE kit is another of the many Altoids tin friendly projects.

    This helpful bench accessory interfaces to one's digital volt meter to help trace a signal through a problematic circuit.

    Using a single small printer circuit board and powered by an internal 9 volt battery, the Accuprobe has a short lead with an alligator clip for grounding and a sharpened brass screw for probing through circuits.

    Please see: for details.

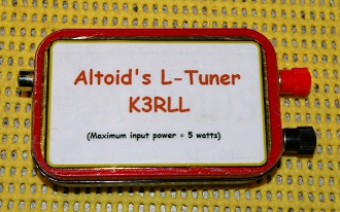

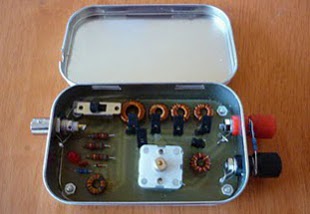

 Altoid's L-TUNER:

    Produced in Pardubice in the Czech Republic by Hamshop.CZ and based upon Steve Weber's original design, this project is a versatile L-tuner for end-fed wire antennas. It is both highly compact and light in weight so as to be suitable for hiking.

    Useful from 40 to 15 meters or more, this tiny tuner even has a built-in 50 ohm load with an LED tuning guide to protect the finals on your 5 watt or less radio.
Please see: for details.


    Produced by the Northern California QRP Club, this fund-raiser project features surface mount technology (SMT) components but wide component spacing on the PCB eases construction.

    "The NorCal S9 signal generator is a crystal-controlled oscillator which produces switchable output levels at selectable frequencies. The S9 level is useful for testing and calibrating reciever S-meters while the S1 level can be used for receiver alignment and sensitivity checks."

    Please see: for details.

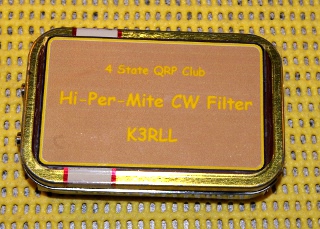

 Hi-Per-Mite CW FILTER:

    Produced by the Four State QRP Group, this fund-raiser project is an active audio CW filter designed by David Cripe, NM0S.

    "The Hi-Per-Mite name designates HIgh-PERformance MITE (small) audio filter. It features a 200 cycle bandwidth with no ringing! It can be used as an external stand-alone unit with its onboard audio amp for driving a speaker or headphones. The small Hi-Per-Mite PCB can also be built into a project without using the integrated audio amp or with it if you need audio gain.

    It provides comfortable listening while using earbuds, headphones, or a speaker. If you have a direct conversion receiver, you will love this filter."
    Please see: for details.


    Formerly produced by the NorCal QRP Club, but now retired, this inexpensive kit was designed as a learning tool for working with (SMT) Surface Mount components.

    With 44 2.2K SMT resistors, a .01mF SMT cap and a 1N5711 diode, the assembler gets plenty of practice identifying and soldering SMT parts. Additionally, the on-board Schottkey diode rectifies the RF voltage, so that the user can accurately measure power output from about 0.5W and up using a DVM.

    Please see: for details.

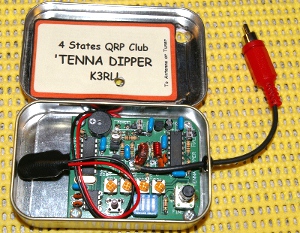

    Designed by Steve Weber, KD1JV, the "Tenna Dipper" is a low power antenna analyzer and ATU tuning aid. With this handy accessory, you can trim your antennas to resonance or adjust your antenna tuner for a perfect match, all without adding to the QRM on the bands. It can be built into the ubiquitous Altoids tin with even sufficent room for the internal 9-volt battery to power the unit.

    Please see: for details.

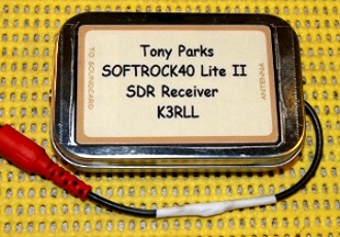

    Perhaps the least expensive entry into SDR (Software Defined Radio), this tiny SDR receiver also fits in an Altoids box with room for the 9 volt battery to power it. The SoftRock Lite II is a simple to build SDR receiver kit with a fixed center frequency which when used with an adequate sound card in your PC and free SDR software, provides 96 kHz of band coverage.

    Please see: for details.

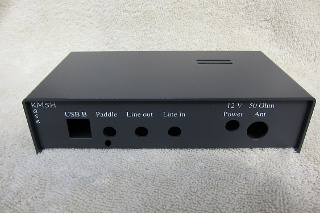

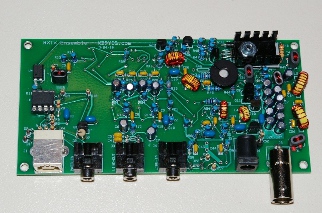

     And, perhaps the least expensive entry into SDR multiband transceivers, the RXTX Ensemble Transceiver, while small, is too large for an Altoids box. Fortunately, Tony Parks, the SoftRock manufacturer, now offers a nice metal silk-screened enclosure for this little wonder. The SoftRock RXTX Ensemble is all SMT (Surface Mount Technology) construction and probably not for the beginner. However, Tony has begun selling completed PCBs that open the doors to far more hams interested in experimenting with SDR.

    Tony offers a small selection of different possibilities, but the one pictured seems to be the overwhelming favorite. Various iterations cover 160m, 80m/40m, 40m/30m/20m, 30m/20/17m, and 15m/12m/10m. Components are included for all five options with the builder making the band decision on construction.

    Setup with any of a number of free downloadable SDR software packages is not trivial, but semi-detailed instructions are available on a few Internet sites.

    Please note that a sound card with stereo line-in connector for receive and stereo line-out connector for transmit are required for the computer running SDR software in order to operate. Most laptop computers do not have a stereo line-in connector and very few have stereo microphone connectors. In such case, an external USB sound card can provide the necessary I/Q connection to the laptop computer.

    Please see: for details.

    Update: Unfortunately, Tony Parks is no longer producing these amazing little SDR transceivers. Rumor has it he has chosen to join some of us in the boundless joy of retirement bliss. Happy Retirement, Tony!

 The New England QRP Club NESCaf Audio Filter:

    Many of our smaller field radios lack the selectivity and narrow bandpass of the larger, full-featured transceivers on our desk at home. There is, however, an inexpensive solution that, quite coincidentially, is fun to build.

    Please see: for details.

    The two NEScaf filters on the left were built by others and the one on the right is my Altoids version.


 The Four States QRP Club AA0ZZ EZKeyer:

    A summer weekend project was a small, portable memory keyer for field use with the highly portable Small Wonders Lab SW-20 transceiver. Four States, on their website, even provides a variety of color templates to duplicate and affix to the particular variety of Altoids tin you may be using. I see this project as a run-away bargain as it works well and does almost everything necessary for a light weight, highly portable keyer.

    My original plan was to build a simple keyer into the SW-20 case, but I guess I just couldn't resist the suggested attractive housing options from Four States QRP Club.

    Please see: for details.

 Kits & Parts Band Pass Filters:

    When some of us get together for group QRP portable operations, we sometimes run into pretty severe intereference from each other. Spacing out in the available space, putting our antennas at right angles to each other and the use of coax-fed resonant antennas all help alleviate this problem, but not entirely. In addition, some QRP radios transmit particularly 'harmonic-rich' signals that tear up the unsophisticated front ends of other QRP radios in the vicinity.

    In an effort to further eliminate or at least reduce the serverity of this problem, WB4MNK and I embarked upon a project to build QRP-level band-pass filters. A search of the QRP vendors showed both single and dual-band filter parts kits available at very reasonable prices from Kits&Parts in Florida. Please see: http://www.KitsAndParts.Com for details.

    After building a couple of these filters, we were excited to see the impressive adjacent signal attenuation they offered. However, we were disappointed to learn that they are intended for receive-only. This detail is not shown on the vendor website.

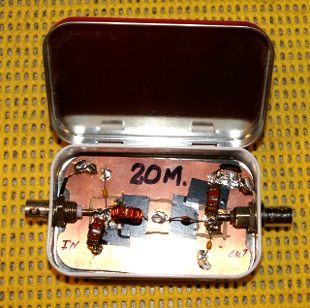

    At any rate, pictured above is one of the completed two-band filters in the ubiquitous Altoids box with a DPDT switch to select the desired band of operation.

 3 Pole Butterworth Band Pass Filters:

    While the original effort to build band-pass filters was pretty neat with the dual-band option and convenient Altoids packaging, they turned out to only work on recieve. The transmit signal was totally attenuated.

    Therefore, starting over with help from Terry WA0ITP, appropriate capacitors from Dan's Small Parts (http://DansSmallPartsAndKits.Net/), more toroids from Diz at Kits And Parts (http://www.KitsAndParts.Com), as well as some interpolation of values for additional desired bands of operation, WB4MNK and I have managed to fabricate working single-band, Altoids packaged, high Q transmit AND receive band-pass filters with negligible signal attentuation.

    So far, we have built these greatly improved filters for 40, 30, 20 and 17 meters with good results, thanks to Art WB4MNK, a real craftsman who found and fixed the errors in my initial efforts.

 The Small Wonders Labs ROCKMITES:

    The popular Rockmite series of QRPp transceivers from Small Wonder Labs, offer a lot of fun for very little money and make a great first project for the aspiring builder. These single-band, crystal controlled rigs are an easy build and include one SMT device for experience in this technology. They are available for a number of different ham bands, but the 40 meter versions appear to be the most popular.

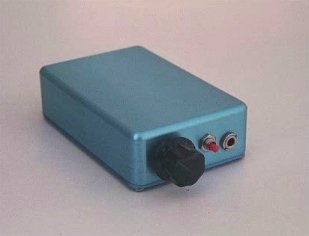

    They can be packaged nicely in something like the Mitybox from American Morse or as seen more frequently, the ubiquitous Altoids tin. Or, if more interest is with tinkering and experimentation than operating, they can be mounted to a block of wood as shown below.

    More (a lot more) information on Rockmites can be found on The Rock-Mite Group

    From left to right: completed Rockmite PCB, complete Rockmite station using "traditional" Altoids box and Rockmite in American Morse Mitybox.


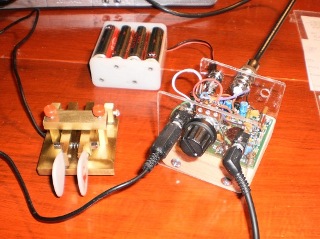

Pictured below is a Rockmite in open architecture for experimentation using Molex pins for sockets on crystals and final transistor.



  Flying Pigs PIG RIG S/N #129

     Produced by Diz at KitsAndParts.Com, the Pig Rig was a limited run, crystal-controlled, five watt transceiver for 7.030.7 MHz.

     This fun but inexpensive transceiver was designed to encourage even more activity between members of the Flying Pigs QRP Club. Some builders have modified them for other frequencies, but since the receiver uses a 3-pole crystal filter, that task is something more than trivial.

     Diz sponsors a monthly 24-hour PIG RIG QSO PARTY as well as the soon-to-be world famous WORKED ALL PIGS Award for working the somewhat limited number of other Pig Rigs out there in the 'barnyard'.

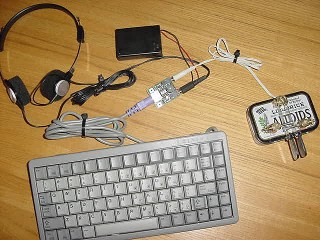

  Here are a couple of photos of another fun project - The Morse Code Buddy.

    This one-inch square PCB interfaces a standard PS/2 keyboard and/or a keyer paddle to the transceiver. This may be a slick way to take a keyboard portable with QRP as the MCB runs on the included AA battery pack. It has 8 keyer memories and comes in one of three varieties, depending upon which chip you select. Mine has the "Beacon" microcontroller chip so it will call CQ, wait and call again until someone comes along.

Photos courtesy of K5JHF and K5BCQ.

  Making Labels for Projects

     Click the preceding link to access step-by-step instructions.

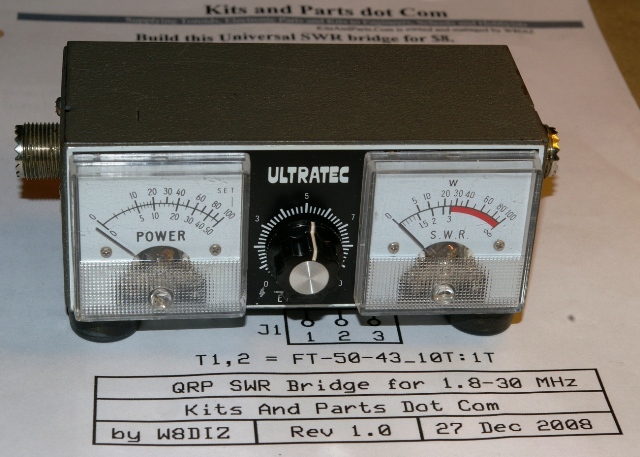

 Inexpensive QRP Power/SWR Meter Conversion:

     Click the preceding link to go to a full illustrated page on this one project.
     There you will see step-by-step instructions on converting a $5 hamfest meter to one perfectly tailored to HF QRP.

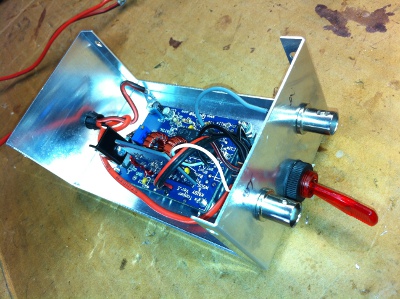

 Inexpensive QRP Amplifier Kit:

    Looking for a way to increase the output power of SDR, Rockmites and other low output QRP radios? Take a look at this inexpensive kit from QRPme.Com.

    Click here to see what can is available in a "Full Gallon" linear amplifier.


 4SQRP Ozark Patrol Regen Receiver Kit:

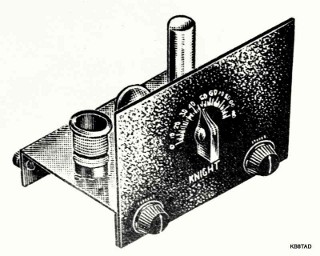

    I'm sure I'm not the only one for whom this little kit brings back memories of many of our youthful evenings scanning the airwaves to the glow of a one or two tube regenerative receiver. The O.P. Regen produced by the Four States QRP Club is a very simple, radio reminescent of the but 'absolutely magical' at the time, early Knightkit Ocean Hopper Regen of my youth, pictured here:

    The updated circuit now uses transistors and only 38 parts but is quite capable of pulling in signals from all over the world with just a simple wire antenna. 'Pittsburgh' style construction is used to mount components to the surface of the nicely silk screened PCB, greatly reducing the chance of a construction error. The face of the O.P. Regen is the opposite side of the same silk-screened black PCB. Even a pine board of the correct dimensions is included for the base and support of the vertical PCB.


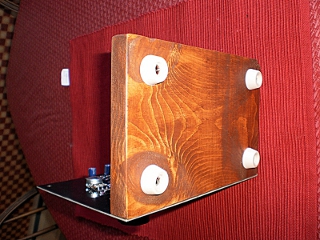

    Take a look at these photos of the completed kit for a better idea of this unique construction method. Mine was built the summer of 2014 and has provided many enjoyable hours reliving the nostalgia of scanning the world for shortwave stations on both of the two frequency bands covered by this inexpensive kit from www.4SQRP Club. I sanded, stained and finished the base/support board and added rubber feet to the bottom of it, as shown above.

.     This was a really fun kit that justified the modest cost just with the construction, and yet now yields unending hours of the 'user-involved' tuning characteristic of a regenerative receiver.

 KitsAndParts 1-Watter Transceiver Kit:

    KitsAndParts has been offering a very reasonably priced single band 1-watt VXO transceiver kit which has been getting very popular.
    Diz previously offered the fun Pig Rig kit, a 5-watt crystal-controlled CW transceiver illustrated above on this same page.
    The "1Watter", as it is called, is available for 160m, 80m, 40, 30m, 20m, 17m, 15m, or 10m and offers full QSK, a full 1-watt output and dual conversion design.

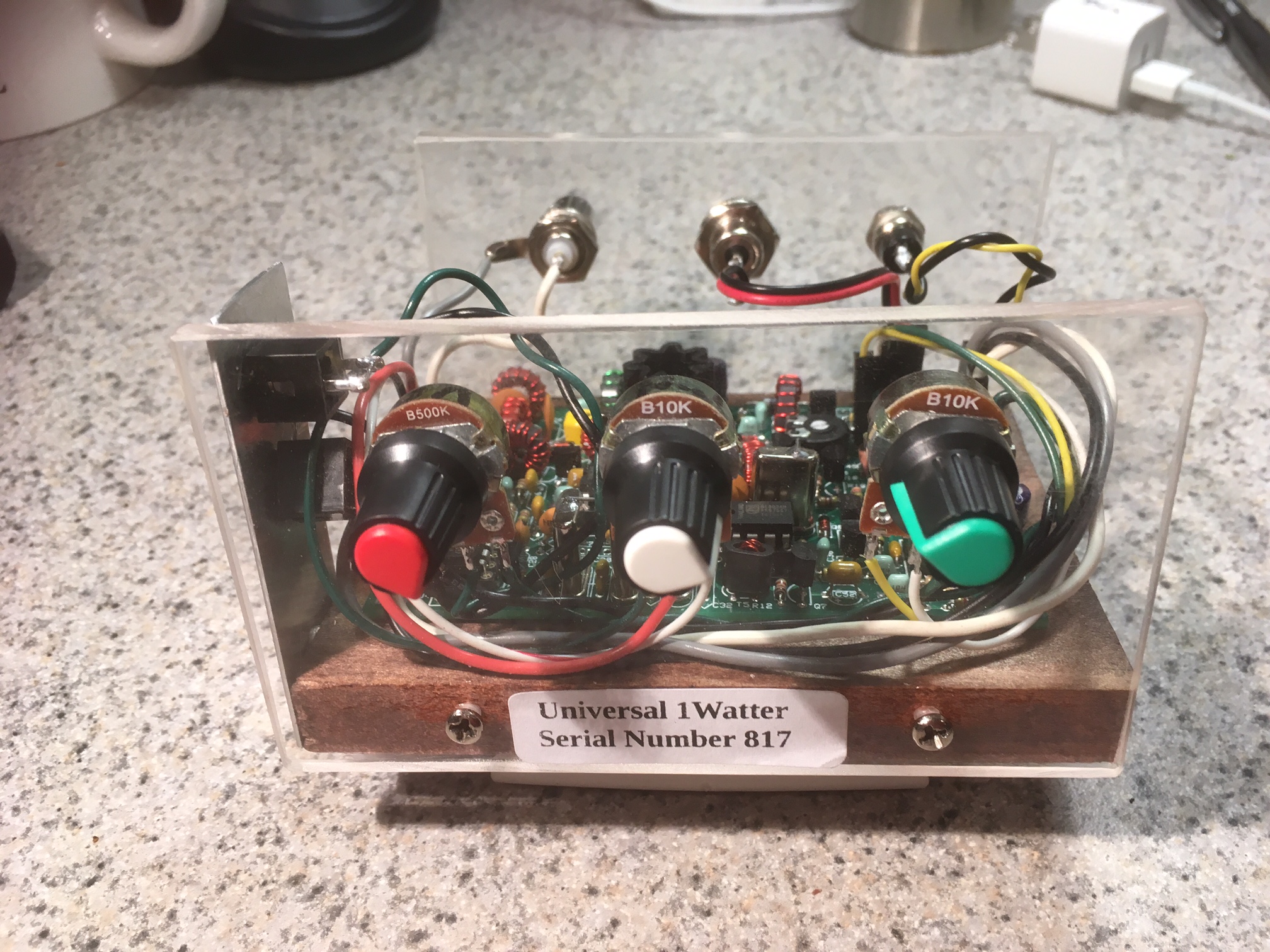

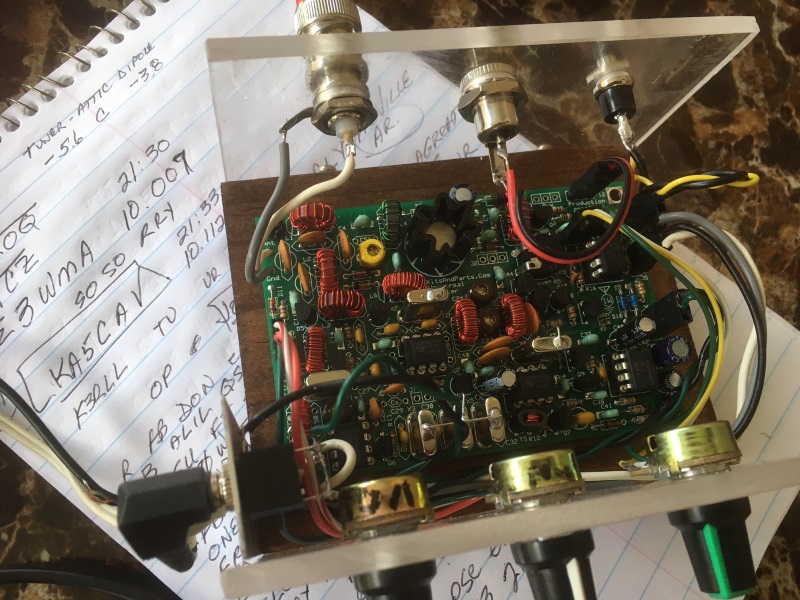

    My 30 meter s/n 817 is shown here mounted to a small rectangle of stained wood with Plexiglas front and rear panels for the controls and jacks.


    A full page of submitted photos of completed user 1Watters and details are available on Diz' website:
    This collection of submitted photos provides a plethora of packaging ideas as well as a good sense of the enthusiasm felt for this modest rig.
    And if there is any doubt what one watt can do with reasonably good band conditions, consider a Google Search on "1Watter".


 QRP Labs Single-Band Transceiver Kit:

    The QCX is a feature-packed, high performance, single-band, 5-watt, transceiver kit which even includes a WSPR beacon. It is available for either the 80m, 60m, 40m, 30m, 20m or 17m band.

  The list of included features is long and exciting!
    * Approximately 3-5 watts CW output, depending upon supply voltage.
    * 200 Hz CW filter
    * Rotary encoder
    * 16 x 2 blue LCD screen with backlight
    * Accepts Iambic keyer, bug, Cootie or straight key
    * Twelve CW Message Memories
    * Frequency presets, VFO A/B Split operation, RIT
    * Beacon mode for CW or WSPR
    * On-screen S-Meter
    And here is the best part: all this for the one low price of only $49.00 ! !

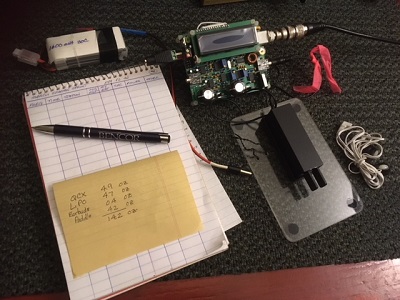

Here is the QCX-40 with a small LiPO battery, earbuds and paddle -- all set up for the A.R.S. Spartan Sprint. Please note annotated component/system weight.

    For an additional $23, the optional QLG1 GPS Receiver Kit was obtained, built and attached to the QCX. In a very short time and while operating indoors, the GPS found numerous satellites, loaded the grid coordinates, downloaded them to the QCX, and began transmitting WSPR signals! These periodic transmissions appeared on the Princeton WSPRNet Map Page in very short order, showing that the QCX/QLG1 Combo was being heard from coast-to-coast as well as into Europe.

 KD1JV Tri-Bander Transceiver Kit:

    The Steve Weber designed KD1JV Tri-Bander Transceiver is a three-band, compact, low current drain, 5-watt transceiver kit available from Pacific Antennas: http://www.qrpkits/tribander.html.

    The builder selects the three bands of their choice at purchase. Band choices include the 80m, 40m, 30m, 20m, 17m or 15m bands. The image below is of the author's Tri-Bander built with the common 80, 40, and 20 meter QRP contesting bands (and with an eye to declining sunspot activity). Since the author has yet to develop a viable 80 meter antenna in the limited real estate available, chosing 80 meters may not have been one of his better decisions.

    An aluminum case is included in the purchase price which can be painted as desired or left in bare brushed aluminum. Either way, a few light layers of clear coat will enhance the case. Note the convenient flip-down bail that supports the radio at an appropriate viewing/operating angle.

    * Built-in Iambic keyer with A or B modes
    * Two 63-character CW memories
    * DDS VFO for stability
    * Four digit LED display
    * Rotary knob tuning
    * 0.2 uV receiver sensitivity
    * 500 Hz audio filter
    * Audio derived AGC
    * Light 12 ounce weight
    * Small: 6" wide x 1.5" high x 4" deep.
    * Low 90 ma receive -- 600-800 ma transmit current draw

    IMPRESSIONS: Upon first inspection, one is struck by the small size and very light weight of this completed kit. The digital dial is rare asset in this price class. The receiver seems very sensitive as well as being quite selective. The button to trigger the CW memories could be larger and more conveniently placed. Otherwise, this Weber-designed three-band transceiver is pleasant to operate and works well. One's portable battery will last a long time with this diminutive transceiver.

Please check back from time to time as more "Altoids-ready" and other small projects are added to this page.

Thank you for reading along.
