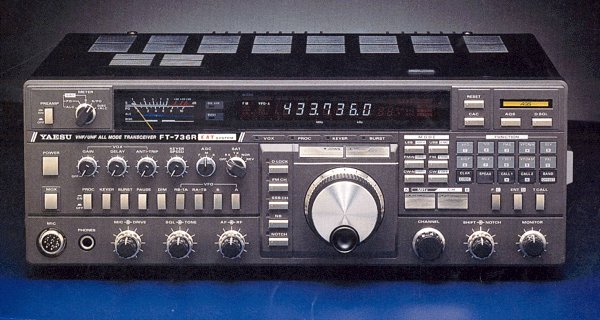

Yaesu FT-736R

    SPECIFICATIONS GENERAL
      Operating Frequency Ranges 50 ÷ 53.99999 MHz - 144 ÷ 147.99999 MHz - 430 ÷ 439.99999 MHz - 1240 ÷ 1299.99999 MHz
      Emission Types LSB/USB (J3E voice), CW (A1A) - FM (F2D, FSK, F3E voice) - TV (A3F optional, for 1.2 GHz*)
      Operating Temperature Range -10 to +60 °C
      Reference Osciliator Stability Better than +/- 1 ppm (+10 to +40°C), and +/- 5PPM (-10 to +60°C) after 15 minutes warmup
      Antenna Impedance 50 ohms, unbalanced
      Supply Voltage 85 ÷ 132 or 170 ÷ 264 VAC, 50/60 Hz, or 13.8 VDC +/- 10% negative ground
      Power Consumption/Current Required Maximun 250 VA (approx.) Receive: 1.5 A Transmit, 8 A
      Dimensions 368 (W) X 129 (H) X 286 (D) mm
      Weight 9 kg (19.8 lbs)



    TRANSMITTER
      Power Input 30 watts DC @ 50 MHz - 60 watts DC @ 144, 220,430MHz - 45 watts DC @ 1.2 GHz
      Modulation Methods SSB Balanced, filtered carrier - FM Variabie reactance (+/-5 KHz or +/-2.5 KHz - maximum deviation) - ATV* Low level carrier
      Spurious Radialion Better than -60 dB
      Carrier Suppression (SSB) Better than -40 dB below peak output
      Undesired Sideband Suppression (SSB) Better than -40 dB below peak output
      Audio Characteristic (SSB) Within 6 dB from 300 to 2700 Hz
      Microphone Impedance 600 ohms nominal (200 ohms to 10k)



    RECEIVER
      Circuil Type 50*, 144 MHz bands: Double conversion
      Circuil Type Other bands Triple conversion superhet.
      Intermediate Frequencies 13.69 MHz and 455kHz, plus 47.75 MHz on 220*, 47.43MHz on 430, or 133.91 MHz on 1200 MHz band*
      Sensitivity SSB/CW: Better than -15dbmicro for 12dB S+N:N - FM: Better than -9dBmicro for 12dB SINAD
      Squelch Sensitivity SSB/CW: Better than 0 dBmicro - FM: Better than -12 dBmicro
      Image Rejection 60 dB or better
      Selectivity (-6/-60 dB) SSB, CW: 2.2/4,5 kHz - CW N*: 600/1200 Hz - FM: 12/25kHz FM-N 8/19 kHz
      Audio Output Power 1.5 watts into 8 ohms with 5% THD
      Audio Output Impedance 4 ÷ 16 ohms

      * option



PDF download



User manual

Service manual

Module installation

Power schematic








Optional accessories on IKØXCC YAESU FT-736/R

on red color box the accessories wanted



YAESU SP 767 External Speaker with Audio Filters



YAESU FEX 736-50(A)
50 MHz band module - FEX 736-220(A) 220 MHz band module

YAESU FEX 736-1.2(A)
1200 MHz band module for North America - FEX 736-1.2(B) 1200 MHz band module for outside North America

YAESU XF-455MC
600 Hz CW Narrow filter

YAESU FTS-8
37 tones CTCSS Subaudible Tone Squelch Unit



YAESU TV-736 Fast Scan Television (ATV) Modulator/Demodulator

YAESU MD-1B8 Desktop Microphone



YAESU MH-1B8 Handle-Scanning Microphone



YAESU Keyer Unit B
Internal Electronic Iambic Keyer



YAESU E-736 (DC)
DC Power Cable fot operation from Ext. Supply



YAESU FIF-232C CAT/TNC Interface for Packet Radio & CAT



YAESU FVS-1
Voice Synthesizer for Aural Frequency Readout
