ADVANCED LESSON 14logomidi2.gif


LEARNING  OBJECTIVES and NOTES
Resistors in series and parallel
Understand and apply the formulae for calculating the combined values of resistors in series and/or in parallel. Resistors of different values may be used in series, parallel or combined series and parallel circuits.

Resistors in series. If resistors are connected in series, then their total resistance is found by adding the value of each resistor. So for 3 resistors R Total


Remember the symbol for an Ohm is Ω

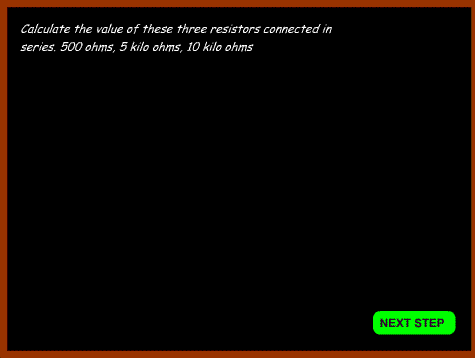

Example 1

Click "next step" to see the stages in the calculation.

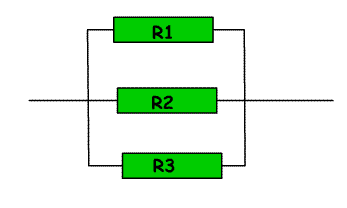

Resistors in parallel
If resistors are connected in parallel, then their total resistance is found from the formula:


(NB as a check the total resistance will always be less than the smallest value of resistor)

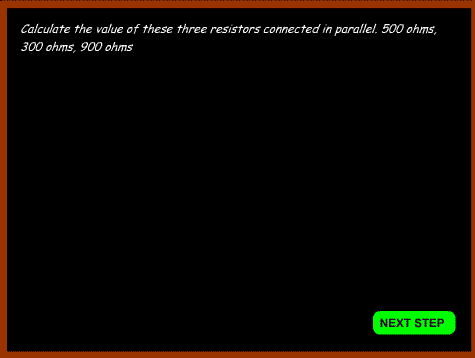

Example 2

Click "next step" to see the stages in the calculation.

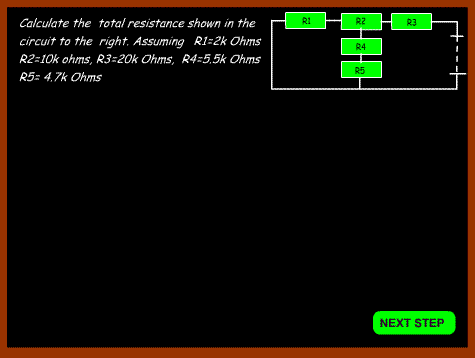

Example 3

Click "next step" to see the stages in the calculation.
