The 10-Element-28Ohm-Leightweight-Yagi for 70cm

Gain 13dBd, F/B > 30dB

Boom 2,00m, stacking distance 1,30m

3dB-angles: hor 32,0, ver 34,3

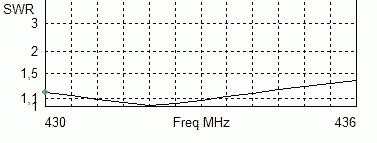

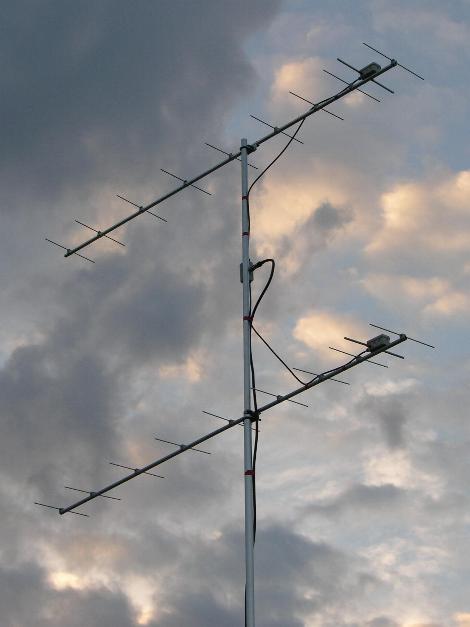

The picture shows the 2x10-Ele.-group at the VHF-/UHF-Contest July 2007



The round boom is made with a 2m long 16x1mm aluminium tube



Lengths and positions of the elements, Rad 8mm

Elements

Ref

Rad (8mm)

Dir 1

Dir 2

Dir 3

Dir 4

Dir 5

Dir 6

Dir 7

Dir 8

Position

0

145

225

420

645

915

1200

1485

1770

1995

L(3,2mm)

338

322

314

302

298

292

290

287

292

286

L (4mm)

337

321

312

300

296

290

288

285

290

284
