Controls in the main window

The main window of spectrum lab contains the most important controls and output of the spectrum analyzer:

  1. Main Window with menu items :
    1. File
    2. Start/Stop
    3. Options
    4. Quick Settings
    5. Components
    6. View/Windows
    7. Help
  2. Built-in "Quick Settings" (in the main menu)
  3. Spectrum Display (in separate document, with frequency scale, waterfall and/or spectrum graph)
  4. Control Elements and Tabs on the main window
    1. Tabbed display control panel
      1. Frequency control tab
      2. Time control tab
      3. RDF control tab
    2. Readout Cursor panel
    3. Colour palette control (brightness, contrast)
    4. Progress Indicator / Stop button
    5. Programmable buttons
    6. Controls on the bottom of the main window (spectrum buffer overview)
      1. The Spectrum Buffer Overwiew (in the bottom control bar)
        1. Navigation buttons to scroll through the spectrogram buffer

Other functions may be implemented in other windows, which you can open from the "View" menu (in SL's main menu).

See also: Spectrum Lab's main index.

Main Window, main menu items

The main window contains the main menu, the spectrum display (on the right side) and -optionally- some control elements on the left side, and some in the control bar on the bottom.

The main menu contains the following items:

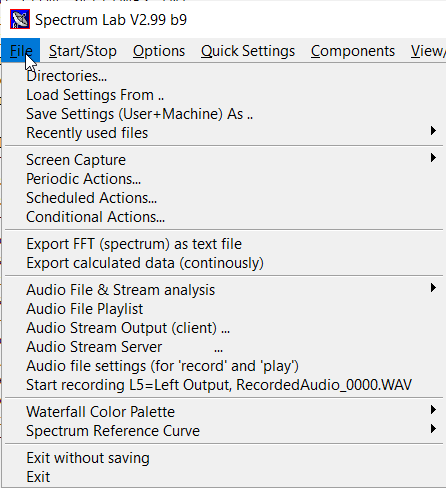

The 'File' menu is used to..
  • load settings, change directories and select file names for screen captures, etc
  • configure screen capture, periodic and scheduled actions
  • Select audio files for logging and for analysis
  • Select, import, export, or edit a waterfall colour palette
  • Terminate the program with or without saving the (possibly modified) configuration


The 'Start/Stop' drop-down menu (part of the main menu)..
  • starts and stops the audio processing thread,
  • the spectrum analyzer,
  • can temporarily disable and re-enable the audio input device
  • can temporarily disable and re-enable the audio output device
  • shows the state of the 'Rig Control' (on/off indicator),
    with shortcuts (in a submenu) to configure and supervise it.

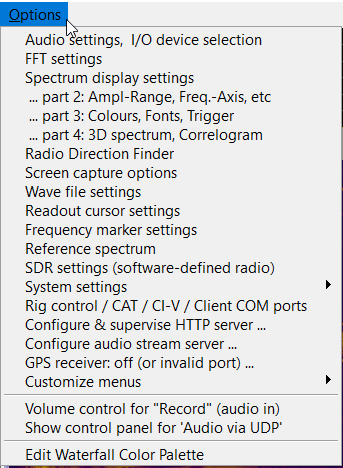

Most of the items in 'Options' drop-down menu (part of the main menu) open Spectrum Lab's 'Configuration and Display Control' dialog, and switch to one of the many tabsheets in that window; with...
  • Audio settings, including the selection of in- and output devices,
  • FFT settings (for the spectrum analyzer),
  • display settings, colours, etc,
  • configure the Radio Direction Finder (RDF),
  • change options for saving and analyzing wave files,
  • launch the soundcard's volume control program for "record" and "play",
  • and many other special functions.

Quick Settings

This menu allows to change all settings of Spectrum Lab very quickly. There are some predefined settings in this menu, and some user-defineable entries which are initially empty. More about creating and adding your own set of settings can be found here.
Some of the built-in configurations in the "Quick Settings" menu are described further below.


Configures some of the components in SL's signal analysis circuit, for example:   Input monitor, output monitor,
  Test Signal Generator,
  Filter Control Window,
  Second Spectrogram window,
  Time Domain Scope ('oscilloscope'),
  Watch List and Plot window,
  Command Interpreter window.


The items in this menu toggle some of the more frequently used options in SL's main display screen. It can also be used to open some other windows belonging to Spectrum Lab, which are not related to the 'test circuit' (unlike the 'Components' menu). The "View/Windows" menu allows you to switch to any of these sub-windows quickly, even if they are hidden by other windows.
Some of the sub-windows are listed here:

Hint: Windows which are already opened will be checked in the "View/Windows". You can quickly switch between them, even if they are completely hidden by other windows on the desktop, by pressing CTRL-F6 ("Switch between SL's open windows"). This works a bit like the Windows task switcher (ALT-TAB), but only switches through Spectrum Lab's own windows. But a few SL windows may (or may not) be visible in the windows task bar.


Contains some topics of the help system and the inevitable "about"-box. The help system only works properly if there is an HTML browser installed on your system which supports jumps to anchors in the html documents through the command line. For example, if help about the spectrum graph shall be displayed, SpecLab invokes the browser with the command line argument "../html/specdisp.htm#spectrum_graph" (or similar).

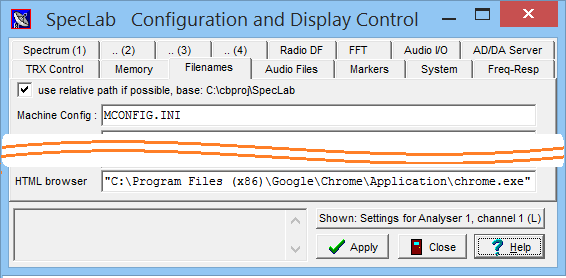

If the browser is too stupid to scroll to the anchor (like some Firefox versions), try another browser. In the SL configuration, switch to 'Filenames' (tab), and enter the full path and name of the browser (executable) in the 'HTML Browser' field (you can double-click into the field to open a file selector dialog for *.exe files) :

So sorry to see you replaced by this browser, dear Firefox..

You can check the last command line that Spectrum Lab used to open the last help topic: In the main menu, select 'Help' .. 'Show last browser command'. Spectrum Lab looks for the path to the browser in the registry, first for Firefox and Opera, and finally (if no other browser was found) it looks for the key "HKEY_CLASSES_ROOT\htmlfile\shell\open\command".
The 'Help' menu also contains an item named 'Check for Update via Web Browser'. Use this function occasionally. It will open a simple webpage, which checks if your version of Spectrum Lab is still up-to-date, based on the program's compilation date, which is sent through the HTML query string. Please use this function if you experience problems, before reporting bugs, as explained in the document about 'troubleshooting'.

back to top

Built-in "Quick Settings" (in the main menu)

Some typical configurations can be recalled from the "Quick Settigns" menu. In contrast to the user-defined settings (in the lower part of that menu), the following configurations are hard-coded in the program - so they don't have to be loaded from an external configuration file. Most of these settings are organized in categories (in the form of submenus), to avoid a bulky long top-level menu. The following list may be incomplete since the program still keeps growing:

Besides the above 'built-in', aka 'hardcoded' entries in the Quick Settings menu, there may be some user-defined items below the horizontal line (separator) after the item 'Restore all "factory" settings'.
See user defined menus for details, including the name of the file in which the user-defined menu items will be stored.

See also: main menu , help index .

back to top

Spectrum Display

The spectrum display shows the spectrum of the analyzed signal as spectrum graph and/or waterfall.

Both display types are explained here in more detail.
As an overlay for the spectrum graph, a reference curve can be displayed.

back to top

Control Elements and Tabs on the main window

The control elements are usually visible on the left side of the main window. You can turn them off from the main menu ("View") to increase the visible size of the spectrum display. (the different forms of the spectrum display are explained in a separate document)

Some of the controls on the left side of the main window are explained in the following sections. There is ...

Mainly used as a buffer-preview for long-term observations, there are also some controls on the bottom of the main window:

Tabbed display control panel

There is a tabbed control panel on the left side of Spectrum Lab's main window, showing...

Frequency control panel (in SpecLab's main window)

(frequency control tab)

Controls on the 'Freq'-tab in the main window:

VFO (Variable Frequency Ocillator "tune frequency")
Tuning frequency for the 'VFO' in an external SDR, like SDR-IQ, Perseus, or an external hardware controlled via CAT interface, Audio-I/O- or ExtIO-DLL. In configurations without 'controllable' frequency conversion, leave this field zero. Note: In additon to the 'VFO frequency', there is another frequency offset which may be added to the display - see Radio Frequency Offset .

fc (center frequency for the spectrum/spectrogram)
Can be used to set the displayed center frequency manually. But in most cases, it's easier to move the main frequency scale with the mouse.

sp (frequency span for the spectrum/spectrogram)
Can be used to change the displayed frequency range. But in most cases, it's easier to do this with the zoom buttons, or with the content menu of the main frequency scale.

   --- or, alternatively, instead of 'fc' and 'sp' : ---

f1 (minimum frequency for the spectrum/spectrogram display)
This an alternative to define the displayed frequency by 'fc' and 'sp' (center frequency and span).

f2 (maximum frequency for the spectrum/spectrogram display)
Together with 'f1', this is an alternative method to define the displayed frequency range.
Select between 'fc'/'sp' and 'f1'/'f2' with the options menu mentioned below.

opt ('options' button on the 'Freq' panel)
Opens a small menu with VFO / frequency related options:

Frequency controls: Center frequency and span, or min- and max frequency
Allows to switch between the two alternative style to define the displayed frequency range. See explanation of the input fields 'fc'/'sp' and 'f1'/'f2' above.
Include VFO frequency on frequency scale
When checked, the 'VFO frequency' is included in the labels on the main frequency scale.
When not checked, the main frequency scale shows the 'baseband' (or 'audio') frequency range.
Synchronize 'VFO' frequency with the remotely controlled rig
When checked, the VFO frequency will be transferred in both directions (via CAT, CI-V, or similar): Changing the frequency in SL's 'VFO' input field (via keyboard or mousewheel) will also change the radio's frequency. Vice versa, turning the radio's VFO knob will also set Spectrum Lab's 'VFO' edit field, and optionally also modify the main frequency scale. Without this option, only 'black-box' SDRs without their own frequency controls will be controlled by SpecLab.
Fixed display span at 1 pixel per FFT frequency bin
When checked, the 'frequency span' (sp) is automatically set to that each horizontal pixel position on the spectrum/spectrogram exactly matches one FFT frequency bin.
Disable auto-apply and increment/decrement for frequency input fields
When checked, the 'frequency' input fields (VFO, display center, and display span) behave as in older versions, without automatically 'finishing' the input, and without the possibility to increase/decrease the current values via cursor keys or mousewheel. Input to those input fields must then be finished manually with the ENTER key.

Values in the above 'frequency' fields can be entered directly (through the keyboard). In addition, you can increment/decrement the current value with the cursor keys, or the mousewheel. The cursor position (not to be confused with the mouse pointer) defines the stepwidth.

When typing a frequency into any of these three edit fields, you can enter expressions like "135.8k" instead of 135800 if you like. The input will be converted to the standard notation when pressing ENTER, unless the the 'auto-apply' option is disabled in the 'opt' menu mentioned above.

Other tabs of this control panel are explained in the next chapter, and -possibly- in other documents because there may be more tabs than in the screenshot shown above.

See also: Help index, Settings for remote VFO control via CI-V, Displaying Icom's broadband spectrum.

 back to top

Time control tab

The "Time" tab shows the current time and the time of the latest waterfall line. It may also be used for scrolling the waterfall "back in time".

If the spectrum line buffer is large enough (larger than the number of waterfall lines on screen), you may scroll the time axis of the waterfall "back to the past". Old parts of the waterfall which have already disappeared from the screen can be made visible again, you may also zoom the old parts of the waterfall using the controls on the "Frequency Axis"-panel or change their color using the controls on the "Color Palette"-panel.

Shifting the slider on the "Time"-panel to the RIGHT will scroll the contents of the waterfall back to the past. The waterfall will stop it's real-time-scrolling as long as the time-slider is not in the leftmost position. The FFT output will be recorded in the background then (but data collecting will not stop).

This situation is indicated by the "Time"-panel changing its color from the usual gray to a light cyan. As long as you see the "Time"-panel in an unusual color, you know that the waterfall display is not in "real-time"-mode but shows old data.

The amount of time (seconds, minutes, hours, or even days) is dictated by the waterfall scroll rate in conjunction with the spectrum buffer size. The spectrum buffer size can be modified on a special tab of the configuration screen,

Shifting the time-slider back fully to the LEFT will return to "real-time"-mode.

The "Time"-panel also shows the current time ("NOW:") and the time when the latest visible waterfall line has been recorded ("VIEW:"). In "real-time"-mode of the waterfall there will only be a maximum difference of one FFT calculation interval between the "NOW"- and "VIEW"- time.

The "Time" panel (like all other time-indicators in this program) use UTC (=GMT) to be independent of the earth's timezones. If you don't see the correct time shown in UTC on this panel, you should check the time settings of your PC (double-click the time display in the task bar).

An alternative to the slider on the time-panel is the buffer-overview bar on the bottom of the main window.

 back to top

RDF control tab

The RDF (Radio Direction Finder) tab shows a 'colour compass' for the waterfall (spectrogram) in 'Colour Direction Finder' mode. This is a quite special feature, with details explained in a different document (colourdf.htm).

'Colour Compass' for the spectrogram in 'Radio Direction Finder' mode,
here with software nulling (cardioid pattern) for signals from the east.

In short form:
The colour (hue) indicates the direction to the transmitter in the spectrogram, the brightness in the spectrogram indicates the signal intensity.
The signal don't necessarily have to be 'radio' signals. The system has been successfully tested with two ultrasonic microphones mounted orthogonally (with a 180° ambiguity for the direction) to locate bats.

Readout Cursor panel

The Cursor Position panel shows information about the current mouse (cursor) location.

The display on the cursor-panel depends on the cursor display mode, which can be switched by clicking on the frame of the cursor panel. Some of the cursor display  modes and -options are:

In "simple" cursor mode, the cursor display panel shows...

If the control bar on the left side of the main window is switched off, the cursor text is displayed on the right edge of the main menu, so the cursor data can be seen even without the cursor display panel.

Note: Since May 2004, the text on the cursor panel can be selected with the mouse, and copied into the clipboard (with CTRL-C as usual). This makes it easier, for example, to transfer the peak-frequency into any other edit field, calibration table, or any text document.

For some special applications, you can retrieve the frequency , amplitude, and timestamp of the readout cursor with the interpreter function .

Fixing the cursor on a certain frequency

The displayed data in the cursor window can optionally be fixed to a certain frequency, no matter where you move the mouse. To achieve this, click into the spectrogram near the "frequency of interest" with the right mouse button. In the popup menu which opens, select one of the "Set Cursor To..." functions.

To switch back from fixed-cursor to mouse-cursor mode, select the function "unlock cursor" in the waterfall popup menu.

 back to top

Color Palette Control

The Color Palette panel on the main window shows all colors that are currently used for the waterfall display (a kind of "color legend").

The two sliders on the "Color Palette" control panel affect the brightness (B) and contrast (C) of the waterfall colour assignment. This is an important feature if you are digging for weak signals, because it allows you to enhance the readability on the fly ! The palette looks a bit different if the waterfall runs in Radio Direction Finder mode, but the B & C controls work in both modes (in RDF/CDF mode, Contrast/Brightness only affect the luminosity but not the color hue values).

If the brighness slider is labelled "b" (instead of "B"), the automatic brightness control ("visual AGC") is active.

Click into the color bar to pick a different colour palette. All palettes contained located in the 'palettes' subdirectory are displayed in the menu (see screenshot on the right side).

If necessary, additional colour palettes can be created with SL's built-in color palette editor.

At the lower side of the color control panel is a scale which usually shows some decibel values. Double-click into the decibel scale to open SL's settings dialog where you can modify the visible amplitude range (usually specified in dB, but linear scales are also possible).

Note: Instead of cranking up the "contrast" slider to the maximum (to dig weak signals out of the noise), you can also reduce the 'Displayed Amplitude Range' in the spectrum display configuration as explained here . For example, if the "interesting" signals are all in the range -60 dB to -50 dB, don't use an amplitude display range of -120 dB to 0 dB (instead, use -70 dB to -40 dB ).

See also: palette editor , visual AGC ,  help index

back to top

Progress Indicator/Stop Button

This button on the left side of the main window (under the contrast / brightness slilders) has different functions, which will be shown as a text on this button.

The button's surface may...

Clicking on the progress button can take you to a more detailed error description, or clear (acknowledge) a certain message .

back to top

Programmable buttons

On the left side of the main window, there are a few programmable buttons (which you can only see if the window is large enough..). These buttons are completely user programmable, both the text in the button, and the function which will be executed when the user clicks one of these buttons.

To execute the button's programmed function, click it with the left mouse key or press enter when it's selected.

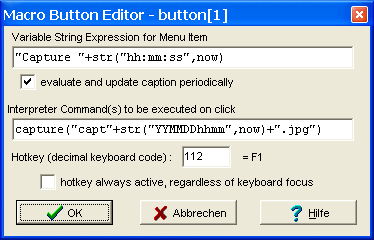

To change the button's programmed function and its text, click it with the right mouse key to open the following dialog:

The field "variable String Expression for button text" defines the text on the button's face (caption). This can be a simple fixed text string (embedded in double quotes), or a combined string expression like this:

"Time: "+str("hh:mm:ss.s",now)

More about this can be found in the description of Spectrum Lab's built-in interpreter, look for "string expressions" there. If the button text is not a fixed string but a variable expression, set the checkmark "evaluate and update caption periodically".

The field "Interpreter Command(s) to be executed on click with left button defines what shall happen when the user clicks a programmable button. This is usually a sequence of interpreter commands (explained in another document), but it is also possible to run external programs this way using the "exec" command.
In the screenshot above, the 'capture' command is used to produce a screenshot which contains the current date+time in the filename whenever the user clicks on the self-defined button "Capture now". However, you can do an awful lot of other things with the programmable buttons once you know how to use Spectrum Lab's built-in command interpreter.

The field "Hotkey" allows you to define a hotkey for the programmable button. Pressing the hotkey will have the same effect as clicking on the button with the left mouse key (see above). An empty hotkey, or the value zero means the button can only be activated with the mouse, but not through the keyboard. The keyboard-combination must be entered as a decimal value (windows "virtual key" code, see below). The code can be easily found by clearing the hotkey field, and pressing the hotkey (on the keyboard, for example F1). If the hotkey edit field is empty, it will automatically be filled with the decimal value. A few decimal keyboard codes are shown below.

F-Key F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12
code (without SHIFT etc) 112 113 114 115 116 117 118 119 120 121 122 123
with SHIFT key (= code + 256) 368 369 370 371 372 373 374 375 376 377 378 379
with CTRL key (= code + 512) 624 625 626 627 628 629 630 631 632 633 634 635

With the option
    'hotkey always active, regardless of keyboard focus'
set, the programmable button can even be activated via its hotkey if the keyboard focus (aka 'input focus') is currently on a different window. Without this option, the buttons can only be active if the focus is on Spectrum Lab's main window.

Usually the programmable buttons are used to invoke interpreter commands (as explained above). But those buttons on the left side of the main window can also be controlled through SL's command interpreter. Here is an example to change the background colour of the first (i.e. topmost) button:

   button[1].color = 0xC0FFFF : REM change background to light Cyan
The format of the hexadecimal colour codes is similar to HTML: 0xRRGGBB, where each of the three components (RR=red, GG=green, BB=blue) ranges from 00 = minimum to FF = maximum brightness. 0x000000 is black, 0xFF0000 is pure red, 0x00FF00 is pure blue, 0x0000FF is pure green, 0xFFFFFF is bright white. A negative colour value restores the button's dull grayish background colour.
If the button number is omitted, the interpreter will access the button which is currently been 'executed' (eg. clicked). This way, a button can change its own colour when clicked, or when its hotkey is pressed.

See also:  String expressions, command- and function overview, Index .

Controls on the bottom of the main window

To open an additional control bar on the bottom of the main window, select "View/Windows"..."Control bar on bottom" in the main menu. Some of the controls in the bottom bar are explained below (but not all, because this is still "in the making"). If this control bar is visible, the bottom of the main window may look like this:

The screenshot also shows a part of the main spectrogram. The bottom control bar below it contains an overview of the spectrum buffer (which can be configured through a menu). It only makes sense to turn this control bar on if the spectrum buffer covers a larger timespan than the main spectrogram. If you don't need this control bar, turn it off using the popup menu in the lower right corner.

The Spectrum Buffer Overwiew (in the bottom control bar)

The narrow spectrogram in the control bar contains an overview of the buffer contents. By default, the whole buffer is visible, but you can also zoom in with the buttons on the right side. The part of the buffer which is visible in the main spectrogram is marked with a small red or green rectangle. Red colour means "the main spectrogram is scrolled back in time", green colour means "the main spectrogram shows the most recent data, it is NOT scrolled back".

To scroll back and forth, you can grab the indicator rectangle with the mouse and move it left or right. Because the overview may be zoomed, you can alternatively use the navigation buttons which are explained below.

Navigation buttons to scroll through the spectrogram buffer

The two buttons next to the overwiev can be used to scroll the main spectrogram through the buffer, page-by-page (the left button jumps further into the past, the right button from past to present, until the indicator turns green as explained above).

The two zoom-buttons can be used to zoom the buffer overwiew (they do NOT affect the main spectrogram !). This is helpful if the buffer contains a really HUGE amount of spectrum lines, for example from an overnight recording.

The menu button in the bottom control bar opens a small popup window where you can find some options for the spectrogram overview, one of them is to open the configuration screen with the spectrum buffer settings.

Last modified : 2021-05-15 (fixed chapter numbering via CSS)
