HF(100W), 50 MHz (100W), 144 MHz (100W), 430/440 MHz (75W), 1.2 GHz with optional UX-9100 module (10W).

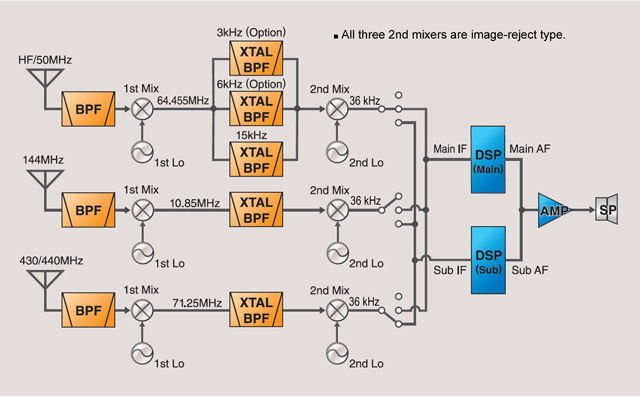

Dual-conversion receiver with I/Q image-reject mixer (as employed in IC-7600, IC-7700 and IC-7800).
IF-DSP (32-bit operation and 24-bit ADC).
Two separate receive chains (MAIN and SUB), each with its own 32-bit DSP, 24-bit ADC/DAC and baseband output.
Main DSP: ADI ADSP-21369 32-bit floating point – 333MHz clock – Processing power = 2000MFLOPS
Sub DSP: ADI ADSP-21375 32-bit floating point – 266MHz clock – Processing power = 1600MFLOPS
Simultaneous dual receive (HF/50 MHz + 144 MHz, or 144 + 430 MHz).
TCXO master oscillator: ± 5 X 10-7 frequency stability (0 ~ +50°C).
Simple band scope (non-real-time).

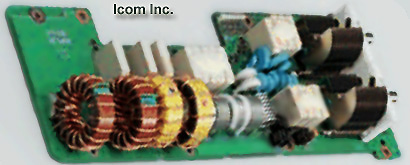

Built-in ATU (HF/50 MHz).
+13.8V DC primary power.
Integral RTTY demodulator and decoder.
GPS position-reporting functions (if UT-121 D-STAR module fitted).

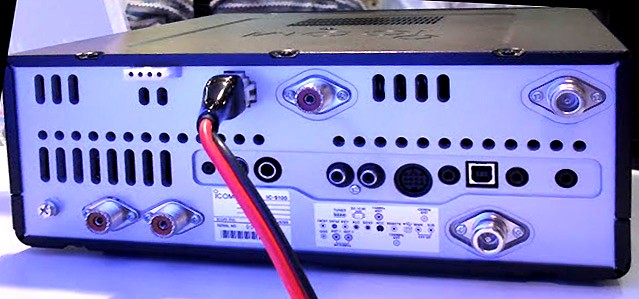

Rear-panel USB "B" port supporting CI-V and TX/RX baseband, for direct computer interfacing.
User firmware upgradeability (Rev. E2) via USB "B" port

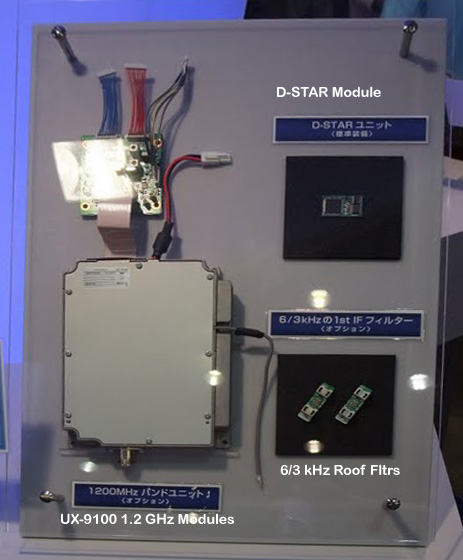

The optional UX-9100 1.2 GHz module can be installed in the radio (concept similar to IC-910).
The DV (digital voice) mode is supported by a UT-121 D-STAR module in the IC-9100 (standard in the Japan version, optional in other versions.)

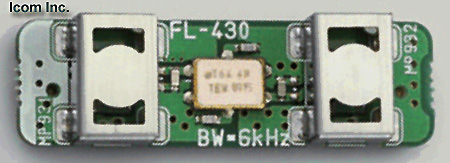

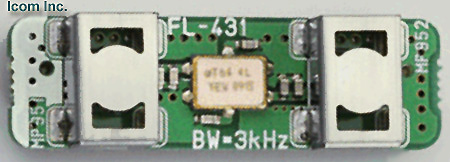

Optional 6 kHz (FL-430) and 3 kHz (FL-431) roofing filter modules can be installed for HF/50 MHz. The default 1st IF filter is 15 kHz wide.
Icom RS-1BA remote-control software suite, allowing full Internet remote control of IC-9100 from computer with Ethernet LAN.
DV mode supported on 28, 50, 144, 430/440 and 1.2 GHz bands.
DV only; no 128 kB/s data.
Watch this page for updated IC-9100 information.
