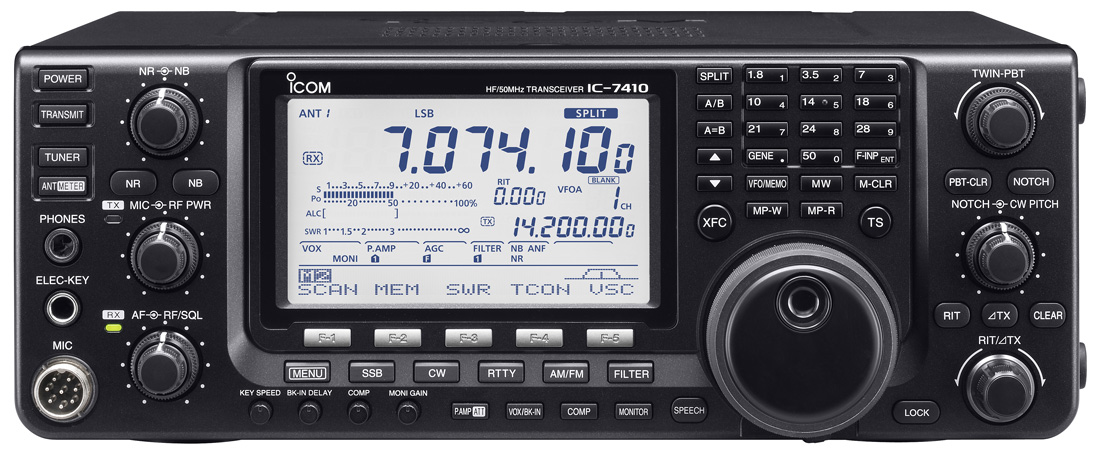

100W HF+50MHz fixed-station transceiver
All mode (AM / FM / SSB / CW / RTTY)
+30dBm IP3 class receiver circuitry (HF)
Dual-conversion receiver with I/Q image-reject mixer (as employed in IC-7600, IC-7700, IC-7800 and IC-9100).
1st IF: 64.455 MHz. 2nd (final) IF: 36 kHz.
Standard 15kHz first IF roofing filter, optional 6kHz/3kHz first IF filters (max. three filters total)
32-bit IF-DSP (at 36kHz IF), the same class as used in the IC-7600, and 24-bit ADC.
DSP: ADI ADSP-21369 32-bit floating point – 333MHz clock – Processing power = 2000MFLOPS.
CODEC: AKM AK4620B high-performance ADC/DAC. Dynamic range: ADC 113 dB. DAC 115 dB.
TCXO master oscillator: ± 5 X 10-7 frequency stability (0 ~ +50°C).
Built-in Antenna Tuner(HF/50 MHz) with motorised air-variable tuning capacitors for accurate matching.

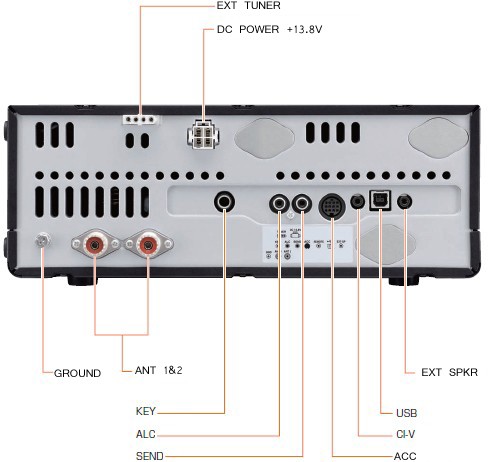

Rear-panel USB "B" port supporting CI-V and TX/RX baseband, for direct computer interfacing.

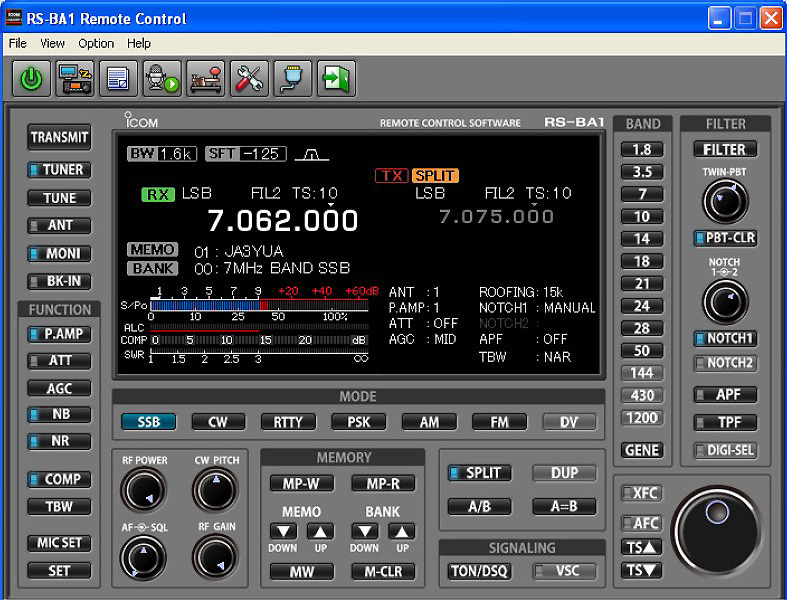

Supports RS-BA1 Internet remote-control software suite.
“Band edge beep alarm” helps users avoid off-band operation.
Integral RTTY demodulator and decoder.
Large B/W LCD screen, ergonomically designed controls.
Simple band scope (non-real-time).
Integral speech synthesizer.
+13.8V DC primary power.
Watch this page for updated IC-7410 information.
The IC-7410 received FCC certification on December 29, 2010. (Enter Grantee Code AFJ, Product Code 318200)
