Installation of options in the IC-9100

by Adam Farson, VA7OJ/AB4OJ

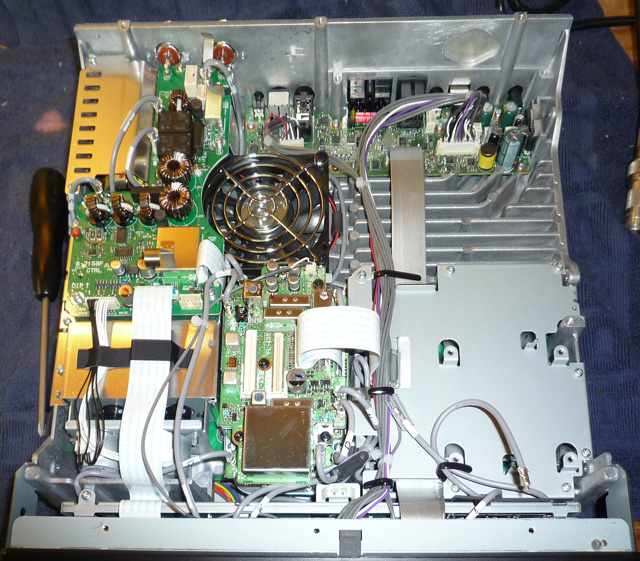

Fig.1: Preparation for option installation.
Fig.1: Preparation for option installation.



Fig.2: Roofing filters installed. (6 and 3 kHz filter modules have different connectors.)
Fig.2: Roofing filters installed. (6 and 3 kHz filter modules have different connectors.)

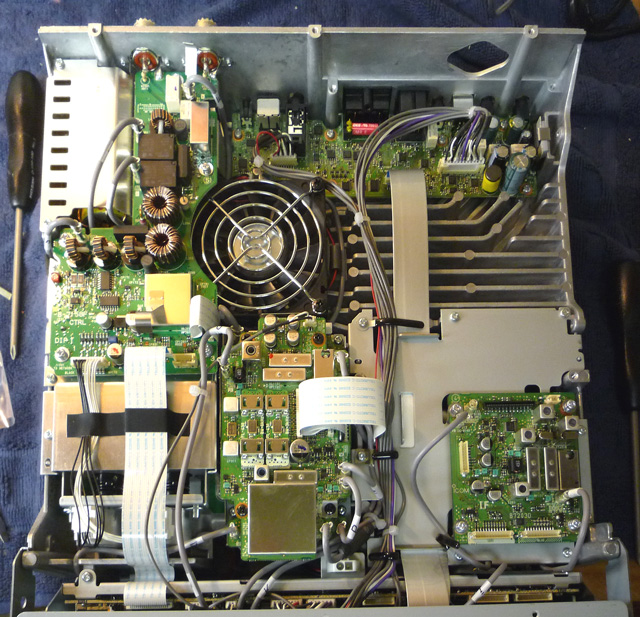

Fig.3: IF board for UX-9100 installed. Note cable routing.
Fig.3: IF board for UX-9100 installed. Note cable routing.

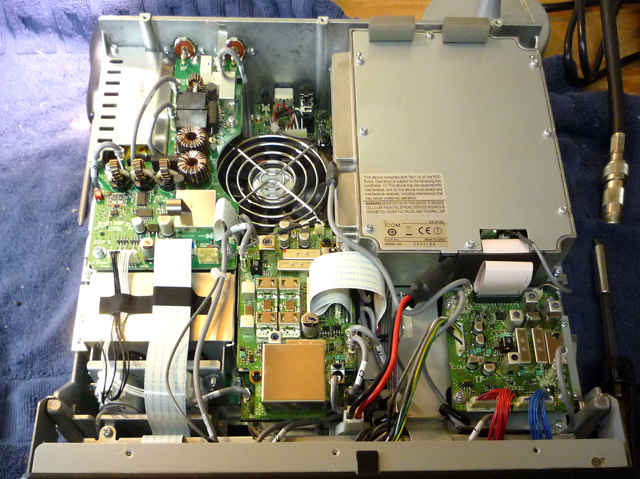

Fig. 4: UX-9100 1.2 GHz module installed. Note fold of UX-9100/IF board ribbon cable.
Fig. 4: UX-9100 1.2 GHz module installed. Note fold of UX-9100/IF board ribbon cable.



Fig.5: Testing MDS at 1.24 GHz.
Fig.5: Testing MDS at 1.24 GHz.
