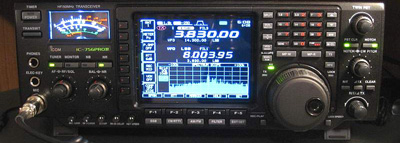

IC-756Pro III

New product information from ICOM


Hot News! The IC-756Pro3 has been discontinued as of late January 2009. See Dave, N9EWO's Radio Receiver Page (link below).

The IC-756Pro III received FCC certification on September 9, 2004 under FCC ID AFJ217800.

Icom  unveiled the new IC-756Pro III at Tokyo HamFair 2004, which took place on August 21 and 22, 2004.

The IC-756Pro III  incorporated the following changes as compared to the IC-756Pro II:

1. Technical and performance enhancements

The IC-756PRO III will incorporate some IC-7800 technology:

  1. 5 MHz (60m) band standard on all versions. (5 assigned channels open on USA version; band can be enabled on other versions with modification.)

  2. Achieves IP3 > +30 dBm (14MHz band standard value). Refer to 1.1 below.

  3. Employs new diodes and coils in the RF BPF to decrease strong-signal IMD.

  4. Uses a low-noise feedback circuit for Preamp 1. This is a noise-free negative-feedback circuit for Preamp 1, which improves linearity at the expense of power gain, without degrading noise figure. This feedback will increase the 3rd-order intercept point and IMD3 dynamic range without loss of sensitivity when Preamp 1 is engaged.

  5. Employs new quad-JFET first mixer. The strong-signal performance of the mixer and its peripheral circuits is greatly improved.

  6. Uses a fundamental-type SMD monolithic crystal filter as the first roofing filter. The fundamental-type crystal filter, as opposed to a filter using 3rd- or 5th-overtone crystals, will have a better shape factor and be less susceptible to intermodulation under strong-signal conditions. Daishinku is the filter supplier. View a typical filter data sheet.

  7. Greatly improved Noise Reduction performance. (Reported by several new IC-756Pro III owners.)

  8. Much-improved CW QSK. The initial element truncation above 20 wpm has been eliminated. (Reported by several new IC-756Pro III owners.)

  9. Improved protection of RX-ANT input.

1.1 More on receiver performance

Paolo Odone I1ODP has measured IP3 on his IC-756Pro III, using two crystal-controlled test-signal sources. The results obtained are presented here.

2. Real time spectrum scope (mini-scope)

The IC-756 Pro II spectrum scope display occupies the lower half of the screen. The IC-756Pro III provides a selectable mini-scope display mode. This allows simultaneous display of the filter, memory-keyer and other menus along with a half-size spectrum-scope display.

3. "Stock" 60m band coverage (receive and transmit)

IC-756 Pro II: No. IC-756Pro III: Yes (USA versions only).

3a. Autotuner coverage of Japanese emergency-communications  frequency (4.350 MHz) in JA version

IC-756 Pro II: No. IC-756Pro III: Yes.

4. New ITU Morse "@" symbol

IC-756 Pro II: No. IC-756Pro III: Yes. The new "@" symbol is provided even with the memory keyer enabled.

5. Programmable transmitted occupied bandwidth (TOBW) settings

The IC-756 Pro II provides three selectable TOBW settings: WIDE/MID/NAR. The lower and upper -6dB points of the transmitted audio-frequency response are fixed for each setting.

In the IC-756Pro III, it will be possible to program each of the three settings individually with the following preset cutoff frequencies:

This will permit the operator to configure his own custom WIDE/MID/NAR selections by "mixing & matching" low and high roll-off points. In conjunction with the bass/treble equalisation menu (also offered in the IC-756Pro II), this new feature offers great flexibility in configuring transmit audio.

6. CLOCK 2 function

IC-756 Pro II: No. IC-756Pro III: Yes.

7. Time difference indication

IC-756 Pro II: No. IC-756Pro III: Yes.

8. Screen saver

IC-756 Pro II: No. IC-756Pro III: Yes. The IC-756Pro III will offer a screen saver similar to that incorporated in the first IC-7800 firmware upgrade.

The feature enhancements in the IC-756 Pro III (Items 2 - 8) are incremental with respect to the IC-756Pro II. There is no change in appearance or basic operation as compared to the Pro II.

9. What is not included

  1. Unlike the IC-7800, the IC-756Pro III does not offer firmware upgrade capability.

  2. The IC-756Pro III is not fitted with a port for the connection of an external TFT monitor.

10. Price

Some U.S. dealers are offering the IC-756Pro III at under $3000. The Canadian dealer price is under CAD 3300. European dealers are quoting prices in the 3100 range.

11. Disclaimer

The information presented on this page is preliminary and subject to change. It may be speculative in nature. No responsibility is assumed for its accuracy, or for the consequences of its use.
