LZ2TU



Synthesizer 4 to 210 MHz for SDR with SI570 for HF BAND+50/PowerSDR

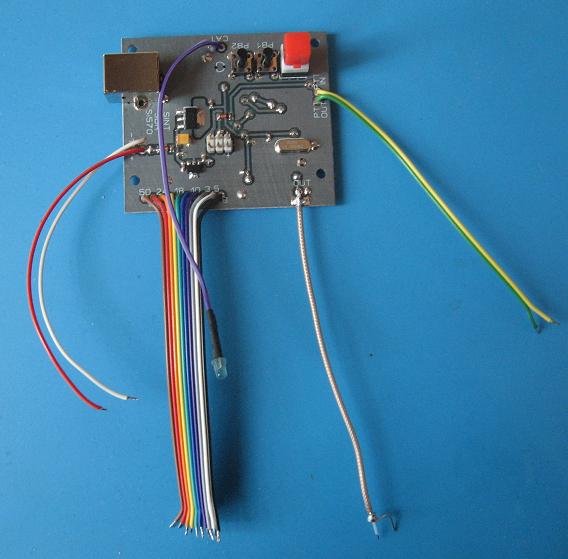

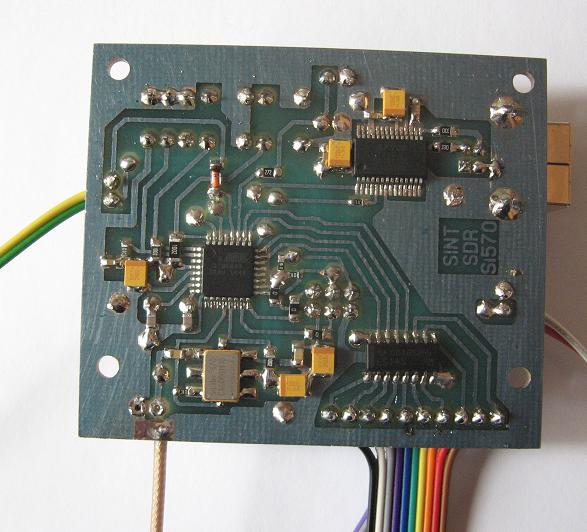

KIT-570-1



s

s


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Description:
The Synthesizer 4 to 210 MHz for SDR with SI570 for HF BAND+50MHz USB Control for testing with every PowerSDR.
KIT-570-1 is Built and Tested
Features:
•Size: 53mm*64mm
•Operating voltage and current : 12V...13.2V 0.15A
•The mInimum output frequency :4Mhz
•The maximum output frequency : 210MHz
•Actual frequency divided by 4 from PowerSDR 1MHz to 52,5MHz
•All wires are 10 cm long
•Output C-MOS Level with RG178 10cm long
•ON/OFF Push Switch KEY and Push Botons -PB1,PB2 for adjust settings generator to 1Hz
•CAT indicator blue LED-flashing when CAT is not included and constantly lit when the CAT works
•IF by PowerSDR 10000Hz
•KIT-570-1 is Built and Tested from "DOBRI COMMERCE" Ltd. / LZ2TU /

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

MANUAL
for the operating system WINDOWS XP
1.The first time, install the USB driver for FT232RL
Link:
http://www.ftdichip.com/Drivers/VCP.htm
Follow the installation instructions!
Once installed look in Device manager com port is:









2.Install of PowerSDR -
Links: Official site of FLEX:
http://www.flex-radio.com/
I recommend also Programs developed by SV1EIA. PowerSDR-IQ
which has a video clip:
http://powersdr-iq.software.informer.com/
MANUAL instalation (click)



---------------------------------------------------------------------------------------------------------------------------------



KIT-570-1 PRICE $63 with $10 Shiping






---------------------------------------------------------------------------------------------------------------------------------
