INSTALACION-PowerSDR-IQ-v1.12.20 -SV1EIA









For the operating system WINDOWS XP
The first time, install the USB driver for FT232RL
Link:
http://www.ftdichip.com/Drivers/VCP.htm
Follow the installation instructions!

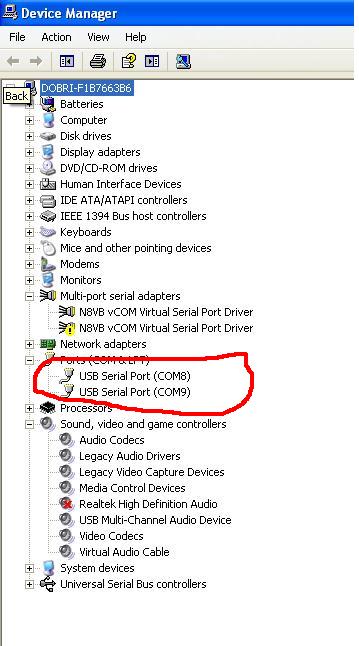

Once installed look in Device manager com port is:



eg ports are 8 and 9(to you may be different eg 2 and 3 / 4 and 5)

The first port is for CAT

Second port is for CW







Before installing maybe after installing PowerSDR-IQ V1.12.20 announces to install a program ASIO4ALL_2_11_Beta1_English.exe

download link http://www.asio4all.com/ she is free to download.
INSTALLATION AND SETUP OF PowerSDR-IQ v1.12.20
Start the installation and follow the instructions for installation as initially select as USER only you
to use and not all that's required then you can access hidden files in C: \ Documents and Settings.
After installing the program display of MY PROGRAM icon on your desktop and launch the installed
program you have installed some program NET Framework ... Sp1 program will inform you and drag
from the website of Microsoft. After installing those missing programs run the program again it will start
To create a directory which takes about 5 minutes after you create a window and follow the instructions:

Selects " with Si570" and audio card "unknown", then this procedure will open the work program and then on first time may place these settings:

-------------------------------------------------------------------------------------------------------------------------------

1.
Setup: General:





Bookmarking:(as the picture)SDR(Si570) LPT Adress = 0 (zero) Expert : ONLY on IF(Hz) = 10000

---------------------------------------------------------------------------------------------------------------------------------

2.

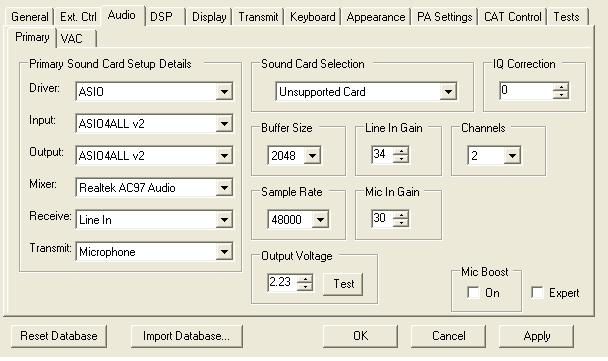

Audio:Primary



Driver:ASIO - Automatically installed

Input: ASIO4ALL v2- Automatically installed

Output: ASIO4ALL v2- Automatically installed

Mixer: your audio card

Receive: Line in your audio card

Transmit: Microphone in your audio card

Buffer Size = 2048

Line in Gain = from 0 to 100/nice medium/

Sample Rate : size your audio card 48000 or 96000 or 192000

Mic Boost: from 0 to 100/nice medium/

After connection CAT push Test and and follow the instructions .... you should hear a clear sound finally!

3.

Opcions






Bookmarking:(as the picture)

4.

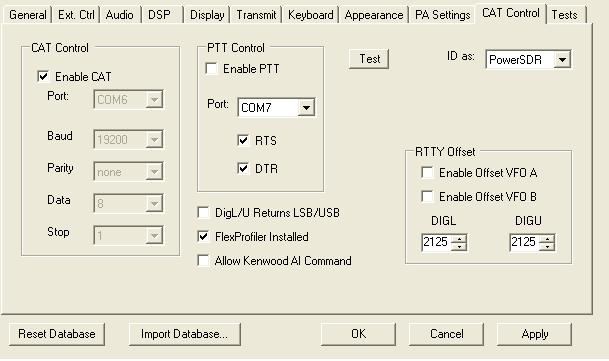

CAT Control






Bookmarking:(as the picture)

Port: see in Device manager(click)

Boud = 19200 for SKY-209 , SKY-221, SKY-221s and KIT-570-1(Synthesizer 4 to 210 MHz for SDR with SI570 for HF BAND+50/PowerSDR )

CAT be powered blue LED constantly
when CAT is not connected the blue LED flashes

5.

Now run the Start of PowerSDR








Can now listen to any radio station, but you have to make calibration frequency to make calibration level
and to suppress the mirror channel ....

6.

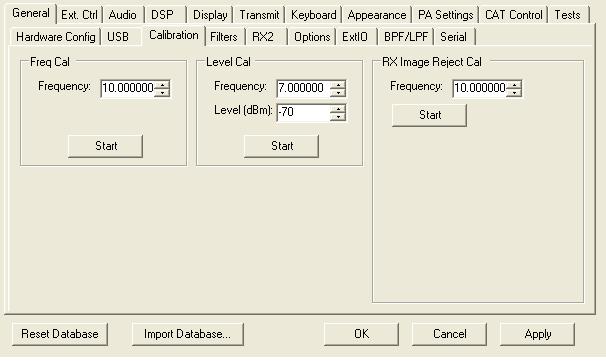

Now Go: Setup - Calibration






Can now listen to any radio station, but you have to make calibration frequency to make calibration level
and to suppress the mirror channel
There are two methods of calibration: the first with a signal generator and the second local broadcast
stations
With the first method, all three settings can be an example 10.000000 frequency Hz
the second method is to comply with local transmitter accurate frequency and level!

Freq Cal : frequency calibration can be performed by tuning to a known Frequency Standard like WWV/WWVH on 5, 10 or 15MHz.

Level Cal: frequency calibration can be performed by tuning to a known Frequency Standard like WWV/WWVH on 5, 10 or 15MHz or in concert radio station

with a high-level . Level (dBm) : -70

RX Image Reject Cal:frequency calibration can be performed by tuning to a known Frequency Standard like WWV/WWVH on 5, 10 or 15MHz or in concert radio station

with a high-level .

When you do these three calibrations can now listen to the bands!!!
