LZ2TU

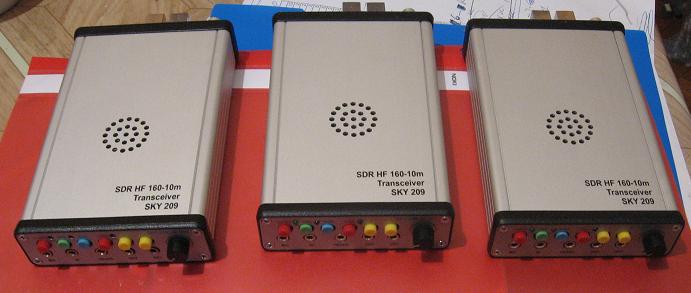

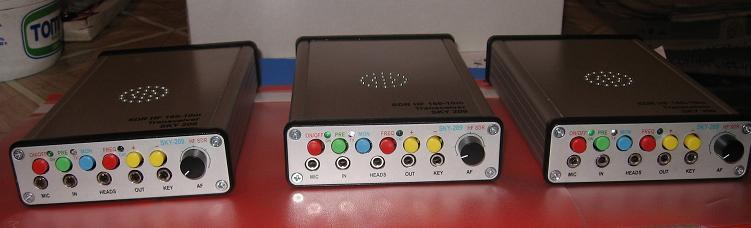

SKY-209 SDR HF 160 -10m Transceiver

5 Watts



100mm x 30mm x 160mm










For lovers of QRP licensed radio amateurs!!!

With a computer and an audio card can operate SSB , CW and all Digital mode!!!

Every HAM has at least one computer in more ....You can use it Now !!!!

SKY-209 handheld radio is almost ... occupies less space and consume less energy!!!
Description:

The  SDR HF 160-10m Transceiver SKY-209 Synthesizer With Si570 and CAT USB QRP 5W  for testing with every PowerSDR.
Transceiver SKY-209 is
Built and Tested.
Features:Size: 100mm*30mm*160mm
•Operating voltage and current : 12V...13.2V /Tx 1.5A/Rx 0.25A
•Power on all band minimum 5W out•AF 1W
•Computer Configuration Pentium IV min 2.4Ghz CPU ,Ram 2GB
•Sound card standard 48khz  integrated or  external higher-resolution 96 or 192 kHz

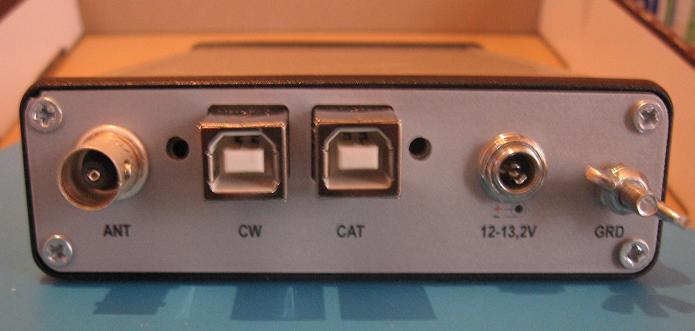

•Ant Output/Input  standard  BNC F
\

•Preamplifier +20db ON/OFF

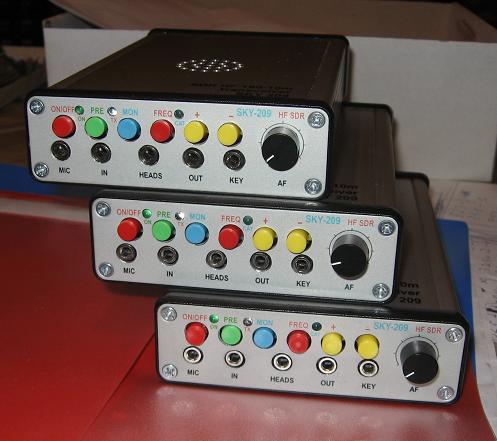

CAT indicator blue LED-flashing when CAT is not included and constantly lit when the CAT works

ON/OFF Push Switch KEY

ON/OFF Push Switch FREQ and Push Botons -"+","-" for adjust  settings generator to 1Hz

ON/OFF Push Switch Monitor

•AF KnobIF by PowerSDR  10000Hz

All Relays - NAIS

PA with RD06HHF1 Mitsubishi

Transceiver SKY-209 is Built and Tested from "DOBRI COMMERCE" Ltd.  / LZ2TU /
Kit contains:-SKY-209  Transceiver -1pcs

-Power cable with fuse -1pcs

-Audio cables stereo 3.5mm jack /HAMA/-2pcs

-USB cable -1pcs-Hand Mic with push switch for PTT and 3,5mm jack -1 pcs /OPTION/

-Manual for SKY-209

-WARANTY

---------------------------------------------------------------------------------------------------------------------------------

MANUAL instalation (click)

---------------------------------------------------------------------------------------------------------------------------------








SDR SKY-209 PRICE 350 EURO+Shiping 23 EURO






---------------------------------------------------------------------------------------------------------------------------------
