10-Element-28Ohm-Yagi for 70cm
|

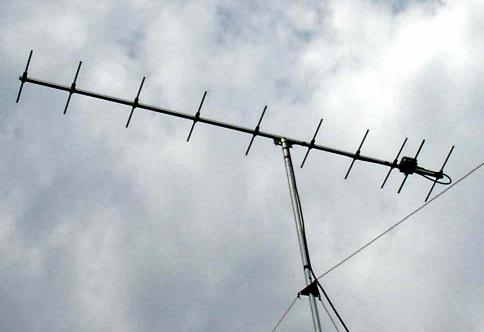

The Yagi, built by Herbert, DJ8QV
|
|
 |
|
|
|
|

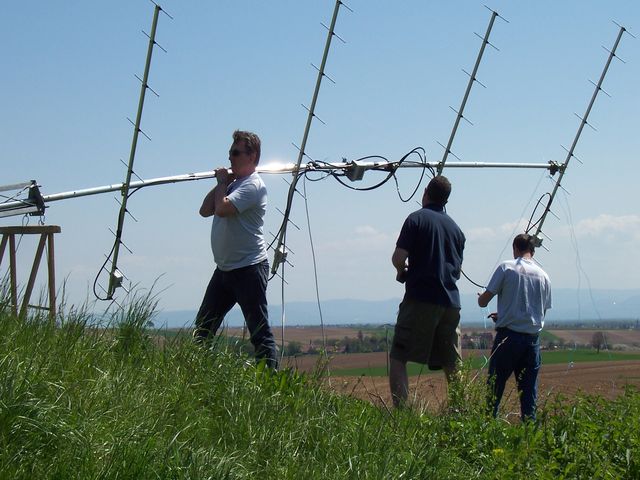

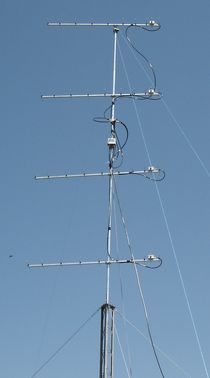

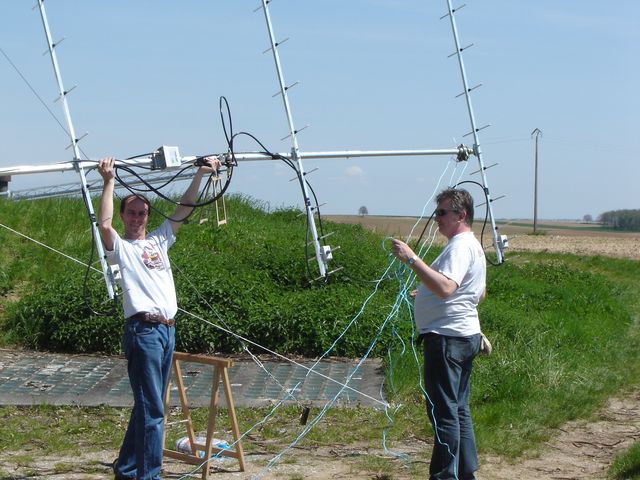

4x10-Element Group Contest Station F8KHH
|
Crew: F5AEG, Laurent F1JFR, Daniel F0EUY, Frédéric F0FJJ, Patrick
|
Click to enlarge the pictures
|
The 2x10-Element-Group with vertical polarisation, built by Ralf, ON4LFE
|
|
Elementposition |
8mm |
6mm |
|
Ref |
0mm |
330mm |
331mm |
|
Rad |
140mm |
314 (10mm) |
315 (10mm) |
|
D1 |
235mm |
302mm |
306mm |
|
D2 |
425mm |
291mm |
296mm |
|
D3 |
650mm |
285mm |
290mm |
|
D4 |
920mm |
277mm |
282mm |
|
D5 |
1205mm |
274mm |
279mm |
|
D6 |
1495mm |
274mm |
279mm |
|
D7 |
1780mm |
279mm |
284mm |
|
D8 |
1995mm |
274mm |
279mm |
|
|
Gain 432MHz = 13,1 dBd 3dB-angle hor = 32,0° 3dB-angle ver = 34,4° Feedpoint 28Ohm at 432MHz Vertical stacking distance 1,30m
|
|

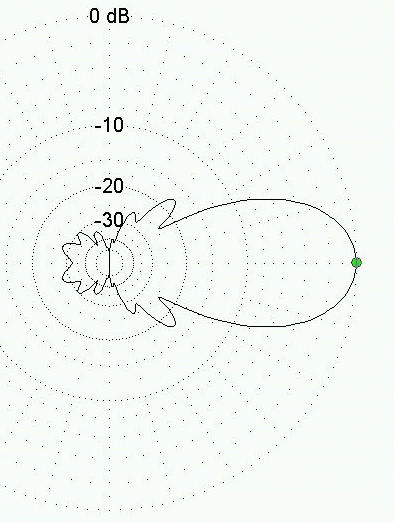

Horizontal pattern at 432MHz |

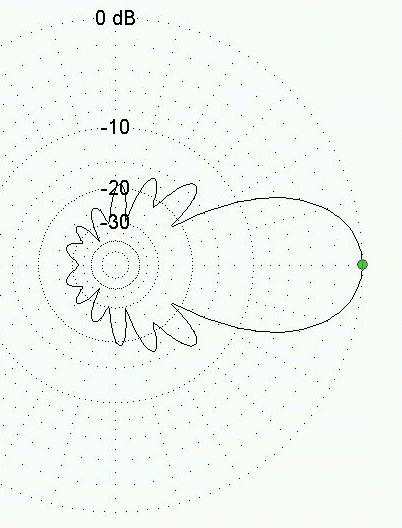

Vertical pattern at 432 MHz
|
