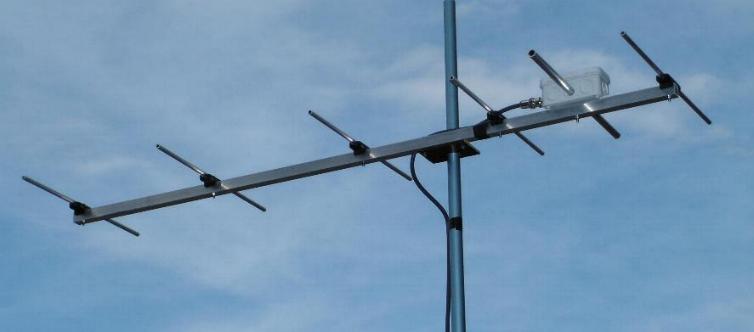

6-Element-28Ohm-Yagi for 70cm

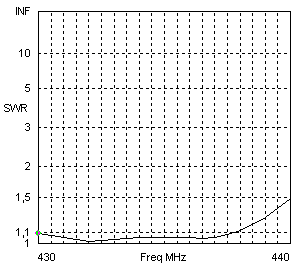

Broadband version for 430-440MHz

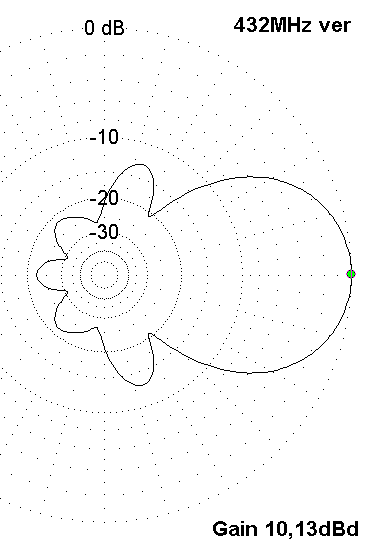

Gain 432MHz = 10,1 dBd

3dB-angle hor = 44,2

3dB-angle ver = 51,6

Feedpoint 28Ohm

Vertical stacking 0,90m



Elementpositions

  Refl Rad (10mm) Dir 1 Dir 2 Dir 3 Dir 4
Position 0mm 120mm 225mm 420mm 645mm 850mm

Elementlengths for Reflector an Directors

Length Refl Rad (10mm) Dir 1 Dir 2 Dir 3 Dir 4
 4mm 336mm 311mm 308mm 297mm 297mm 288mm
 6mm 334mm 313mm 303mm 293mm 291mm 282mm
8mm 332mm 312mm 298mm 287mm 285mm 278mm
10mm 330mm 313mm 294mm 283mm 282mm 274mm
