9-El.-28-Ohm 1,5m |

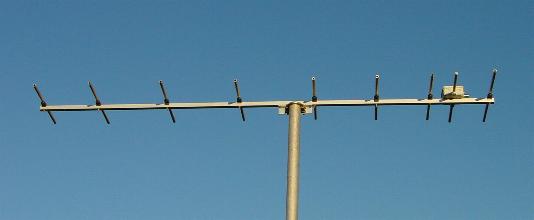

9-Element-28Ohm-Yagi for 70cm
|
|

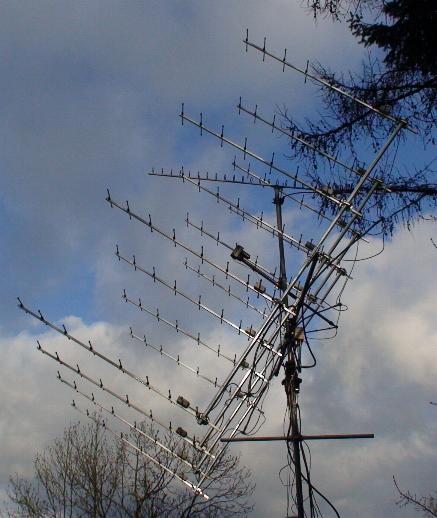

DF0TEC The Contest-crew is mounting 4x9-El-28-Ohm stacked, gain 18dBd
Stacking distance 1,20m |
|
|
Elementposition |
10mm |
8mm |
|
Ref |
0mm |
336mm |
338mm |
|
Rad |
125mm |
314mm
(10mm) |
|
|
D1 |
220mm |
298mm |
302mm |
|
D2 |
400mm |
289mm |
293mm |
|
D3 |
625mm |
280mm |
284mm |
|
D4 |
875mm |
277mm |
281mm |
|
D5 |
1095mm |
273mm |
278mm |
|
D6 |
1300mm |
277mm |
280mm |
|
D7 |
1480mm |
267mm |
272mm |
|
|

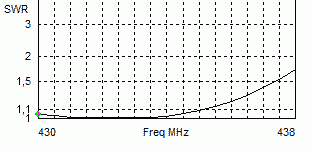

Gain 432MHz = 11,9 dBd 3dB-angle hor = 34,6° 3dB-angle ver = 37,8° Feedpoint 28Ohm at 433MHz
|
|

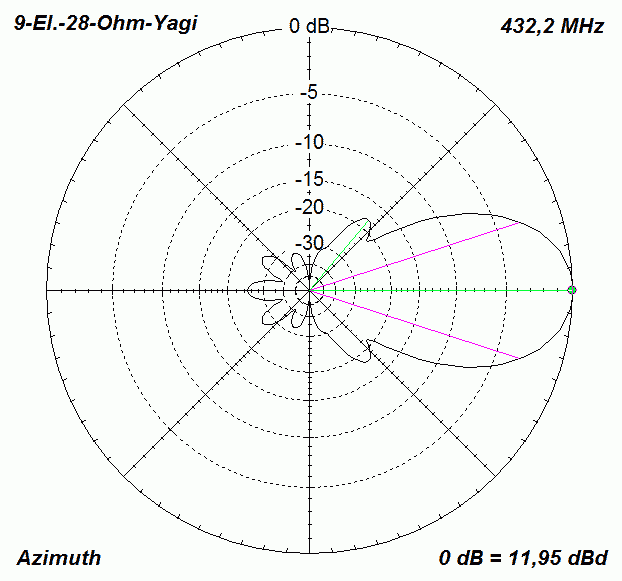

Horizontal pattern at 432MHz |

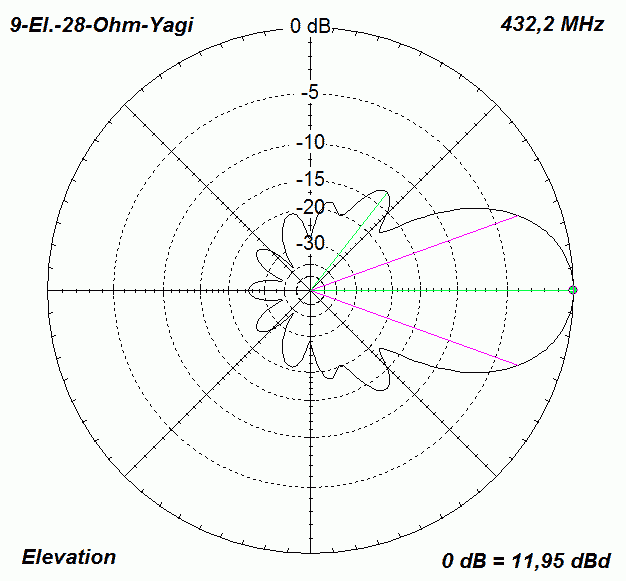

Vertical pattern at 432 MHz
|
