Sheet Metal Press Break
Top
The reason I built this is that I have always struggled to bend small pieces of sheet metal for projects around the house. There are cheap ones around $150-00 that can bend up to 1mm x 500mm wide and ones that do a good job that obviously cost a bit $! and still only bend up to 1mm thick. So in the end I googled and came up with this idea with a piece of channel and angle iron with the idea that I could bend up to 2-2.5mm aliminuim sheet of up to about 400-450 mm wide. All in all I probably spent up to $100-00 NZD for the metal and gas to Tig weld the parts together, but for those that have scrap laying around you could make it for a few bucks.

Here is a short cut to all the photos (Winzip) with a little larger resolution:

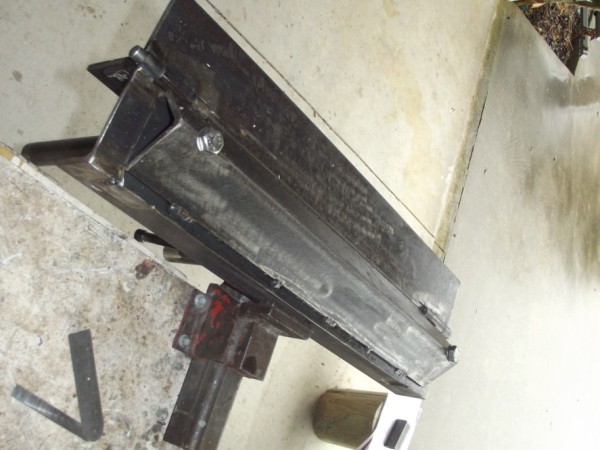

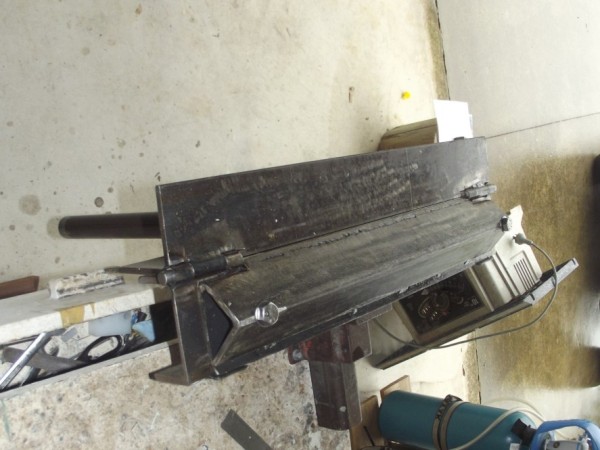

 Completed Press Break




Construction:

I wanted this to be as accurate a spossible, so I took a bit of time measuring things out and as usual, all the plans are in my head, so I make thing work as I go along.

The main 3 pieces are the channel which is the base support to clamp in a vice or to a table, the next is the actual bending lever and then the clamp down to keep the sheet metal in place.
This part I changed so the wide angle was facing down, which I then enclosed with a 90mm x 3mm sheet metal strip to give a sharp edge as well as supporting short lengths of sheet when bending which gives the maximun press grip of the sheet metal and also I can bend past 90 deg.

The channel iron is 100mm x 60mm and 6mm thick; the bending piece 85mm x 85mm  angle; the pressure plate is an 65mm x 65mm whith a 100 x 3mm sheet welded on to the bottom.

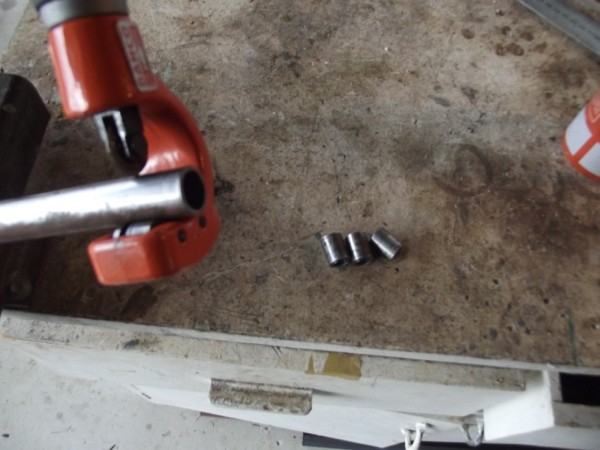

3) Cutting the hinges. I used 12mm steel rod and had some 12.5 mm ID and 16 mm OD diameter tube. I reckoned the tube would tighten up when welded, which it did nicely 4) Hinges ready for mounting. using a tube cutter is really the way to go. The lenth for each hinge is 2 x 20mm and 1 x 40mm piece of tube and 1 x 85mm steel 12mm rod. I left this rod extended so I coule take the brake apart for storage.

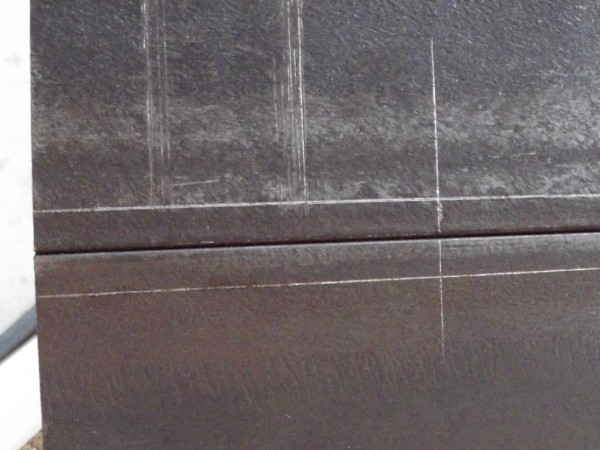

1) Pieces layed out ready for marking. All pieces were cut to 600 mm long by the engineering yard where I bought the steel. 2) Marking the hinge groove on both the angle and channel iron which I then cut with an angle grinder. The hinge groove is 8 mm2 on each piece both ends 80 mm long

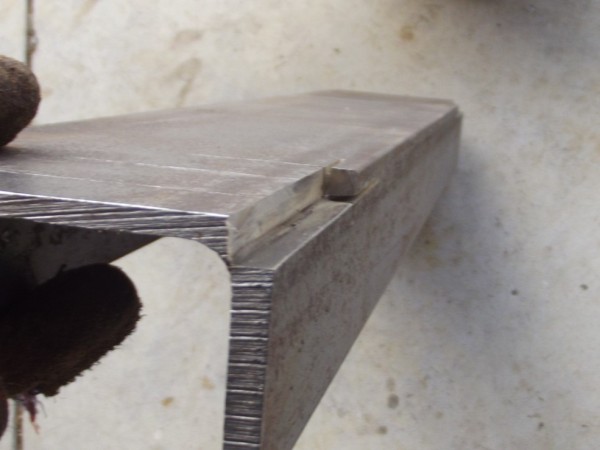

5) Hinge slot 6) All slots cut and ready to seat the hinges

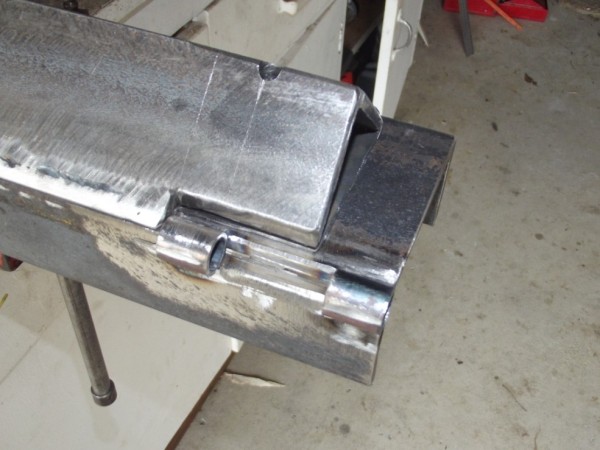

7) Here you can see the top press with the sheet metal welded to the bottom 8) Looking from the front


9) Presser foot, notice the flat sheet welded on the bottom gives a nice sharp edge. This gives nice sharp bends

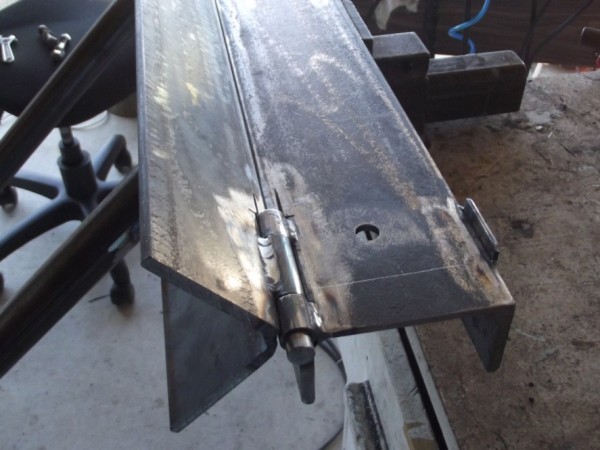

 10) Stopper welded at the back. This stops the presser plate from moving back when bending thicker sheets, works a treat!




11)Nice side view, M12 SS bolts. i wanted to use M16, but only had these available and seem to work ok 12) Pull handles, nice heavy duty 3mm wall tube.
