Frequency range: 450-482 MHz
Channels: 8 at 25kHz spacingTransmitter:
Power output 4 watts
Modulation FM 16F3 5kHz max deviation
Receiver:
Sensitivity 20 dB quieting = 0.5 microvolts
12 dB SINAD = 0.35 microvolts
Selectivity - EIA SINAD = -70dB
Intermodulation = -70dB
Image rejection = -60dB minimum
Audio output = 500 milliwatts at less than 5% distortionBattery: 8 volts Nickel-Cadmium
|
*"TACTEC
= Totally Advanced Communications Technology"
|
||
The American built RCA Tactec was a UHF FM portable radio introduced into NZ Police service in 1977. It replaced the three channel GEC Courier VHF AM portable which operated in the 139 MHz band and had proved less than satisfactory. The Tactec had eight channels and operated on frequencies in the UHF "D" band (461-470 MHz). Within a few years UHF repeaters were installed in urban areas and repeater linking allowed direct communication with vehicle radios operating in the VHF band. TacTecs remained in service until 1992 when the radio network was upgraded and the UHF service was transferred to a 485MHz voting system. ![]() Constable using Tactec portable on beat duty |

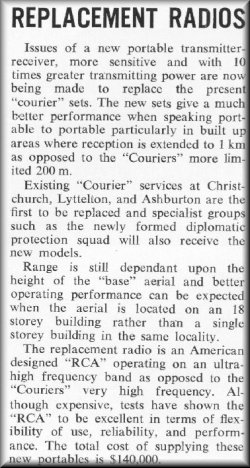

Police Bulletin Article
|
|
|

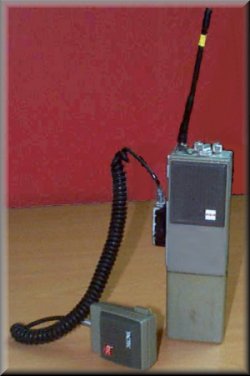

Leather Carrying case |
|||
