VFO and Amplifiers


To learn about the VFO, read the
Circuit Details - Tesla Oscillator
before building this section.

Approximate time to complete 1:06

Preparation

Most of the components for this section come from Bag 5 and 6. Use a VOM (volt-ohm meter) or DVM (digital volt/ohm meter) to measure resistance values on the resistors (do not trust the color codes) and a small magnifying glass to read the numbers on the small capacitors.

____Wind the VFO coil. Use the large toroid, T68-6 (Bag 6, Yellow color, outside diameter 11/16"), and cut a length of wire 16" long. Start with 1" of wire on the end where you start. Wind 18 turns on the toroid and put a 30 degree gap between the ends of the winding. A turn is counted each time the wire passes through the center of the core.

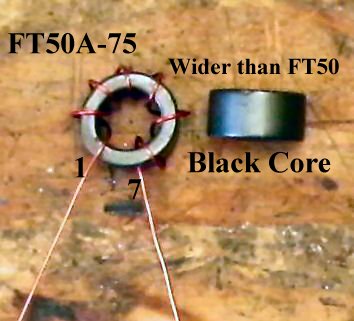

____Wind one of the FT50A-75 ferrite cores (Black color, Bag 4) that is used at the 5V input to the VFO. Measure 8" of wire and put 7 Turns on the ferrite core. Wind evenly around the core with a 30 degree space between the ends of the winding. This is the VFO RF Choke.

____After winding the cores, trim the excess length, and scrape the enamel off the wire on the ends as close to the toroid/ferrite core as possible. Then flow solder onto the wires.

Please Note!: Pre-tinning the wires shows where you missed scraping the enamel and makes a good solder connection on the board.

____Mount spacers on each side of the board on the four corners to provide support for insertion of parts and easy soldering.

The roll of tape is holding up the board so all the spacers can be seen. Using the spacers
in this manner helps insert parts and provides a stable platform for soldering.

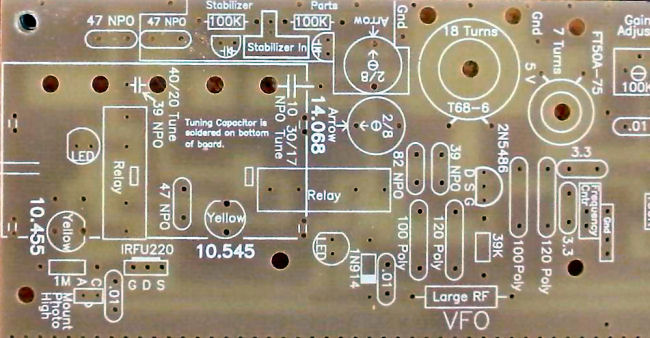

Begin each section by filling in the parts that have the value inside their footprint. They are the following:

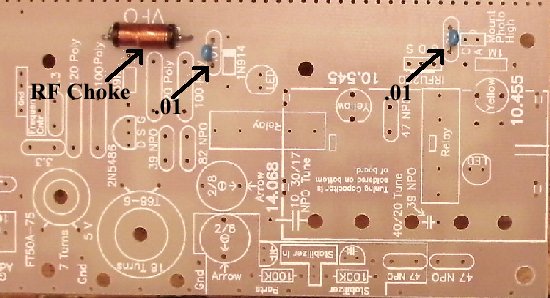

____1 - Large RF Choke (Bag 3), Footprint on PCB is a rectangle with square edges, "Large RF" inside the rectangle. Choke is a wirewound choke about 1/2" long with black plastic ends.
____2 - .01 capacitor (Bag 3), Footprint on PCB is rectangle with rounded edges, ".01" inside the footprint. One is in the picture above and the other is next to the photodiode at the bottom of the board.

Resistors:

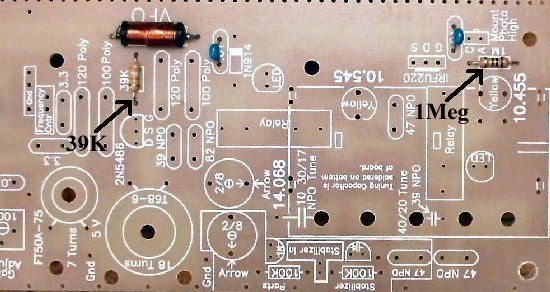

____1 - 1M (Bag 4), Next to photo diode in lower right hand corner.
____1 - 39K (Bag 6), below FET (2N5486) Remember, square edges for resistors, do not put the resistor in the 39pf NPO capacitor footprint.

Capacitors

____1 - 47pf NPO (Bag 5), Orange colored, small square, labeled "470, JCC". Placement of this capacitor depends on whether you are using the stabilizer. If using the stabilizer, capacitor goes inside the stabilizer parts box as shown in the picture above. If not using the stabilizer, capacitor is put in the bottom footprint outside the box.
____2 - 39pf NPO (Bag 4), small, blue colored, short leads, labeled "390J, 201". Also, square shaped, long leads labeled 390K, One is located next to the FET (2N5486).

The second 39pf is located at the tuning capacitor, leave one end unsoldered until the tuning capacitor has been mounted. Bend the capacitor toward the large hole so that most of the lead length is underneath the board. The short lead will barely reach the main tuning capacitor if mounted flush with the board. Push unsoldered lead against the PCB to keep out of the way. Some kits will have one with longer leads.

Solder

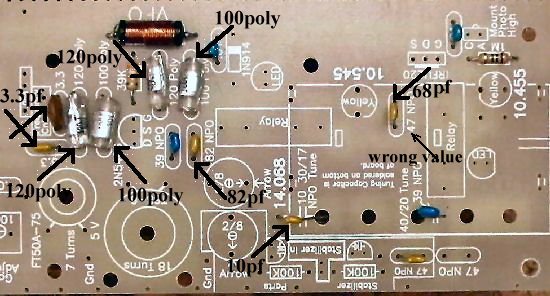

____2 - 3.3pf NPO (Bag 4), Orange colored, small square, leads flared out, labeled "3R3 D", or short leads, grey with black top, labeled "3R3" (R looks like a P). Both located next to the "Frequency Cntr" box. May be a ceramic 3.3pf in kit, note different ones in the picture.
____1 - 68pf NPO (Bag 6), orange colored, small square, long leads, labeled "680". NOTE! Silkcreen is labeled wrong, 47pf is incorrect and put this 68pf in its place.
____2 - 100pf POLY (Bag 5), Clear plastic, tubular part with long thin leads, labeled "100". One next to Relay, one next to FET (2N5486)
____2 - 120pf POLY (Bag 5), Labeled "120". Same as above, both located near the FET.
____1 - 10pf NPO (Bag 5), Orange colored, teardrop, labeled "100, A1J". One lead is unsoldered and goes through the large main tuning capacitor hole. The 10pf will reach 10MHz WWV as well as the amateur bands.
____1 - 82pf NPO (Bag 6), orange, small square, short leads, labeled "820K".

Note: Be careful not to splash solder on the Poly capacitors. Do not remove the solder if you get any on the poly caps. It will be very difficult to remove and could destroy the capacitor. Just check to make sure the solder is not touching one of the lead wires.

Solder

Other Parts:

____2 - Yellow Trim caps (Bag 1), Next to relays, note flat area on body and match to the flat on the footprint.
____2 - LEDs (Bag 3), Red color, next to relays. Match flat of the LED to the flat on the footprint. The short lead is on the same side as the flat. Note: If you ordered the Super Bright LEDs, one can be placed next to the 1N914 diode. See Modifying the LEDs.
____1 - 1N914 diode (Bag 4), black band, very small size. Note band on footprint and mount accordingly. Bend the leads about 1/8" away from the body of the diode for easy insertion into the PCB.

____1 - 2/8 Ceramic Trim cap (Bag 1), Note arrow over one leg, match the arrow on the trimmer to the arrow on the footprint. Clean and tin pins for a good connection when soldering on the board.

Note: Placement depends on whether you are using the stabilizer. If you are using the stabilizer, the trimmer goes inside the stabilizer parts box as shown above and in picture below. If you are not using the stabilizer, the trimmer goes next to the 14.068 text.

Be careful soldering the yellow trimmers, the tabs are difficult to solder. Check the following picture and make sure yours does not look like this:


Add more solder to fix.

____1 - Photodiode (Bag 4), Square body with tiny bubble, mount with bubble as shown on footprint, Mount as high as possible straight up. Short lead is cathode "C". See inset in picture below (upper right side).

Solder

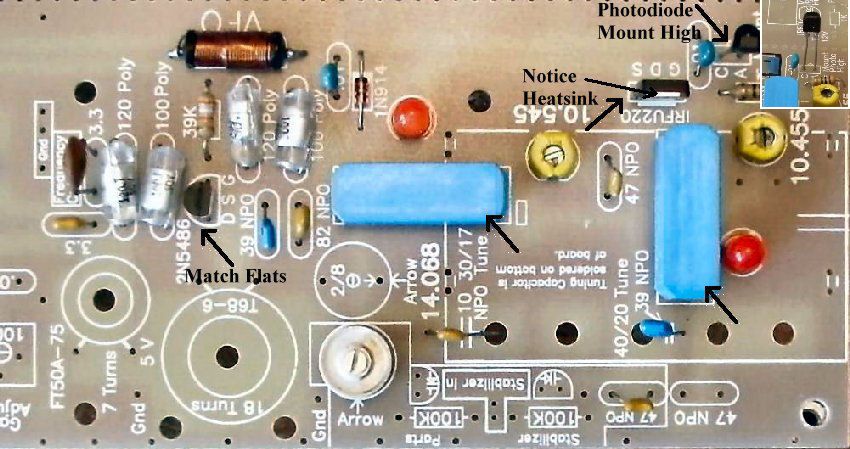

____1 - IRFU220 (Bag 2), static sensitive part, please touch a ground wire before taking it out of the bag. Note thick white line on footprint, this shows where the heat sink of the part should be mounted. Marked "FU220, IR 625T, 32 03".
____1 - 2N5486 (Bag 4), Spread the end pins slightly so they fit through the holes. Do not force all the way down onto the PCB and stress the pins. Note flat side of part and match to the flat side of the footprint.

Solder

____2 - Blue Relays (Bag 4), Do not bend the pins of this relay when mounting/soldering on the PCB. The pins are very fragile. Orientation does not matter (Coil is the two center pins, relay is the two outer pins).

Solder each one individually

Important Blue Relay mounting information!

1. Clean and tin the pins with solder before mounting to ensure a good solder joint. Wipe the excess solder to the top of the pin so the pins will fit in the holes. The pins can be difficult to solder without pre-tinning.

2. Be sure to mount the relays flush with the board. If mounted slightly off the board, the relay will flex back and forth while handling the board, and break the pins between the relay and PCB.

____1 - T68-6 toroid core, enameled wire (Bag 6), Pre-wound, as per instructions under the title "Preparation". Do not tie down on the board until the 14 MHz frequency has been set.

You can use a tie wrap, using the center hole and any hole around the core, or use a screw and nut with a 3/16" rubber grommet inside the toroid. (Parts not provided in kit)

____1 - FT50A-75 Ferrite Core, enameled wire (Bag 4), Pre-wound as per instructions under the title "Preparation".

A small 3/16" grommet can be cut to fit inside the core, and with a 3/4" long screw and nut (4-40's), use the hole in the middle of the footprint to hold the ferrite core onto the board. (Parts not provided in kit)

This picture shows the VFO and RF Choke held down with 4-40 nylon screws, 3/16" rubber grommet, and a metal 4-40 screw underneath the board.

Solder

Arrows point to the dual holes and tiny rectangles that indicate where the feet of the main tuning capacitor will be soldered. Note the outline of the capacitor. The main tuning capacitor is soldered underneath the board. Small U shaped wires are placed in the holes and held down with masking tape. Then the board is turned over and the legs are soldered to the U shaped wires and the ground plane.

____1 - 5 section tuning capacitor (Bag 1), Because of its weight and size, best to mount after all the other parts have been mounted on the PCB. Information for mounting the tuning capacitor is at the end of the instructions for Board 1: First Mixer, Post-mixer Amplifier, Crystal Filters.

VFO Amplifiers

Approximate time to complete 0:52

Mount the parts that have the values inside the footprint. They are the following:

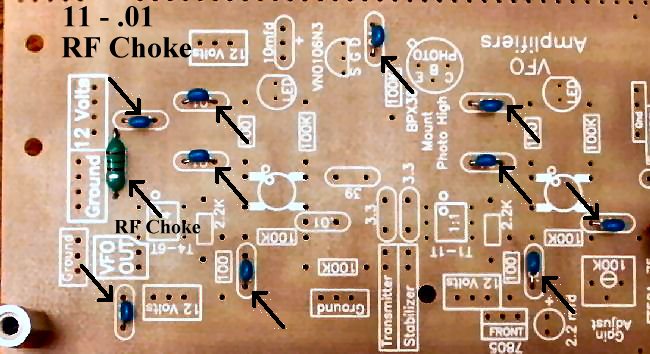

____1 - RF choke (Bag 3), Off the 12 Volt connection on the PCB, Footprint on PCB is a rectangle with square edges, "RF" inside the rectangle. Choke is about the size of a 1 watt resistor with rounded edges.
____11 - .01 capacitors (Bag 3)

Solder

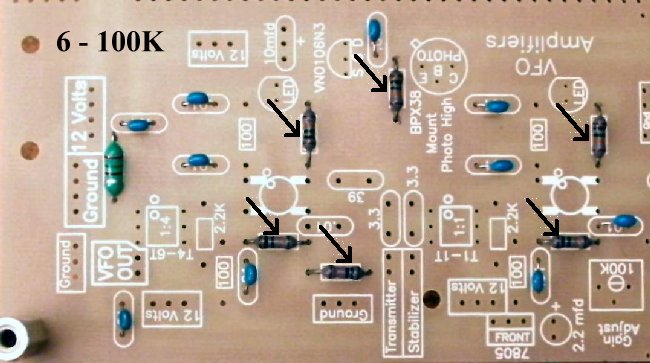

____6 - 100K resistors (Bag 3), (brown, black, yellow)

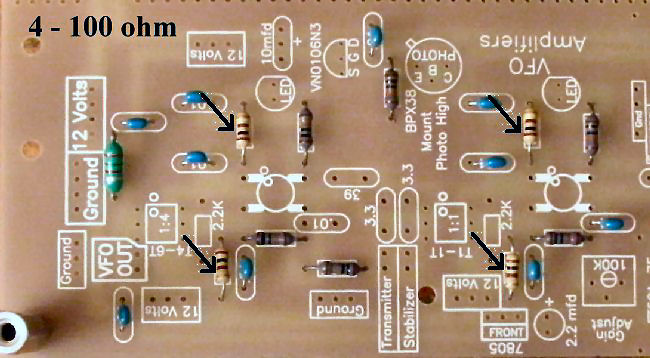

____4 - 100 ohm resistors (Bag 3), (brown, black, brown)

Solder

Resistors:

____2 - 2.2K (Bag 4), Next to the 1:1 and 1:4 transformers

Capacitors:

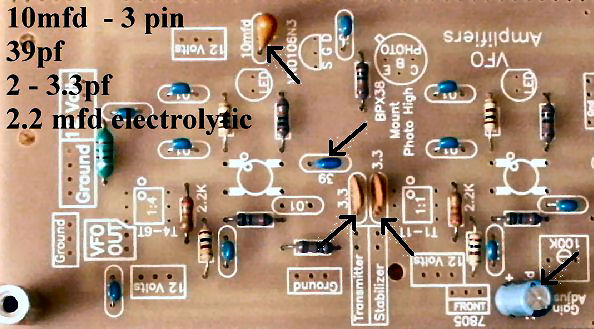

____1 - 39pf NPO (Bag 4), small, blue colored, short leads, labeled "390J, 201". Located at the left of the second MOSFET.
____1 - 2.2mfd Electrolytic (Bag 4), Next to 7805 Regulator, please note that the negative (-) side of part is marked. The + (Plus) side is marked on the silkscreen.
____1 - 10mfd Tantalum, 3 pin (Bag 4), The center pin is positive, two outer ones are ground, this part is used in automatic insertion PCB work so that it never gets put in wrong, located below the second MOSFET near the LED. Orange colored, with three short pins.

____2 - 3.3pf NPO (Bag 4), Orange colored, small square, leads flared out, labeled "3R3 D", or short leads, grey with black top, labeled "3R3" (R looks like a P). Located next to the boxes "Stabilizer" and "Transmitter".

Solder

Other Parts:

____1 - 100K trim pot (Bag 5), located above first MOSFET, black or blue color. Turn adjustment screw all the way clockwise for the Black trimpot; all the way counterclockwise for the Blue trimpot - this gives maximum gain for initial testing and use. Black color, marked "EXP 104" on side. Blue color are smaller than the 10K blue trimmers, marked "104Fd5" on side.
____1 - 7805 Voltage Regulator (Bag 5), notice the text "Front" on the silkscreen and place the front of the regulator (heat sink is back of regulator) as shown on the silkscreen. Labeled "L7805CV".

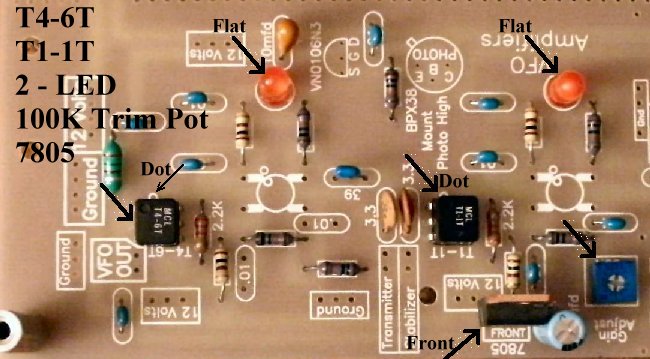

____1 - T1-1T Minicircuits transformer (Bag 4), Note the dot on the T1-1T transformer and match the dot on the silkscreen. The dot on the outside of the footprint can be seen after the part is mounted so that you can double check proper mounting.

Note: Tin all the leads on the transformers - T4-6T and T1-1T - as the pads they solder to are small. This will make a solid solder joint. Wipe the excess solder to the top of the pin so it will fit in the holes.

____1 - T4-6T Minicircuits transformer (Bag 4), Same notes as above, be sure to get the dot in the right place.
____2 - LEDs (Bag 3), Red color. Match flat of the LED to the flat on the footprint. Note: If you ordered the Bright Red LEDs, install them now. Do not use Super Bright LEDs here unless you change the bias resistors. See Modifying the LEDs.

Solder

____1 - Phototransistor (Bag 5), transistor looking part with three leads and a glass face, the "B" pin is not connected to any traces and can be soldered later to help hold the part after it has been aimed at the IR LED across the board. Best to bend the part at a 90 degree angle, to shoot across the board, before soldering on the PCB. Mount phototransistor as high as possible using all the lead length. Inset in picture below shows Phototransistor bent over.

Solder

____1 - VN0106N3 (Bag 2), static sensitive part, touch a ground wire before taking it out of the bag, notice flat side of part and match the flat side on the footprint. Spread the outside leads slightly to fit the footprint. Marked "SI N, 0106, 8302".

Solder

____2 - MOSFETS (Bag 2), (Picture) static sensitive part, touch a ground wire before taking it out of the bag, notice the dot on MOSFET (may be difficult to see, hold at an angle to a light source and you can see the shadow of the dot), the dot is located to the left of the second line of the text on the MOSFET. A dot is placed outside the footprint so that you can double check your placement after it has been soldered to the PCB. The leads on each side of the part need to spread apart slightly to fit the footprint.

Solder

Stabilizer Parts Installation

If you are not using the stabilizer, skip this section and go to "Double Checking Your Work".

____2 - 100K resistors (Bag 3), (brown, black, yellow) Be careful: do not solder over the hole between the two resistors - this is where the output of the stabilizer connects.
____1 - 50pf Varicap (Stabilizer Parts Bag) Marked H66 (or H65). Other part numbers may be used, check Part List in Stabilizer Parts Bag for the part number used. Place in the varicap footprint next to the 47pf capacitor. Match flat of part with the flat of the footprint. Check picture below.
____1 - MV2104 varicap (Stabilizer Parts Bag) Marked MV2104. Place in the varicap footprint next to the 2/8 ceramic trimmer. Match flat of part with the flat of the footprint. Check picture below.

Double Checking Your Work

____Check the dot on the MOSFETs and the Minicircuits transformers.
____Put your VOM in resistance mode and check that the adjustment screws on the trim caps in the VFO are grounded. On the Yellow caps, stick the probe right down in the middle of the cap to get a good connection on the adjustment screw. The 2/8 cap adjustment screw is set above the cap and is easier to get a good connection.

Note: If you are using the stabilizer, the adjustment screw of the 2/8 trimmer will not be grounded.

____Check the flat on the 2N5486 and make sure it matches the footprint.
____Place the PCB in front of a bright light. If you see light shining through any of the soldering holes, you missed a solder connection.
____Did you remember to turn the "Gain Adjust" (1st VFO Amplifier) all the way clockwise for the Black Trimpot, or all the way counterclockwise for the Blue Trimpot?
____Make sure the front (side with lettering) of the 7805 regulator is facing towards the outside of the PCB.
____Make sure the 2.2mfd Electrolytic is mounted correctly, located next to the 7805 regulator.
____Look at all the 100 ohm (brown, black, brown) resistors and check that the size of the footprint underneath the resistor is shorter than the length of the resistor body.
____Look at all the 100K (brown, black, yellow) resistors and check that the size of the footprint is as long as the resistor body. Look for the bright yellow band to find these resistors.
____Check the tab on the BPX38 Phototransistor and make sure it matches the footprint.
