AADE Step 9 Picture

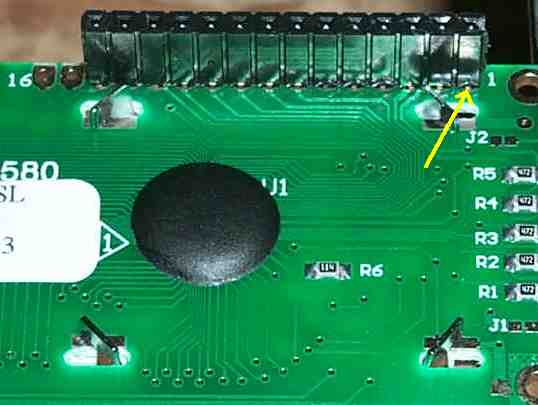

Note the yellow arrow that indicates the proper position of the female header on Pin 1. Pins 15 and 16 on the left side should be left open.
