AADE DFD2 VFO Connection

One end of the 3.3pf cap is connected to the output of the VFO, and the other end is connected to the center conductor of the cable to the VFO connection at the Frequency Counter (middle pair of pads).

The shield of the cable is soldered to the ground plane.

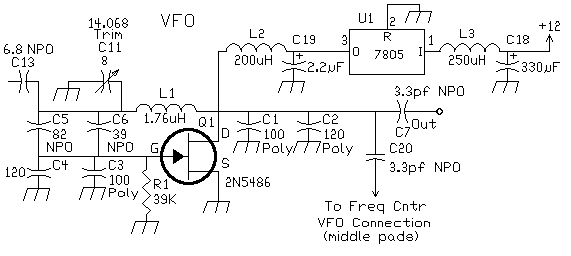

Schematic of Connection
