AADE DFD2 HFO Connection

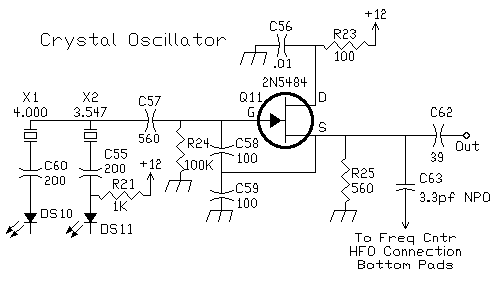

Crystal Oscillator

One end of the 3.3pf cap is connected to the output of the oscillator, and the other end is connected to the center conductor of the cable to the HFO connection at the Frequency Counter (bottom pair of pads).

Schematic of Connection
