W1DYJ's Station in Harpswell, ME
FN 43 xs 91 pj
W 70° 0.16'  N 43° 45.36'

Reviewed: 16 July 2021

We purchased a second home in Harpswell, Maine in 2008.  I started building a new station.
As I enjoy woodworking as well as Ham Radio, using my woodworking skills I turned a small bedroom into my combination ham shack, small workshop, and office.

BUT, A change in plans...
We decided in 2019 that having two houses was a PITN.  We decided to "rightsize" to one house.  We decided that mid-coast Maine (i.e. Harpswell, etc.) was our target location.  We started looking.  Then COVID-19 hit.  This reduced the available inventory of available houses.  After over a year of fruitless searching, we decided to sell this wonderful place, with the hope that we would find a new place soon.  So now the effort is to dismantle the antennas!

July 2021: House sold


Phase — 1 2/440 FM (completed)

> 2M and 70CM FM: with an FT-8800 (now a TM-V71A -- the 8800 is in the Audi)

          > Comet GP-9N at peak of roof (28')

Phase 2 — Low HF (completed)

> Added a "new to me" TS450SAT

          > Built a homebrew 80-40-20 fan dipole, center at 18' (too low!)
          > Converted the shack closet to a small workshop
          > January 2013: replaced TS450SAT with TS590S


Phase 3 — Add 40M/15M Vertical / Add 6M / Improve HF (completed)

          > June 2013: added a InnovAntenna 3 element 50MHz LFA Yagi to "play around" with 6M,
                 on an 18' mast off the northern corner of the house
          > April 2014: added a homebrew 40/15M vertical with 4 elevated radials
          > July 2014: move the 6M 3-el LFA to a rotatable mast 28' above the roof

          > October 2014: convert 80/40/20 Fan Dipole to 80/20/10 Fan Dipole

          > March 2016: convert 80/20/10 Fan Dipole to 80/30/20/10 Fan Dipole on 34' mast

                + Replaced 2/440 Comet with Diamond X50NA at top of mast

                + (Sept 2017) Add loading coils to 80M portion, making it 80M / 160M

          > Sept 2017: add traps and "tail" to add 160 to 80M portion of fan dipole



Phase 4 —  Dismantle the antennas

          > 22 May 2021: Dismantle the 6M Yagi.  BAD timing -- just as summer eSkip was starting.
          > 18 June 2021: Dismantle 40m/15m vertical.
          >  5 July 2021: Dismantle Mast holding 160/80/30/20/10/fan dipole plus 2/44 stick.




Antennas at end of Phase 3:
160M/80M//30/20M/10M Quintuple Fan Dipole at 10M height.
17M/12M Whatever works better at the time!
40M/15M Homebrew elevated 40M 1/4 lambda vertical with 4 elevated (@ 10') radials
6M InnovAntenna 3 element 50MHz LFA @ 28'
2M / 70CM FM Diamond X50NA at 34'



Station Wiring

RF Wiring

Harpswell Station_Wiring.gif (57363 bytes)

Harpswell RF Wiring.gif (53847 bytes)




Phase 3 — 2013-2017
Add a 3-el 6M Yagi and a 1/4 lambda 40M vertical
Improve HF Dipoles

40M/15M Vertical

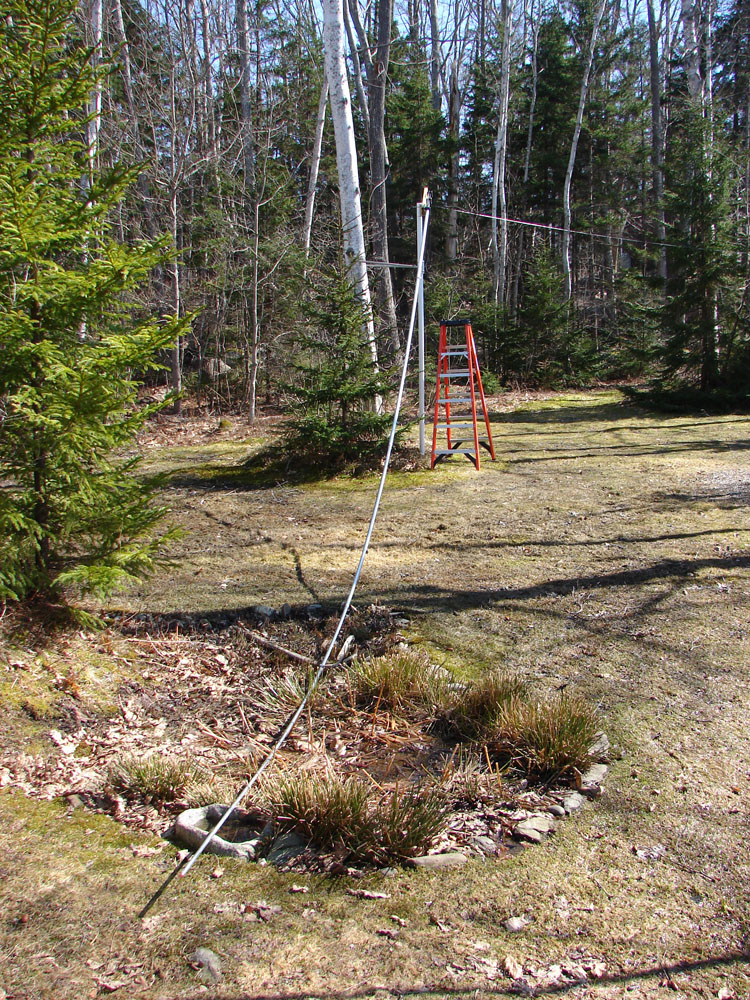

Ready to raise With Raising Lever Ready to Use

6M Yagi

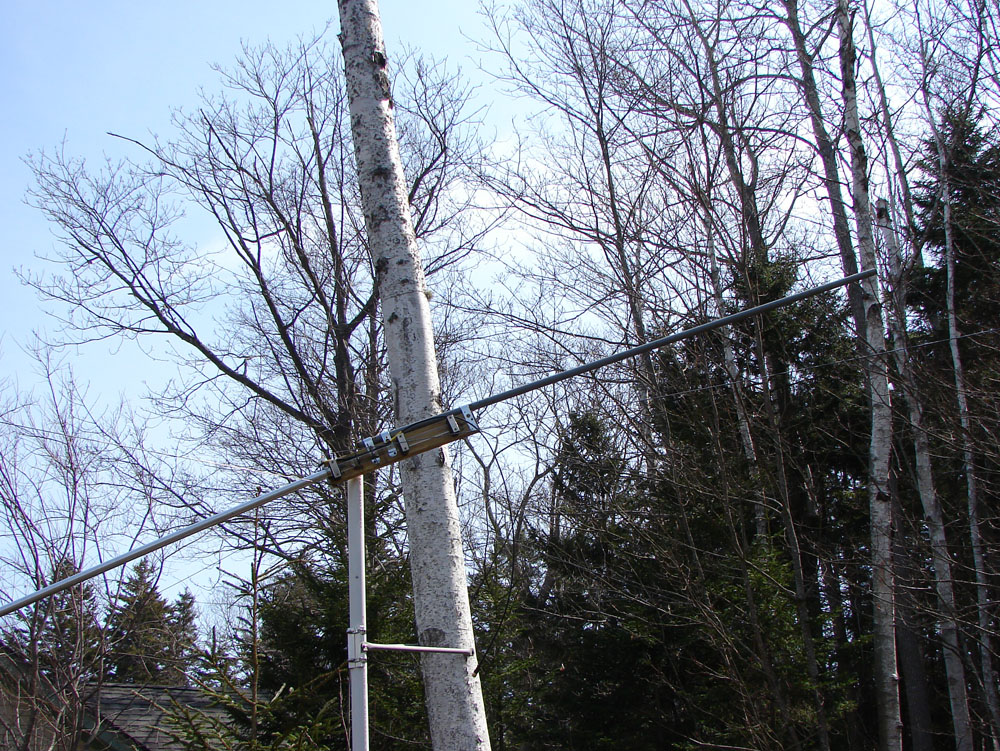

Mounted on rotating mast and ready to raise Pointed West Pointed North

Shack

Updated Fan Dipole

Polyphasers

Heil Goldline
Logging         Pwr Sply         Coax Sw's
MFJ891swr   VHFspkr   TM-V71
                                           SX400swr

     TS-590     HFspkr     VHFrotator
(with 2/440 at top)
160/80 is a loaded dipole
30/20/10 are separate dipoles



Phase 2 — 2011-2013
Add an 80/40/20 Fan Dipole (now 80/20/10) and a TS-450SAT (now TS-590S) to study Low-HF at the site.
The Shack
Coax Switches
Logging Laptop        Rigs        Power Supply
                                                        "Office" Laptop

The Rigs
Heil Mic on Boom
       Speaker
   TM-271     SWR (SX40C)     HP-12C
    HF SWR (MFJ-891)     TS-590S        Power Supply



The desk was purchased.  The shelves are homebrew.

"Workshop" closed up "Workshop" open

The bedroom closet was converted into storage shelves on the right and left, tool storage in the center top, and a small pull-down workbench in the center bottom.

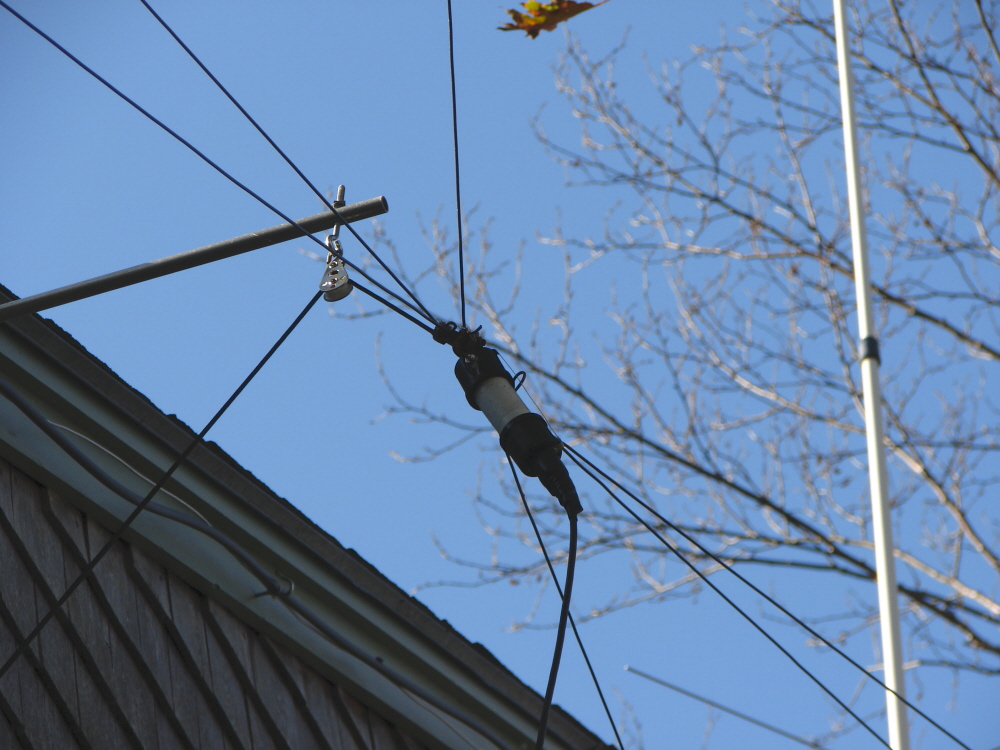

80/40/20M Fan Dipole
(Center Feedpoint)
Note: this is now higher, and on 80/30/20/10

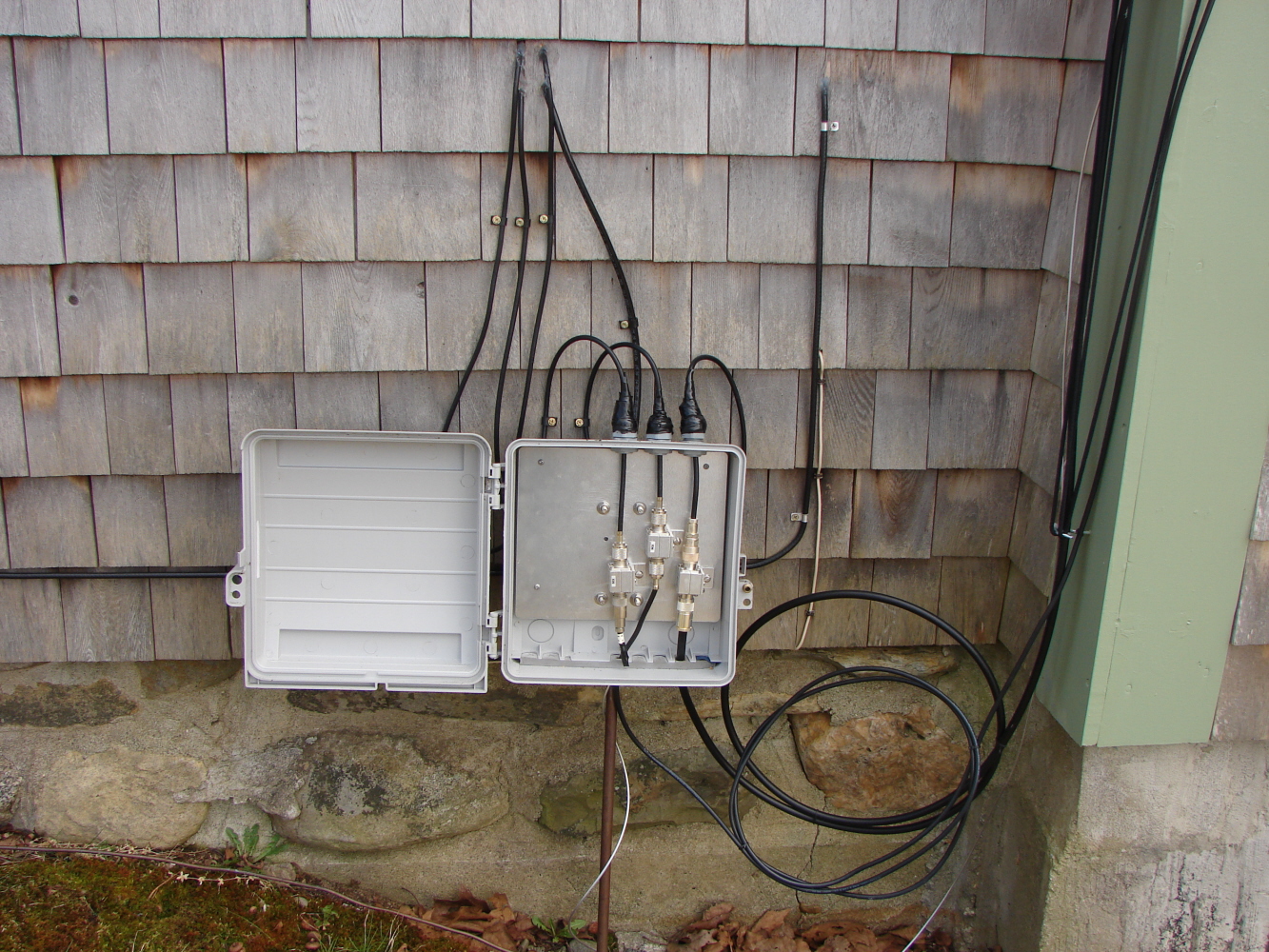

Polyphasers Cables through wall





Phase 1 — 2008-2011
Set up the new shack for VHF/UHF Repeater use.

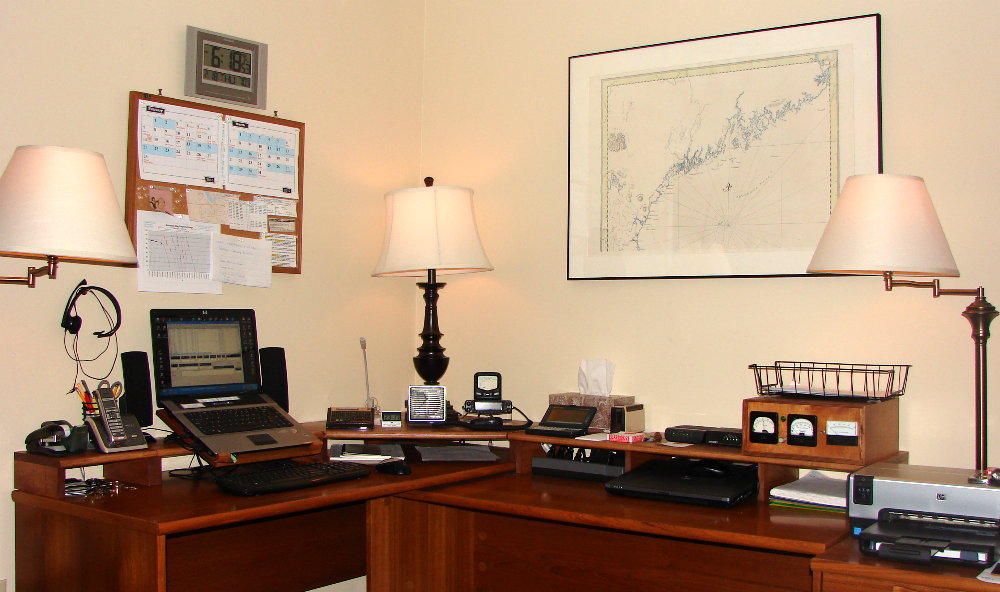

The Shack

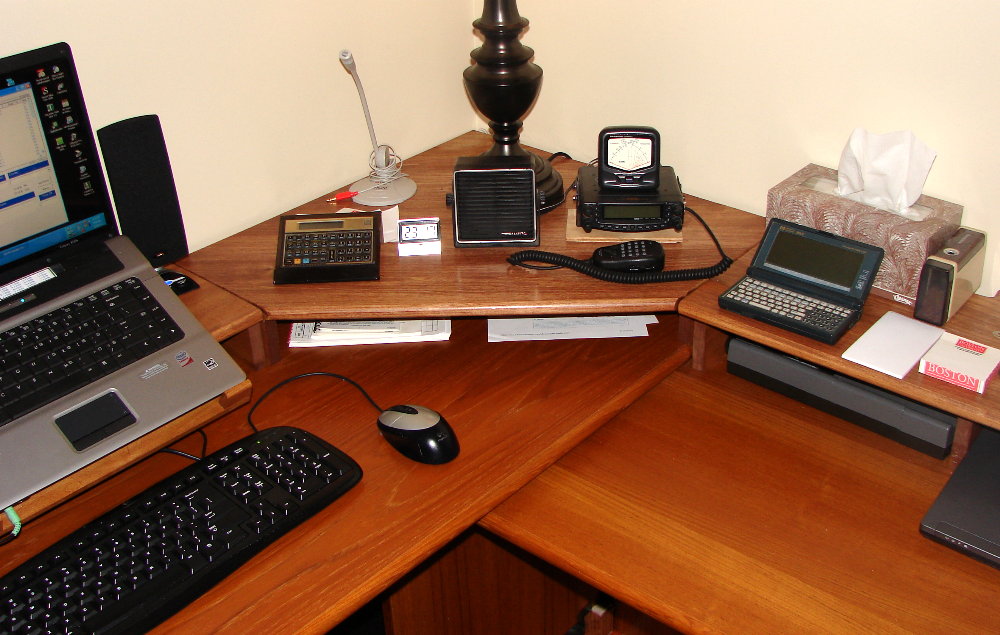

Logging Laptop         Rig      HB Power Supply
The Rig
Logging Laptop      HP12C      FT-8800       HP200LX

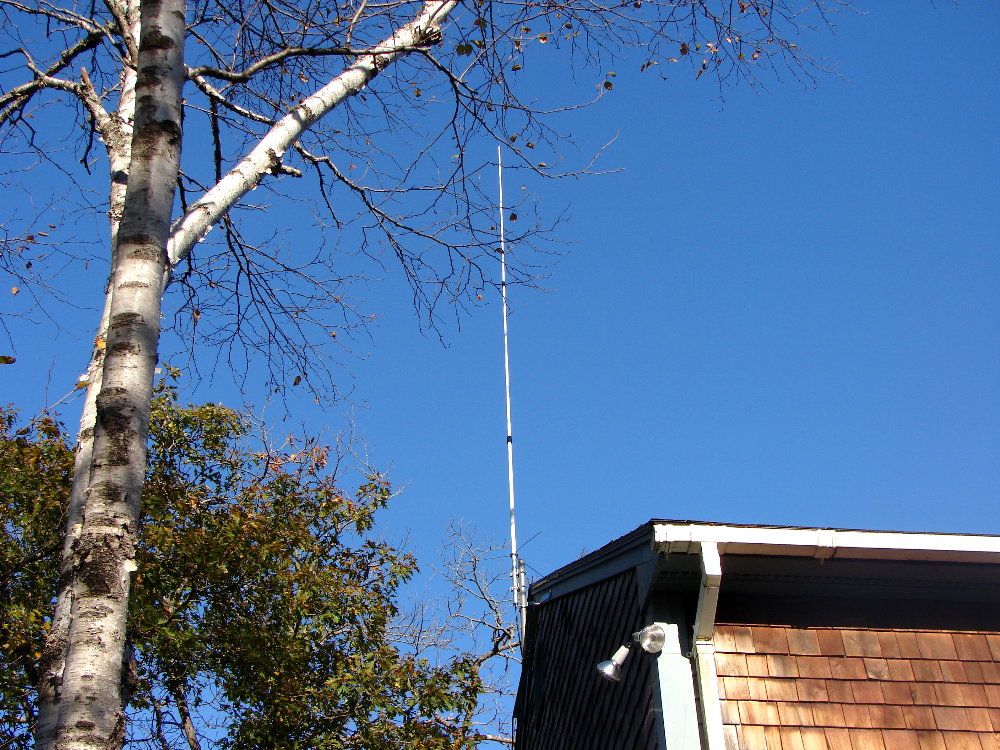

GP-9N — 2M/70cm Polyphaser Lightening Protection Cables coming through wall into shack
