W1DYJ's Massachusetts Station

I purchased a home in Woburn, MA, in 1996 and started building a station.

Starting with a TS-430S, FT-736R and some dipoles and J-poles, I replaced the above with a Kenwood TS-2000 in February 2001.

I added a TS-590SG in February 2020 for HF, continuing to use the TS-2000 for 2M & 70 cm and VHF/UHF FM.

Current Antennas:

160m, 80m, 75m, 40m, 30m A shortened K2KQ Double-L. Vertical portion ~ 25'.
Leg 1 (driven) = 160/40 [Hi Power 2B4016S]
Leg 2 (Coupled Resonant to Leg 1) = 30m
Leg 3 = 80m
Leg 4 (Coupled Resonant to Leg 3) = 75m



20m On HF Roof Tower Homebrew Moxon Rectangle: 36 feet

15m Homebrew Rotatable Dipole: 33 feet
(Also used on 12m and 17m.)

10m Homebrew 5 element Yagi: 30 feet



2m On VHF Roof Tower Directive Systems "K1FO" 12 element: 36 feet

70cm M² 440-18 Yagi: 33 feet

6 m InnovAntennas 3 element LFA Yagi: 30 feet



10m FM Homebrew ground plane in attic

6 FM Homebrew ground plane in attic

220 FM Homebrew ground plane in attic

2 / 440 FM Diamond X50M: 22 feet

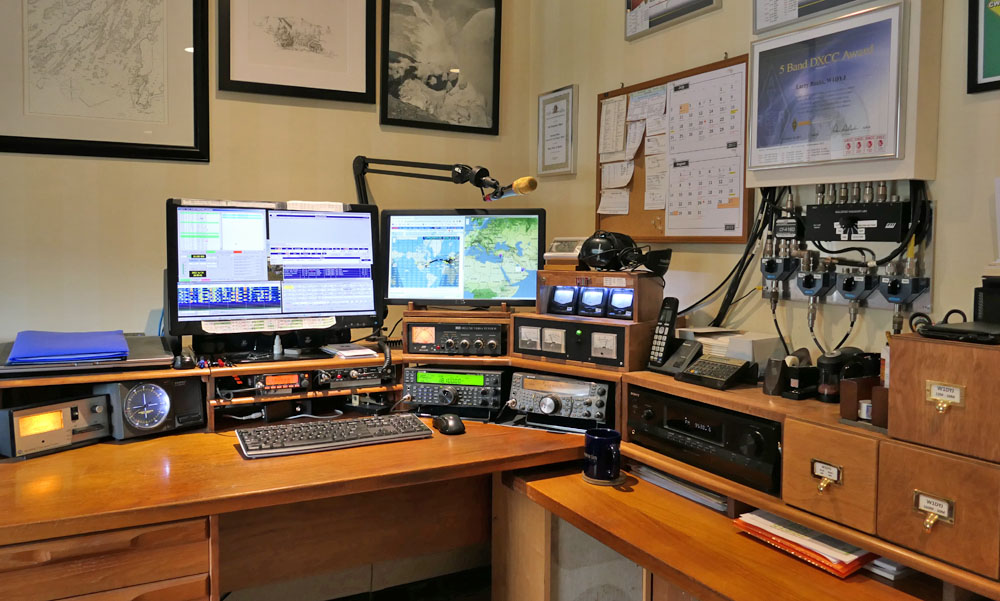

The Shack	Rigs	The Station

	Upper Shelf DR235 - 220 FM \|\| TM-V71 2/440 FM \|\| 6/2/440 SWR Middle Shelf Power Supply \|\| MFJ-949E Lower Shelf TS590SG \|\| TS2000	Left to right on desk VHF rotator \| HF rotator Mic Control TS590SG \| TS2000

VHF Roof Tower

12 el 17' K1FO 2M
M2 440-18
7el 22' HB 6M
[The end of the modified DX-CC and the FM stick can be seen at lower right. The tips of the HF antennas can be seen at upper left.]

The House

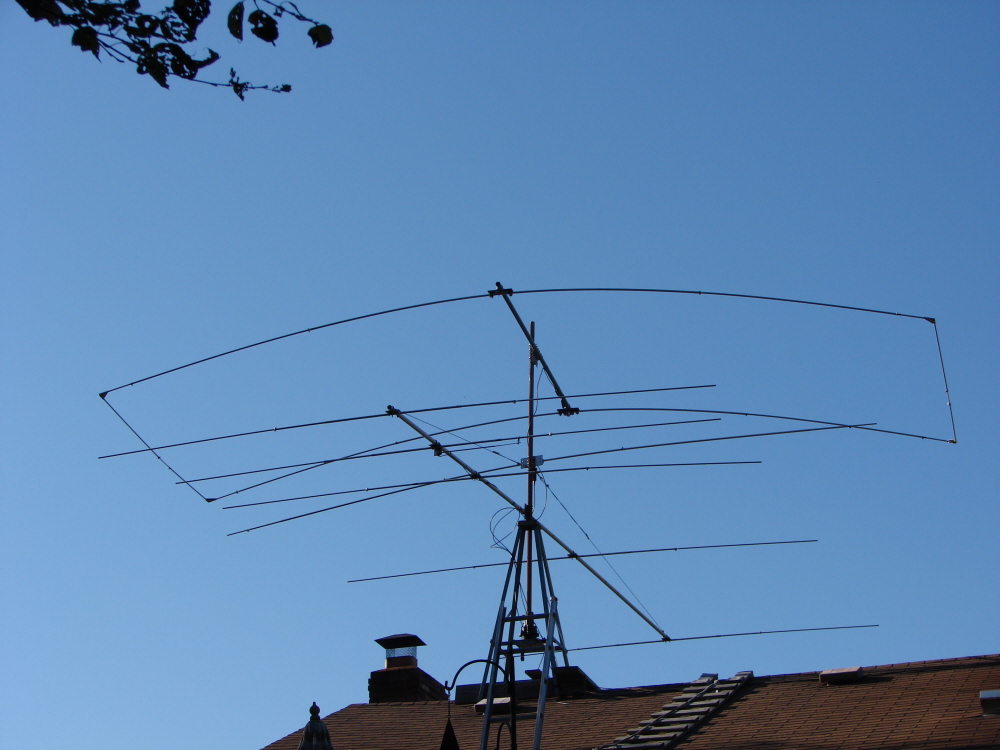

HF Roof Tower

20M HB Moxon Rectangle
15 M Dipole
10M 5el 24' HB Yagi
(With "roof ladder)

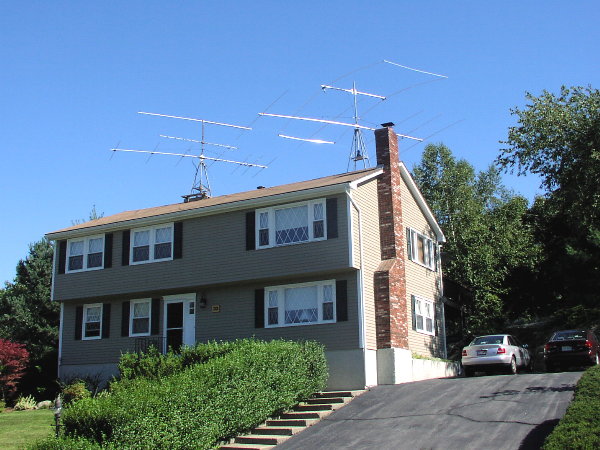

Front

With both roof towers
Left: VHF Right: HF

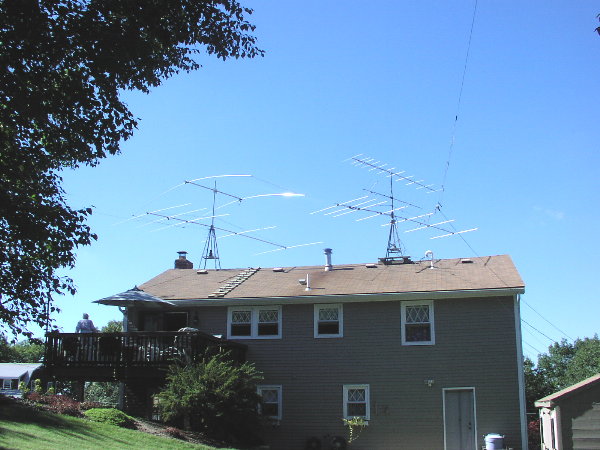

Back

With both roof towers
Left: HF Right: VHF
[The modified DX-CC can also be seen at the right.]

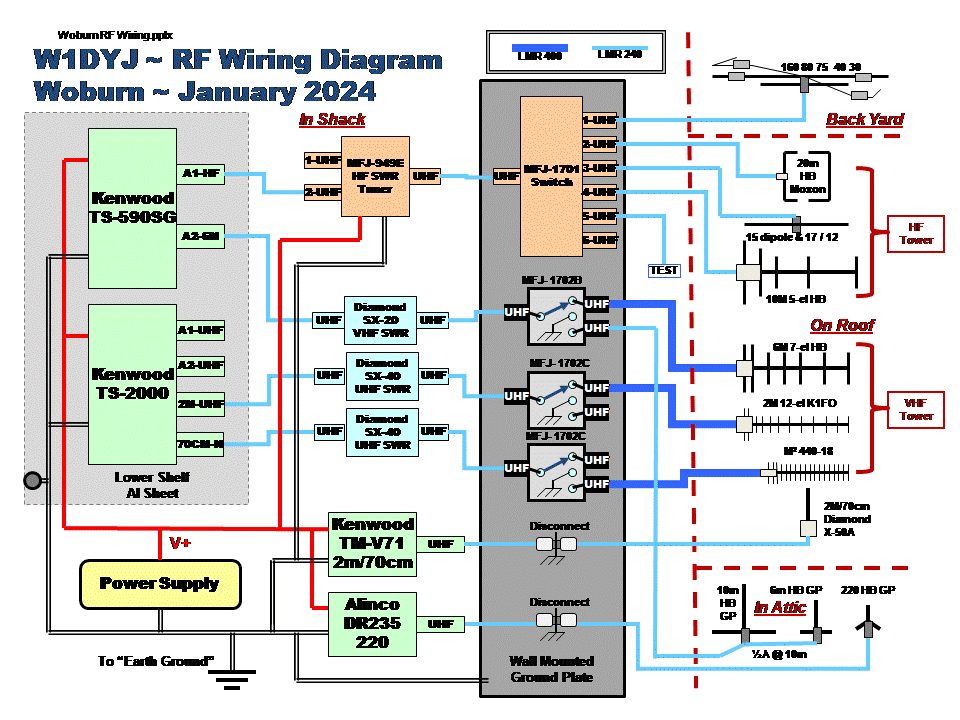

Station Wiring	RF Wiring	Roof Diagram
