SKY-221 SDR HF 160 -10m Transceiver

With Built-in ADC / DAC

For SSB/CW/DIGI/AM/FM

10 Watts



100mm x 30mm x 160mm













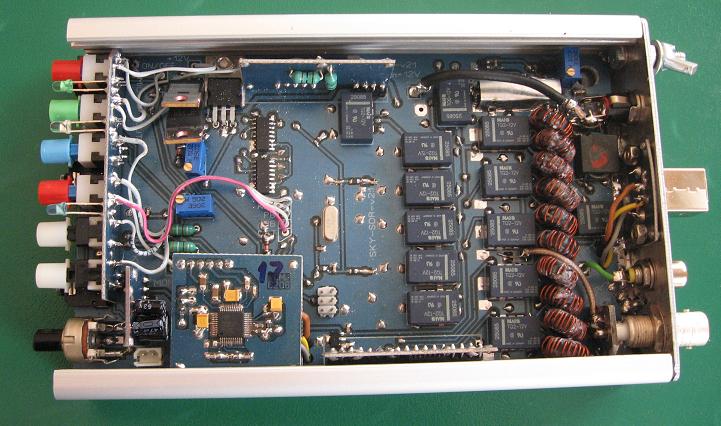

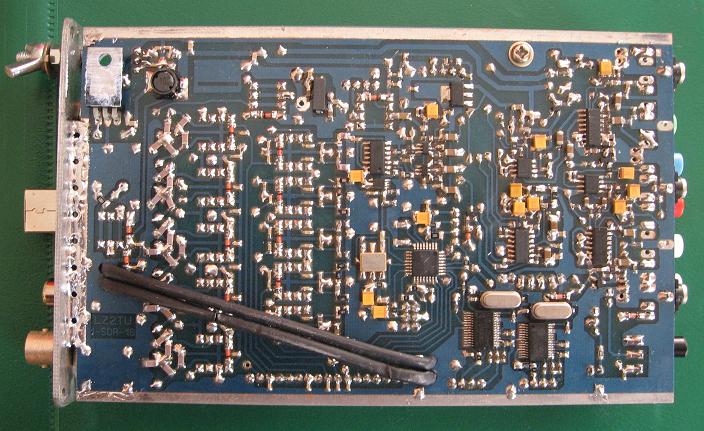

SKY-221/V21 / is designed based on SKY-209 with built in ADC / DAC CM6206.
The original idea was for SDR Transceiver for PSK, SSTV, JT65, JT9, RTTY and other, in my testing about
3 months showed good results and also on CW although CM6206 is 48KHZ but very quiet with
layers compared to the standard built-in sound cards and Inboard laptop computer.
SKY-221 /V21 / need only a USB-2 cable to connect the PC no additional cables except the power supply
and connections between antena. Other conection with PC are only virtual .
SKY-221 /V21 / a 3 jack sockets a front panel :
1.for stereo headphones.
2.for electret microphone with PTT /not used/.
3.for plain keyer or to interface with another computer to work with program in contest
SKY-221 /V21 / AF has its own built-in 1W mono amplifier with speaker.
SKY-221 /V21 / work every program with PowerSDR ,but recommend with IQ
Transmitter power 10W types of SSB andDigital Modes with power supply 13,2V, 7W CW.
PA with MOS RD16HHF1 or RD15HVF1 Mitsubishi

For lovers of QRP licensed radio amateurs!!!

Every HAM has at least one computer in more ....You can use it Now !!!!

SKY-221 handheld radio is almost ... occupies less space and consume less energy!!!
Description:

The  SDR HF 160-10m Transceiver SKY-221 Synthesizer With Si570 and CAT USB QRP 10W  for testing with every PowerSDR.
Transceiver SKY-221 is
Built and Tested.
Features:Size: 100mm*30mm*160mm
•Operating voltage and current : 12.6V...13.2V /Tx 1.6A/Rx 0.25A

•Power on all band minimum 10W out

•AF 1W
•Computer Configuration Pentium IV min 2.4Ghz CPU ,Ram 2GB /or 1.8GHz for Digital modes/

IF by PowerSDR  10000Hz

-------------------------------------------------------------------------------------------------------------------------------------------------------
-REAR PANEL-

•Ant Output/Input  standard - BNC F

•PTT OUT for PA /logic+/ - RCA

•Power receptacle -positive in the middle

•USB -standard usb2

-------------------------------------------------------------------------------------------------------------------------------------------------------

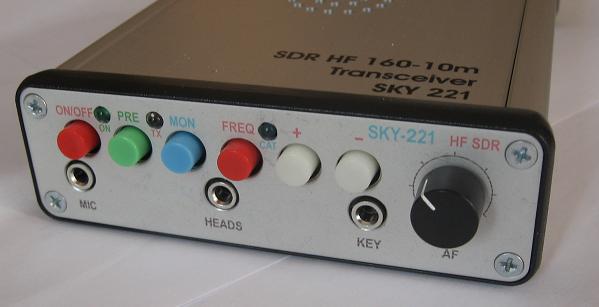

-FRONT PANEL-

•Knob -ON/OFF- Power

•Knob -Preamplifier- +20db ON/OFF

•Knob -Monitor- ON/OFF

Knob -FREQ- Push switch  ON/OFF  -for adjust  settings

•Knob -"+","-"- Push Botons for adjust  settings generator to 1Hz

•LED -ON- Power ON

•LED -PRE- Preamplifier ON

•LED -CAT- indicator blue LED-flashing when CAT is not included and constantly lit when the CAT works

•Knob -AF- for adjust AF Speeker only

-----------------------------------------------------------------------------------------------------------------------------------------------------

Jack F -KEY- for CW key also for tuning with Automatic Antenna Tuner SKY-102-AT

Jack F -Mic- for Electret Microphone/with power for microphone/

Jack F -HEADS- for stereo Headset

-----------------------------------------------------------------------------------------------------------------------------------------------------

All Relays - NAIS JAPAN

-----------------------------------------------------------------------------------------------------------------------------------------------------

Transceiver SKY-221 is Built and Tested from "DOBRI COMMERCE" Ltd.  / LZ2TU /
Kit contains:-SKY-221  Transceiver -1pcs

-Power cable with fuse 3A-1pcs

-USB cable -1pcs

-Manual for SKY-209

-WARANTY

---------------------------------------------------------------------------------------------------------------------------------

MANUAL instalation Part-I (click)



MANUAL CW Part-II (click)



MANUAL DIGI MODES Part-III (click)





---------------------------------------------------------------------------------------------------------------------------------








SDR SKY-221 PRICE $559 + Shiping $30






---------------------------------------------------------------------------------------------------------------------------------
