For the operating system WINDOWS XP

SKY-221 has built its own hub, 2pcs pl2303 and sound card .Hub automatic instal!
The first time, install the USB driver for PL2303 - v1.8.0.: Download hire (click) or
Link:http://www.prolific.com.tw/US/ShowProduct.aspx?p_id=225&pcid=41

Follow the installation instructions!

Now turn USB cable in transceiver SKY-221 and computer, for now does not turn on the power
Once installed look in Device Manager com ports is:

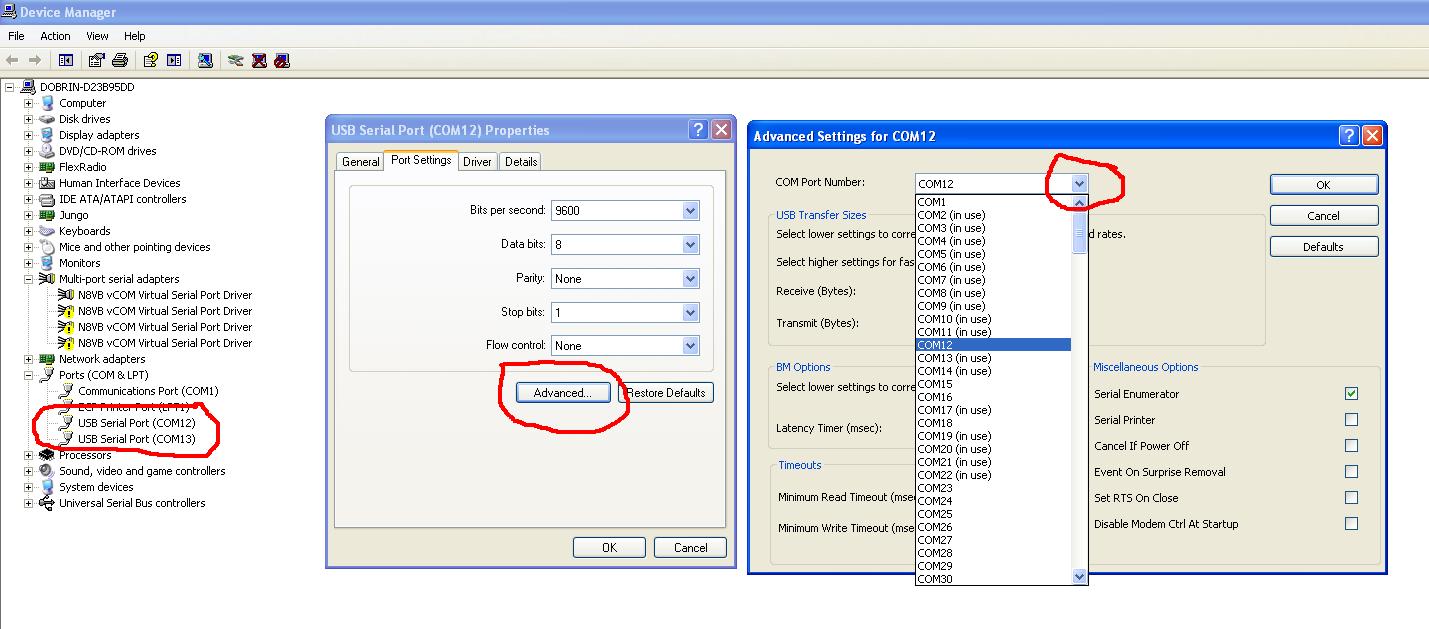

eg ports are 12 and 13 (to you may be different eg 2 and 3 / 4 and 5;6 and 7...) The first port is for CAT Second port is for CW

You can change the port number by clicking on the port you want to change!

REMEMBER-USB WHERE IS Embed FOR THE FIRST TIME IN YOUR COMPUTER SKY-221, always including this USB port ...

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Sound card

Now turn USB cable in transceiver SKY-221 and computer, for now does not turn on the power and You will receive a message about a new device.

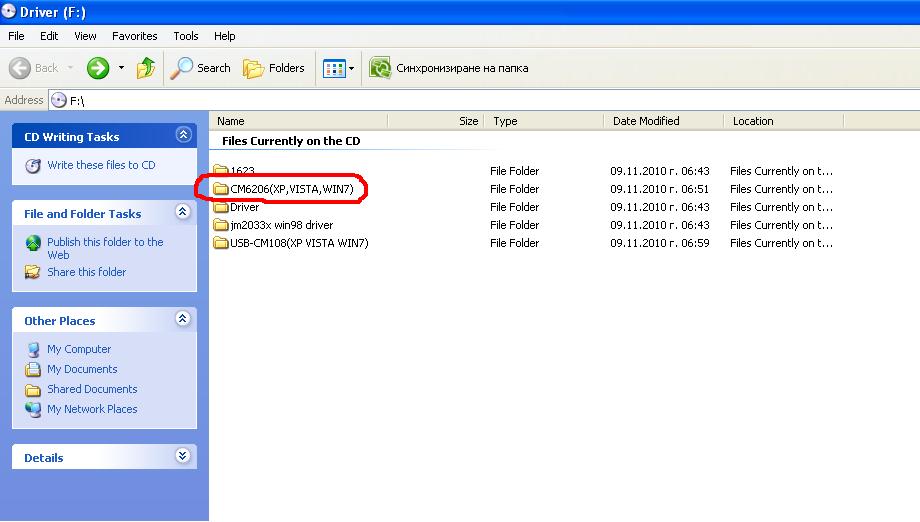

Now install the sound card from CD or Download hire (click) and follow the instructions for installation.

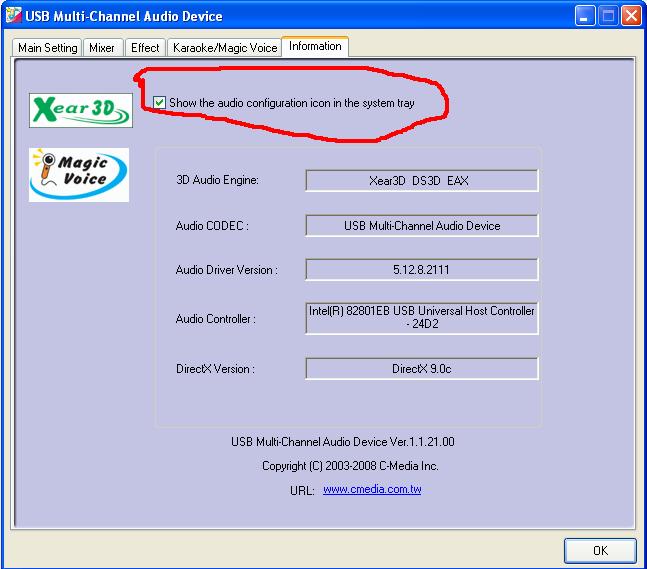

After installing the sound card icon will appear next to the clock on your screen:

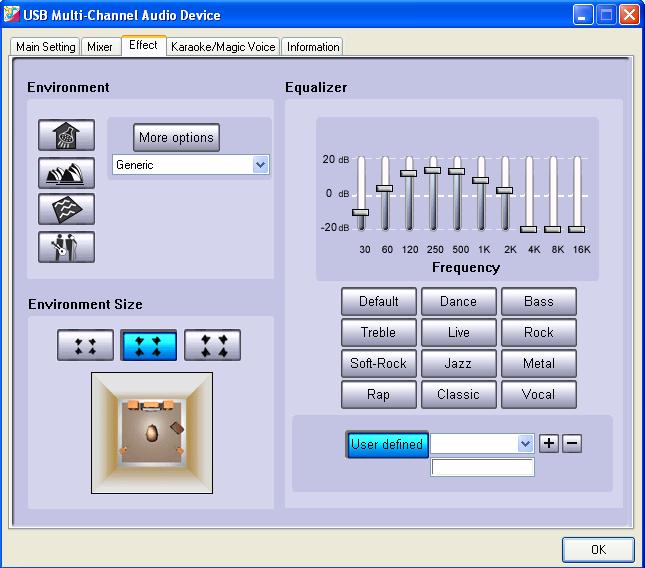

Open and use the following settings:

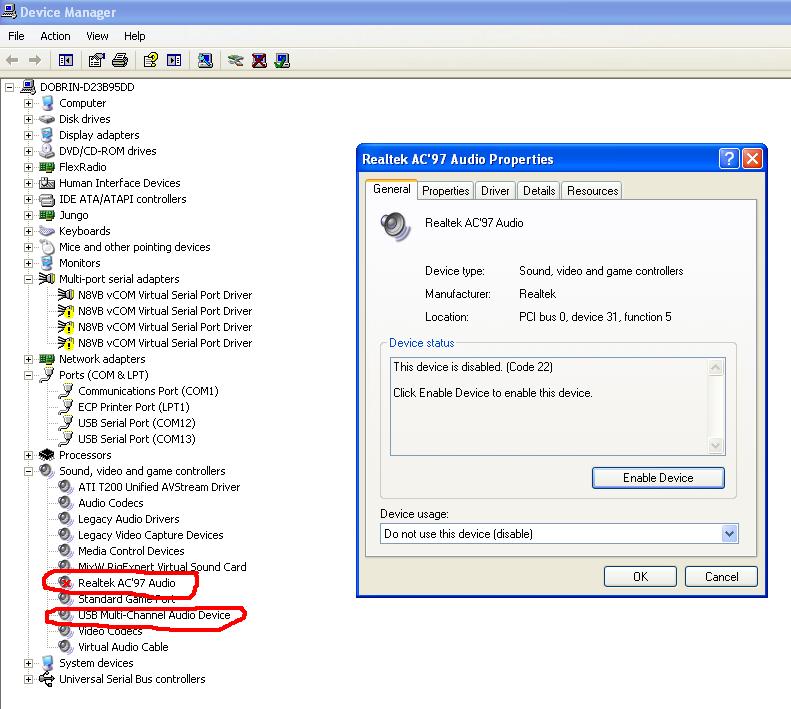

In Device Manager- stop the sound card built your PC:

Already have a sound card installed and com ports.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTALLATION AND SETUP OF PowerSDR-IQ

Before installing maybe after installing PowerSDR-IQ V1.12.20 announces to install a program ASIO4ALL_2_11_Beta1_English.exe

download link http://www.asio4all.com/ she is free to download.

-----------------------------------------------------------------------------------------
INSTALLATION AND SETUP OF PowerSDR-IQ v1.12.20 :Link hire http://powersdr-iq.software.informer.com/ or

Download hire (click )
Start the installation and follow the instructions for installation as initially select as USER only you
to use and not all that's required then you can access hidden files in C: \ Documents and Settings.
After installing the program display of MY PROGRAM icon on your desktop and launch the installed
program you have installed some program NET Framework ... Sp1 program will inform you and drag
from the website of Microsoft. After installing those missing programs run the program again it will start
To create a directory which takes about 5 minutes after you create a window and follow the instructions:

Selects " with Si570" and audio card "unknown", then this procedure will open the work program and then on first time may place these settings:

-------------------------------------------------------------------------------------------------------------------------------

1.
Setup: General:

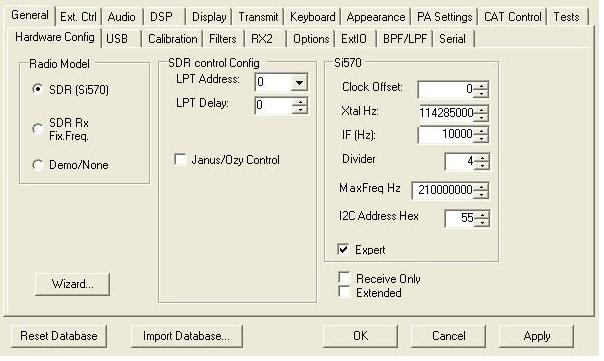

Bookmarking:(as the picture)SDR(Si570) ;LPT Adress = 0 (zero); Expert : ONLY on IF(Hz) = 10000

---------------------------------------------------------------------------------------------------------------------------------

2.

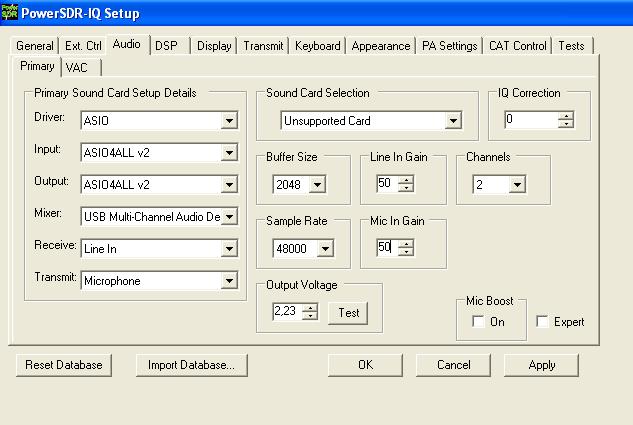

Audio:Primary

Driver:ASIO - Automatically installed

Input: ASIO4ALL v2- Automatically installed

Output: ASIO4ALL v2- Automatically installed

Mixer: USB-Multi-Channel Audio-Device

Receive: Line

Transmit: Microphone

Buffer Size = 2048

Line in Gain = from 0 to 100/nice medium 50/

Sample Rate : size your audio card 48000

Mic Boost: from 0 to 100/nice medium 50/

After connection CAT push Test and and follow the instructions .... you should hear a clear sound finally!

3.

Opcions

Bookmarking:(as the picture)

4.

CAT Control

Bookmarking:(as the picture)

Port: see in Device manager(click)

Boud = 57600 for SKY-221

CAT be powered blue LED constantly
when CAT is not connected the blue LED flashes

5.

Now run the Start of PowerSDR

Can now listen to any radio station, but you have to make calibration frequency to make calibration level
and to suppress the mirror channel ....

6.

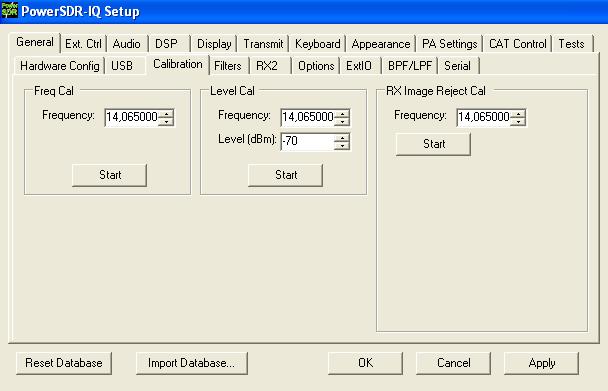

Now Go: Setup - Calibration

Can now listen to any radio station, but you have to make calibration frequency to make calibration level
and to suppress the mirror channel
There are two methods of calibration: the first with a signal generator or Ham transceiver tuned to dummy load or remote antenna with low power and the second local broadcast stations
With the first method, all three settings can be an example 14.065000 frequency Hz or other frequency.
The second method is to comply with local transmitter accurate frequency and level!

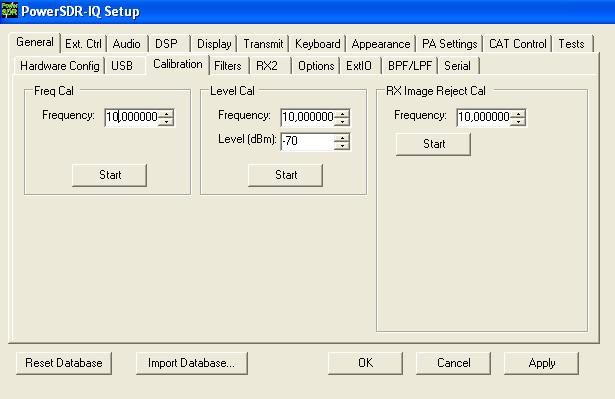

Freq Cal : frequency calibration can be performed by tuning to a known Frequency Standard like WWV/WWVH on 5, 10 or 15MHz.

Level Cal: frequency calibration can be performed by tuning to a known Frequency Standard like WWV/WWVH on 5, 10 or 15MHz or in concert radio station

with a high-level . Level (dBm) : -70

RX Image Reject Cal:frequency calibration can be performed by tuning to a known Frequency Standard like WWV/WWVH on 5, 10 or 15MHz or in concert radio station with a high-level .

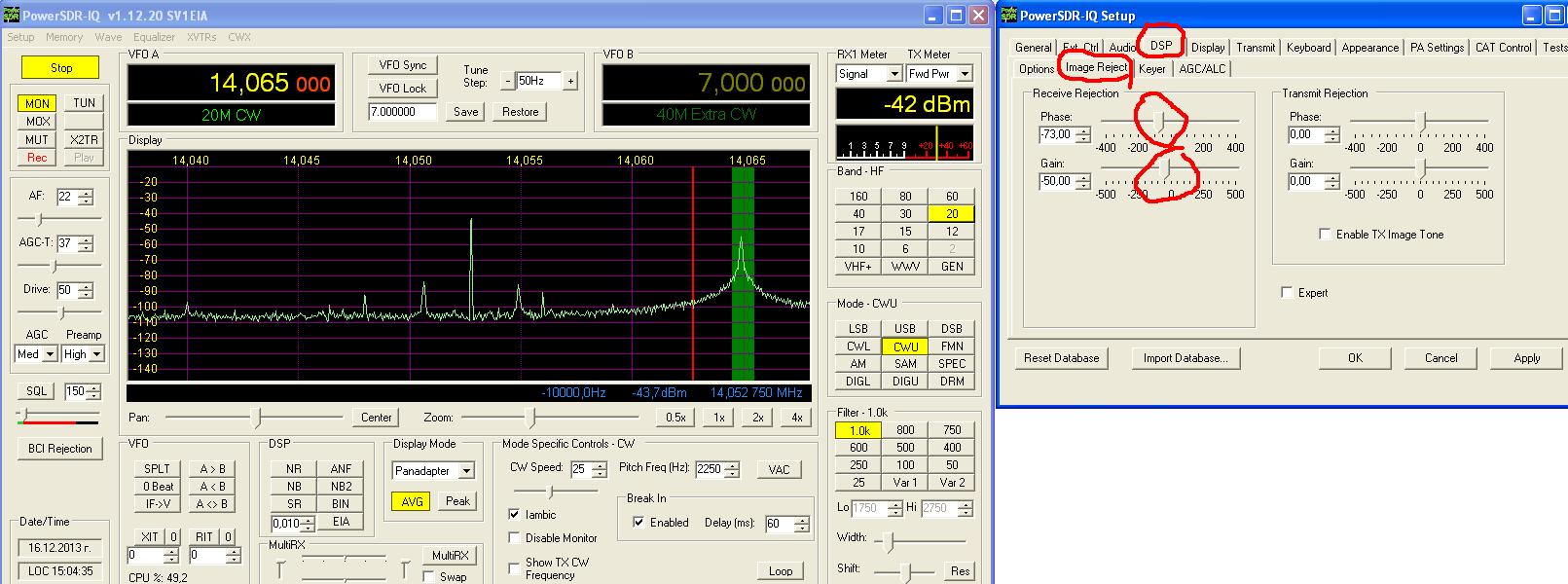

7.Image Reject

after Image Reject

Transmit Rejection will not adjust - the processing of the program!

When you do these calibrations can now listen and work CW on the bands!!!!
