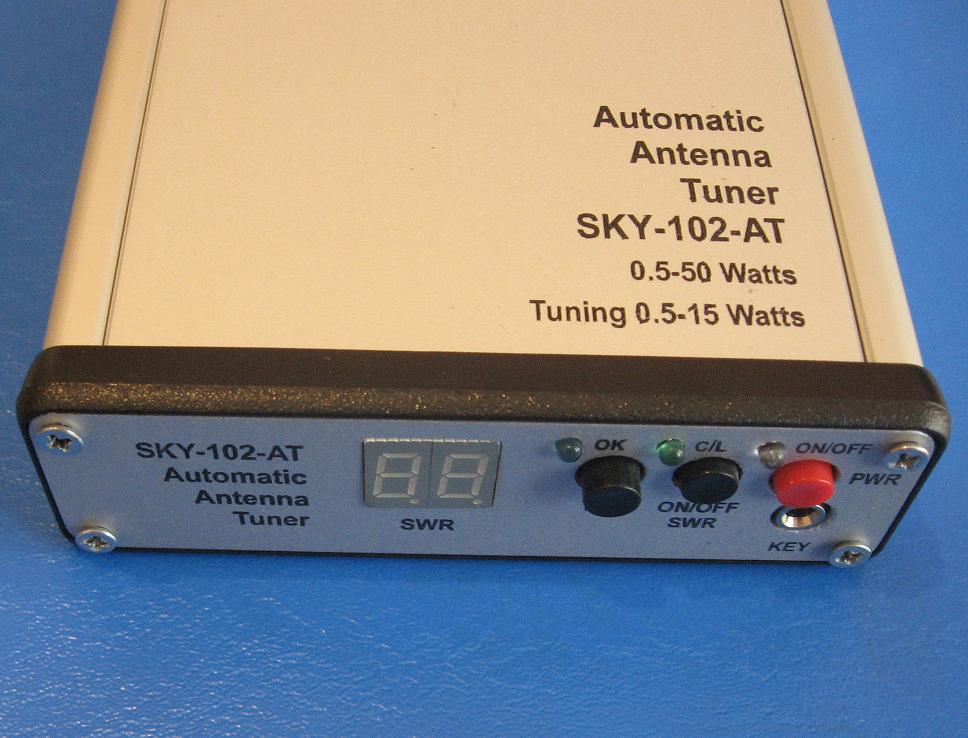

SKY-102-AT is Automatic Antenna
Tuner HF 160-10m based in box for SDR Transceiver SKY-209 and
SKY-221 .
Input tuning from 0,5 to 15 Watts.
Output working 0,5 to 50 Watts.
Tuning: Key Jack Automatic Antenna Tuner conect with Key on
SKY-209,SKY-221 or other QRP transceiver mode CW/I testing with
FT817 - very good job/
Features:•Size: 100mm*30mm*160mm
•Operating voltage and current : 12V...13.2V / 1.5A
•Time Tuning SWR 1>1 20 seconds max
•Knob PWR ON/OFF
•Knob ON/OFF SWR
•Knob TUN -Tuning mode
•LED ON/OFF - Red on
•LED C/L Green - for hing on low impedance antena tuning
•LED OK Blue -lights after tuning in minimun SWR
Automatic Antenna Tuner SKY-102-AT is Built and Tested from
"DOBRI COMMERCE" Ltd. / LZ2TU /
Kit contains:
- Automatic Antenna Tuner SKY-102-AT -1pcs
-Power cable with fuse -1pcs
-Manual for SKY-102-AT
-WARANTY
