Tracking Generator

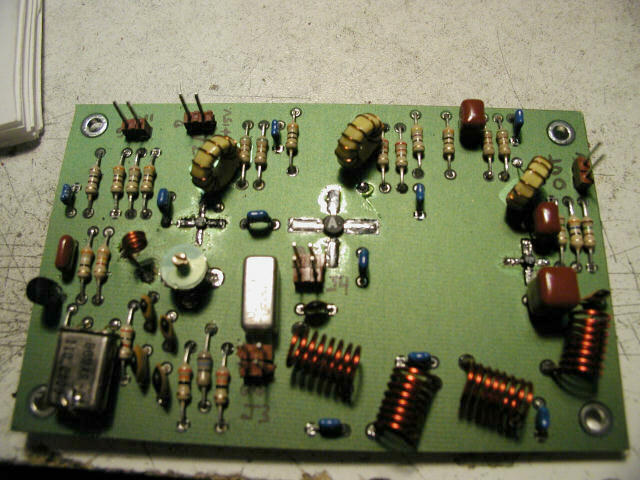

This is the completed Tracking Generator board. The old board had a metallic ground plane on top, but the newer Kanga boards look great! Hopefully, this may help you with winding the coils and putting together your TG.

One tip I might offer is to put the second MAR-3 in place before installing the nearby capacitors. They are quite large and make installation of the little amp very difficult.
